Azure Blob Rehydration

The Azure Blob Rehydration source reads OTLP data previously archived to Azure Blob Storage and replays it through the collector. It processes blobs within a specified UTC time range, so you can reprocess historical telemetry into a new destination on demand.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux	✓	✓	✓
Windows	✓	✓	✓
macOS	✓	✓	✓
Kubernetes Cluster	✓	✓	✓

Prerequisites

• An Azure Blob Storage account and its connection string.
• The storage container holding the archived telemetry, which must be in OTLP format for correct processing. Data written by Bindplane's Azure Blob Storage destination is already in this format.
• The UTC start and end time that bound the blobs you want to rehydrate.

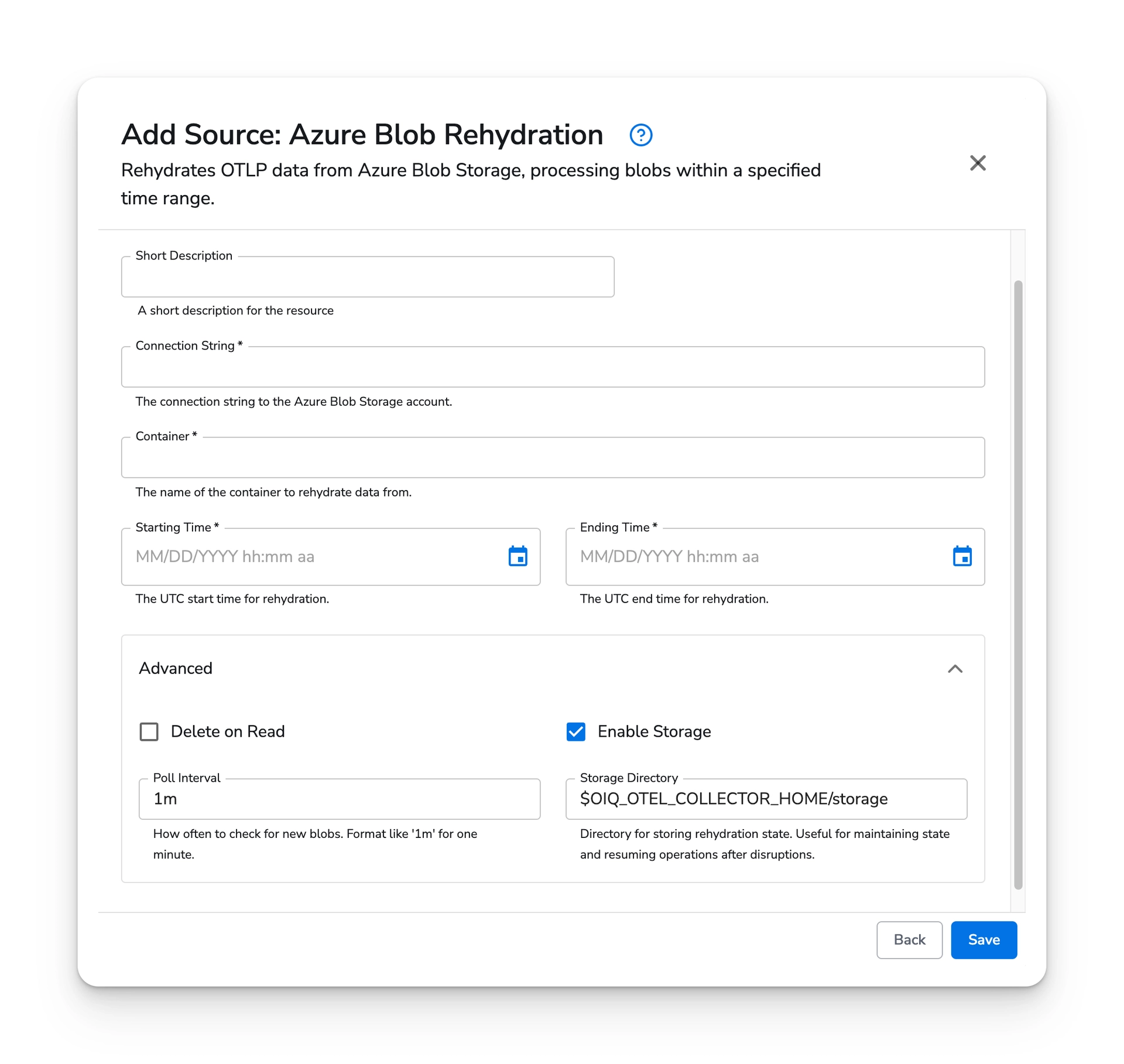

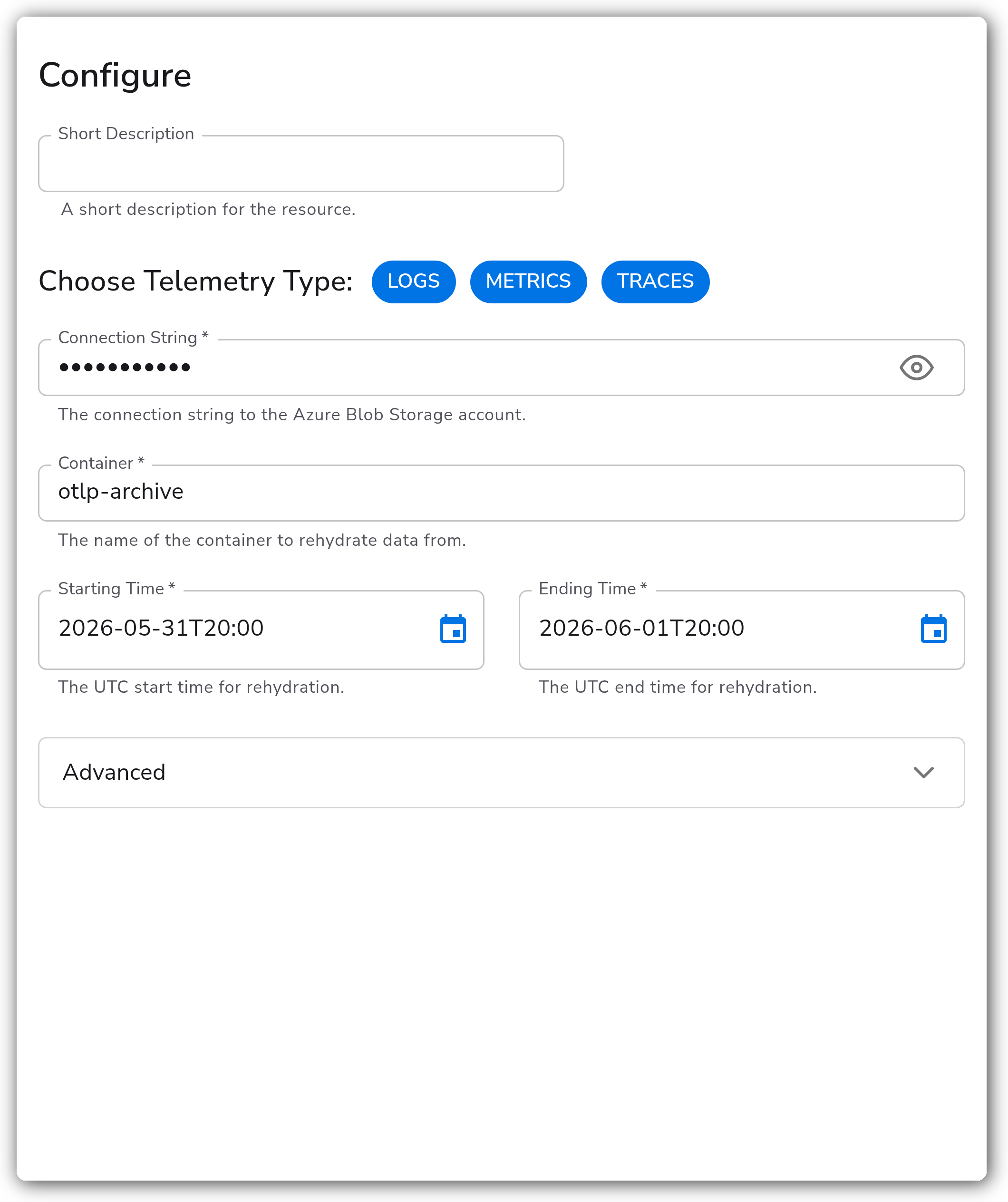

Configuration

General

Parameter	Type	Default	Description
Choose Telemetry Type	Telemetry Selector	["Logs","Metrics","Traces"]	Which types of telemetry to rehydrate. Select any combination of Logs, Metrics, and Traces.
Connection String	String		The connection string to the Azure Blob Storage account. Required. Stored as a sensitive value.
Container	String		The name of the container to rehydrate data from. Required.
Starting Time	Timestamp		The UTC start time for rehydration. Required.
Ending Time	Timestamp		The UTC end time for rehydration. Required.

Advanced

Parameter	Type	Default	Description
Page Size	Integer	1000	The maximum number of blob entries to return in a single API call.
Batch Size	Integer	30	The number of blobs to download at once. This controls the number of concurrent blob downloads and directly impacts rehydration rate.
Delete on Read	Boolean	false	If true, blobs are deleted after being rehydrated.
Enable Checkpoint	Boolean	true	Enable to specify a storage extension for checkpointing rehydration progress.
Checkpoint Directory	String	${OIQ_OTEL_COLLECTOR_HOME}/storage	Directory for storing rehydration checkpoint state, useful for resuming after disruptions. Relevant only when storage_enable is true.

Example Configuration

Standalone Source

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: azure_blob_rehydration_v2
  name: azure_blob_rehydration_v2
spec:
  type: azure_blob_rehydration_v2
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces
    - name: connection_string
      value: 'DefaultEndpointsProtocol=https;AccountName=...;AccountKey=...;EndpointSuffix=core.windows.net'
    - name: container
      value: 'otlp-archive'
    - name: starting_time
      value: '2026-06-01T00:00:00Z'
    - name: ending_time
      value: '2026-06-02T00:00:00Z'
    - name: batch_size
      value: '30'
    - name: page_size
      value: '1000'
    - name: storage_enable
      value: 'true'

Configuration Tips

Tuning batch and page size

• batch_size controls how many blobs download concurrently. If your host has many cores and ample network bandwidth, raising it increases the rate of rehydration. Lower it if the collector is memory or bandwidth constrained.
• page_size controls how many blob entries each list API call returns. The default of 1000 suits most containers. Adjusting it changes how often Bindplane calls the Azure list API while enumerating blobs, not how fast data downloads.

Checkpointing and resuming

• Leave storage_enable on so progress is checkpointed to storage_directory. If the collector restarts mid-rehydration, it resumes from the last checkpoint instead of reprocessing the whole time range.
• On a Kubernetes Cluster collector, deploy as a StatefulSet so the checkpoint directory is backed by persistent storage.

Reprocessing safely

• Keep delete_on_read set to false while validating a rehydration. Only enable it once you are sure the archived blobs are no longer needed, since enabling it removes blobs from the container after they are read.

Troubleshooting

Symptom: The source connects but no data is rehydrated. Solution: Confirm the starting_time and ending_time window actually contains archived blobs and that both are expressed in UTC. Blobs outside the configured range are skipped.

Symptom: Rehydration is slower than expected. Solution: Increase batch_size to download more blobs concurrently, provided the host has the CPU, memory, and network headroom. If the collector becomes resource constrained, lower it instead.

Symptom: A restarted collector reprocesses telemetry it already rehydrated. Solution: Ensure storage_enable is true and that storage_directory points to durable storage. On Kubernetes, deploy the collector as a StatefulSet so the checkpoint state survives pod restarts.
