# RabbitMQ

The RabbitMQ source collects metrics and logs from a RabbitMQ broker. Metrics are scraped from the RabbitMQ Management plugin HTTP API using a monitoring user (consumer counts and message delivery, publish, acknowledge, drop, and current-message rates). Logs are read from the RabbitMQ log files on the collector host and optionally parsed into structured fields.

### Supported Telemetry

| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| macOS    | ✓       | ✓    |        |
| Linux    | ✓       | ✓    |        |
| Windows  | ✓       | ✓    |        |

### Prerequisites

**Metrics**

* A reachable RabbitMQ node with the RabbitMQ Management plugin enabled. The plugin exposes the HTTP API the receiver scrapes (default port `15672`). Enable it with `rabbitmq-plugins enable rabbitmq_management`. See [Management Plugin](https://www.rabbitmq.com/docs/management).
* A monitoring user. Create a dedicated RabbitMQ user and grant it the `monitoring` tag so it can read broker statistics without administrative rights. See [Authentication, Authorisation, Access Control](https://www.rabbitmq.com/docs/access-control).
* Network reachability from the collector to the Management API endpoint (host and port).
* If the Management API is served over HTTPS, the TLS material to validate it (a CA certificate file, and a client certificate and key if mutual TLS is required).

**Logs**

* RabbitMQ writing its log files on the host where the collector runs. The default path is `/var/log/rabbitmq/rabbit@*.log`.
* Read access for the collector to those log file paths.

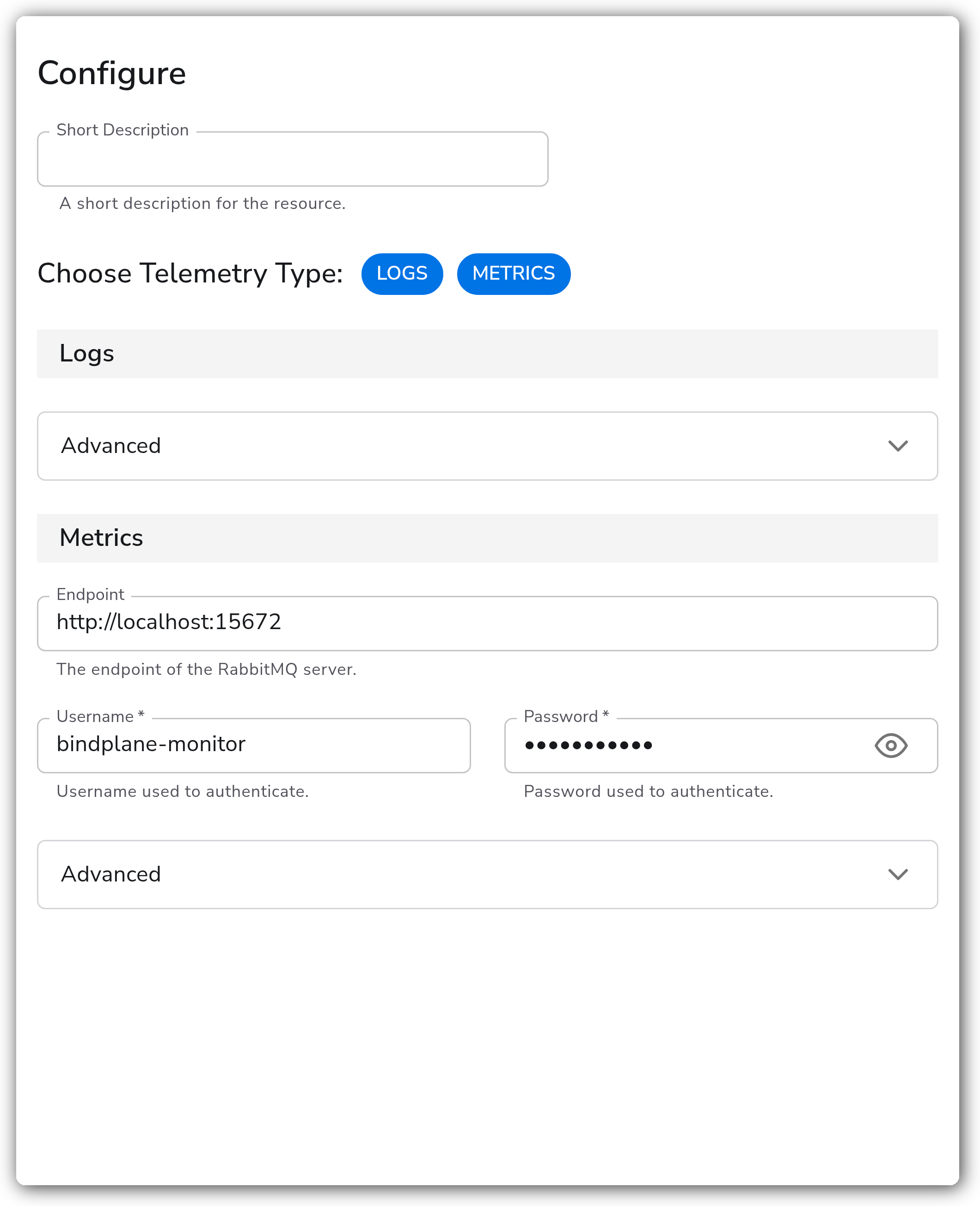

### Configuration

<figure><img src="/files/vG9PsuTMxpPMN7krGsBe" alt="Bindplane docs - RabbitMQ - image 1"><figcaption></figcaption></figure>

**Telemetry Type**

| Parameter             | Type               | Required | Default               | Description                                                 |
| --------------------- | ------------------ | -------- | --------------------- | ----------------------------------------------------------- |
| Choose Telemetry Type | Telemetry Selector | No       | `["Logs", "Metrics"]` | Which signals this source collects: Logs, Metrics, or both. |

**Logs**

| Parameter | Type                 | Required | Default                          | Description                                                                                   |
| --------- | -------------------- | -------- | -------------------------------- | --------------------------------------------------------------------------------------------- |
| Log Paths | Strings              | No       | `/var/log/rabbitmq/rabbit@*.log` | Path to RabbitMQ log file(s). Glob patterns are supported. Relevant when Logs is selected.    |
| Start At  | Enum: beginning, end | No       | `end`                            | Start reading logs from the `beginning` or `end` of the file. Relevant when Logs is selected. |
| Parse     | Boolean              | No       | `true`                           | Parses the log fields into structured data. Relevant when Logs is selected.                   |

**Metrics**

| Parameter           | Type    | Required | Default                  | Description                                                                             |
| ------------------- | ------- | -------- | ------------------------ | --------------------------------------------------------------------------------------- |
| Endpoint            | String  | No       | `http://localhost:15672` | The endpoint of the RabbitMQ Management API. Relevant when Metrics is selected.         |
| Username            | String  | Yes      | *(empty)*                | Username used to authenticate to the Management API. Relevant when Metrics is selected. |
| Password            | String  | Yes      | *(empty)*                | Password used to authenticate to the Management API. Relevant when Metrics is selected. |
| Collection Interval | Integer | No       | `60`                     | How often (seconds) to scrape for metrics. Relevant when Metrics is selected.           |

**Advanced**

| Parameter                         | Type    | Required | Default   | Description                                                                                                                             |
| --------------------------------- | ------- | -------- | --------- | --------------------------------------------------------------------------------------------------------------------------------------- |
| Enable TLS                        | Boolean | No       | `false`   | Whether or not to use TLS when connecting to the Management API. Relevant when Metrics is selected.                                     |
| Skip TLS Certificate Verification | Boolean | No       | `false`   | Skip verification of the server's TLS certificate. Relevant when Metrics is selected and Enable TLS is `true`.                          |
| TLS Certificate Authority File    | String  | No       | *(empty)* | Certificate authority used to validate TLS certificates. Relevant when Metrics is selected and Enable TLS is `true`.                    |
| TLS Client Certificate File       | String  | No       | *(empty)* | A TLS certificate used for client authentication, if mutual TLS is enabled. Relevant when Metrics is selected and Enable TLS is `true`. |
| TLS Client Private Key File       | String  | No       | *(empty)* | A TLS private key used for client authentication, if mutual TLS is enabled. Relevant when Metrics is selected and Enable TLS is `true`. |
| Metrics                           | Metrics | No       | `[]`      | Toggle individual metrics on and off. Relevant when Metrics is selected.                                                                |

### Examples

#### Collect metrics and logs from a local RabbitMQ broker

This source scrapes the Management API at the default endpoint with a dedicated monitoring user every 30 seconds, and tails the default RabbitMQ log path.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: rabbitmq
spec:
  type: rabbitmq
  parameters:
    - name: telemetry_types
      value: ["Logs", "Metrics"]
    - name: endpoint
      value: http://localhost:15672
    - name: username
      value: bindplane-monitor
    - name: password
      value: "<password>"
    - name: collection_interval
      value: 30
    - name: daemon_log_paths
      value:
        - "/var/log/rabbitmq/rabbit@*.log"
    - name: start_at
      value: end
```

### Configuration Tips

* The Endpoint is the RabbitMQ Management API (default port `15672`), not the AMQP port `5672`. Use the URL where the Management plugin is served.
* Use a dedicated user with only the `monitoring` tag rather than an administrator account, so the collector has the access it needs and nothing more.
* When the Management API is served over HTTPS, set Enable TLS and provide a CA file. Only enable Skip TLS Certificate Verification for testing, never in production.

### Troubleshooting

#### Connection refused or no metrics

Symptoms: the receiver cannot reach the endpoint, or no RabbitMQ metrics appear.

Solutions:

1. Confirm the Management plugin is enabled (`rabbitmq-plugins list` shows `rabbitmq_management`).
2. Verify the Endpoint host and port (default `15672`) and that a firewall is not blocking the collector.

#### Authentication failed

Symptoms: the Management API returns 401 or 403 and no metrics are collected.

Solutions:

1. Verify the Username and Password are correct.
2. Confirm the user has the `monitoring` tag so it can read broker statistics.

#### TLS handshake errors

Symptoms: the connection fails with a certificate or TLS error when Enable TLS is on.

Solutions:

1. Provide a CA file that signs the Management API server certificate.
2. For mutual TLS, supply both the client certificate and private key files.

#### No logs collected

Symptoms: logs are enabled but none arrive.

Solutions:

1. Confirm the Log Paths match the broker's actual log files (default `/var/log/rabbitmq/rabbit@*.log`).
2. Verify the collector user has read access to those files.

### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: rabbitmq
spec:
  type: rabbitmq
  parameters:
    - name: telemetry_types
      value: ["Logs", "Metrics"]
    - name: endpoint
      value: http://localhost:15672
    - name: username
      value: bindplane-monitor
    - name: password
      value: "<password>"
    - name: collection_interval
      value: 60
    - name: enable_tls
      value: false
    - name: daemon_log_paths
      value:
        - "/var/log/rabbitmq/rabbit@*.log"
    - name: start_at
      value: end
    - name: parse
      value: true
```

### Related Resources

* [RabbitMQ Management Plugin](https://www.rabbitmq.com/docs/management)
* [RabbitMQ Monitoring](https://www.rabbitmq.com/docs/monitoring)
* [rabbitmqreceiver — OpenTelemetry Collector Contrib](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/receiver/rabbitmqreceiver)


---
