Splunk (TCP)

The Splunk (TCP) source runs a TCP listener that receives logs from Splunk universal or heavy forwarders. Incoming records are accepted on a configurable address and port, optionally parsed as JSON or with a regex pattern, and tagged with a log_type attribute for downstream filtering.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux		✓
Windows		✓
macOS		✓
Kubernetes Gateway		✓
OpenShift Gateway		✓

Prerequisites

• A Splunk forwarder (universal or heavy) configured to send data to a third-party TCP destination. See Forward data to third-party systems.
• The collector reachable from the forwarder on the configured listen port (default 9997).
• For Kubernetes Gateway and OpenShift Gateway deployments, a Service that exposes the listen port to the forwarders (see Configuration Tips).
• If TLS is enabled, a TLS certificate and private key reachable on the collector host.

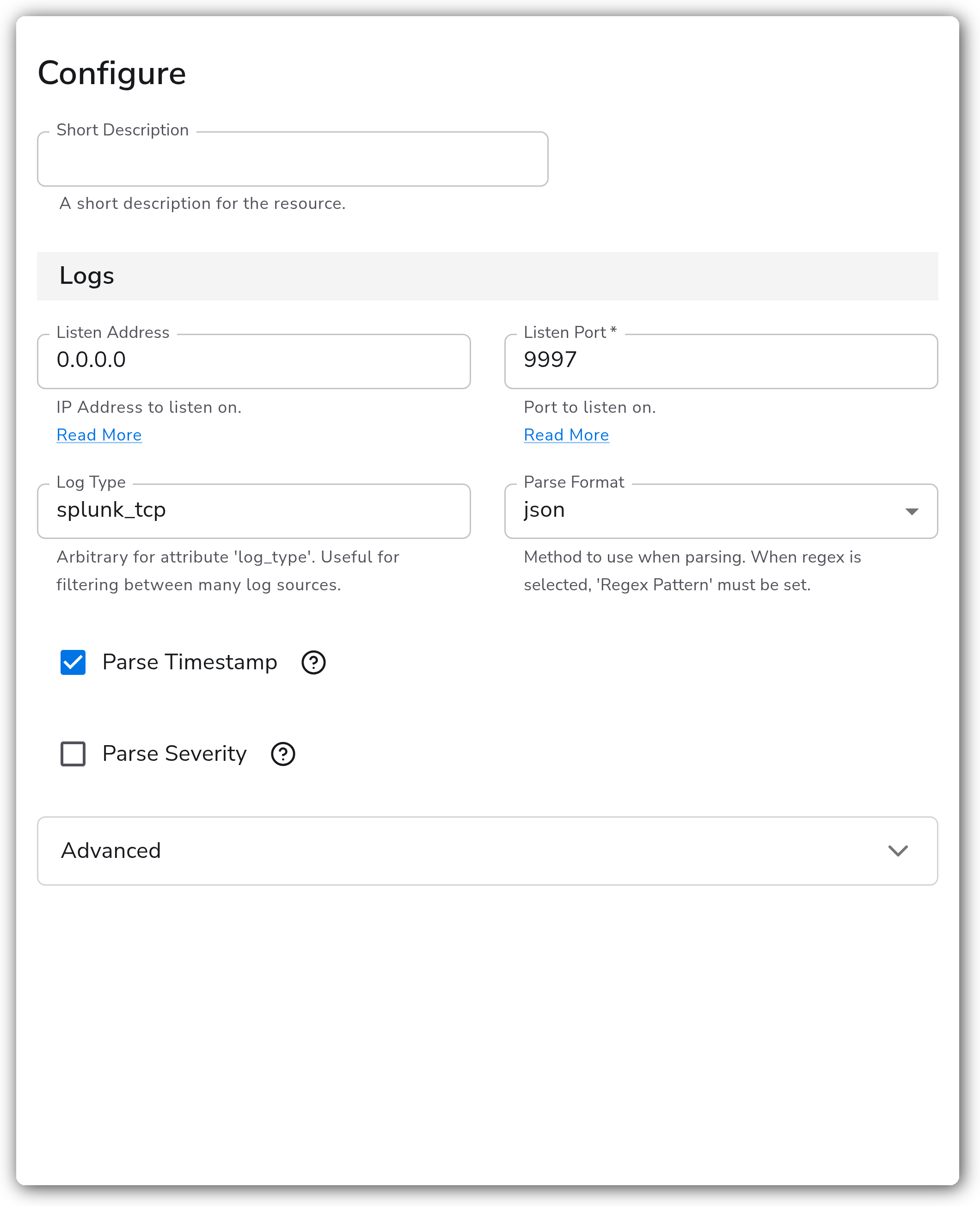

Configuration

General

Parameter	Type	Default	Description
Listen Address	String	0.0.0.0	IP address to listen on.
Listen Port	Integer	9997	Port to listen on. Required.
Log Type	String	splunk_tcp	Value for the log_type attribute. Useful for filtering between many log sources.

Parsing

Parameter	Type	Default	Description
Parse Format	Enum	none	Method to use when parsing. One of none, json, regex.
Regex Pattern	String		The regex pattern used when parsing log entries. Required when parse_format is regex.
Parse Severity	Boolean	false	Whether to parse severity from the log entry. Available when parse_format is not none.
Severity Field	String	severity	The field containing the severity in the log entry. Required when parse_severity is enabled.

Timestamp

Parameter	Type	Default	Description
Parse Timestamp	Boolean	false	Whether to parse the timestamp from the log entry. Available when parse_format is not none.
Timestamp Field	String	timestamp	The field containing the timestamp in the log entry. Required when parse_timestamp is enabled.
Timestamp Format	Enum	RFC3339	The format of the timestamp. One of RFC3339, ISO8601, Epoch, Manual. Available when parse_timestamp is enabled.
Epoch Layout	Enum	s	The layout of the epoch-based timestamp. One of s, ms, us, ns, s.ms, s.us, s.ns. Required when parse_timestamp_format is Epoch.
Timestamp Layout	String	%Y-%m-%dT%H:%M:%S.%f%z	The strptime layout of the timestamp. Required when parse_timestamp_format is Manual.
Timezone	Timezone	UTC	The timezone to use if the timestamp format doesn't include one. Available when parse_timestamp is enabled and the format is not RFC3339 or Epoch.

Advanced

Parameter	Type	Default	Description
Parse To	Enum	body	The field the log will be parsed to. One of body, attributes. Available when parse_format is not none.
Enable TLS	Boolean	false	Whether or not to use TLS.
TLS Certificate File	String		Path to the TLS certificate to use for TLS-required connections. Available when TLS is enabled.
TLS Private Key File	String		Path to the TLS private key to use for TLS-required connections. Available when TLS is enabled.
Minimum TLS Version	Enum	1.2	The minimum TLS version to support. One of 1.3, 1.2, 1.1, 1.0. 1.0 and 1.1 should not be considered secure. Available when TLS is enabled.

Example Configuration

Standalone Source

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: splunk_tcp
  name: splunk_tcp
spec:
  type: splunk_tcp
  parameters:
    - name: listen_ip
      value: '0.0.0.0'
    - name: listen_port
      value: '9997'
    - name: log_type
      value: 'splunk_tcp'
    - name: parse_format
      value: 'json'
    - name: parse_timestamp
      value: 'true'
    - name: timestamp_field
      value: 'timestamp'
    - name: parse_timestamp_format
      value: 'RFC3339'

Configuration Tips

Parsing incoming records

• Leave parse_format set to none to forward raw log bodies. Choose json for structured forwarder output, or regex when you need to extract fields from a fixed line format. When you select regex, regex_pattern is required.
• Timestamp and severity parsing only apply once parse_format is set to something other than none. Enable parse_timestamp and point timestamp_field at the field carrying event time so records aren't stamped with ingestion time.

Kubernetes and OpenShift

• The source supports Kubernetes Gateway and OpenShift Gateway collectors. Set Listen Address to 0.0.0.0 and Listen Port to 9997.
• Point forwarders at the gateway Service, for example bindplane-gateway-collector.bindplane-collector.svc.cluster.local:9997. If the forwarders live outside the cluster, expose the bindplane-gateway-collector Service in the bindplane-collector namespace through TCP ingress or a custom Service. See Custom Service.

A matching Splunk forwarder outputs.conf looks like:

[tcpout]
defaultGroup = bindplane-gateway-collector

[tcpout:bindplane-gateway-collector]
server = bindplane-gateway-collector.bindplane-collector.svc.cluster.local:9997
compressed = false
useACK = false
sendCookedData = false

Troubleshooting

Symptom: No logs arrive from the forwarder. Solution: Confirm the forwarder's outputs.conf targets the collector host and the configured listen port, and that the collector is reachable on that port. The default port is 9997.

Symptom: Records arrive but parse to a single unstructured body. Solution: Set parse_format to json or regex to match the forwarder output. For regex, make sure regex_pattern matches the incoming line format.

Symptom: Log timestamps reflect ingestion time instead of event time. Solution: Set parse_format to a value other than none, enable parse_timestamp, and set timestamp_field to the field containing the event time. Match parse_timestamp_format to the format of that field.
