> For the complete documentation index, see [llms.txt](https://docs.bindplane.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.bindplane.com/integrations/sources/elasticsearch.md). # Elasticsearch The Elasticsearch source collects metrics and logs from Elasticsearch. Metrics are scraped from the Elasticsearch stats API (node, cluster, OS, and JVM metrics) over HTTP or HTTPS using an optional monitoring user. Logs are read from the Elasticsearch JSON log files (server, deprecation, slow logs, audit) and the garbage collection log files. Each signal can be enabled independently with the Choose Telemetry Type selector. ### Supported Telemetry | Platform | Metrics | Logs | Traces | | -------- | ------- | ---- | ------ | | Linux | ✓ | ✓ | | | Windows | ✓ | ✓ | | | macOS | ✓ | ✓ | | ### Prerequisites This source supports Elasticsearch versions 7.9 and later. **For metrics:** * A reachable Elasticsearch HTTP API endpoint (default `localhost:9200`) from the collector host. * If Elasticsearch security features are enabled, a monitoring user with the minimum required privileges. The receiver scrapes read-only cluster, node, and index stats, so the user needs either the `monitor` or `manage` cluster privilege. Grant the least-privileged option (`monitor`). See the [Elasticsearch security privileges reference](https://www.elastic.co/docs/reference/elasticsearch/security-privileges). * If TLS is enabled, the certificate authority file to validate the server certificate (for strict verification), and a client certificate and key if mutual TLS is required. **For logs:** * Elasticsearch configured to write JSON-formatted logs and garbage collection logs to disk (the default file paths are under `/var/log/elasticsearch/`). * The collector running on the Elasticsearch host with read access to those log files. Logs are read locally per node, so the collector is typically installed on each node. ### Configuration
Bindplane docs - Elasticsearch - image 1

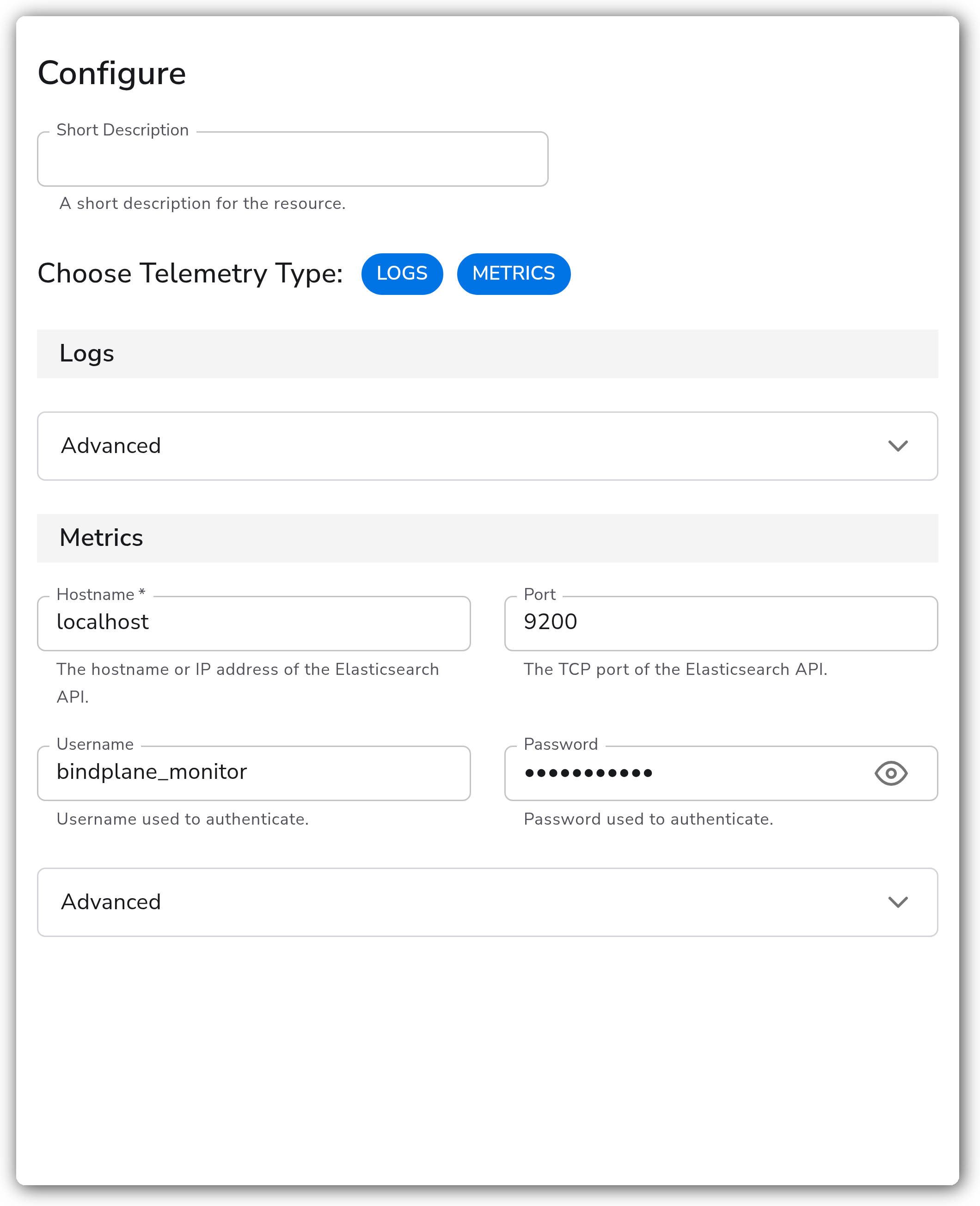

**Telemetry** | Parameter | Type | Required | Default | Description | | --------------------- | ------------------ | -------- | --------------------- | ---------------------------------------------------------------- | | Choose Telemetry Type | Telemetry Selector | No | `["Logs", "Metrics"]` | Which signals this source collects. Valid values: Logs, Metrics. | **Metrics** | Parameter | Type | Required | Default | Description | | --------- | ------- | -------- | ----------- | ------------------------------------------------------------------------------------ | | Hostname | String | Yes | `localhost` | The hostname or IP address of the Elasticsearch API. Shown when Metrics is selected. | | Port | Integer | No | `9200` | The TCP port of the Elasticsearch API. Shown when Metrics is selected. | | Username | String | No | *(empty)* | Username used to authenticate. Shown when Metrics is selected. | | Password | String | No | *(empty)* | Password used to authenticate. Sensitive value. Shown when Metrics is selected. | **Advanced** | Parameter | Type | Required | Default | Description | | ---------------------------- | -------------------- | -------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Collection Interval | Integer | No | `60` | How often (seconds) to scrape for metrics. Shown when Metrics is selected. | | Collection Scope | Strings | No | `_node` | Filters that define which nodes are scraped for node-level metrics. Use `_node` if the collector is installed on every node, or `_all` if a single collector scrapes the entire cluster. See the [cluster nodes reference](https://www.elastic.co/guide/en/elasticsearch/reference/7.9/cluster.html#cluster-nodes). Shown when Metrics is selected. | | Disable Cluster Metrics | Boolean | No | `false` | Enable to disable the collection of cluster-level metrics. Shown when Metrics is selected. | | Start At | Enum: beginning, end | No | `end` | Start reading logs from `beginning` or `end`. Shown when Logs is selected. | | Parse | Boolean | No | `true` | Parses the log fields into structured data. Shown when Logs is selected. | | System Log Paths | Strings | No | `/var/log/elasticsearch/*_server.json`, `/var/log/elasticsearch/*_deprecation.json`, `/var/log/elasticsearch/*_index_search_slowlog.json`, `/var/log/elasticsearch/*_index_indexing_slowlog.json`, `/var/log/elasticsearch/*_audit.json` | File paths for the JSON formatted logs. Shown when Logs is selected. | | Garbage Collection Log Paths | Strings | No | `/var/log/elasticsearch/gc.log*` | File paths for the garbage collection logs. Shown when Logs is selected. | | Disable Metrics | Metrics | No | *(empty)* | Toggle individual metrics on and off across the Breaker, Cluster, Node, OS, and JVM categories. Shown when Metrics is selected. | **TLS (Advanced)** | Parameter | Type | Required | Default | Description | | ----------------------------------- | ------- | -------- | --------- | ------------------------------------------------------------------------------------------------------------------------- | | Enable TLS | Boolean | No | `true` | Whether or not to use TLS when connecting to Elasticsearch. Shown when Metrics is selected. | | Strict TLS Certificate Verification | Boolean | No | `false` | Enable to require TLS certificate verification. Shown when Enable TLS is true. | | TLS Certificate Authority File | String | No | *(empty)* | Certificate authority used to validate TLS certificates. Shown when Strict TLS Certificate Verification is true. | | Mutual TLS Authentication | Boolean | No | `false` | Enable to require TLS mutual authentication. Shown when Strict TLS Certificate Verification is true. | | TLS Client Certificate File | String | Yes | *(empty)* | A TLS certificate used for client authentication, if mutual TLS is enabled. Shown when Mutual TLS Authentication is true. | | TLS Client Private Key File | String | Yes | *(empty)* | A TLS private key used for client authentication, if mutual TLS is enabled. Shown when Mutual TLS Authentication is true. | ### Examples #### Collect metrics from a secured cluster over HTTPS This source scrapes a single Elasticsearch node over HTTPS using a monitoring user, with strict certificate verification against a custom CA. Cluster-level metrics are collected because this collector is the only one scraping the cluster, so the collection scope is set to `_all`. ```yaml apiVersion: bindplane.observiq.com/v1 kind: Source metadata: name: elasticsearch spec: type: elasticsearch parameters: - name: telemetry_types value: - Metrics - name: hostname value: es-node-1.internal - name: port value: 9200 - name: username value: bindplane_monitor - name: password value: "((secret))" - name: nodes value: - _all - name: enable_tls value: true - name: strict_tls_verify value: true - name: ca_file value: /etc/otel/certs/elastic-ca.crt ``` ### Configuration Tips * Set Collection Scope to `_node` when the collector runs on every Elasticsearch node, or `_all` when a single collector scrapes the whole cluster. Leaving it at `_node` while scraping remotely collects metrics only for the local node. * When connecting to a cluster without TLS, disable Enable TLS so the endpoint is built with `http` instead of `https`. * Use the Disable Metrics control to turn off metric categories you do not need (for example JVM or OS metrics) to reduce ingest volume. ### Troubleshooting #### Connection refused Symptoms: the receiver cannot reach the Elasticsearch API. Solutions: 1. Confirm the Hostname and Port match a reachable Elasticsearch HTTP listener (default `9200`). 2. Verify the collector host can reach that port (firewall and network rules). #### Authentication failed Symptoms: the stats API returns 401 or 403 errors. Solutions: 1. Confirm the Username and Password are correct. 2. Ensure the monitoring user has the `monitor` (or `manage`) cluster privilege. See the [Elasticsearch security privileges reference](https://www.elastic.co/docs/reference/elasticsearch/security-privileges). #### TLS handshake failure Symptoms: the connection fails during the TLS handshake. Solutions: 1. If using strict verification, set the TLS Certificate Authority File to a CA that validates the server certificate. 2. For mutual TLS, provide both the TLS Client Certificate File and TLS Client Private Key File. #### No logs collected Symptoms: log telemetry is empty. Solutions: 1. Verify the System Log Paths and Garbage Collection Log Paths match where Elasticsearch writes its logs. 2. Confirm the collector has read access to those files, and set Start At to `beginning` to read pre-existing log content. ### Standalone Source ```yaml apiVersion: bindplane.observiq.com/v1 kind: Source metadata: name: elasticsearch spec: type: elasticsearch parameters: - name: telemetry_types value: - Logs - Metrics - name: hostname value: localhost - name: port value: 9200 - name: username value: bindplane_monitor - name: password value: "((secret))" - name: collection_interval value: 60 - name: nodes value: - _node - name: skip_cluster_metrics value: false - name: enable_tls value: true - name: strict_tls_verify value: false - name: json_log_paths value: - /var/log/elasticsearch/*_server.json - /var/log/elasticsearch/*_deprecation.json - /var/log/elasticsearch/*_index_search_slowlog.json - /var/log/elasticsearch/*_index_indexing_slowlog.json - /var/log/elasticsearch/*_audit.json - name: gc_log_paths value: - /var/log/elasticsearch/gc.log* - name: start_at value: end - name: parse value: true ``` ### Related Resources * [Elasticsearch security privileges reference](https://www.elastic.co/docs/reference/elasticsearch/security-privileges) * [OpenTelemetry elasticsearchreceiver](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/receiver/elasticsearchreceiver) --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://docs.bindplane.com/integrations/sources/elasticsearch.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
