# Kafka Cluster

The Kafka Cluster source collects cluster-level metrics from an Apache Kafka deployment. It connects to one or more brokers over the native Kafka protocol and scrapes broker, topic, and consumer-group metrics. It does not read from a JMX endpoint, so no JMX port or metrics JAR is required. Optional SASL, Kerberos, basic, and TLS authentication are supported.

### Supported Telemetry

| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| Linux    | ✓       |      |        |
| Windows  | ✓       |      |        |
| macOS    | ✓       |      |        |

### Prerequisites

* One or more reachable Kafka brokers, addressed as `host:port`. The collector scrapes the cluster through this broker list.
* Network reachability from the collector to each broker's listener port (default `9092`).
* A Kafka client identity the broker accepts. If your cluster requires authentication, you need credentials for one of the supported mechanisms (basic, SASL, or Kerberos) and any TLS material the listener requires.
* If the broker listener enforces TLS, the CA certificate that signed the broker certificates, plus a client certificate and private key when the listener requires mutual TLS.

The source uses Kafka's standard client metadata and metrics APIs, so no broker-side JMX configuration is needed. For background on what Kafka exposes and how, see the [Apache Kafka monitoring documentation](https://kafka.apache.org/documentation/#monitoring).

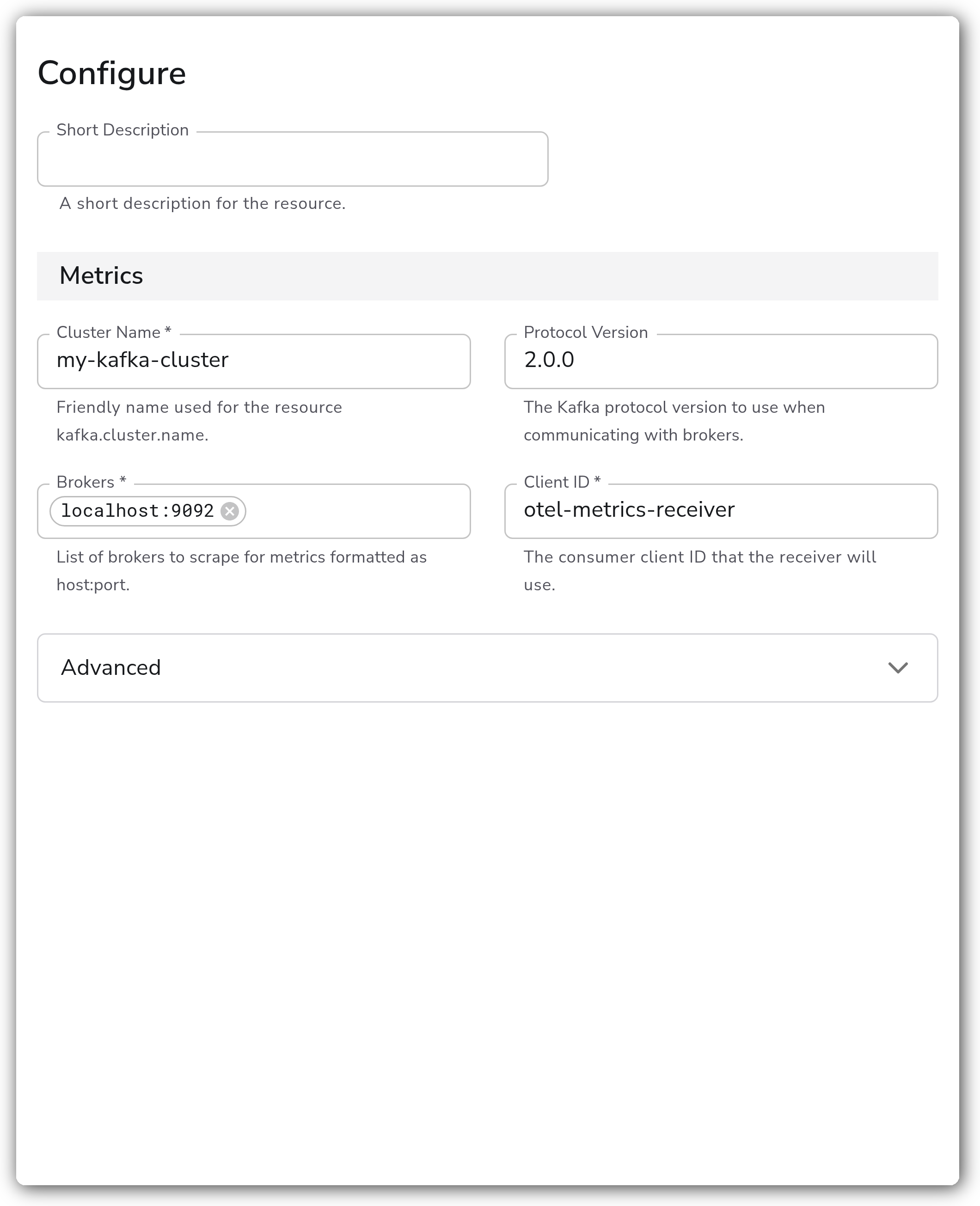

### Configuration

<figure><img src="/files/ODNnjSQB8aQD5lyNgkdS" alt="Bindplane docs - Kafka Cluster - image 1"><figcaption></figcaption></figure>

**Metrics**

| Parameter           | Type                                                             | Required | Default                 | Description                                                        |
| ------------------- | ---------------------------------------------------------------- | -------- | ----------------------- | ------------------------------------------------------------------ |
| Cluster Name        | String                                                           | Yes      | *(empty)*               | Friendly name used for the resource `kafka.cluster.name`.          |
| Protocol Version    | Enum: `2.2.1`, `2.2.0`, `2.0.0`, `1.0.0` (custom values allowed) | No       | `2.0.0`                 | The Kafka protocol version to use when communicating with brokers. |
| Brokers             | Strings                                                          | Yes      | `localhost:9092`        | List of brokers to scrape for metrics, formatted as `host:port`.   |
| Client ID           | String                                                           | Yes      | `otel-metrics-receiver` | The consumer client ID that the receiver will use.                 |
| Collection Interval | Integer                                                          | No       | `60`                    | How often (seconds) to scrape for metrics. Advanced option.        |

**Authentication**

| Parameter             | Type                                            | Required | Default                      | Description                                                                                                                                 |
| --------------------- | ----------------------------------------------- | -------- | ---------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------- |
| Enable Authentication | Boolean                                         | No       | `false`                      | Enable to authenticate to the brokers. Advanced option. Reveals the authentication parameters below.                                        |
| Auth Type             | Enum: `basic`, `sasl`, `kerberos`, `tls`        | No       | `basic`                      | Authentication mechanism to use. Advanced option. Shown when Enable Authentication is `true`. Each value reveals its own credential fields. |
| Username              | String                                          | Yes      | *(empty)*                    | Basic-auth username. Shown when Enable Authentication is `true` and Auth Type is `basic`. Advanced option.                                  |
| Password              | String                                          | Yes      | *(empty)*                    | Basic-auth password. Shown when Enable Authentication is `true` and Auth Type is `basic`. Advanced option.                                  |
| Username              | String                                          | Yes      | *(empty)*                    | SASL username. Shown when Enable Authentication is `true` and Auth Type is `sasl`. Advanced option.                                         |
| Password              | String                                          | Yes      | *(empty)*                    | SASL password. Shown when Enable Authentication is `true` and Auth Type is `sasl`. Advanced option.                                         |
| Mechanism             | Enum: `SCRAM-SHA-256`, `SCRAM-SHA-512`, `PLAIN` | No       | `SCRAM-SHA-256`              | SASL mechanism. Shown when Enable Authentication is `true` and Auth Type is `sasl`. Advanced option.                                        |
| Service Name          | String                                          | Yes      | *(empty)*                    | Kerberos service name. Shown when Enable Authentication is `true` and Auth Type is `kerberos`. Advanced option.                             |
| Realm                 | String                                          | Yes      | *(empty)*                    | Kerberos realm. Shown when Enable Authentication is `true` and Auth Type is `kerberos`. Advanced option.                                    |
| Config File           | String                                          | Yes      | `/etc/krb5.conf`             | Path to the Kerberos configuration file. Shown when Enable Authentication is `true` and Auth Type is `kerberos`. Advanced option.           |
| Kerberos Auth Type    | Enum: `keytab`, `basic`                         | No       | `keytab`                     | How to authenticate to Kerberos. Shown when Enable Authentication is `true` and Auth Type is `kerberos`. Advanced option.                   |
| Keytab File           | String                                          | Yes      | `/etc/security/kafka.keytab` | Path to the Kerberos keytab file. Shown when Auth Type is `kerberos` and Kerberos Auth Type is `keytab`. Advanced option.                   |
| Username              | String                                          | Yes      | *(empty)*                    | Kerberos username. Shown when Auth Type is `kerberos` and Kerberos Auth Type is `basic`. Advanced option.                                   |
| Password              | String                                          | Yes      | *(empty)*                    | Kerberos password. Shown when Auth Type is `kerberos` and Kerberos Auth Type is `basic`. Advanced option.                                   |

**TLS**

| Parameter                          | Type    | Required | Default   | Description                                                                                                |
| ---------------------------------- | ------- | -------- | --------- | ---------------------------------------------------------------------------------------------------------- |
| Enable TLS                         | Boolean | No       | `false`   | Whether or not to use TLS. Advanced option. Reveals the TLS parameters below.                              |
| Skip TLS Certificate Verification  | Boolean | No       | `false`   | Enable to skip TLS certificate verification. Shown when Enable TLS is `true`. Advanced option.             |
| TLS Certificate Authority File     | String  | No       | *(empty)* | Certificate authority used to validate TLS certificates. Shown when Enable TLS is `true`. Advanced option. |
| Mutual TLS Client Certificate File | String  | No       | *(empty)* | A TLS certificate used for client authentication. Shown when Enable TLS is `true`. Advanced option.        |
| TLS Client Private Key File        | String  | No       | *(empty)* | A TLS private key used for client authentication. Shown when Enable TLS is `true`. Advanced option.        |

### Examples

#### Scraping a multi-broker cluster with SASL/SCRAM

This source scrapes a three-broker cluster, authenticates with SASL using SCRAM-SHA-512, and tags every metric with the cluster name `prod-east`.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: kafka-cluster-prod-east
spec:
  type: kafka_cluster
  parameters:
    - name: cluster_name
      value: prod-east
    - name: brokers
      value:
        - broker-1.example.com:9092
        - broker-2.example.com:9092
        - broker-3.example.com:9092
    - name: protocol_version
      value: "2.2.1"
    - name: enable_auth
      value: true
    - name: auth_type
      value: sasl
    - name: sasl_username
      value: monitoring
    - name: sasl_password
      value: REDACTED
    - name: sasl_mechanism
      value: SCRAM-SHA-512
```

### Configuration Tips

* Set a meaningful **Cluster Name** per deployment. Its value is written to the `kafka.cluster.name` resource attribute, which is how you distinguish metrics from multiple Kafka clusters in the same pipeline.
* List multiple **Brokers** for resiliency. The receiver uses the list for cluster metadata discovery, so additional entries keep collection working if one broker is unreachable.
* Pin the **Protocol Version** to a value your brokers support. The field is creatable, so you can enter a version that is not in the dropdown if your cluster runs a newer release.

### Troubleshooting

**No metrics appear and the collector logs a connection error**

**Symptoms:** The collector reports connection refused or dial timeouts to the broker address, and no `kafka.*` metrics are produced.

**Solution:** Confirm the **Brokers** list uses reachable `host:port` values and that the collector host can reach each broker's listener port (default `9092`). Check firewall and security-group rules between the collector and the brokers.

**Authentication or authorization failures**

**Symptoms:** The collector logs SASL, Kerberos, or authorization errors and fails to fetch metadata.

**Solution:** Verify the credentials for the selected **Auth Type** and that the account is permitted to read cluster, topic, and consumer-group metadata. For SASL, confirm the **Mechanism** matches the broker's configured mechanism. For Kerberos, confirm the **Config File**, **Realm**, and **Service Name** are correct and that the keytab or username/password is valid.

**TLS handshake failures**

**Symptoms:** The collector logs a TLS handshake or certificate verification error when connecting to the brokers.

**Solution:** Ensure **Enable TLS** matches the broker listener. Provide the **TLS Certificate Authority File** that signed the broker certificates, and a client certificate and key if the listener requires mutual TLS. As a temporary diagnostic only, **Skip TLS Certificate Verification** bypasses verification; do not leave it enabled in production.

### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: kafka-cluster
spec:
  type: kafka_cluster
  parameters:
    - name: cluster_name
      value: my-kafka-cluster
    - name: brokers
      value:
        - localhost:9092
    - name: protocol_version
      value: "2.0.0"
    - name: client_id
      value: otel-metrics-receiver
    - name: collection_interval
      value: 60
```

### Related Resources

* [Apache Kafka monitoring documentation](https://kafka.apache.org/documentation/#monitoring)
* [OpenTelemetry Kafka Metrics Receiver (`kafkametricsreceiver`)](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/receiver/kafkametricsreceiver)


---
