HBase

The Apache HBase source collects metrics and logs from an HBase deployment. Metrics are scraped over JMX from the HBase Master and Region Server JVMs using the OpenTelemetry JMX metrics JAR. Logs are tailed from the HBase Master, Region Server, and ZooKeeper log files on the collector host. Choose either or both signals with the Choose Telemetry Type parameter.

Supported Telemetry

Platform	Metrics	Logs	Traces
Linux	✓	✓
Windows	✓	✓
macOS	✓	✓

Prerequisites

For metrics (JMX):

• HBase remote JMX enabled on the Master and Region Server JVMs. Set the JMX system properties (for example com.sun.management.jmxremote.port) in hbase-env.sh via HBASE_MASTER_OPTS and HBASE_REGIONSERVER_OPTS. See Metrics & Monitoring in the Apache HBase documentation.
• Reachable JMX ports for each role (defaults: 10101 Master, 10102 Region Server) from the collector host.
• The OpenTelemetry JMX metrics JAR present on the collector host (default /opt/opentelemetry-java-contrib-jmx-metrics.jar) and a Java runtime available to execute it.

For logs:

• HBase writing the relevant log files (Master, Region Server, and optionally ZooKeeper) on the host running the collector.
• The collector having read access to the configured log file paths.

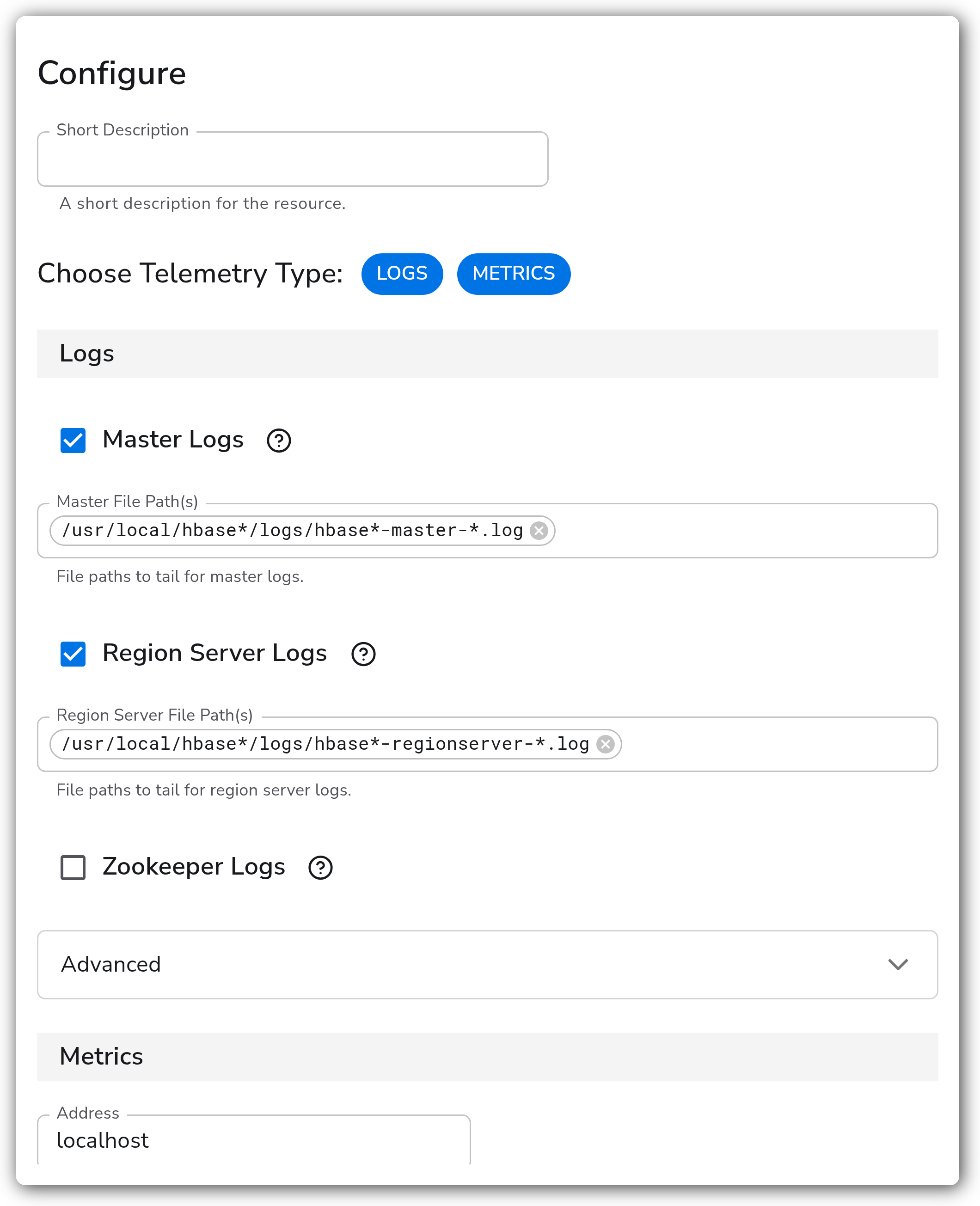

Configuration

Telemetry Type

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Telemetry Selector	No	["Logs", "Metrics"]	Which signals to collect. Valid values: Logs, Metrics.

Logs

These parameters apply when Metrics includes Logs.

Parameter	Type	Required	Default	Description
Master Logs	Boolean	No	true	Enable to read master logs.
Master File Path(s)	Strings	No	/usr/local/hbase*/logs/hbase*-master-*.log	File paths to tail for master logs. Relevant when Master Logs is enabled.
Region Server Logs	Boolean	No	true	Enable to read region server logs.
Region Server File Path(s)	Strings	No	/usr/local/hbase*/logs/hbase*-regionserver-*.log	File paths to tail for region server logs. Relevant when Region Server Logs is enabled.
Zookeeper Logs	Boolean	No	false	Enable to read zookeeper logs.
Zookeeper File Path(s)	Strings	No	/usr/local/hbase*/logs/hbase*-zookeeper-*.log	File paths to tail for zookeeper logs. Relevant when Zookeeper Logs is enabled.

Metrics

These parameters apply when Choose Telemetry Type includes Metrics.

Parameter	Type	Required	Default	Description
Address	String	No	localhost	IP address or hostname to scrape for JMX metrics.
Master Metrics	Boolean	No	true	Enable to scrape master server's JMX port.
Port (Master)	Integer	No	10101	Master server's JMX port. Relevant when Master Metrics is enabled.
Region Server Metrics	Boolean	No	true	Enable to scrape region server's JMX port.
Port (Region Server)	Integer	No	10102	Region server's JMX port. Relevant when Region Server Metrics is enabled.

Advanced

Parameter	Type	Required	Default	Description
Start At	Enum: beginning, end	No	end	Start reading logs from 'beginning' or 'end'. Applies to log collection.
Parse	Boolean	No	true	Parses the log fields into structured data. Applies to log collection.
JMX Metrics Collection Jar Path	String	No	/opt/opentelemetry-java-contrib-jmx-metrics.jar	Full path to the JMX metrics jar. Applies to metric collection.
Collection Interval	Integer	No	60	How often (seconds) to scrape for metrics. Applies to metric collection.

Examples

Collect metrics and logs from a local HBase node

Scrape JMX metrics from the Master and Region Server on the local host and tail the Master and Region Server logs. ZooKeeper logs are left disabled.

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: hbase
spec:
  type: hbase
  parameters:
    - name: telemetry_types
      value: ["Logs", "Metrics"]
    - name: address
      value: localhost
    - name: enable_master_jmx
      value: true
    - name: master_jmx_port
      value: 10101
    - name: enable_region_jmx
      value: true
    - name: region_jmx_port
      value: 10102
    - name: enable_master_log
      value: true
    - name: master_log_path
      value:
        - /usr/local/hbase*/logs/hbase*-master-*.log
    - name: enable_region_log
      value: true
    - name: region_log_path
      value:
        - /usr/local/hbase*/logs/hbase*-regionserver-*.log

Metrics only from a remote HBase host

Scrape JMX metrics from a remote host with a longer collection interval and no log collection.

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: hbase
spec:
  type: hbase
  parameters:
    - name: telemetry_types
      value: ["Metrics"]
    - name: address
      value: hbase.internal.example.com
    - name: master_jmx_port
      value: 10101
    - name: region_jmx_port
      value: 10102
    - name: collection_interval
      value: 120

Configuration Tips

• The default log paths use glob patterns rooted at /usr/local/hbase*/logs/. If HBase is installed elsewhere, override Master, Region Server, and Zookeeper file paths to match your deployment.
• The Address parameter is shared by both the Master and Region Server JMX scrapes. The collector must reach both JMX ports on that host.
• Set Start At to beginning to backfill existing log content on first run; the default end reads only new lines.

Troubleshooting

JMX connection refused or no metrics

Symptoms: no HBase metrics appear, or the collector logs JMX connection errors.

Solutions:

1. Confirm remote JMX is enabled on the Master and Region Server JVMs and that the configured ports (10101, 10102 by default) are listening and reachable from the collector host.
2. Verify the JMX metrics JAR exists at the configured Jar Path and that a Java runtime is available to the collector.

No logs collected

Symptoms: log collection is enabled but no HBase log records arrive.

Solutions:

1. Confirm the configured file path globs match the actual HBase log file names and locations.
2. Verify the collector process has read access to the log files and directories.

Standalone Source

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: hbase
spec:
  type: hbase
  parameters:
    - name: telemetry_types
      value: ["Logs", "Metrics"]
    - name: address
      value: localhost
    - name: enable_master_jmx
      value: true
    - name: master_jmx_port
      value: 10101
    - name: enable_region_jmx
      value: true
    - name: region_jmx_port
      value: 10102
    - name: jar_path
      value: /opt/opentelemetry-java-contrib-jmx-metrics.jar
    - name: collection_interval
      value: 60
    - name: enable_master_log
      value: true
    - name: master_log_path
      value:
        - /usr/local/hbase*/logs/hbase*-master-*.log
    - name: enable_region_log
      value: true
    - name: region_log_path
      value:
        - /usr/local/hbase*/logs/hbase*-regionserver-*.log
    - name: enable_zookeeper_log
      value: false
    - name: zookeeper_log_path
      value:
        - /usr/local/hbase*/logs/hbase*-zookeeper-*.log
    - name: start_at
      value: end
    - name: parse
      value: true
