# Fluent Forward

The Fluent Forward source receives logs from Fluentd, Fluent Bit, and any agent capable of emitting over the [Fluent Forward Protocol](https://github.com/fluent/fluentd/wiki/Forward-Protocol-Specification-v1). Bindplane runs a listener that accepts forwarded log records, which is useful for integrating OpenTelemetry collectors into an environment where Fluentd or Fluent Bit is already the primary log collection system.

### Supported Telemetry Types

| Platform           | Metrics | Logs | Traces |
| ------------------ | ------- | ---- | ------ |
| Linux              |         | ✓    |        |
| Windows            |         | ✓    |        |
| macOS              |         | ✓    |        |
| Kubernetes Gateway |         | ✓    |        |
| OpenShift Gateway  |         | ✓    |        |

### Prerequisites

* A Fluentd, Fluent Bit, or other agent configured to forward logs using the Fluent Forward Protocol.
* The collector reachable from the forwarding agent on the configured listen address and port (default `24224`).

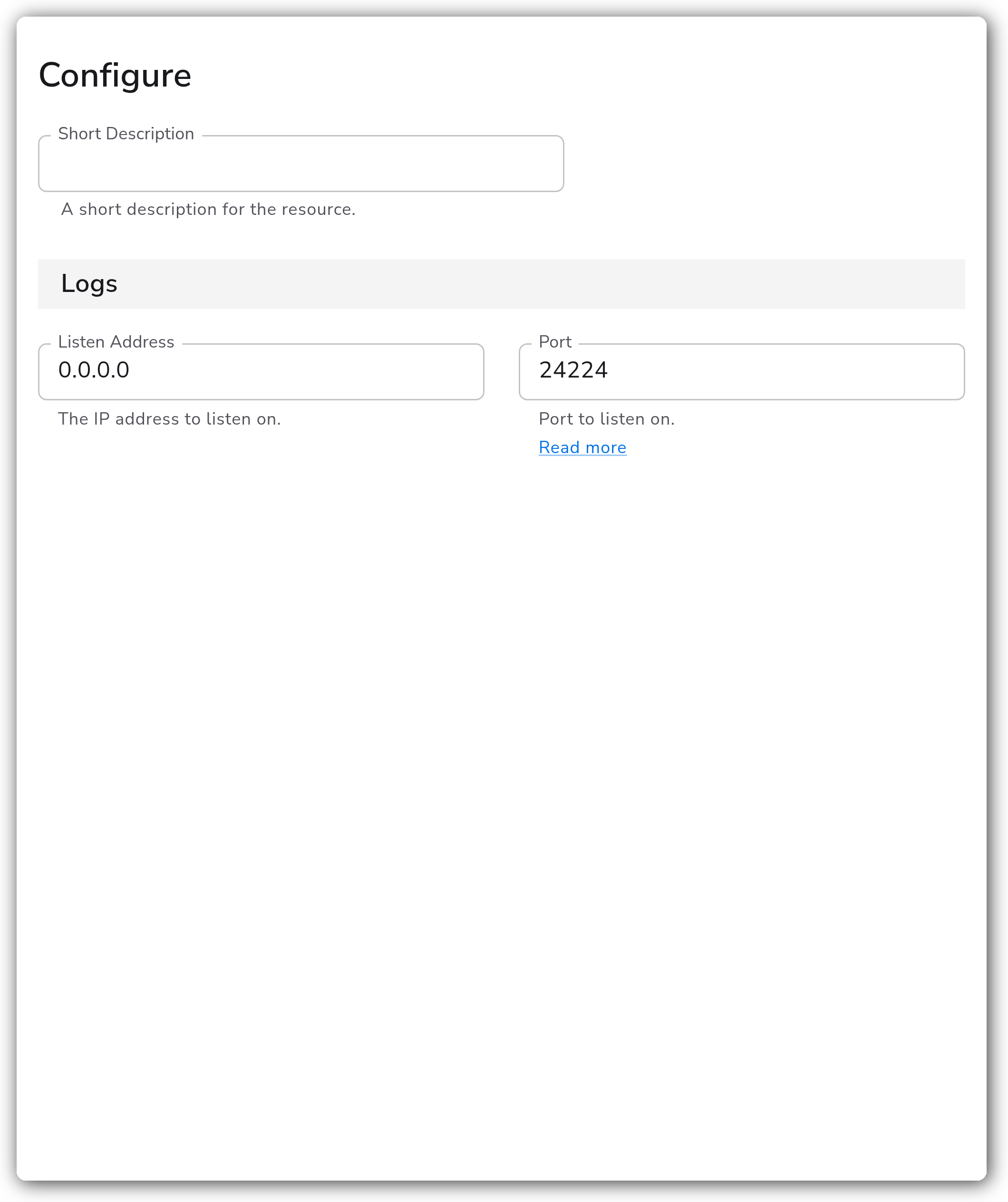

### Configuration

<figure><img src="/files/6f5ZgPinKFZ4IgnuTNwF" alt="Bindplane docs - Fluent Forward - image 1"><figcaption></figcaption></figure>

#### General

| Parameter      | Type    | Default   | Description                                                                                             |
| -------------- | ------- | --------- | ------------------------------------------------------------------------------------------------------- |
| Listen Address | String  | `0.0.0.0` | The IP address to listen on and receive logs from Fluent Forward capable agents.                        |
| Port           | Integer | `24224`   | TCP port to listen on and receive logs from Fluent Forward capable agents. Must be between 0 and 65535. |

### Example Configuration

#### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: fluentforward
  name: fluentforward
spec:
  type: fluentforward
  parameters:
    - name: listen_address
      value: '0.0.0.0'
    - name: port
      value: '24224'
```

### Configuration Tips

#### Pointing your Fluent agent at the collector

* Configure the Fluentd `forward` output plugin or the Fluent Bit `forward` output to send to the collector's host and the port set above. The default port for the Fluent Forward Protocol is `24224`.
* The collector preserves the original forwarded record on each log under the `log.record.original` attribute, so the unmodified payload remains available to downstream processors.

#### Kubernetes and OpenShift

* The Fluent Forward source supports Kubernetes Gateway and OpenShift Gateway collectors. Applications within the cluster forward logs to the gateway through a Service.
* Create a [ClusterIP](https://kubernetes.io/docs/concepts/services-networking/service/#type-clusterip) Service whose port matches the `port` configured on the source, then apply it to your cluster:

```yaml
# bindplane-gateway-agent-svc-fluent.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: gateway
    app.kubernetes.io/name: bindplane-agent
  name: bindplane-gateway-agent-fluent
  namespace: bindplane-agent
spec:
  ports:
  - name: fluent
    port: 24224
    targetPort: 24224
    protocol: TCP
  selector:
    app.kubernetes.io/component: gateway
    app.kubernetes.io/name: bindplane-agent
  type: ClusterIP
```

### Troubleshooting

**Symptom:** No logs arrive at the collector from the Fluent agent. **Solution:** Confirm the forwarding agent points at the collector's listen address and port, and that the port matches the `port` parameter on the source. Verify no firewall or network policy blocks traffic to the configured port (default `24224`).

**Symptom:** The collector is not reachable on the expected interface. **Solution:** The default `listen_address` of `0.0.0.0` binds all interfaces. If you set a specific address, make sure it is an interface the collector host actually owns and that the forwarding agent can route to it.

**Symptom:** On a Kubernetes or OpenShift Gateway collector, in-cluster applications cannot reach the source. **Solution:** Create a ClusterIP Service whose port matches the source `port` and apply it to the cluster (see [Kubernetes and OpenShift](#kubernetes-and-openshift)).

### Related Resources

* [Fluent Forward Protocol specification](https://github.com/fluent/fluentd/wiki/Forward-Protocol-Specification-v1)
* [Fluentd forward output plugin](https://docs.fluentd.org/output/forward)
* [Fluent Bit forward output plugin](https://docs.fluentbit.io/manual/pipeline/outputs/forward)
* [Custom Service for Kubernetes collectors](https://docs.bindplane.com/deployment/kubernetes/collector/custom-service)

```
```


---
