Google Cloud Pub/Sub (Push)

The Google Cloud Pub/Sub (Push) source runs an HTTP listener that receives messages delivered from a Google Cloud Pub/Sub subscription configured for push delivery, decodes the payload, and produces logs. Pub/Sub pushes each message to the collector's endpoint over HTTP, so no polling or service-account read of a subscription is required by the collector itself.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux		✓
macOS		✓
Windows		✓
Kubernetes Gateway		✓
OpenShift Gateway		✓

Prerequisites

• A Google Cloud project with a Pub/Sub topic and subscription.
• The subscription configured for push delivery with its push endpoint pointing at the collector.
• The collector reachable from Google Cloud on the configured listen port. Google requires HTTPS for push endpoints, so production deployments must enable TLS with a publicly trusted certificate.

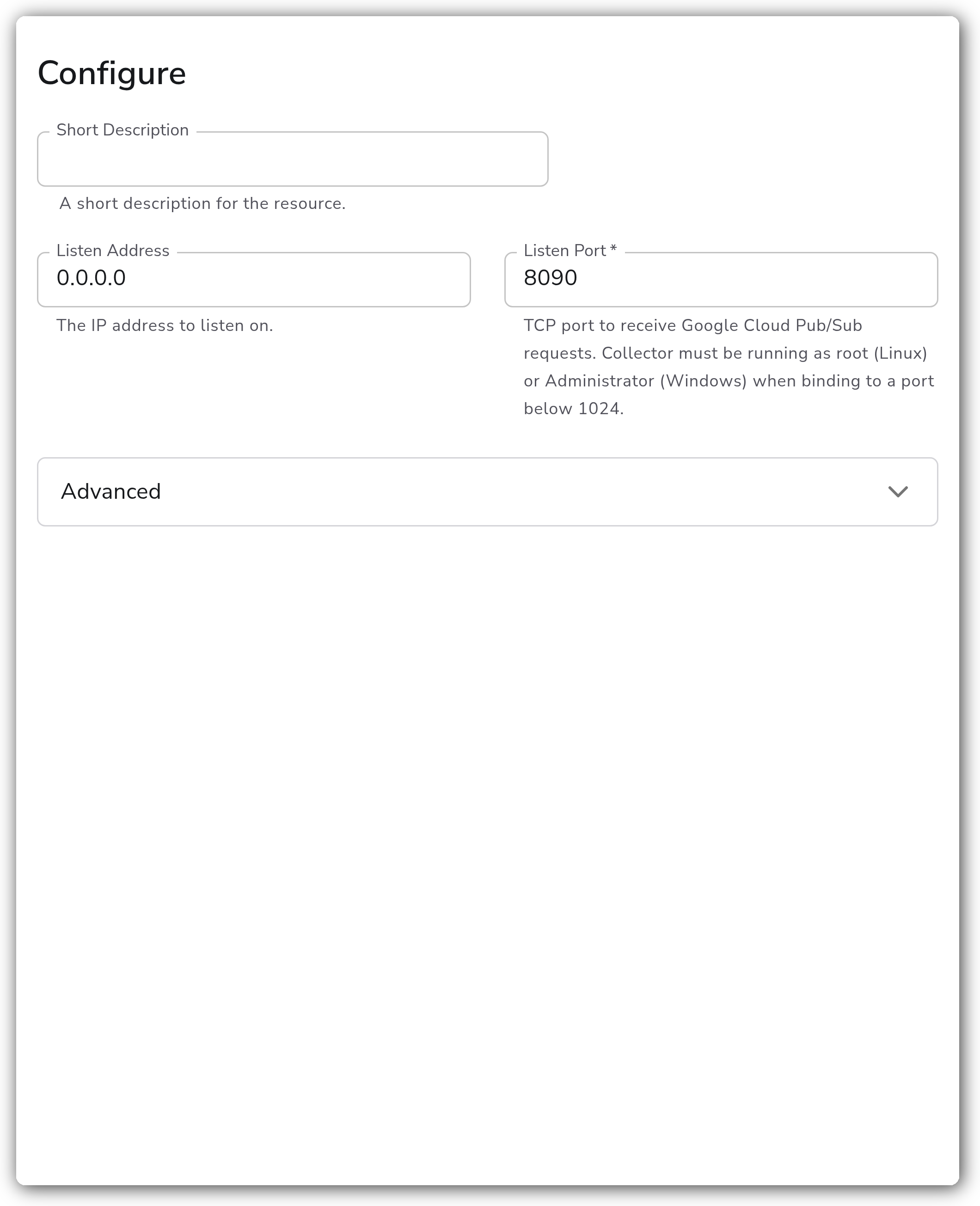

Configuration

General

Parameter	Type	Default	Description
Listen Address	String	0.0.0.0	The IP address to listen on.
Listen Port	Integer	8090	TCP port to receive Google Cloud Pub/Sub requests. Required. Valid range is 1–65535. The collector must run as root (Linux) or Administrator (Windows) when binding to a port below 1024.

Advanced

Parameter	Type	Default	Description
Payload Encoding	Extension	googlecloudlogentry_encoding	The encoding extension used to parse the payload. Required.1
Include Metadata	Boolean	false	Propagates the incoming connection's metadata to downstream consumers.

1. Defaults to the googlecloudlogentry_encoding extension with Cloud Logging JSON and proto handling set to json. Valid extension types are googlecloudlogentry_encoding and text_encoding_unmarshaling.

TLS

Parameter	Type	Default	Description
Enable TLS	Boolean	false	Whether or not to use TLS.
TLS Certificate File	String		Path to the TLS certificate file for the server. Required when TLS is enabled.
TLS Private Key File	String		Path to the TLS private key file for the server. Required when TLS is enabled.
Mutual TLS	Boolean	false	Whether or not to require client TLS authentication (mTLS). Available when TLS is enabled.
TLS Certificate Authority File	String		Path to the certificate authority file for authenticating client certificates. Required when TLS and Mutual TLS are enabled.

CORS

Parameter	Type	Default	Description
Configure CORS	Boolean	false	Enable Cross-Origin Resource Sharing (CORS) support for HTTP requests.
CORS Allowed Origins	Strings	[]	A list of origins a cross-domain request can be executed from. Available when CORS is enabled.
CORS Allowed Headers	Strings	[]	The headers that will be allowed in CORS requests. Available when CORS is enabled.
CORS Max Age	Integer	0	How long (in seconds) the results of a preflight request can be cached. Available when CORS is enabled.

Example Configuration

Standalone Source

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: googlecloudpubsubpush
  name: googlecloudpubsubpush
spec:
  type: googlecloudpubsubpush
  parameters:
    - name: listen_address
      value: '0.0.0.0'
    - name: listen_port
      value: '8090'
    - name: enable_tls
      value: 'true'
    - name: cert_file
      value: '/opt/observiq-otel-collector/pubsub.crt'
    - name: key_file
      value: '/opt/observiq-otel-collector/pubsub.key'

Configuration Tips

Payload encoding

• The default googlecloudlogentry_encoding extension parses Cloud Logging LogEntry payloads, which is the right choice when the Pub/Sub topic receives logs routed from a Cloud Logging sink.
• For raw text payloads, switch the encoding to text_encoding_unmarshaling.

TLS and reachability

• Google Cloud requires push subscription endpoints to use HTTPS. Enable TLS and provide a certificate signed by a publicly trusted certificate authority so Pub/Sub will accept the endpoint.
• On Kubernetes Gateway and OpenShift Gateway collectors, create a custom Service to route external traffic to the collector. See Custom Service.

Verifying the Source

1. Apply the source (or save it in a configuration) and roll the configuration out to the collector.
2. From the Google Cloud console, publish a test message to the topic feeding the push subscription.
3. In Bindplane, open the configuration and use the Recent Telemetry snapshot on the source to confirm log records are arriving.
4. Confirm the message body is parsed into log records as expected. A Cloud Logging LogEntry payload decoded with the default encoding looks like:

{
  "body": {
    "logName": "projects/my-project/logs/example",
    "resource": {
      "type": "gce_instance",
      "labels": { "instance_id": "1234567890", "zone": "us-central1-a" }
    },
    "severity": "INFO",
    "textPayload": "example log line"
  },
  "attributes": {
    "log.record.original": "..."
  },
  "timestamp": "2024-01-01T00:00:00Z"
}

Troubleshooting

Symptom: Google Cloud reports the push subscription endpoint as invalid, or no logs arrive. Solution: Confirm the collector is reachable from Google Cloud on the configured listen_port. Pub/Sub push requires an HTTPS endpoint, so enable TLS with a certificate signed by a publicly trusted certificate authority. Self-signed certificates are rejected.

Symptom: The collector fails to start, or logs report a permission error binding the listener. Solution: Ports below 1024 require the collector to run as root (Linux) or Administrator (Windows). Either run the collector with sufficient privileges or set listen_port to a value at or above 1024.

Symptom: Messages arrive but are not parsed into useful log records. Solution: Match the encoding_extension to the payload. Use googlecloudlogentry_encoding for Cloud Logging LogEntry payloads and text_encoding_unmarshaling for raw text. A mismatch causes decode failures or empty records.
