SAP NetWeaver

The SAP NetWeaver source collects metrics from an SAP NetWeaver instance by calling the SAPControl web service exposed by the SAP Start Service (sapstartsrv). Bindplane connects to the instance over HTTP or HTTPS using OS-user basic authentication and scrapes availability, work process, CPU, memory, session, request, queue, lock, connection, cache, and short-dump metrics on a fixed interval.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux	✓

Prerequisites

Supports SAP NetWeaver 7.10 and later.

The collector must run on the SAP NetWeaver host. Some metrics (certificate validity, and the optional RFC and session-count metrics) require executing OS-level commands locally, so a remote collector cannot gather them.

Connecting requires a valid OS user and password. SAP NetWeaver authenticates the SAPControl web service with the host operating system user via HTTP basic auth, and the user needs read access to the SAP instance. For SAP NetWeaver 7.38 and later, collecting some metrics also requires execute or write permission for the sapstartsrv instance.

The SAP Start Service exposes SAPControl over HTTP port 50013 and HTTPS port 50014 for instance number 00. Adjust the port for your instance number. See the SAP Start Service documentation for details on the SAPControl interface and ports.

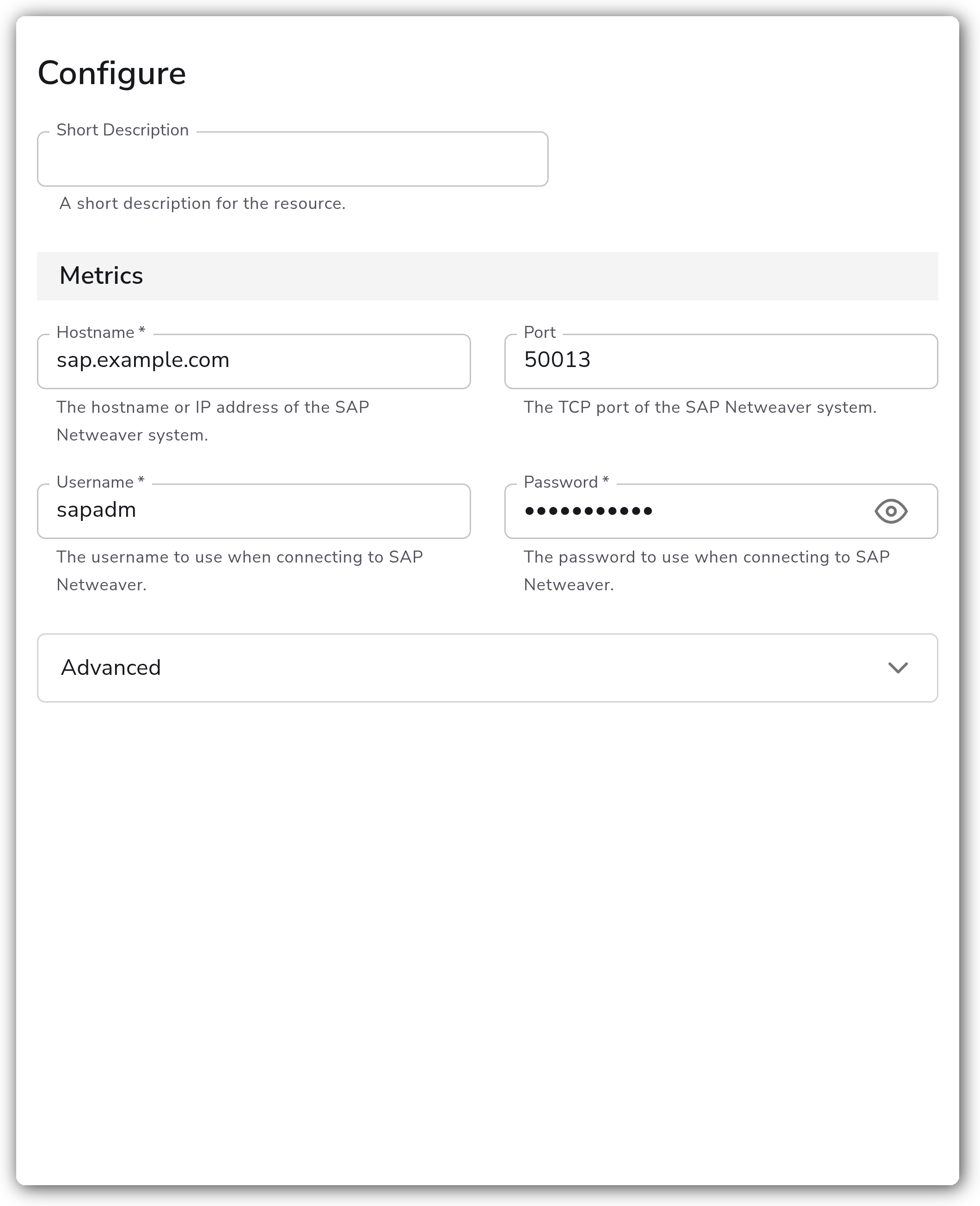

Configuration

Connection

Parameter	Type	Required	Default	Description
Hostname	string	Yes	localhost	The hostname or IP address of the SAP NetWeaver system.
Port	int	No	50013	The TCP port of the SAP NetWeaver system. Use 50013 for HTTP and 50014 for HTTPS, adjusted for your instance number.
Username	string	Yes	(empty)	The username to use when connecting to SAP NetWeaver.
Password	string	Yes	(empty)	The password to use when connecting to SAP NetWeaver. Stored as a sensitive value.

Advanced

Parameter	Type	Required	Default	Description
Collection Interval	int	No	60	How often (seconds) to scrape for metrics.
Profile	string	No	(empty)	The profile path in the form /sapmnt/SID/profile/SID_INSTANCE_HOSTNAME, used to collect the optional RFC and session-count metrics. See SAP profile documentation.
Metrics	metrics	No	(empty)	Toggle individual metrics on and off. By default all metrics are enabled; listing a metric here disables it.

TLS

Parameter	Type	Required	Default	Description
Enable TLS	bool	No	false	Whether or not to use TLS. Enable when connecting over HTTPS (typically port 50014).
Skip TLS Certificate Verification	bool	No	false	Skip TLS certificate verification. Only relevant when Enable TLS is true.
TLS Certificate Authority File	string	No	(empty)	Certificate authority used to validate TLS certificates. Only relevant when Enable TLS is true.
TLS Client Certificate File	string	No	(empty)	A TLS certificate used for client authentication, if mutual TLS is enabled. Only relevant when Enable TLS is true.
TLS Client Private Key File	string	No	(empty)	A TLS private key used for client authentication, if mutual TLS is enabled. Only relevant when Enable TLS is true.

Examples

Collect metrics over HTTP from a local instance

This example scrapes the SAPControl web service on the default HTTP port of a local SAP NetWeaver instance every 60 seconds.

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: sap-netweaver
spec:
  type: netweaver
  parameters:
    - name: hostname
      value: localhost
    - name: port
      value: 50013
    - name: username
      value: sapadm
    - name: password
      value: ${SAP_PASSWORD}
    - name: collection_interval
      value: 60

Collect metrics over HTTPS with the profile path

This example connects over HTTPS on port 50014 and sets the profile path so the optional RFC and session-count metrics are collected.

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: sap-netweaver
spec:
  type: netweaver
  parameters:
    - name: hostname
      value: sap.example.com
    - name: port
      value: 50014
    - name: username
      value: sapadm
    - name: password
      value: ${SAP_PASSWORD}
    - name: profile
      value: /sapmnt/S4H/profile/S4H_D00_sap
    - name: enable_tls
      value: true
    - name: ca_file
      value: /etc/otel/certs/sap-ca.crt

Configuration Tips

• Match the port to the protocol: use 50013 with TLS disabled for HTTP, and 50014 with TLS enabled for HTTPS, adjusting for your instance number.
• Certificate validity, RFC, and session-count metrics are only available when the collector runs on the SAP NetWeaver host. Set the Profile path to enable the RFC and session-count metrics.
• Use the Metrics toggle to disable metrics you do not need rather than collecting the full default set.

Troubleshooting

Authentication failures

Symptoms: the source produces no metrics and the collector logs report authorization or 401 errors from the SAPControl endpoint.

Solutions:

1. Confirm the Username and Password belong to a valid OS user on the SAP NetWeaver host with read access to the instance.
2. For SAP NetWeaver 7.38 and later, confirm the user has execute or write permission for the sapstartsrv instance.

Connection refused or wrong port

Symptoms: the collector cannot reach the endpoint, or TLS handshake errors appear.

Solutions:

1. Verify the Port matches your instance number and protocol (50013 for HTTP, 50014 for HTTPS at instance 00).
2. If connecting over HTTPS, set Enable TLS to true. For self-signed certificates, supply the CA file or temporarily enable Skip TLS Certificate Verification.

Missing RFC, session-count, or certificate metrics

Symptoms: most metrics appear but the RFC, session-count, or certificate-validity metrics are absent.

Solutions:

1. Confirm the collector runs directly on the SAP NetWeaver host, since these metrics require local OS command execution.
2. Set the Profile path to the instance profile so the optional RFC and session-count metrics are collected.

Standalone Source

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: sap-netweaver
spec:
  type: netweaver
  parameters:
    - name: hostname
      value: sap.example.com
    - name: port
      value: 50013
    - name: username
      value: sapadm
    - name: password
      value: ${SAP_PASSWORD}
    - name: collection_interval
      value: 60
    - name: enable_tls
      value: false
