# W3C

The W3C source tails log files written in the [W3C Extended Log Format](https://www.w3.org/TR/WD-logfile.html) and parses each delimited line into structured log records. It reads the field definitions from the `#Fields` header in the log file and maps each value to the matching field name. This format is produced by Microsoft IIS, Exchange, and other services that emit W3C-style access logs.

### Supported Telemetry Types

| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| Linux    |         | ✓    |        |
| Windows  |         | ✓    |        |
| macOS    |         | ✓    |        |

### Prerequisites

* Read access for the collector's user to the log files or directories you want to tail.
* Log files in W3C Extended Log Format that include a `#Fields` header line defining the column names.

### Configuration

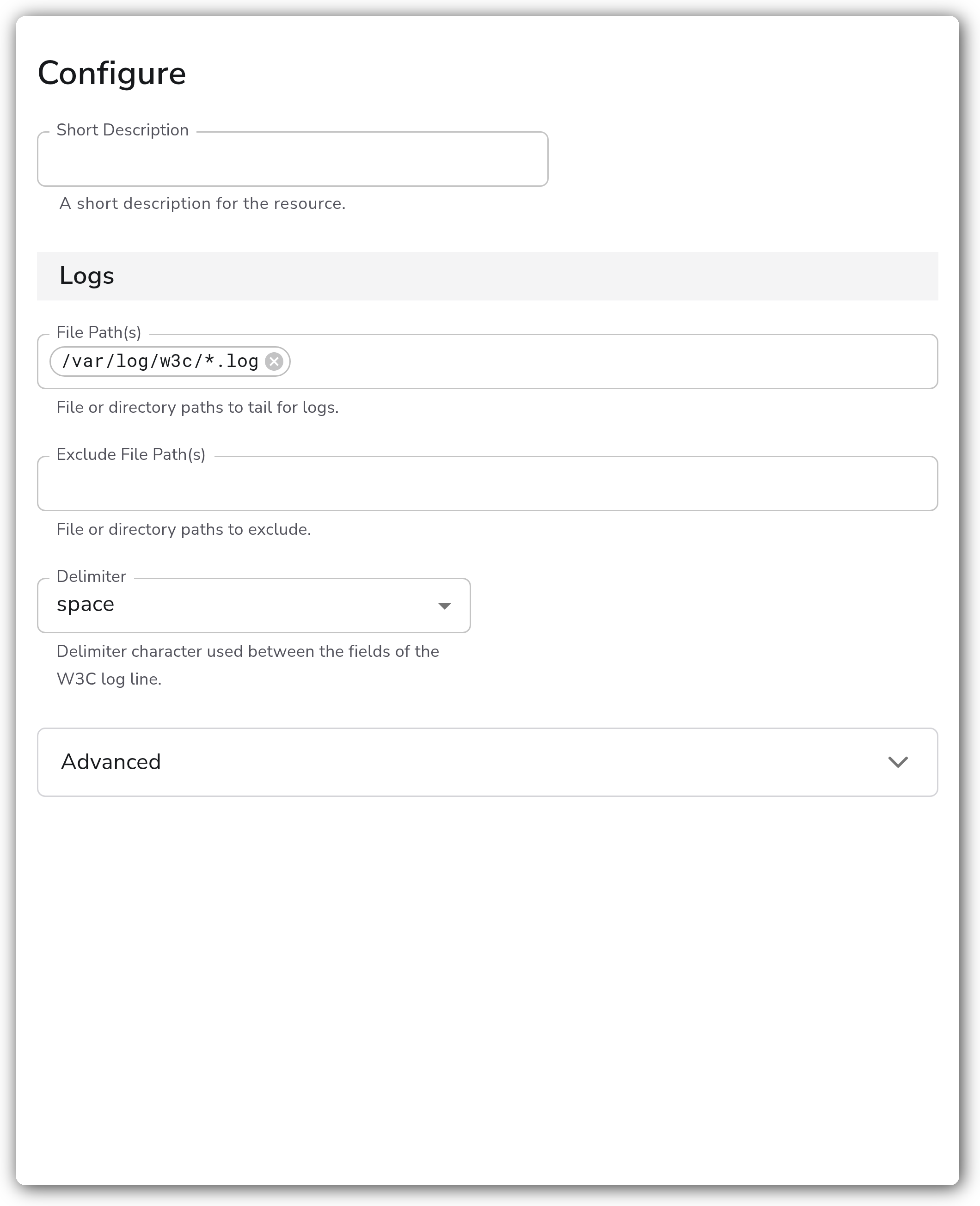

<figure><img src="/files/isws8mfitC1242qs7aco" alt="Bindplane docs - W3C - image 1"><figcaption></figcaption></figure>

#### General

| Parameter            | Type    | Default | Description                                                                                    |
| -------------------- | ------- | ------- | ---------------------------------------------------------------------------------------------- |
| File Path(s)         | Strings | `[]`    | File or directory paths to tail for logs.                                                      |
| Exclude File Path(s) | Strings | `[]`    | File or directory paths to exclude.                                                            |
| Delimiter            | Enum    | `tab`   | Delimiter character used between the fields of the W3C log line. Valid values: `tab`, `space`. |

#### Advanced

| Parameter                            | Type    | Default   | Description                                                                                                                                                            |
| ------------------------------------ | ------- | --------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Encoding                             | Enum    | `utf-8`   | The encoding of the file being read. Valid values: `nop`, `utf-8`, `utf-16le`, `utf-16be`, `ascii`, `big5`.                                                            |
| Header Delimiter                     | Enum    | `default` | Delimiter character used between fields in the W3C `#Fields` header. When set to `default`, the value of `delimiter` is used. Valid values: `default`, `tab`, `space`. |
| Include File Name Attribute          | Boolean | `true`    | Whether to add the file name as the attribute `log.file.name`.                                                                                                         |
| Include File Path Attribute          | Boolean | `false`   | Whether to add the file path as the attribute `log.file.path`.                                                                                                         |
| Include File Name Resolved Attribute | Boolean | `false`   | Whether to add the file name after symlink resolution as the attribute `log.file.name_resolved`.                                                                       |
| Include File Path Resolved Attribute | Boolean | `false`   | Whether to add the file path after symlink resolution as the attribute `log.file.path_resolved`.                                                                       |
| Parse To                             | Enum    | `body`    | Parse structured log fields to either `body` or `attributes`. Valid values: `body`, `attributes`.                                                                      |
| Parse                                | Boolean | `true`    | Whether to parse the log fields into structured data. When disabled, lines are kept as raw text.                                                                       |

### Example Configuration

#### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: w3c
  name: w3c
spec:
  type: w3c
  parameters:
    - name: file_path
      value:
        - '/var/log/w3c/*.log'
    - name: delimiter
      value: 'space'
    - name: encoding
      value: 'utf-8'
    - name: parse_to
      value: 'body'
    - name: parse
      value: 'true'
```

### Configuration Tips

#### Matching the delimiter to your logs

* Set `delimiter` to match how fields are separated in your log lines. Microsoft IIS W3C logs use a `space` delimiter, while many other W3C producers use `tab`.
* If the `#Fields` header uses a different separator than the data rows, set `header_delimiter` explicitly. Leave it at `default` to reuse the `delimiter` value.

#### Selecting files

* `file_path` accepts directory globs (for example, `/var/log/w3c/*.log`), so you can tail a rotating set of files with a single entry.
* Use `exclude_file_log_path` to skip files that match the include pattern but should not be read, such as archived or compressed logs.

#### Where parsed fields land

* `parse_to` controls whether the parsed W3C fields populate the log `body` or the log `attributes`. Use `attributes` if you want the individual fields available for downstream routing and processing.

### Troubleshooting

**Symptom:** Logs are read but fields are not parsed into structured data. **Solution:** Confirm the log file contains a `#Fields` header line defining the column names. The receiver relies on that header to map values. Also verify `delimiter` matches the separator used in the file, and that `parse` is enabled.

**Symptom:** No log files are picked up. **Solution:** Check that `file_path` resolves to existing files and that the collector's user has read permission. If you are using a glob, confirm it matches the file names on disk and is not excluded by `exclude_file_log_path`.

**Symptom:** Field values appear garbled or contain unexpected characters. **Solution:** Set `encoding` to match the file's actual encoding. W3C logs from Windows services are often UTF-8, but some are written as UTF-16 (`utf-16le` or `utf-16be`).

### Related Resources

* [W3C Extended Log File Format specification](https://www.w3.org/TR/WD-logfile.html)
* [Microsoft IIS W3C logging fields](https://learn.microsoft.com/en-us/windows/win32/http/w3c-logging)
* [Bindplane sources documentation](https://docs.bindplane.com/integrations/sources)


---
