# Google Cloud Storage Rehydration

The Google Cloud Storage Rehydration source reads telemetry that was previously archived to a Google Cloud Storage bucket (for example by the [Google Cloud Storage destination](/integrations/destinations/google-cloud-storage.md)) and replays it back into a pipeline. It processes every object found within a specified UTC time range, handling both uncompressed JSON and gzip-compressed objects, then stops once the range is exhausted. This is not a continuous source.

### Supported Telemetry Types

| Platform           | Metrics | Logs | Traces |
| ------------------ | ------- | ---- | ------ |
| Linux              | ✓       | ✓    | ✓      |
| Windows            | ✓       | ✓    | ✓      |
| macOS              | ✓       | ✓    | ✓      |
| Kubernetes Cluster | ✓       | ✓    | ✓      |

### Prerequisites

* A Google Cloud Storage bucket containing OTLP objects archived in a layout this source can read (such as objects written by the Google Cloud Storage destination).
* Credentials that can authenticate to Google Cloud. The principal needs read access to the bucket's objects, and delete access if **Delete on Read** is enabled.
* The UTC start and end time of the data range you want to replay.

### Configuration

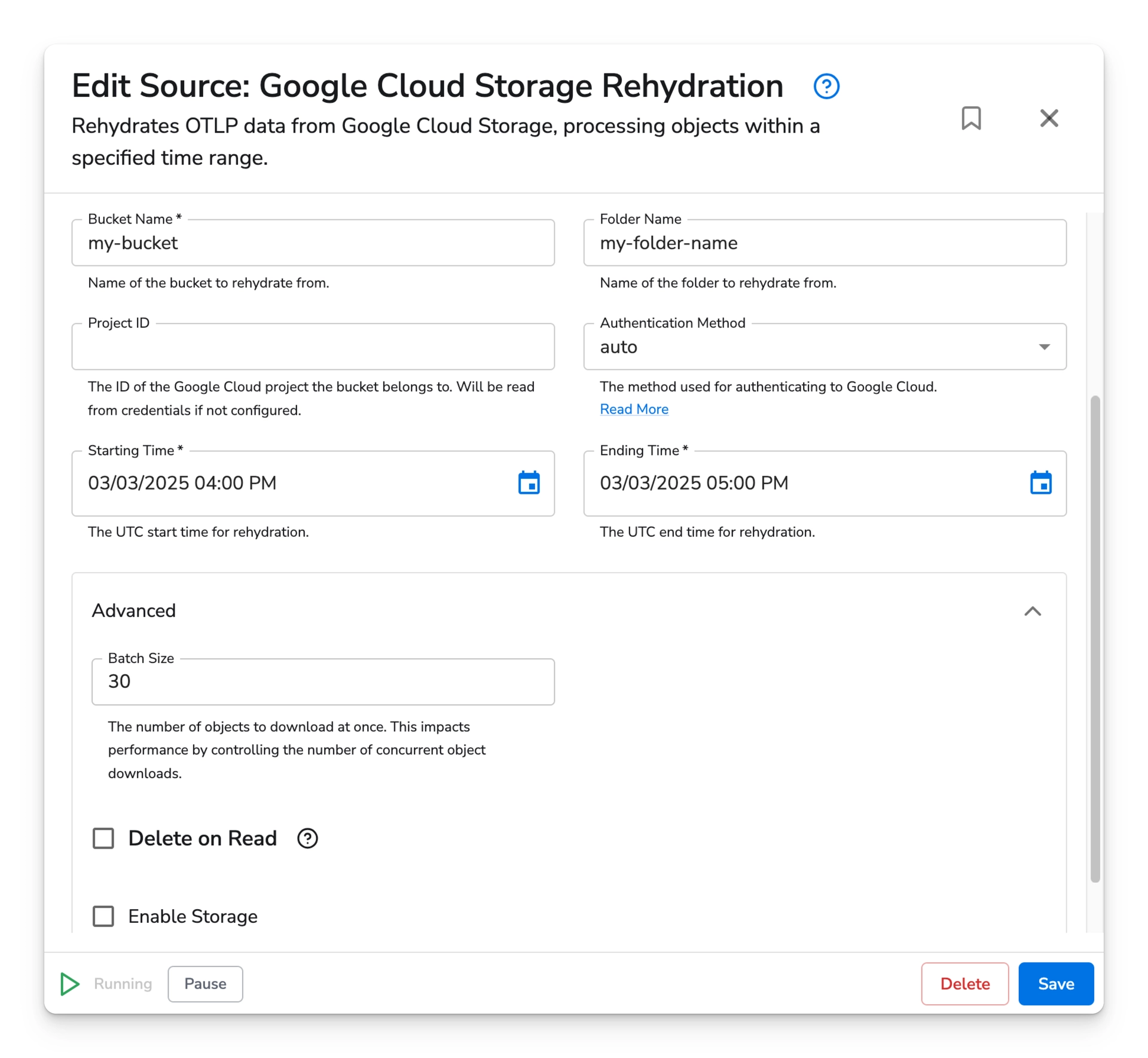

<figure><img src="/files/9C28WOFTRhDzloleoRh8" alt="Bindplane docs - Google Cloud Storage Rehydration - image 1"><figcaption></figcaption></figure>

#### General

| Parameter             | Type               | Default                 | Description                                                                                        |
| --------------------- | ------------------ | ----------------------- | -------------------------------------------------------------------------------------------------- |
| Choose Telemetry Type | Telemetry Selector | `Logs, Metrics, Traces` | Select which types of telemetry to rehydrate.                                                      |
| Bucket Name           | String             |                         | Name of the bucket to rehydrate from. Required.                                                    |
| Folder Name           | String             | `""`                    | Restricts rehydration to objects in a specific folder within the bucket.                           |
| Project ID            | String             | `""`                    | The ID of the Google Cloud project the bucket belongs to. Read from credentials if not configured. |
| Starting Time         | Timestamp          |                         | The UTC start time for rehydration, in `YYYY-MM-DDTHH:MM` format. Required.                        |
| Ending Time           | Timestamp          |                         | The UTC end time for rehydration, in `YYYY-MM-DDTHH:MM` format. Required.                          |

#### Authentication

| Parameter             | Type   | Default | Description                                                                                                                                                          |
| --------------------- | ------ | ------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Authentication Method | Enum   | `auto`  | Method used to authenticate to Google Cloud. One of `auto`, `json`, or `file`. `auto` uses Application Default Credentials.                                          |
| Credentials           | String | `""`    | JSON value from a Google Service Account credential file. Required when `auth_type` is `json`.                                                                       |
| Credentials File      | String | `""`    | Path to a Google Service Account credential file on the collector system. The collector's runtime user must be able to read it. Required when `auth_type` is `file`. |

#### Advanced

| Parameter            | Type    | Default                              | Description                                                                                                                  |
| -------------------- | ------- | ------------------------------------ | ---------------------------------------------------------------------------------------------------------------------------- |
| Batch Size           | Integer | `30`                                 | Number of objects to download at once. Controls the number of concurrent object downloads, which impacts performance.        |
| Delete on Read       | Boolean | `false`                              | If `true`, objects are deleted after being rehydrated.                                                                       |
| Enable Checkpoint    | Boolean | `true`                               | Enable a storage extension for checkpointing rehydration progress.                                                           |
| Checkpoint Directory | String  | `${OIQ_OTEL_COLLECTOR_HOME}/storage` | Directory for storing rehydration checkpoint state, used to resume after disruptions. Applies when checkpointing is enabled. |

### Example Configuration

#### Standalone Source

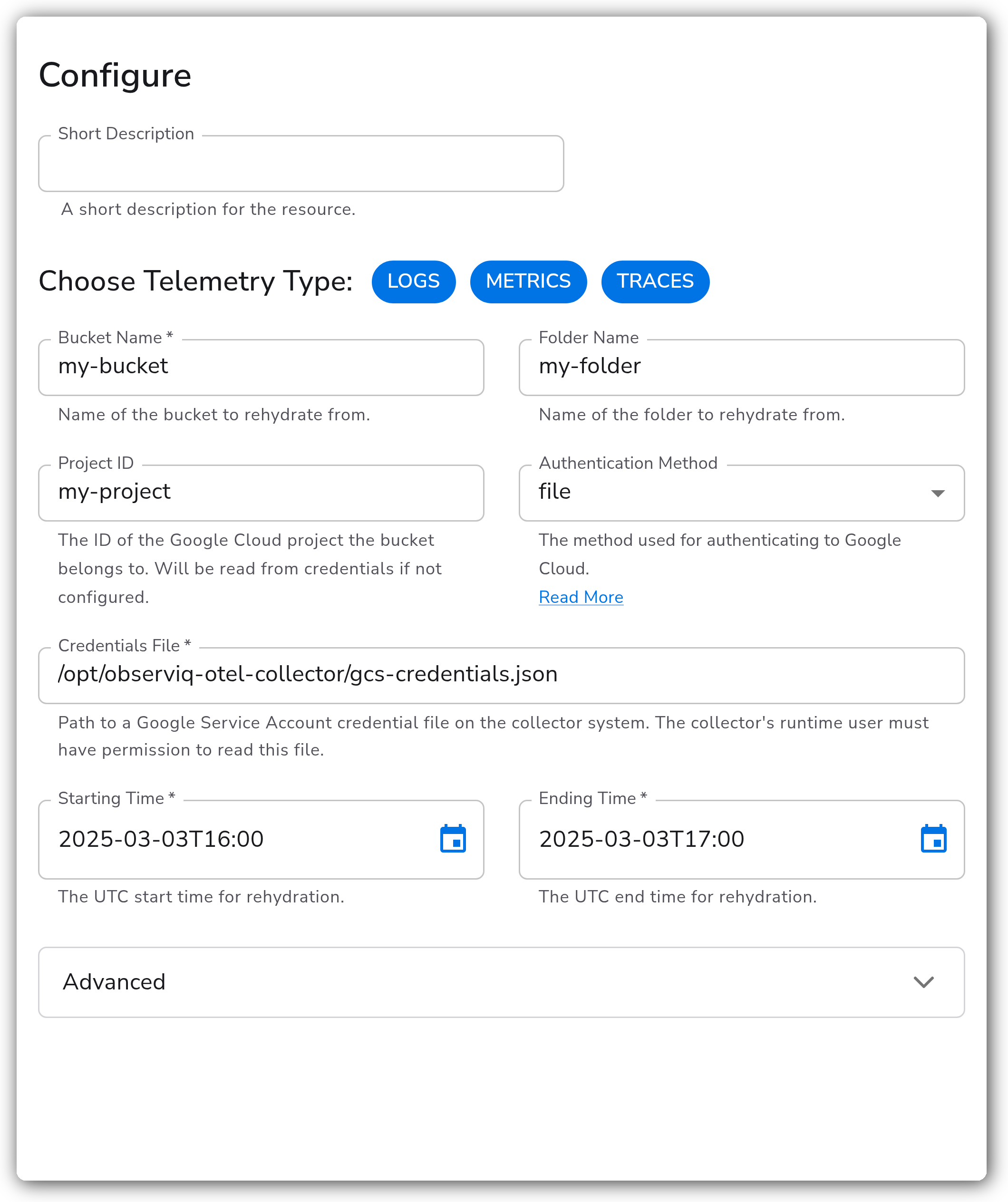

This source authenticates with a service account credential file and rehydrates objects from a folder within the bucket over a one-hour UTC window.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: google_cloud_storage_rehydration
  name: google_cloud_storage_rehydration
spec:
  type: google_cloud_storage_rehydration
  parameters:
    - name: telemetry_types
      value: ['Logs', 'Metrics', 'Traces']
    - name: bucket_name
      value: 'my-bucket'
    - name: folder_name
      value: 'my-folder'
    - name: project_id
      value: 'my-project'
    - name: auth_type
      value: 'file'
    - name: credentials_file
      value: '/opt/observiq-otel-collector/gcs-credentials.json'
    - name: starting_time
      value: '2025-03-03T16:00'
    - name: ending_time
      value: '2025-03-03T17:00'
    - name: batch_size
      value: '30'
    - name: storage_enable
      value: 'true'
```

### Configuration Tips

#### Authentication

* With `auth_type: auto`, the collector uses Application Default Credentials, so it picks up a service account attached to the host, GKE workload identity, or the `GOOGLE_APPLICATION_CREDENTIALS` environment variable. Use `json` or `file` to supply an explicit service account credential instead. See [Google Cloud authentication](https://cloud.google.com/docs/authentication#oauth2).
* The `credentials` parameter is stored as a sensitive value. Prefer `credentials_file` when the collector host already has a credential file you can reference by path.

#### Time range and checkpointing

* `starting_time` and `ending_time` are UTC and must use `YYYY-MM-DDTHH:MM` format. The source replays only the objects whose timestamps fall in that window, then stops.
* Leave `storage_enable` on so progress is checkpointed to `storage_directory`. If a rehydration is interrupted, it resumes from the last checkpoint rather than restarting the whole range.

#### Performance tuning

* `batch_size` controls how many objects are downloaded concurrently. Raise it to rehydrate large ranges faster when the collector has spare CPU, memory, and network bandwidth; lower it if the collector is memory-constrained or you are hitting Google Cloud Storage request limits.
* Enable `delete_on_read` only when you intend to drain the bucket. Deleted objects cannot be rehydrated again, and the principal must have delete permission on the bucket.

### Troubleshooting

**Symptom:** The source starts but no data is rehydrated. **Solution:** Confirm `starting_time` and `ending_time` bracket a range that actually contains objects, that they are in UTC `YYYY-MM-DDTHH:MM` format, and that `bucket_name` (and `folder_name`, if set) point at the archived objects. An empty or incorrect folder path is the most common cause of an empty run.

**Symptom:** Authentication or permission errors appear in the collector logs. **Solution:** Verify the credential the source is using. With `auth_type: auto`, make sure Application Default Credentials are present on the host. With `json` or `file`, confirm the service account JSON is valid and the collector's runtime user can read the `credentials_file` path. The principal must have read access to the bucket's objects, plus delete access when `delete_on_read` is enabled. See [Google Cloud authentication](https://cloud.google.com/docs/authentication#oauth2).

**Symptom:** Rehydration restarts from the beginning after a collector restart, reprocessing objects already read. **Solution:** Ensure `storage_enable` is `true` and that `storage_directory` is writable and persists across restarts (for example a mounted volume on Kubernetes). Without a durable checkpoint directory the source cannot resume from where it left off.

### Related Resources

* [Google Cloud Storage documentation](https://cloud.google.com/storage/docs)
* [Google Cloud authentication](https://cloud.google.com/docs/authentication#oauth2)
* [Google Cloud Storage destination](/integrations/destinations/google-cloud-storage.md)


---
