> For the complete documentation index, see [llms.txt](https://docs.bindplane.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.bindplane.com/integrations/sources/zookeeper.md). # ZooKeeper The Apache ZooKeeper source collects metrics and logs from a ZooKeeper server. Metrics are scraped from the ZooKeeper admin interface using the `mntr` four-letter-word command over the client port (default `2181`), exposing server-state, latency, request, watch, and znode statistics. Logs are read from ZooKeeper's log files on disk and optionally parsed into structured fields. ### Supported Telemetry | Platform | Metrics | Logs | Traces | | -------- | ------- | ---- | ------ | | Linux | ✓ | ✓ | | | Windows | ✓ | ✓ | | | macOS | ✓ | ✓ | | ### Prerequisites #### Metrics * A reachable ZooKeeper server and its client port (default `2181`) accessible from the collector host. * The `mntr` four-letter-word command must be enabled. ZooKeeper 3.5+ disables most four-letter-word commands by default; only `srvr` is whitelisted. Add `mntr` (and `srvr`) to the `4lw.commands.whitelist` configuration on each ZooKeeper server. See the [ZooKeeper Administrator's Guide](https://zookeeper.apache.org/doc/current/zookeeperAdmin.html). #### Logs * ZooKeeper writing log files on the host, and the collector running with read access to those file path(s). The default path is `/opt/zookeeper/logs/zookeeper.log`; adjust to your installation. ### Configuration

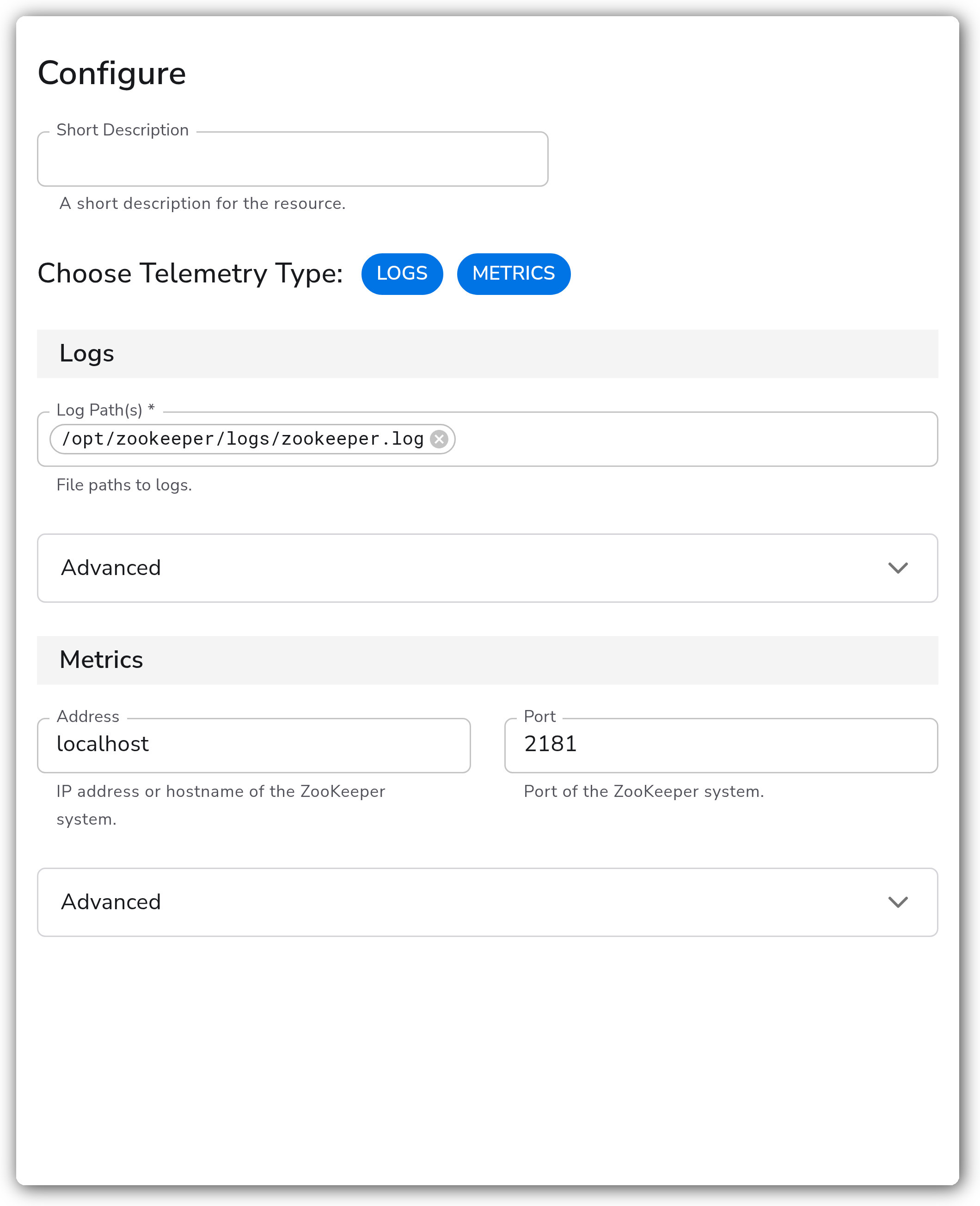

Bindplane docs - Apache ZooKeeper - image 1
**Telemetry** | Parameter | Type | Required | Default | Description | | --------------------- | ------------------ | -------- | --------------------- | ---------------------------------------------------------------- | | Choose Telemetry Type | Telemetry Selector | No | `["Logs", "Metrics"]` | Which signals this source collects. Valid values: Logs, Metrics. | **Logs** Relevant when Choose Telemetry Type includes `Logs`. | Parameter | Type | Required | Default | Description | | ----------- | ------- | -------- | ----------------------------------- | ----------------------------- | | Log Path(s) | Strings | Yes | `/opt/zookeeper/logs/zookeeper.log` | File paths to ZooKeeper logs. | **Metrics** Relevant when Choose Telemetry Type includes `Metrics`. | Parameter | Type | Required | Default | Description | | --------- | ------- | -------- | ----------- | ----------------------------------------------- | | Address | String | No | `localhost` | IP address or hostname of the ZooKeeper system. | | Port | Integer | No | `2181` | Port of the ZooKeeper system. | **Advanced** | Parameter | Type | Required | Default | Description | | ------------------- | -------------------- | -------- | ------- | ---------------------------------------------------------------------------------------------------------------- | | Start At | Enum: beginning, end | No | `end` | Start reading logs from the `beginning` or `end` of the file. Relevant when Choose Telemetry Type includes Logs. | | Parse | Boolean | No | `true` | Parse the log fields into structured data. Relevant when Choose Telemetry Type includes Logs. | | Collection Interval | Integer | No | `60` | How often (seconds) to scrape for metrics. Relevant when Choose Telemetry Type includes Metrics. | ### Examples #### Collect metrics from a local ZooKeeper server Scrape metrics from a ZooKeeper server listening on the default client port, every 30 seconds, without log collection. ```yaml apiVersion: bindplane.observiq.com/v1 kind: Source metadata: name: zookeeper-metrics spec: type: zookeeper parameters: - name: telemetry_types value: ["Metrics"] - name: address value: localhost - name: port value: 2181 - name: collection_interval value: 30 ``` #### Collect metrics and logs together Scrape metrics from a remote ZooKeeper server and tail its log file, reading new entries from the end. ```yaml apiVersion: bindplane.observiq.com/v1 kind: Source metadata: name: zookeeper-all spec: type: zookeeper parameters: - name: telemetry_types value: ["Logs", "Metrics"] - name: address value: zookeeper-1.internal - name: port value: 2181 - name: file_path value: - /opt/zookeeper/logs/zookeeper.log - name: start_at value: end - name: parse value: true ``` ### Configuration Tips * ZooKeeper 3.5+ requires `mntr` in `4lw.commands.whitelist`; if it is not whitelisted the receiver collects no metrics even though the port is reachable. * The metrics endpoint is the ZooKeeper client port (default `2181`), not a JMX/RMI port. No Java agent or JMX configuration is required for this source. * Run the collector on (or with file access to) the host where ZooKeeper writes its logs, since logs are read directly from the file path(s). ### Troubleshooting #### Connection refused on the metrics endpoint Symptoms: no metrics arrive; the collector logs a connection error to the ZooKeeper address/port. Solutions: 1. Confirm ZooKeeper is listening on the configured Address and Port (default `2181`) and that a firewall is not blocking the collector host. 2. Verify the client port is the one ZooKeeper is actually serving (`clientPort`). #### Metrics endpoint reachable but no metrics Symptoms: the port connects but no ZooKeeper metrics are produced. Solutions: 1. Add `mntr` to the `4lw.commands.whitelist` on each ZooKeeper server (3.5+ disables it by default) and restart ZooKeeper. 2. Confirm the ZooKeeper version supports the `mntr` command (3.4.0+). #### No logs collected Symptoms: log collection is enabled but no log records appear. Solutions: 1. Verify the Log Path(s) match the actual ZooKeeper log location and that the collector user has read permission. 2. If logs were written before the collector started and Start At is `end`, set Start At to `beginning` to read existing content. ### Standalone Source ```yaml apiVersion: bindplane.observiq.com/v1 kind: Source metadata: name: zookeeper spec: type: zookeeper parameters: - name: telemetry_types value: ["Logs", "Metrics"] - name: address value: localhost - name: port value: 2181 - name: collection_interval value: 60 - name: file_path value: - /opt/zookeeper/logs/zookeeper.log - name: start_at value: end - name: parse value: true ``` ### Related Resources * [ZooKeeper Monitor Guide](https://zookeeper.apache.org/doc/r3.8.5/zookeeperMonitor.html) * [ZooKeeper Administrator's Guide (four-letter-word whitelist)](https://zookeeper.apache.org/doc/current/zookeeperAdmin.html) * [OpenTelemetry zookeeperreceiver](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/receiver/zookeeperreceiver) --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://docs.bindplane.com/integrations/sources/zookeeper.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
