Solr

The Solr source collects metrics from Apache Solr over JMX and reads Solr log files. Metrics are scraped from a JMX/RMI endpoint exposed by the Solr JVM, and logs are tailed from the Solr log files on disk.

Supported Telemetry

Platform	Metrics	Logs	Traces
Linux	✓	✓
Windows	✓	✓
macOS	✓	✓

Prerequisites

Metrics

Metrics are collected over JMX, so the Solr JVM must have remote JMX enabled and reachable from the collector host.

• Enable remote JMX on Solr by setting ENABLE_REMOTE_JMX_OPTS=true (and choosing an RMI_PORT, for example 18983) in solr.in.sh (Linux/macOS) or solr.in.cmd (Windows), then restart Solr. See the official JMX with Solr guide.
• The collector host must have network reachability to the configured JMX/RMI port.
• The collector requires the OpenTelemetry Java JMX metrics JAR (opentelemetry-java-contrib-jmx-metrics.jar) present at the configured path. Bindplane collector installs ship this JAR at the default location.

Logs

• Solr must be writing its log files, and the collector must run where it can read those paths (or have them shipped to it).
• The default log path is /var/solr/logs/solr.log. Adjust the File Path(s) parameter if your deployment writes logs elsewhere.

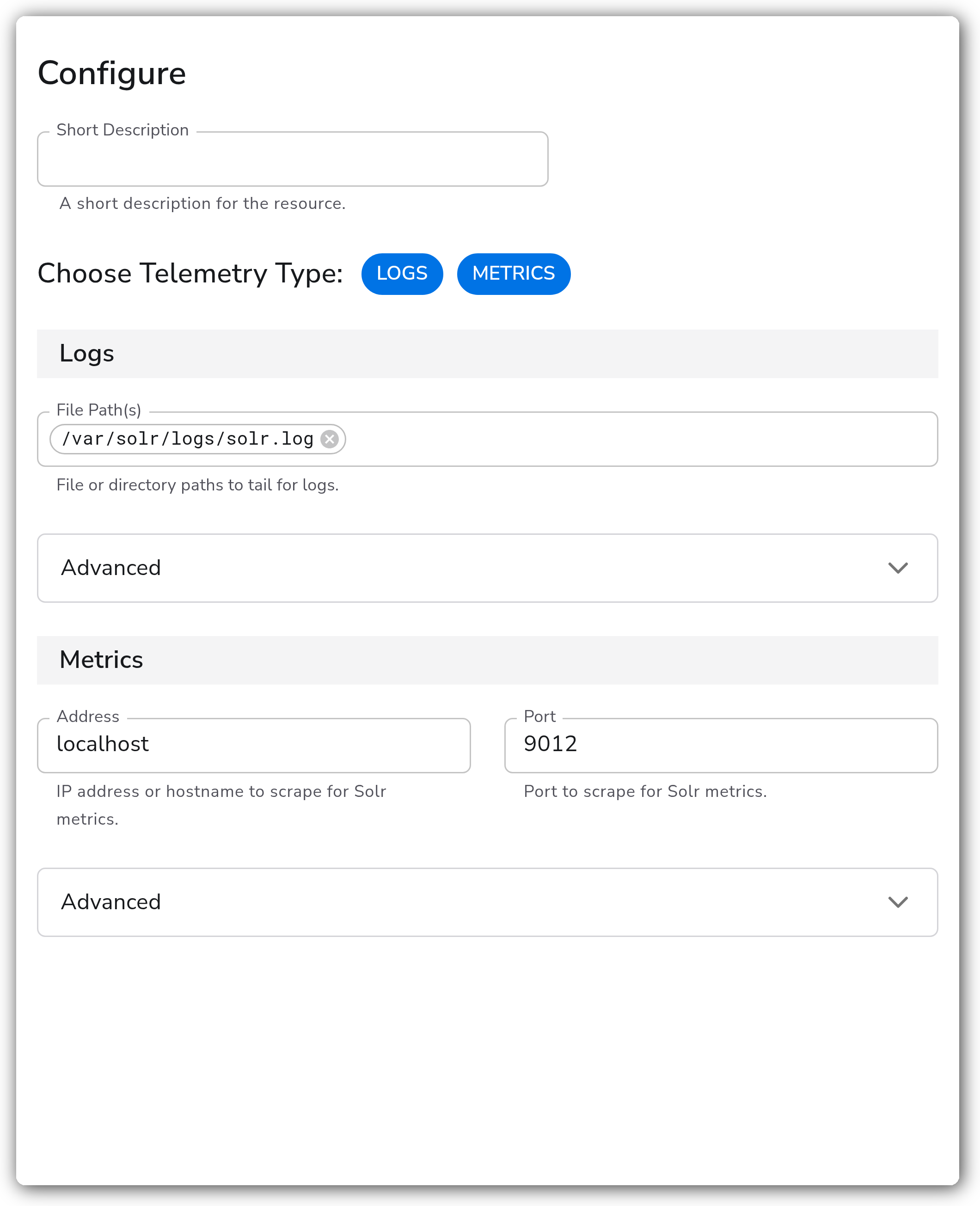

Configuration

General

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Enum: Logs, Metrics	No	["Logs", "Metrics"]	Telemetry Type. Selects which signals to collect; the Logs and Metrics parameters below are relevant only when the matching type is selected.

Logs

Parameter	Type	Required	Default	Description
File Path(s)	Strings	No	/var/solr/logs/solr.log	File or directory paths to tail for logs.

Metrics

Parameter	Type	Required	Default	Description
Address	String	No	localhost	IP address or hostname to scrape for Solr metrics.
Port	Integer	No	9012	Port to scrape for Solr metrics.

Advanced

Parameter	Type	Required	Default	Description
Start At	Enum: beginning, end	No	end	Start reading logs from 'beginning' or 'end'. Relevant when Logs is selected.
Parse	Boolean	No	true	Parses the log fields into structured data. Relevant when Logs is selected.
JMX Metrics Collection Jar Path	String	No	/opt/opentelemetry-java-contrib-jmx-metrics.jar	Full path to the JMX metrics jar. Relevant when Metrics is selected.
Collection Interval	Integer	No	60	How often (seconds) to scrape for metrics. Relevant when Metrics is selected.

Examples

Collect metrics over JMX from a remote Solr host

Scrape Solr JMX metrics from a Solr instance reachable at solr.internal:18983, collecting every 30 seconds and disabling log collection.

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: solr
spec:
  type: solr
  parameters:
    - name: telemetry_types
      value:
        - Metrics
    - name: address
      value: solr.internal
    - name: port
      value: 18983
    - name: collection_interval
      value: 30

Configuration Tips

• The Port parameter must match the RMI_PORT you set when enabling remote JMX on Solr (the default in this source is 9012, but Solr's example port is 18983). Confirm the two agree.
• Keep the JMX Metrics Collection Jar Path pointing at the JAR shipped with the collector unless you have relocated it.
• Leave Parse enabled to get structured Solr log fields; disable it only if you intend to parse the raw log line downstream.

Troubleshooting

Symptom: No metrics appear. Solution: Confirm remote JMX is enabled on Solr (ENABLE_REMOTE_JMX_OPTS=true) and that Solr was restarted, the configured Port matches Solr's RMI port, and the collector host can reach that port.

Symptom: Connection refused on the JMX port. Solution: Verify the Address and Port are correct and reachable from the collector host, and that no firewall is blocking the JMX/RMI port. Remote JMX binds only when ENABLE_REMOTE_JMX_OPTS=true.

Symptom: No logs are collected. Solution: Verify the File Path(s) match where Solr writes logs (default /var/solr/logs/solr.log) and that the collector user has read permission on those files.

Standalone Source

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: solr
spec:
  type: solr
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
    - name: file_path
      value:
        - /var/solr/logs/solr.log
    - name: address
      value: localhost
    - name: port
      value: 9012
