# Apache Spark

The Apache Spark source collects metrics by scraping the Spark REST API, exposed by default on port `4040` of the application driver (or the standalone master). It uses the OpenTelemetry `apachesparkreceiver` to gather cluster, job, executor, and stage metrics.

### Supported Telemetry

| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| Linux    | ✓       |      |        |
| Windows  | ✓       |      |        |
| macOS    | ✓       |      |        |

### Prerequisites

You need a reachable Spark REST API endpoint. Every Spark application launches a web UI and REST API, by default on port `4040` of the driver node (subsequent applications on the same host bind to `4041`, `4042`, and so on). Metrics are read from the `/api/v1` REST endpoints under that address.

* The Spark driver (or standalone master) must be running and serving the REST API at the configured endpoint (default `http://localhost:4040`).
* The collector host must have network reachability to that endpoint. If the collector runs on a different host than the driver, point the endpoint at the driver's reachable address rather than `localhost`.
* If the endpoint is served over TLS, enable TLS in the configuration and supply the relevant certificate material.

For details on the Spark web UI, REST API, and the available `/api/v1` endpoints, see the official [Apache Spark Monitoring and Instrumentation](https://spark.apache.org/docs/latest/monitoring.html) documentation.

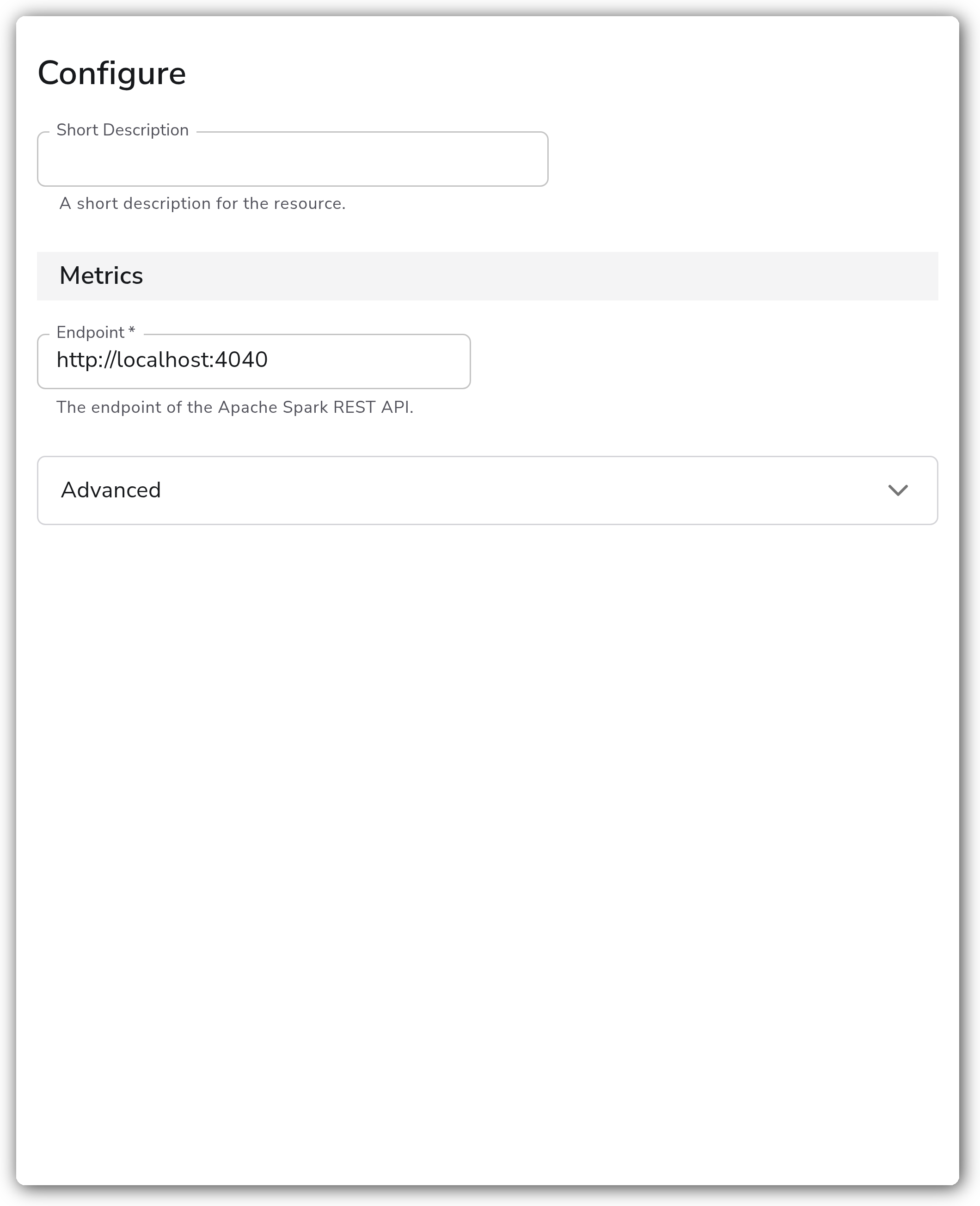

### Configuration

<figure><img src="/files/txn3RNNxF1JX64MIH3f8" alt="Bindplane docs - Apache Spark - image 1"><figcaption></figcaption></figure>

**Metrics**

| Parameter | Type   | Required | Default                 | Description                                |
| --------- | ------ | -------- | ----------------------- | ------------------------------------------ |
| Endpoint  | String | Yes      | `http://localhost:4040` | The endpoint of the Apache Spark REST API. |

**Advanced**

| Parameter                          | Type    | Required | Default   | Description                                                                                                                           |
| ---------------------------------- | ------- | -------- | --------- | ------------------------------------------------------------------------------------------------------------------------------------- |
| Enable TLS                         | Boolean | No       | `false`   | Whether to use TLS when connecting to Apache Spark.                                                                                   |
| Skip TLS Certificate Verification  | Boolean | No       | `false`   | Enable to skip TLS certificate verification. Relevant when Enable TLS is `true`.                                                      |
| TLS Certificate Authority File     | String  | No       | *(empty)* | Certificate authority used to validate TLS certificates. Relevant when Enable TLS is `true`.                                          |
| Mutual TLS Client Certificate File | String  | No       | *(empty)* | A TLS certificate used for client authentication. Relevant when Enable TLS is `true`.                                                 |
| TLS Client Private Key File        | String  | No       | *(empty)* | A TLS private key used for client authentication. Relevant when Enable TLS is `true`.                                                 |
| Collection Interval                | Integer | No       | `60`      | How often (seconds) to scrape for metrics.                                                                                            |
| Allowed Spark Application Names    | Strings | No       | *(empty)* | Filters that define which Spark applications are scraped for metrics. If undefined, all applications at the endpoint will be scraped. |
| Spark Metrics                      | Metrics | No       | *(empty)* | Toggle the Cluster, Job, Executor, and Stage metrics you wish to collect on and off.                                                  |

### Examples

#### Scrape a remote Spark driver with a filtered application list

This source scrapes a Spark driver on a remote host every 30 seconds, limiting collection to two named applications.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: apache-spark
spec:
  type: apache_spark
  parameters:
    - name: endpoint
      value: http://spark-driver.internal:4040
    - name: collection_interval
      value: 30
    - name: application_names
      value:
        - streaming-etl
        - nightly-batch
```

### Configuration Tips

* The default endpoint `http://localhost:4040` only works when the collector runs on the same host as the Spark driver. For a remote driver or standalone master, set the endpoint to its reachable address.
* When multiple Spark applications run on the same host, they bind to successive ports starting at `4040`. Point a separate source at each port, or use Allowed Spark Application Names to scope what a single endpoint reports.
* If the REST API is served over HTTPS, enable TLS and supply a CA file. Use Skip TLS Certificate Verification only for testing against self-signed certificates.

### Troubleshooting

#### No metrics appear

Symptoms: the source is applied but no Spark metrics arrive.

Solutions:

1. Confirm the Spark application is running and its web UI / REST API is reachable at the configured endpoint (try `http://<endpoint>/api/v1/applications`).
2. If the collector is on a different host than the driver, verify the endpoint is not set to `localhost` and that network access to the port is open.

#### Connection refused

Symptoms: the collector logs connection-refused or timeout errors against the endpoint.

Solutions:

1. Verify the port is correct. A second concurrent application binds to `4041` rather than `4040`.
2. Confirm no firewall blocks the collector host from reaching the driver port.

#### TLS handshake errors

Symptoms: the collector logs certificate or TLS errors.

Solutions:

1. Ensure Enable TLS matches whether the endpoint actually serves HTTPS, and provide a valid CA file.
2. For self-signed certificates in a non-production environment, enable Skip TLS Certificate Verification.

### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: apache-spark
spec:
  type: apache_spark
  parameters:
    - name: endpoint
      value: http://localhost:4040
    - name: collection_interval
      value: 60
```

### Related Resources

* [Apache Spark — Monitoring and Instrumentation](https://spark.apache.org/docs/latest/monitoring.html)
* [OpenTelemetry `apachesparkreceiver` reference](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/receiver/apachesparkreceiver)


---
