# Cloudflare

The Cloudflare source receives logs pushed from [Cloudflare LogPush](https://developers.cloudflare.com/logs/about/) jobs. Bindplane runs an HTTPS listener that LogPush delivers batched log records to over the public internet.

### Supported Telemetry Types

| Platform           | Metrics | Logs | Traces |
| ------------------ | ------- | ---- | ------ |
| Linux              |         | ✓    |        |
| Windows            |         | ✓    |        |
| macOS              |         | ✓    |        |
| Kubernetes Gateway |         | ✓    |        |
| OpenShift Gateway  |         | ✓    |        |

### Prerequisites

* A Cloudflare **Enterprise** plan (LogPush is an Enterprise feature).
* A TLS certificate and private key signed by a **publicly trusted** certificate authority. Cloudflare rejects self-signed certificates.
* The collector reachable from the public internet on the configured HTTPS port.
* A Cloudflare LogPush job whose destination points at the collector (see [Configuring a LogPush job](#configuring-a-logpush-job)).

### Configuration

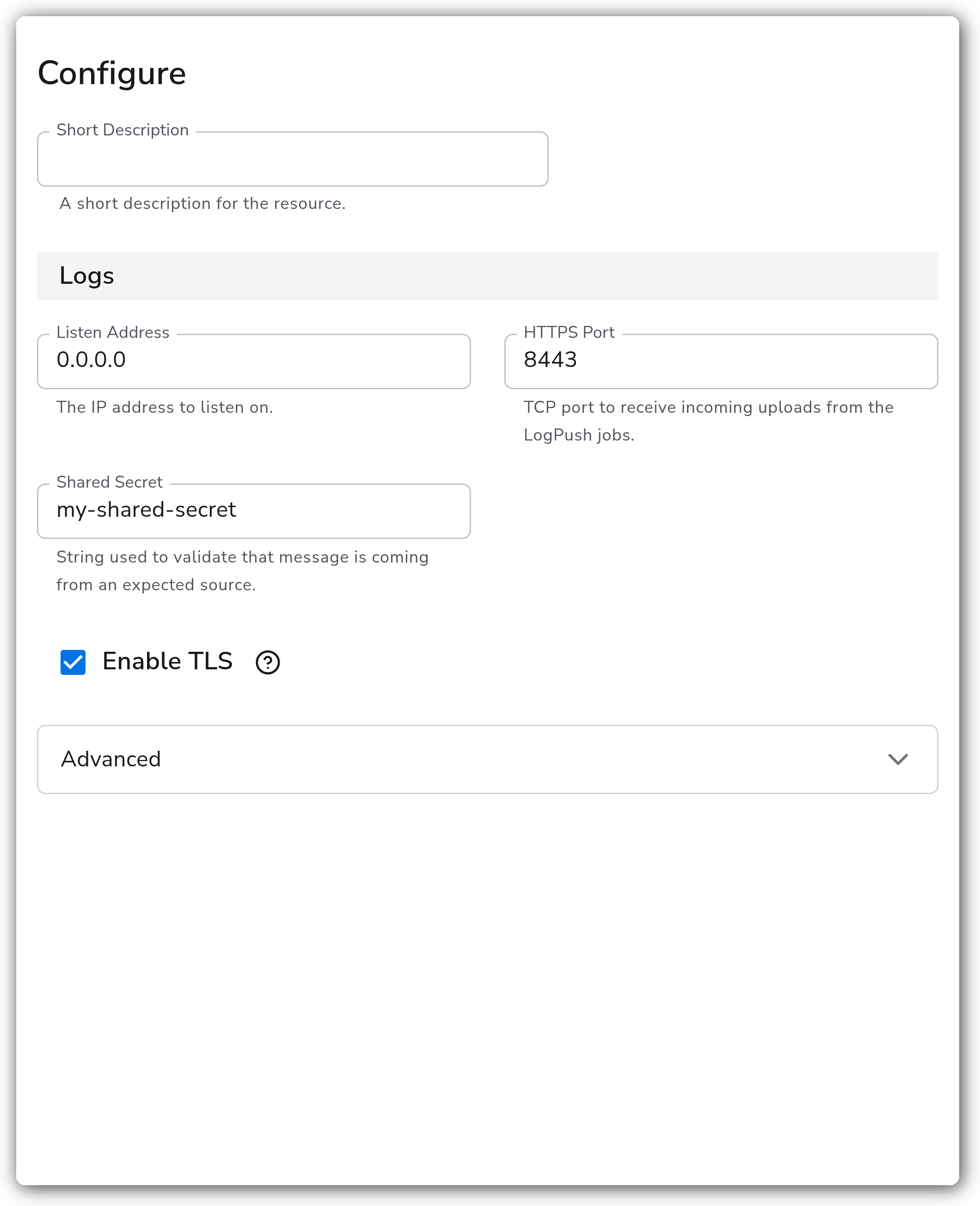

<figure><img src="/files/82MECgr1KhDpPYLm3ewe" alt="Bindplane docs - Cloudflare - image 1"><figcaption></figcaption></figure>

#### General

| Parameter      | Type    | Default   | Description                                                                                                                                                                |
| -------------- | ------- | --------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Listen Address | String  | `0.0.0.0` | The IP address to listen on. The collector must be reachable from the internet to receive logs from Cloudflare.                                                            |
| HTTPS Port     | Integer | `8443`    | TCP port to receive incoming uploads from the LogPush job(s).                                                                                                              |
| Shared Secret  | String  |           | String used to validate that a message is coming from an expected source. When set, it must also be configured on the LogPush job destination as the `X-CF-Secret` header. |

#### TLS

| Parameter                      | Type    | Default | Description                                                                                                            |
| ------------------------------ | ------- | ------- | ---------------------------------------------------------------------------------------------------------------------- |
| Enable TLS                     | Boolean | `true`  | Whether or not to use TLS. Cloudflare requires the endpoint to use TLS.                                                |
| TLS Certificate File           | String  |         | Local path to the TLS certificate used to encrypt the listening server. Required when TLS is enabled.                  |
| TLS Private Key File           | String  |         | Local path to the TLS private key used to encrypt the listening server. Required when TLS is enabled.                  |
| Mutual TLS                     | Boolean | `false` | Whether or not to require client TLS authentication (mTLS).                                                            |
| TLS Certificate Authority File | String  |         | Local path to the certificate authority used to authenticate client certificates. Required when Mutual TLS is enabled. |

#### Advanced

| Parameter       | Type   | Default              | Description                                                                                                                                  |
| --------------- | ------ | -------------------- | -------------------------------------------------------------------------------------------------------------------------------------------- |
| Attributes      | Map    | `{}`                 | A map of Cloudflare LogPush field names to log record attributes. Each key is a LogPush field; the value is the attribute name to map it to. |
| Timestamp Field | String | `EdgeStartTimestamp` | The name of the field parsed to set the timestamp of the log record.                                                                         |

### Configuring a LogPush job

Cloudflare delivers logs to the collector through an HTTP-destination LogPush job. From the Cloudflare dashboard (or the LogPush API), create a job for the dataset you want (for example, **HTTP requests** or **Firewall events**) with an HTTP destination of:

```
https://<collector-host>:8443/?header_X-CF-Secret=<secret>
```

* `<collector-host>` is the publicly resolvable hostname of the collector, matching the certificate's subject.
* `<secret>` is the same value set in the `secret` parameter above.

Cloudflare validates the destination by sending a challenge file before it begins delivery. Make sure the collector is running and reachable before you create the job.

### Example Configuration

#### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: cloudflare
  name: cloudflare
spec:
  type: cloudflare
  parameters:
    - name: listen_address
      value: '0.0.0.0'
    - name: https_port
      value: '8443'
    - name: secret
      value: 'my-shared-secret'
    - name: enable_tls
      value: 'true'
    - name: cert_file
      value: '/opt/observiq-otel-collector/cloudflare.crt'
    - name: key_file
      value: '/opt/observiq-otel-collector/cloudflare.key'
    - name: timestamp_field
      value: 'EdgeStartTimestamp'
```

### Configuration Tips

#### Mapping LogPush fields to attributes

* Use the `attributes` parameter to promote specific LogPush fields (for example, `ClientIP`, `RayID`, `EdgeResponseStatus`) to log record attributes so they can be filtered on downstream.
* Map `timestamp_field` to the field that best represents event time for your dataset. `EdgeStartTimestamp` suits HTTP request logs; other datasets may expose a different timestamp field.

#### Kubernetes and OpenShift

* On Kubernetes Gateway and OpenShift Gateway collectors, create a custom Service to route external traffic to the collector. See [Custom Service](https://docs.bindplane.com/deployment/kubernetes/collector/custom-service).

### Troubleshooting

**Symptom:** Cloudflare reports the LogPush job destination as invalid, or no logs arrive. **Solution:** Confirm the collector is reachable from the public internet on the configured port and that the TLS certificate is signed by a publicly trusted CA. Self-signed certificates cause Cloudflare's destination validation to fail.

**Symptom:** Logs are received but the timestamp does not match event time. **Solution:** Set `timestamp_field` to the timestamp field present in your LogPush dataset (for example, `EdgeStartTimestamp` for HTTP request logs). If the field is absent, the receiver falls back to ingestion time.

**Symptom:** Records are delivered from an unexpected source. **Solution:** Set the `secret` parameter and configure the matching `X-CF-Secret` header on the LogPush job destination so the receiver rejects requests without the shared secret.

### Related Resources

* [Cloudflare LogPush documentation](https://developers.cloudflare.com/logs/about/)
* [Cloudflare LogPush HTTP destination](https://developers.cloudflare.com/logs/get-started/enable-destinations/http/)
* [Custom Service for Kubernetes collectors](https://docs.bindplane.com/deployment/kubernetes/collector/custom-service)


---
