# Google Cloud Storage Pub/Sub Event

The Google Cloud Storage Pub/Sub Event source consumes [Google Cloud Storage](https://cloud.google.com/storage/docs) object notifications delivered to a [Pub/Sub](https://cloud.google.com/pubsub/docs/overview) subscription. When a notification arrives, the source downloads the referenced GCS object and reads its contents into the body of a log record.

### Supported Telemetry Types

| Platform           | Metrics | Logs | Traces |
| ------------------ | ------- | ---- | ------ |
| Linux              |         | ✓    |        |
| Windows            |         | ✓    |        |
| macOS              |         | ✓    |        |
| Kubernetes Cluster |         | ✓    |        |
| Kubernetes Gateway |         | ✓    |        |

### Prerequisites

* A Google Cloud project with access to Cloud Storage and Pub/Sub.
* A [GCS bucket notification](https://cloud.google.com/storage/docs/pubsub-notifications) configured to publish object events to a Pub/Sub topic.
* A [Pub/Sub subscription](https://cloud.google.com/pubsub/docs/create-subscription) on that topic for the collector to consume.
* Credentials for the collector with permission to pull and acknowledge messages from the subscription and to read objects from the bucket. See [Application Default Credentials](https://cloud.google.com/docs/authentication/application-default-credentials).
* A reachable Redis server if you enable offset storage (optional).

### How It Works

1. The source pulls messages from the Pub/Sub subscription that receives GCS object notifications.
2. For each notification, the source downloads the referenced GCS object.
3. The object contents are read into the body of one or more log records.
4. Notifications are deduplicated in two layers, since GCS publishes notifications at-least-once:
   * **Batch-level:** within a single pull response, duplicates keyed by bucket, object, and generation are acknowledged immediately.
   * **Cross-batch:** a time-bounded tracker (configured by `dedup_ttl`) catches sequential duplicates that arrive in separate pull responses.
5. When Redis offset storage is enabled, the read position into an object is persisted so processing resumes after a collector restart, allowing large objects to be handled without exhausting memory.

### Configuration

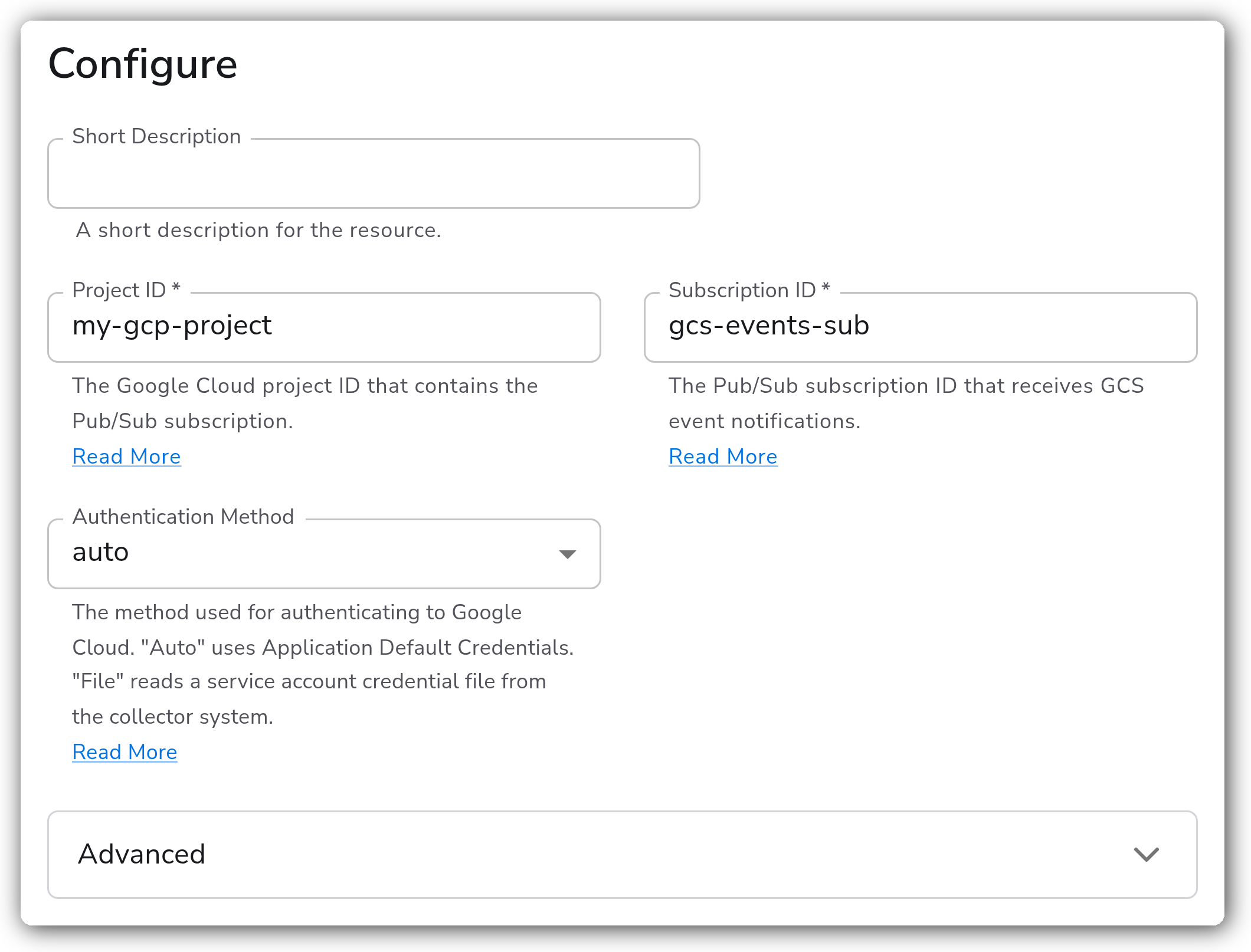

<figure><img src="/files/a82bVAbj2bfZzqLXLlJi" alt="Bindplane docs - Google Cloud Storage Pub/Sub Event - image 1"><figcaption></figcaption></figure>

#### General

| Parameter       | Type   | Default | Description                                                                   |
| --------------- | ------ | ------- | ----------------------------------------------------------------------------- |
| Project ID      | String |         | The Google Cloud project ID that contains the Pub/Sub subscription. Required. |
| Subscription ID | String |         | The Pub/Sub subscription ID that receives GCS event notifications. Required.  |

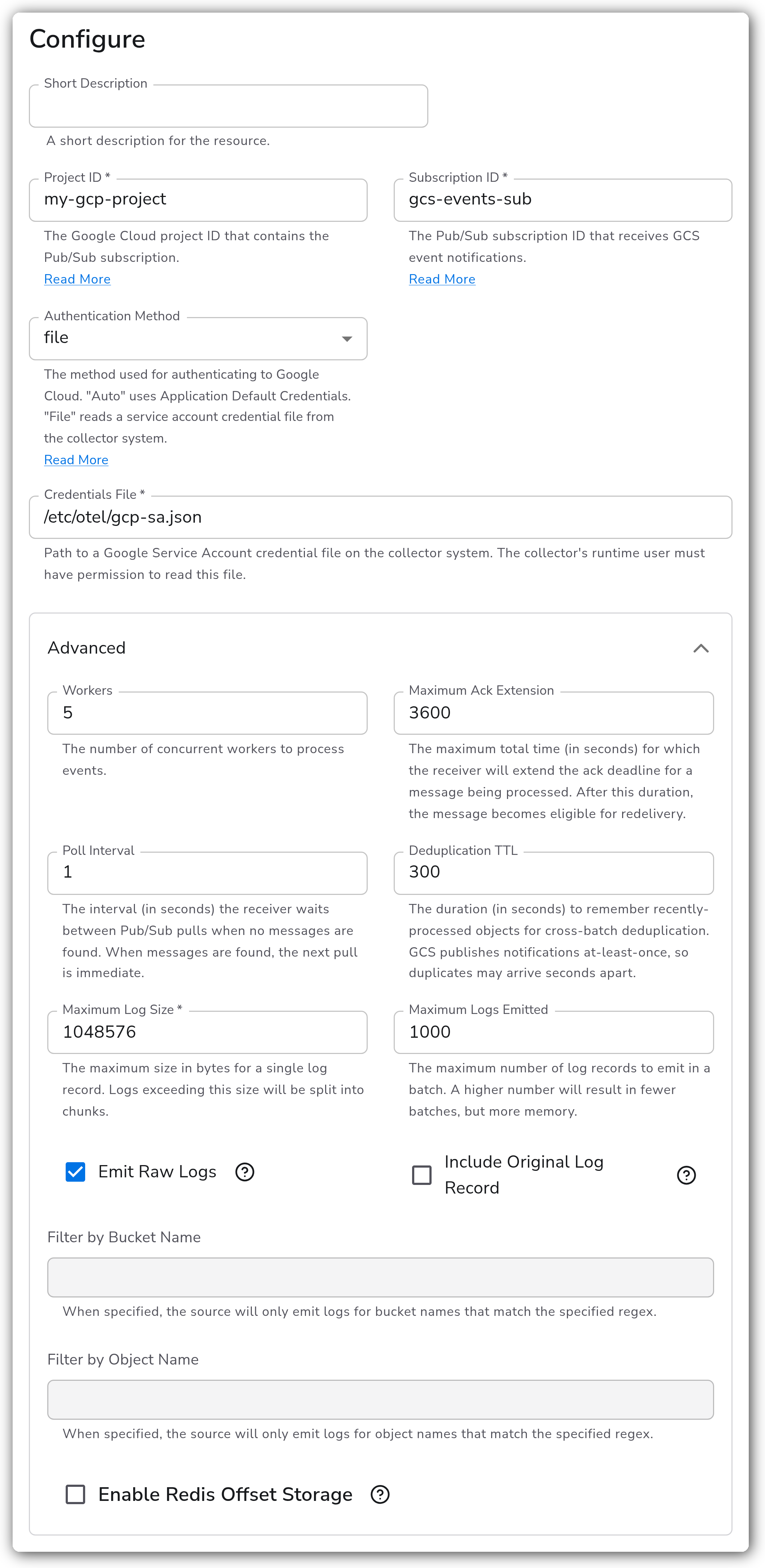

#### Advanced

| Parameter             | Type      | Default   | Description                                                                                                                                                                                     |
| --------------------- | --------- | --------- | ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Workers               | Integer   | `5`       | The number of concurrent workers used to process events.                                                                                                                                        |
| Maximum Ack Extension | Integer   | `3600`    | The maximum total time, in seconds, the receiver will extend the ack deadline for a message being processed. After this duration the message becomes eligible for redelivery. Minimum `1`.      |
| Poll Interval         | Integer   | `1`       | The interval, in seconds, the receiver waits between Pub/Sub pulls when no messages are found. When messages are found, the next pull is immediate. Minimum `1`.                                |
| Deduplication TTL     | Integer   | `300`     | The duration, in seconds, to remember recently-processed objects for cross-batch deduplication. GCS publishes notifications at-least-once, so duplicates may arrive seconds apart. Minimum `1`. |
| Maximum Log Size      | Integer   | `1048576` | The maximum size in bytes for a single log record. Logs exceeding this size are split into chunks. Required.                                                                                    |
| Maximum Logs Emitted  | Integer   | `1000`    | The maximum number of log records to emit in a batch. A higher number results in fewer batches but more memory.                                                                                 |
| Filter by Bucket Name | CodeBlock |           | When set, the source only emits logs for bucket names that match the specified regex.                                                                                                           |
| Filter by Object Name | CodeBlock |           | When set, the source only emits logs for object names that match the specified regex.                                                                                                           |

#### Redis Offset Storage

Offset storage persists the read position into each object to Redis so processing resumes after a collector restart. These parameters apply only when `enable_offset_storage` is `true`.

| Parameter                   | Type    | Default     | Description                                                                                                                                |
| --------------------------- | ------- | ----------- | ------------------------------------------------------------------------------------------------------------------------------------------ |
| Enable Redis Offset Storage | Boolean | `false`     | When enabled, the current position into an object is saved to Redis, and reading resumes from where it left off after a collector restart. |
| Redis Hostname              | String  | `localhost` | The hostname or IP address of the Redis server used for offset storage. Required when offset storage is enabled.                           |
| Redis Port                  | Integer | `6379`      | The port number of the Redis server used for offset storage. Required when offset storage is enabled. Range `1`–`65535`.                   |
| Redis Password              | String  |             | The password for the Redis server used for offset storage. Applies when offset storage is enabled.                                         |
| Redis Database              | Integer | `0`         | The Redis database number to use for offset storage. Required when offset storage is enabled.                                              |
| Redis Expiration            | Integer | `0`         | The expiration time, in seconds, for offset storage in Redis. Required when offset storage is enabled.                                     |
| Enable Redis TLS            | Boolean | `false`     | Whether to enable TLS for the Redis connection. Applies when offset storage is enabled.                                                    |
| Redis TLS CA File           | String  |             | The path to the CA file for the Redis TLS connection. Applies when offset storage and Redis TLS are enabled.                               |
| Redis TLS Cert File         | String  |             | The path to the client certificate file for the Redis TLS connection. Applies when offset storage and Redis TLS are enabled.               |
| Redis TLS Key File          | String  |             | The path to the client key file for the Redis TLS connection. Applies when offset storage and Redis TLS are enabled.                       |

### Example Configuration

#### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: google_cloud_pubsub_event
  name: google_cloud_pubsub_event
spec:
  type: google_cloud_pubsub_event
  parameters:
    - name: project_id
      value: 'my-gcp-project'
    - name: subscription_id
      value: 'gcs-events-sub'
    - name: workers
      value: '5'
    - name: dedup_ttl
      value: '300'
    - name: max_log_size
      value: '1048576'
```

### Configuration Tips

#### Filtering objects

* Use `bucket_name_filter` and `object_key_filter` to restrict processing to a subset of buckets or object keys. Both accept a regular expression and are evaluated against the bucket and object names from the notification.
* Filtering at the source reduces downloads and downstream volume, so apply it when a single subscription receives notifications for objects you do not want to ingest.

#### Handling large objects

* For large objects, enable `enable_offset_storage` and point it at a Redis server. The source persists the read position so a collector restart resumes mid-object instead of reprocessing or skipping data.
* Tune `max_log_size` and `max_logs_emitted` together. Larger values reduce batch count but increase memory use per batch.

#### Deduplication

* GCS notification delivery is at-least-once. Keep `dedup_ttl` at or above the interval over which you expect duplicate notifications to arrive so cross-batch deduplication catches them.

### Troubleshooting

**Symptom:** No logs arrive even though objects are being written to the bucket. **Solution:** Confirm a [GCS bucket notification](https://cloud.google.com/storage/docs/pubsub-notifications) is publishing to the Pub/Sub topic and that `subscription_id` matches a subscription on that topic. Verify the collector's credentials can pull and acknowledge messages on the subscription.

**Symptom:** Messages are received but objects fail to download. **Solution:** Ensure the collector's credentials have read access to the GCS bucket. A permission denied (403) or not found (404) on the object causes the message to be nacked for redelivery or dead-letter processing.

**Symptom:** The same object is ingested more than once. **Solution:** Increase `dedup_ttl` so the cross-batch deduplication window covers the interval over which GCS redelivers notifications. Persistent duplicates beyond the window are expected under at-least-once delivery.

**Symptom:** A large object is reprocessed from the start after a collector restart. **Solution:** Set `enable_offset_storage` to `true` and configure a reachable Redis server so the read position is persisted across restarts.

### Related Resources

* [Cloud Storage Pub/Sub notifications](https://cloud.google.com/storage/docs/pubsub-notifications)
* [Create a Pub/Sub subscription](https://cloud.google.com/pubsub/docs/create-subscription)
* [Application Default Credentials](https://cloud.google.com/docs/authentication/application-default-credentials)


---
