Splunk Search API

The Splunk Search API source uses the Splunk Search API to collect past events from a Splunk search head. Unlike streaming sources, it runs one or more saved searches over a fixed time range, retrieves the matching events, and forwards them to a destination while preserving the original Splunk event timestamp.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux		✓
Windows		✓
macOS		✓

Prerequisites

• A reachable Splunk search head endpoint (hostname and management port, default 8089).
• Splunk credentials with permission to run searches over the target index. Basic authentication (username and password) or token authentication is supported.
• For token authentication, a Splunk authentication token and its type (Bearer or Splunk).

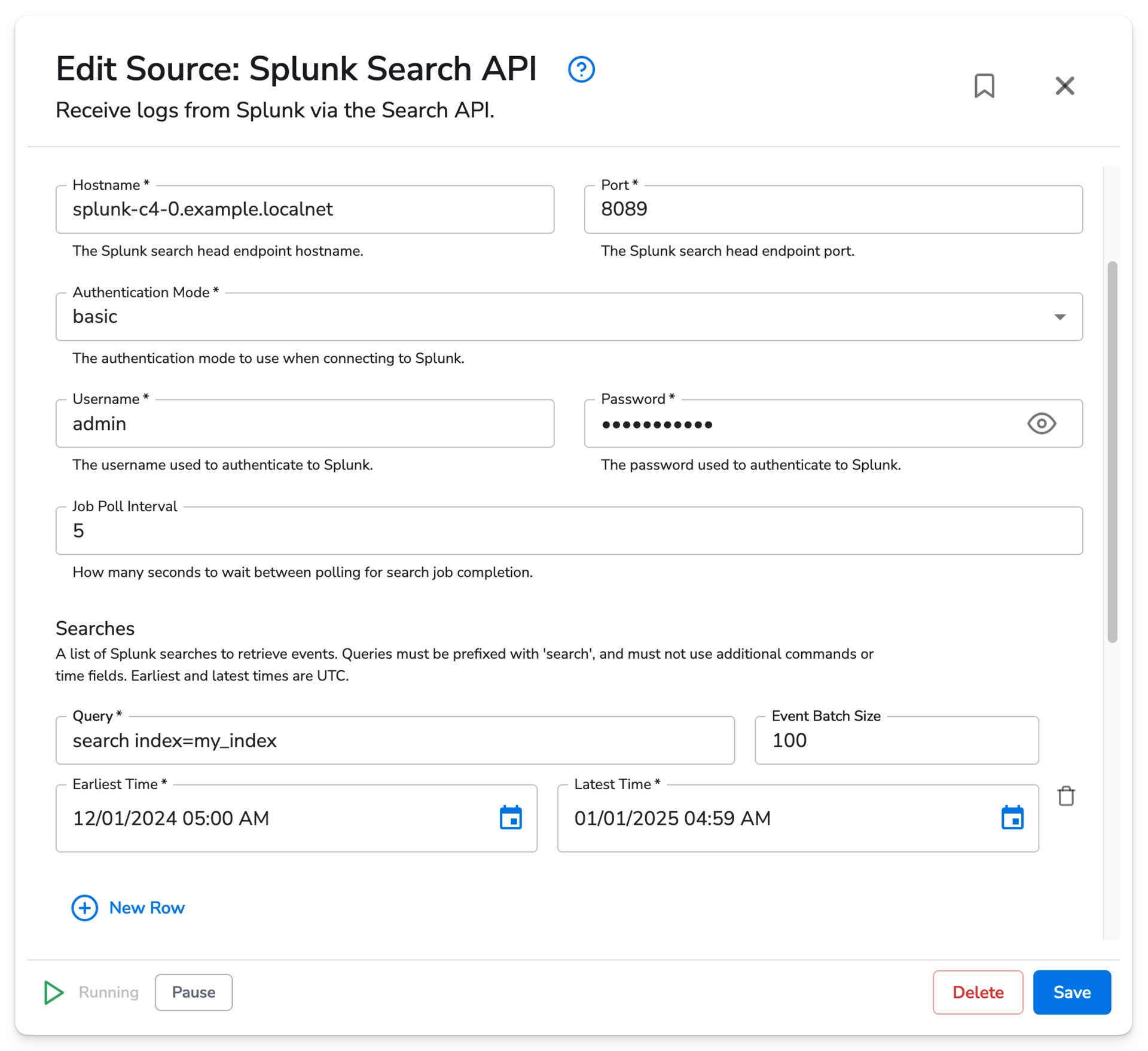

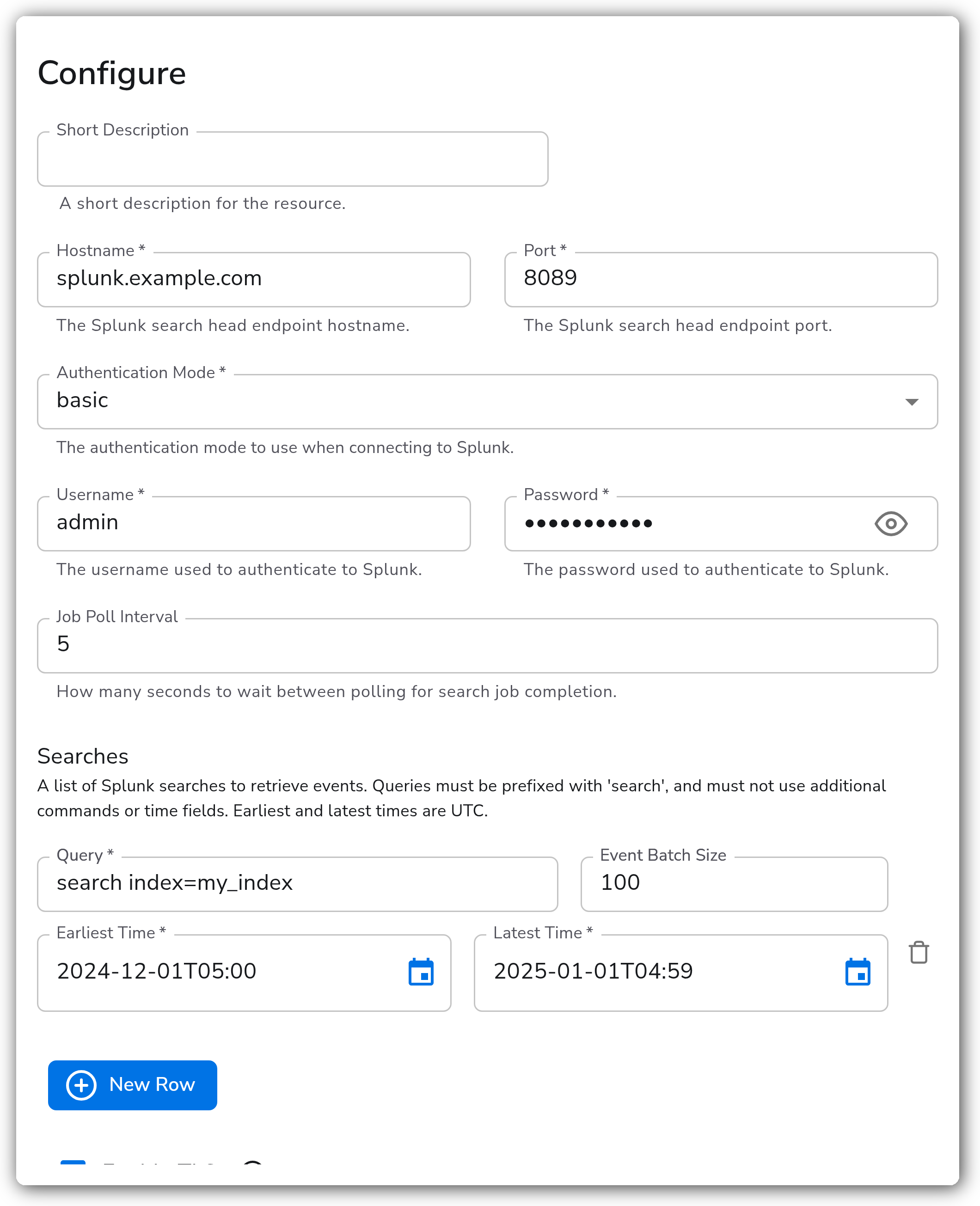

Configuration

General

Parameter	Type	Default	Description
Hostname	String		The Splunk search head endpoint hostname. Required.
Port	String	8089	The Splunk search head endpoint port. Required.
Job Poll Interval	Integer	5	How many seconds to wait between polling for search job completion.

Authentication

Parameter	Type	Default	Description
Authentication Mode	Enum	basic	The authentication mode to use when connecting to Splunk. Valid values are basic and token. Required.
Username	String		The username used to authenticate to Splunk. Required when auth_mode is basic.
Password	String		The password used to authenticate to Splunk. Required when auth_mode is basic. Stored as a sensitive value.
Auth Token	String		The auth token used to authenticate to Splunk. Required when auth_mode is token. Stored as a sensitive value.
Token Type	Enum	Bearer	The type of token used to authenticate to Splunk. Valid values are Bearer and Splunk. Required when auth_mode is token.

Searches

The Searches parameter is a list of Splunk searches to run. Each entry has the following fields:

Field	Type	Default	Description
Query	String		The Splunk search to run. Must be prefixed with search and must not use additional commands or time fields.
Earliest Time	String		Earliest event timestamp to collect (inclusive), in UTC.
Latest Time	String		Latest event timestamp to collect (inclusive), in UTC.
Event Batch Size	Integer	100	Number of events to query from Splunk in a single request.

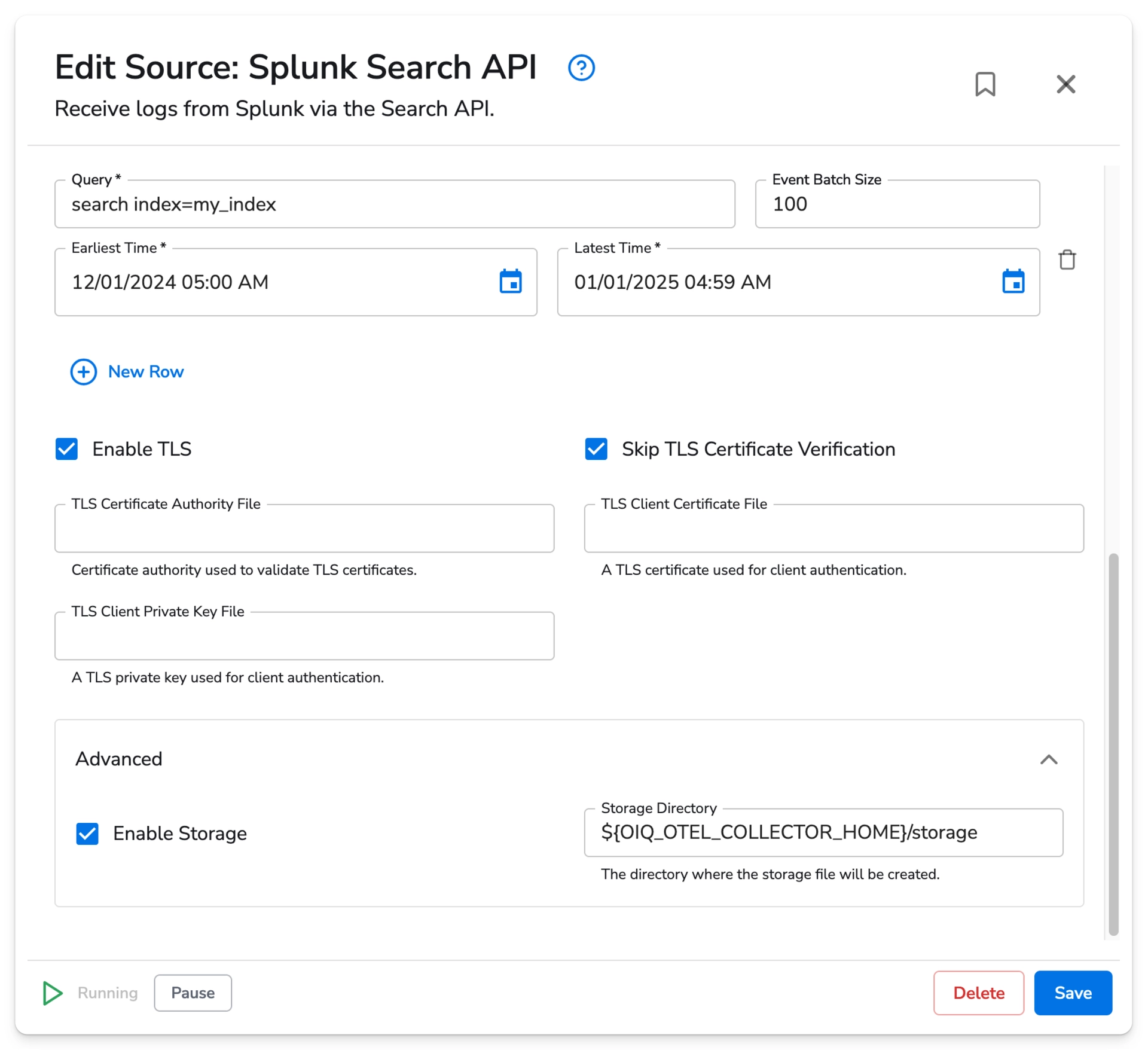

TLS

Parameter	Type	Default	Description
Enable TLS	Boolean	true	Whether or not to use TLS.
Skip TLS Certificate Verification	Boolean	false	Skip TLS certificate verification. Applies when TLS is enabled.
TLS Certificate Authority File	String		Certificate authority used to validate TLS certificates. Applies when TLS is enabled.
TLS Client Certificate File	String		A TLS certificate used for client authentication. Applies when TLS is enabled.
TLS Client Private Key File	String		A TLS private key used for client authentication. Applies when TLS is enabled.

Advanced

Parameter	Type	Default	Description
Enable Checkpoint	Boolean	true	Enable checkpointing for the Splunk Search API source. Recommended in all environments so the source can resume after a restart.
Checkpoint Directory	String	${OIQ_OTEL_COLLECTOR_HOME}/storage	Directory for storing checkpoint state. Used to maintain state and resume operations after disruptions. Applies when checkpointing is enabled.

Example Configuration

1. Identify the Splunk index to collect events from and write a search that captures those events. This becomes the query for a search entry.

   • Example: search index=my_index
   • Queries must begin with the explicit search command and must not include additional commands or time fields (for example earliest).
2. Determine the timeframe to collect events from, and set the Earliest Time and Latest Time fields accordingly (both are UTC).

   • To collect events from December 2024 in EST (UTC-5):

     • Earliest Time: 2024-12-01T05:00
     • Latest Time: 2025-01-01T04:59
3. Add a search entry per index you want to collect from. The source can run multiple searches at once, but configuring one at a time makes testing and debugging easier.
4. Configure the remaining fields (hostname, port, authentication, TLS) for your Splunk environment.

Standalone Source

The following source collects events from a single index over December 2024 (UTC) using basic authentication over TLS:

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: splunk_search_api
  name: splunk_search_api
spec:
  type: splunk_search_api
  parameters:
    - name: hostname
      value: 'splunk.example.com'
    - name: port
      value: '8089'
    - name: auth_mode
      value: 'basic'
    - name: splunk_username
      value: 'admin'
    - name: splunk_password
      value: 'my-password'
    - name: job_poll_interval
      value: '5'
    - name: searches
      value:
        - query: 'search index=my_index'
          earliestTime: '2024-12-01T05:00'
          latestTime: '2025-01-01T04:59'
          eventBatchSize: 100
    - name: enable_tls
      value: 'true'
    - name: enable_storage
      value: 'true'

To use token authentication instead, set auth_mode to token, provide auth_token and token_type, and omit splunk_username / splunk_password:

    - name: auth_mode
      value: 'token'
    - name: auth_token
      value: 'my-splunk-token'
    - name: token_type
      value: 'Bearer'

Configuration Tips

Writing search queries

• Every query must begin with the explicit search command, for example search index=my_index sourcetype=access_combined.
• Do not include time modifiers (earliest, latest) or additional pipe commands in the query. Set the time range with the Earliest Time and Latest Time fields instead.
• Earliest and Latest times are interpreted as UTC. Convert local times to UTC before entering them.

One search at a time

• The Splunk Search API source is not built to stream live data. It collects a finite set of events over a fixed time range and forwards them, preserving the original Splunk event timestamp.
• Once the source begins collecting events for a search, allow it to complete unless stopping is absolutely necessary. To resume an interrupted search, run that same search again so the source picks up from its checkpoint.
• Switching to a different search before the current one completes wipes the checkpoint for the interrupted search from storage, so its progress is lost.

Checkpointing

• Leave enable_storage enabled so the source can track progress and resume after a collector restart. The checkpoint is keyed to the search, which is why interrupted searches must be re-run rather than replaced.

Troubleshooting

Symptom: The source cannot connect or authentication fails. Solution: Confirm the hostname and port point at the Splunk search head management endpoint (default 8089, not the web UI port 8000). Verify the credentials for the selected auth_mode: username and password for basic, or auth_token and the correct token_type (Bearer or Splunk) for token.

Symptom: TLS handshake errors or certificate validation failures. Solution: If Splunk uses a certificate signed by a private CA, set ca_file to that authority. For testing against a self-signed certificate, you can set insecure_skip_verify to true, but avoid this in production. If Splunk requires client certificate authentication, set both cert_file and key_file.

Symptom: A search returns no events, or fewer than expected. Solution: Confirm the query begins with search and contains no time fields or extra commands. Check that the Earliest Time and Latest Time range is in UTC and actually covers the events you expect. Run the same query directly in Splunk over the same UTC range to confirm it matches.

Symptom: An interrupted search restarts from the beginning instead of resuming. Solution: Ensure enable_storage is enabled and storage_directory points to a writable, persistent path. Re-run the exact same search to resume from its checkpoint. Switching searches before completion wipes the prior checkpoint.
