# Common Event Format

The Common Event Format source reads logs from files written in [Common Event Format (CEF)](https://www.microfocus.com/documentation/arcsight/arcsight-smartconnectors-8.4/cef-implementation-standard/), a standard log format used by many security appliances and SIEM products. Bindplane tails the configured files, tags each record with a type attribute, and can parse the CEF fields into structured data.

### Supported Telemetry Types

| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| Linux    |         | ✓    |        |
| Windows  |         | ✓    |        |
| macOS    |         | ✓    |        |

### Prerequisites

* Read access for the collector to the CEF log file paths on the host.
* CEF-formatted log files (for example, output from a security appliance or SIEM forwarder) written to a known location.

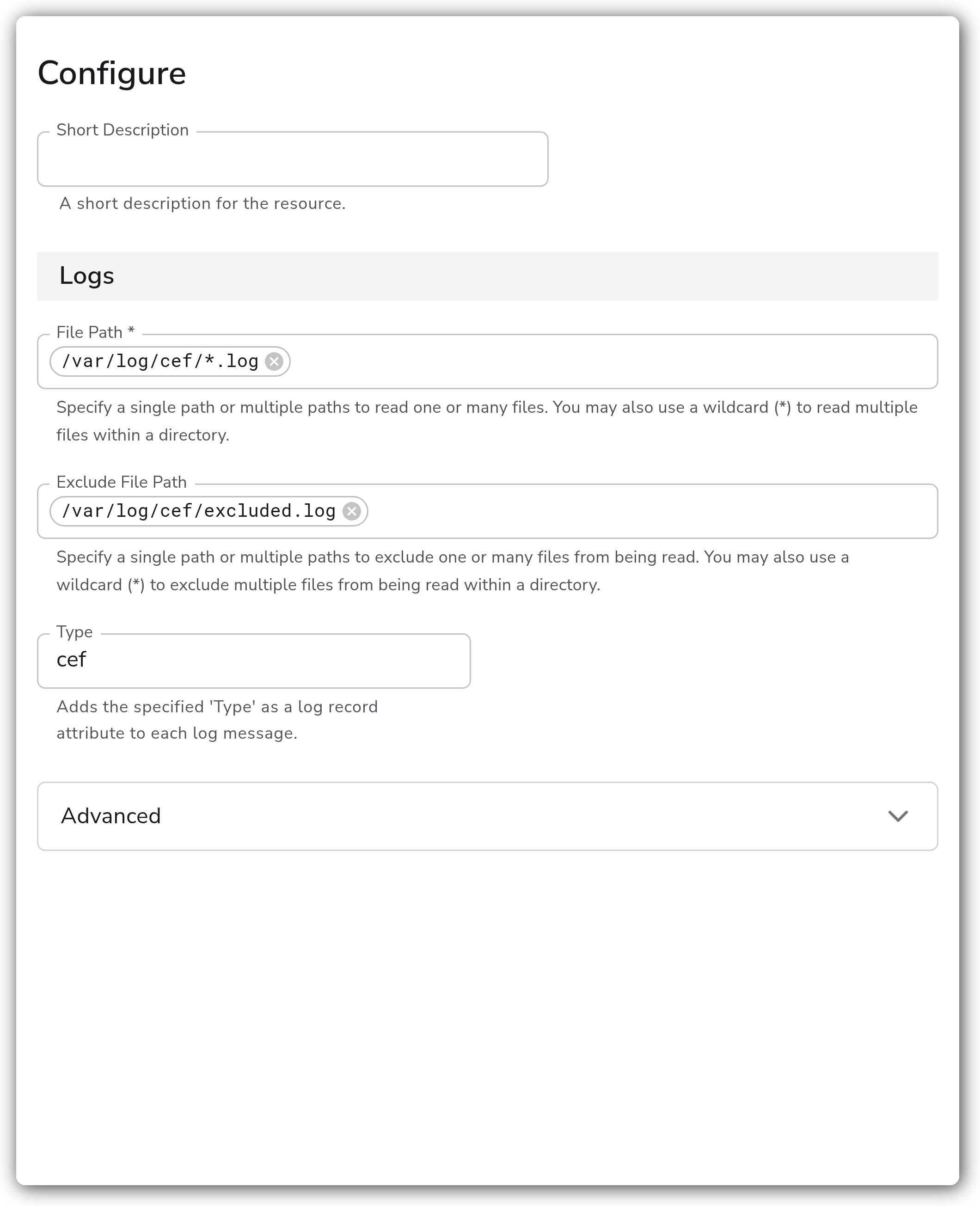

### Configuration

<figure><img src="/files/hkkbu4L9ODKcRp7sq2T5" alt="Bindplane docs - Common Event Format - image 1"><figcaption></figcaption></figure>

#### General

| Parameter         | Type    | Default | Description                                                                                                                                                           |
| ----------------- | ------- | ------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| File Path         | Strings | `[]`    | Specify a single path or multiple paths to read one or many files. You may also use a wildcard (`*`) to read multiple files within a directory. Required.             |
| Exclude File Path | Strings | `[]`    | Specify a single path or multiple paths to exclude one or many files from being read. You may also use a wildcard (`*`) to exclude multiple files within a directory. |
| Type              | String  | `cef`   | Adds the specified 'Type' as a log record attribute to each log message.                                                                                              |

#### Advanced

| Parameter | Type     | Default | Description                                     |
| --------- | -------- | ------- | ----------------------------------------------- |
| Timezone  | Timezone | `UTC`   | The timezone to use when parsing timestamps.    |
| Start At  | Enum     | `end`   | Start reading logs from `beginning` or `end`.   |
| Parse     | Boolean  | `true`  | Parses the CEF log fields into structured data. |

### Example Configuration

#### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: common_event_format
  name: common_event_format
spec:
  type: common_event_format
  parameters:
    - name: file_log_path
      value:
        - '/var/log/cef/*.log'
    - name: exclude_file_log_path
      value:
        - '/var/log/cef/excluded.log'
    - name: log_type
      value: 'cef'
    - name: timezone
      value: 'UTC'
    - name: start_at
      value: 'end'
    - name: parse
      value: 'true'
```

### Configuration Tips

#### Selecting files

* `file_log_path` accepts multiple entries and supports wildcards, so a pattern like `/var/log/cef/*.log` reads every matching file in a directory.
* Use `exclude_file_log_path` to skip files that match a broad include pattern, for example a rotated or archive file you do not want re-read.

#### Parsing and timestamps

* Leave `parse` enabled to break the CEF fields into structured attributes. Disable it if you prefer to forward the raw record and parse it downstream.
* Set `timezone` to the timezone of the source host when the CEF timestamps do not include an explicit offset, so event times are interpreted correctly.

#### Reading position

* `start_at` defaults to `end`, so only new records written after the collector starts are read. Set it to `beginning` to backfill existing file contents on first run.

### Troubleshooting

**Symptom:** No logs are collected from the configured paths. **Solution:** Confirm the paths in `file_log_path` exist and that the collector's user has read permission on them. Verify any wildcard pattern actually matches files on the host.

**Symptom:** Existing log file contents are not ingested when the source is first deployed. **Solution:** `start_at` defaults to `end`, which only reads new lines. Set `start_at` to `beginning` to read the file from the start.

**Symptom:** Parsed timestamps are off by a fixed number of hours. **Solution:** Set `timezone` to the timezone of the host that produced the logs. CEF timestamps without an explicit offset are interpreted using this value.

### Related Resources

* [ArcSight Common Event Format (CEF) implementation standard](https://www.microfocus.com/documentation/arcsight/arcsight-smartconnectors-8.4/cef-implementation-standard/)
* [Bindplane sources documentation](https://docs.bindplane.com/integrations/sources)


---
