# SQL Query
Runs a SQL query against a database on an interval and turns each returned row into a log record. You choose which column becomes the log body and which columns become attributes. For tables that only grow, a tracking column lets each run pick up where the last one stopped instead of re-reading the whole result set.
### Supported Telemetry Types
| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| Linux | | ✓ | |
| Windows | | ✓ | |
| macOS | | ✓ | |
### Prerequisites
* A reachable database and a user that can run the query. A read-only account is enough, and least privilege is worth applying since the query text is whatever you supply.
* The database port open from the Bindplane collector host.
* For Oracle, note that column names come back uppercase unless the query quotes them. Attribute Columns are matched case-sensitively, so `"my_column"` in the query and `my_column` in the parameter have to agree.

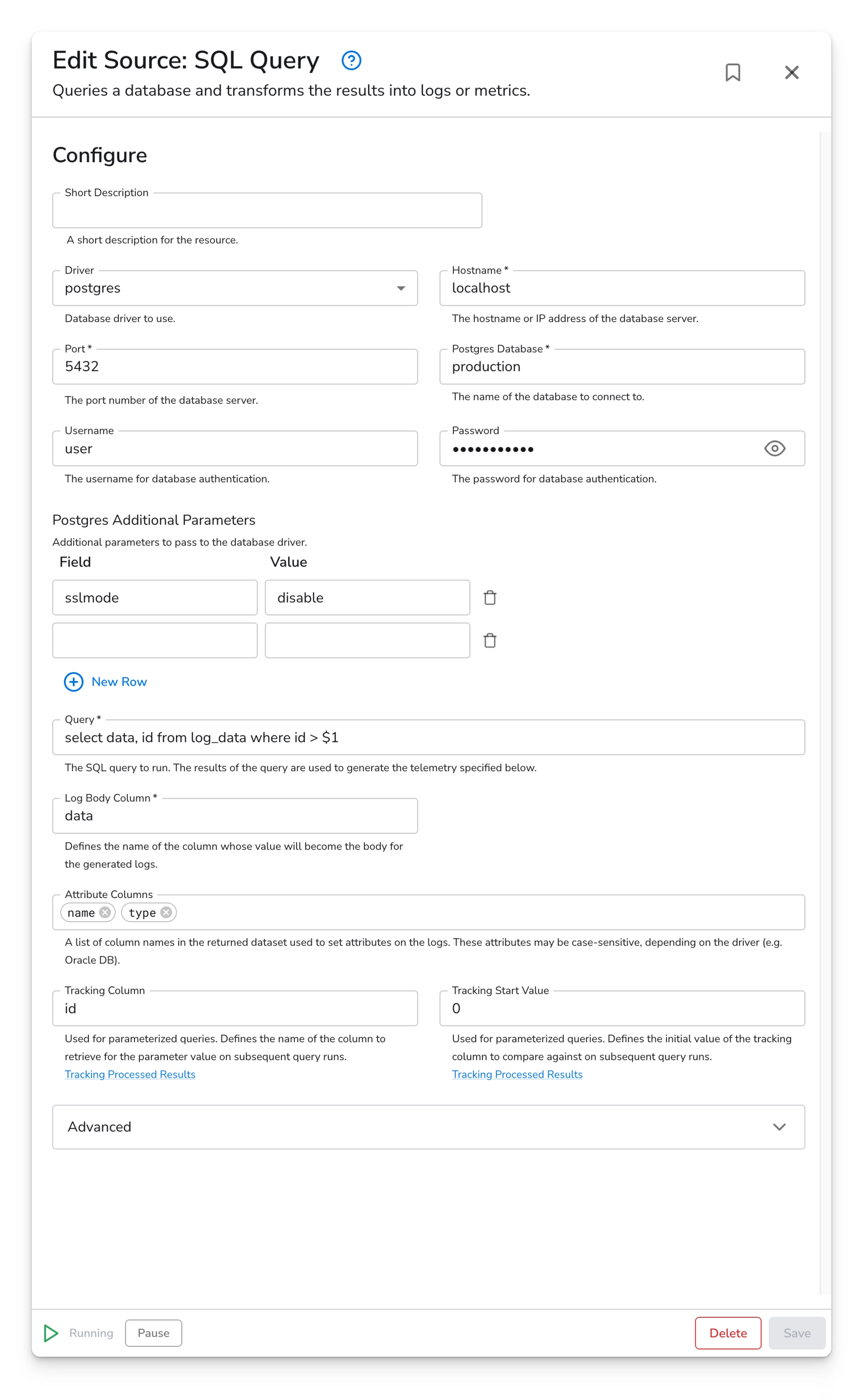

### Configuration
#### Basic Configuration
| Parameter | Type | Required | Default | Description |
| ---------------------- | ------- | --------------- | ------------------ | ------------------------------------------------------------------------------------------------------------------------------------ |
| Driver | Enum | No | `postgres` | Database driver: postgres, mysql, snowflake, sqlserver, or oracle. Several fields below change with it.1 |
| Connection String Type | Enum | No | `Builder` | `Builder` sends host, port, database, and credentials as separate settings. `Raw` assembles them into one connection string instead. |
| Hostname | String | Yes | *(empty)* | Hostname or IP address of the database server. |
| Instance | String | No | *(empty)* | Named SQL Server instance. Appears for the sqlserver driver only, and is appended to the hostname. |
| Port | Integer | Yes2 | varies3 | Port the database listens on. |
| Database | String | Yes | *(empty)* | Name of the database to connect to. The field is labeled for the selected driver, for example Postgres Database.1 |
| Username | String | No | *(empty)* | User the query runs as. |
| Password | String | No | *(empty)* | Password for that user. Stored as a sensitive value and rendered masked. |
| Additional Parameters | Map | No | varies4 | Extra driver options passed through to the connection, as Field and Value pairs. |
1. *Port, Database, and Additional Parameters exist once per driver and only the selected driver's copy is shown, which is why their labels carry a driver name.*
2. *Optional for the sqlserver driver, required for the other four.*
3. *postgres `5432`, mysql `3306`, snowflake `443`, sqlserver `1433`, oracle `1521`.*
4. *The postgres driver defaults to `sslmode: disable`. The other drivers default to no parameters.*
#### Query and Log Mapping
These decide what the query returns and how a row becomes a log record.
| Parameter | Type | Required | Default | Description |
| ----------------- | ------- | -------- | --------- | ----------------------------------------------------------------------------------------------------------------------- |
| Query | String | Yes | *(empty)* | The SQL to run. Multi-line, so a readable query does not have to be flattened onto one line. |
| Log Body Column | String | Yes | *(empty)* | Column whose value becomes the log body. One column per row becomes the body; the rest are dropped unless listed below. |
| Attribute Columns | Strings | No | `[]` | Columns to attach to the log as attributes. Anything not named here and not the body column is discarded. |
#### Incremental Collection
Without these, every run re-reads whatever the query returns and re-emits it. With them, the query becomes parameterized and each run resumes after the last value it saw.
| Parameter | Type | Required | Default | Description |
| -------------------- | ------ | -------- | --------- | ------------------------------------------------------------------------------------------------------------------ |
| Tracking Column | String | No | *(empty)* | Column holding the value to resume from, typically a monotonic ID or timestamp. |
| Tracking Start Value | String | No | *(empty)* | Value to compare against on the first run. Set it to skip existing rows rather than ingesting the table's history. |
Reference the tracked value in the query with the driver's placeholder syntax, for example `WHERE id > $1` for postgres.
#### Advanced
| Parameter | Type | Required | Default | Description |
| ----------------------- | -------- | -------- | ------- | ----------------------------------------------------------------------------------------------------------------------------------------------------- |
| Collection Interval | Duration | Yes | `10s` | How often the query runs. Raise it for expensive queries, since each run is a real query against the database. |
| Enable Tracking Storage | Boolean | No | `true` | Persist the tracking value across collector restarts, in the collector's `storage` directory. Off means a restart re-reads from Tracking Start Value. |
| Enable Query Logging | Boolean | No | `false` | Log each query and its parameters as it runs. Useful while building a query, and it puts query text in the collector log. |
### Examples

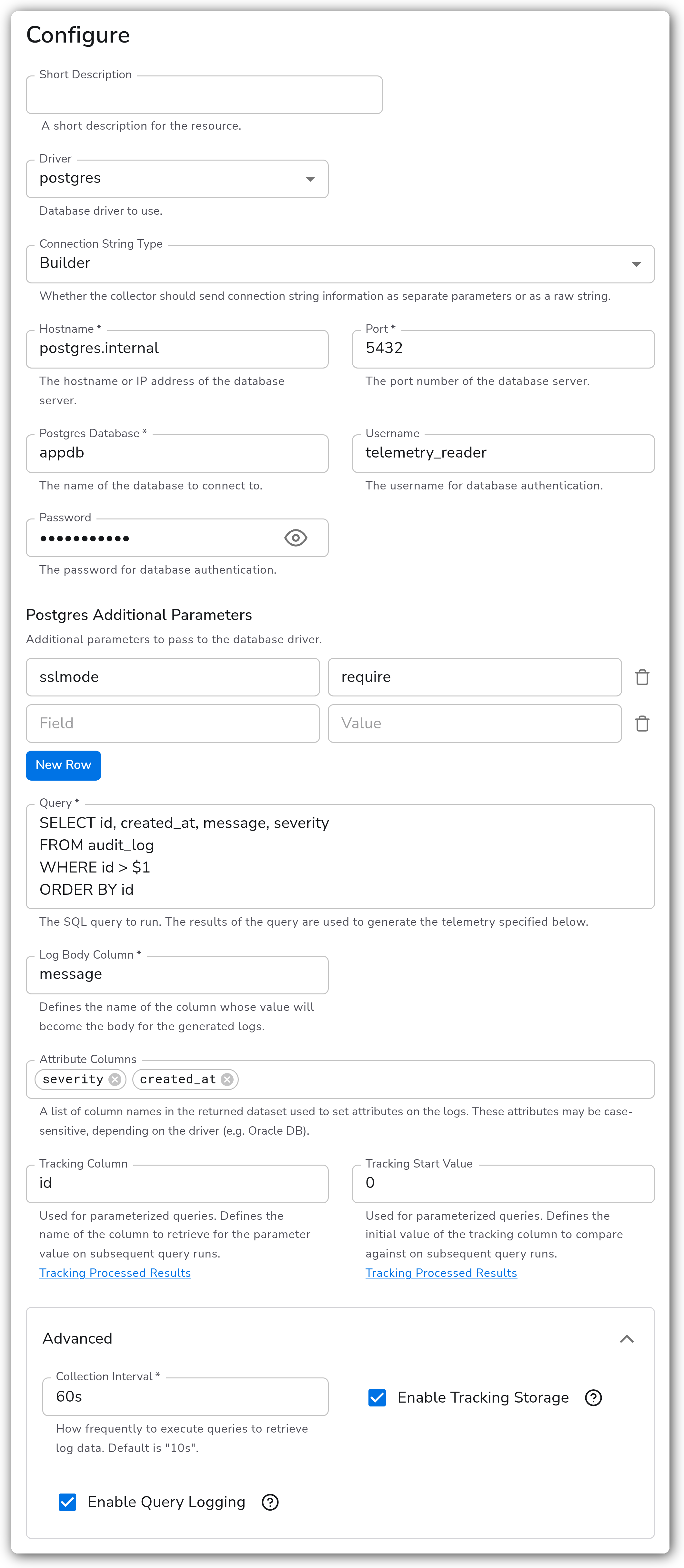

#### Resume from a tracking column across restarts
Reads an append-only audit table, resuming from the highest `id` already seen and persisting that value so a collector restart does not re-ingest the table. Collection is slowed to a minute and query logging is on while the query is being validated.

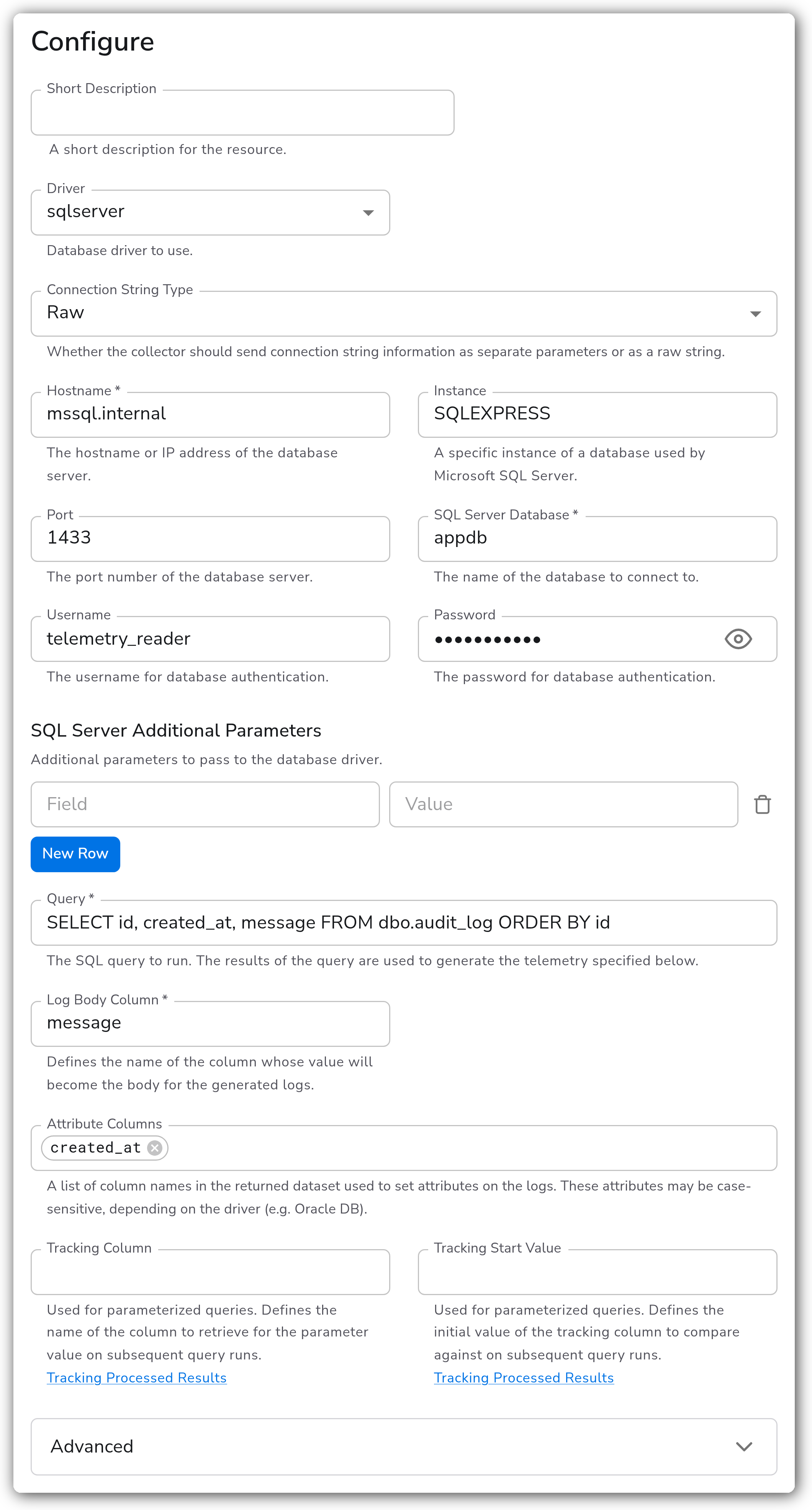

#### Named SQL Server instance over a raw connection string
Targets a named instance on a SQL Server host and hands the driver one assembled connection string rather than separate settings.
### Configuration Tips
#### Keeping the query cheap
* The query runs in full on every interval, so an unbounded `SELECT *` against a large table is a repeated full scan. Constrain it with a `WHERE` clause, or use a tracking column so each run only reads new rows.
* Index the tracking column. It appears in the `WHERE` clause of every run.
#### Choosing the connection string type
* `Builder` is the default and keeps the password out of a single opaque string, which makes it easier to rotate one field.
* `Raw` is the fallback for options the builder does not express, such as a driver-specific DSN feature. It assembles host, port, database, and credentials for you.
### Troubleshooting
#### No logs arrive, and the collector reports no error
Symptoms: the source is healthy and the destination stays empty.
Solutions:
1. Run the query directly against the database as the same user. An empty result set produces no logs and no error.
2. Check whether a tracking value has advanced past your data. When Enable Tracking Storage is on, the stored value survives restarts, so a value set past the rows you expect keeps the query returning nothing. Clear the collector's `storage` directory, or set Tracking Start Value lower.
3. Confirm Log Body Column names a column the query actually returns. A body column that is not in the result set yields no usable record.
#### Attributes are missing from the logs
Symptoms: log bodies arrive, but the columns listed in Attribute Columns are absent.
Solutions:
1. Match the case exactly. Oracle in particular uppercases unquoted identifiers, so a query selecting `id` returns `ID`.
2. Confirm each named column is in the result set. A column selected in a subquery but not projected in the outer query will not be there.
#### Connection refused or authentication failed
Symptoms: the collector logs a connection or authentication error each interval.
Solutions:
1. Confirm the port matches the driver. The default changes with Driver, so switching drivers after setting a port can leave a mismatch.
2. For postgres, the default Additional Parameters set `sslmode: disable`. A server that requires TLS rejects that, so set `sslmode` to `require` or stricter.
3. For SQL Server with a named instance, put the instance in Instance rather than appending it to Hostname yourself.
### Standalone Source
```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
name: sql-query
spec:
type: sqlquery_v2
parameters:
- name: driver
value: postgres
- name: connection_string_type
value: Builder
- name: hostname
value: postgres.internal
- name: port_postgres
value: 5432
- name: postgres_database
value: appdb
- name: username
value: telemetry_reader
- name: password
value: changeme
- name: postgres_additional_params
value:
sslmode: require
- name: query
value: SELECT id, created_at, message, severity FROM audit_log WHERE id > $1 ORDER BY id
- name: body_column
value: message
- name: attribute_columns
value:
- severity
- created_at
- name: tracking_column
value: id
- name: tracking_start_value
value: "0"
- name: interval
value: 60s
- name: enable_storage
value: true
```
### Related Resources
* [SQL Query Receiver (sqlqueryreceiver) reference](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/receiver/sqlqueryreceiver)
* [Tracking processed results](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/receiver/sqlqueryreceiver#tracking-processed-results)
### Bindplane Resources
* [PostgreSQL Source](/integrations/sources/postgresql.md)
* [MySQL Source](/integrations/sources/mysql.md)
* [Microsoft SQL Server Source](/integrations/sources/microsoft-sql-server.md)
* [Oracle Database Source](/integrations/sources/oracle-database.md)
---
