PostgreSQL

The PostgreSQL source collects metrics and logs from a PostgreSQL server. Metrics are scraped from PostgreSQL's statistics views over a TCP or Unix connection using a monitoring user. Logs are read from the PostgreSQL log file(s) on disk and optionally parsed into structured fields. Choose Logs, Metrics, or both.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux	✓	✓
Windows	✓	✓
macOS	✓	✓

Prerequisites

For metrics:

• A reachable PostgreSQL endpoint (host and port, default localhost:5432), or a Unix socket if transport is set to unix. The collector host must have network access to the PostgreSQL port.
• A monitoring user with read-only access to PostgreSQL's statistics views. On PostgreSQL 10 and later, grant the built-in pg_monitor role to a dedicated, least-privilege user rather than using a superuser account. The pg_monitor role bundles read access to the pg_stat_* views and configuration settings the receiver queries. See Predefined Roles in the PostgreSQL documentation.
• TLS material (CA certificate, and a client certificate and key for mutual TLS) if you enable TLS for the metrics connection.

For logs:

• PostgreSQL configured to write its logs to disk, and the path(s) to the log file(s). Defaults cover common Debian/Ubuntu, SLES, and CentOS/RHEL locations.
• The collector must have read access to the log file(s).

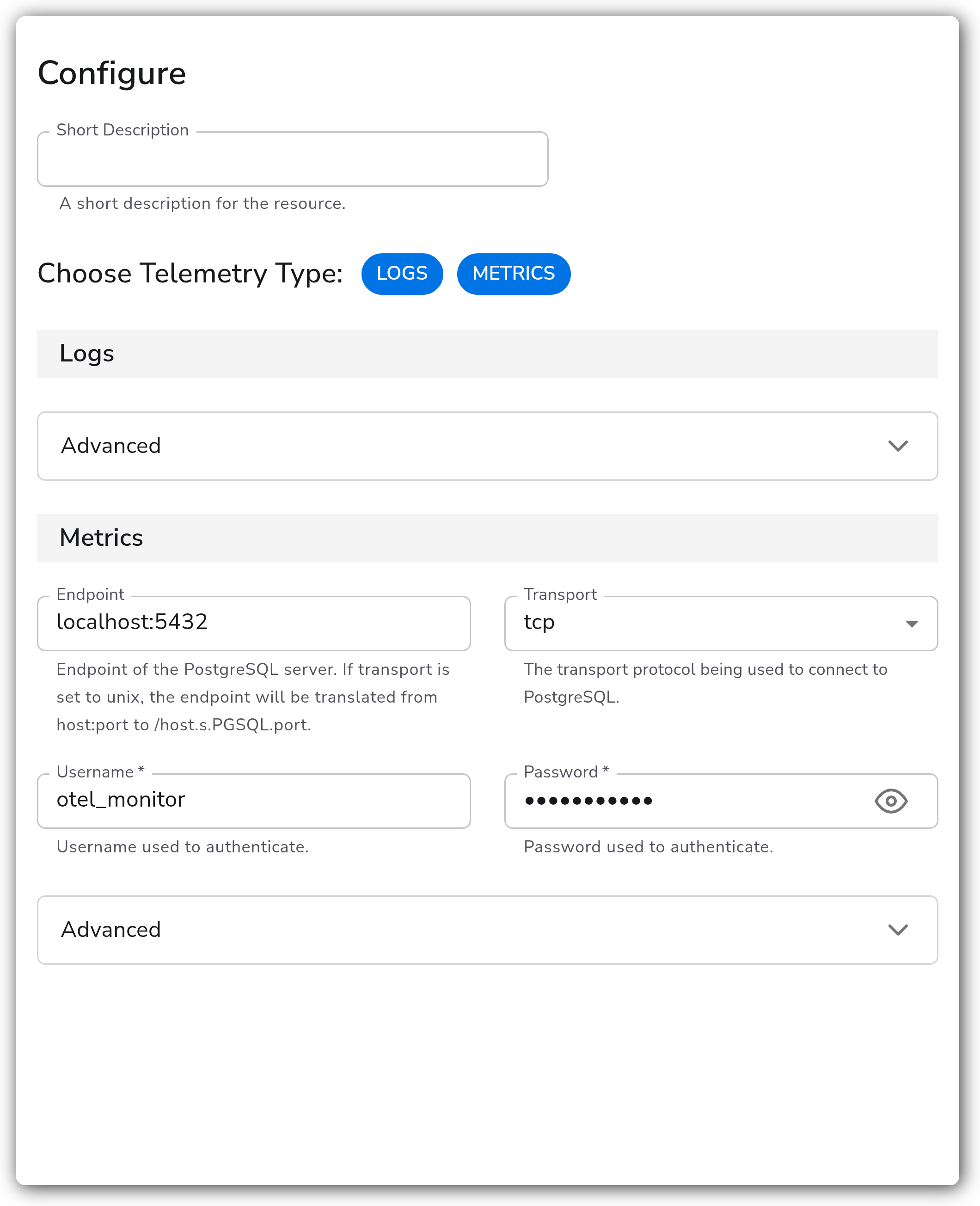

Configuration

General

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Telemetry Selector	No	["Logs", "Metrics"]	Which signals this source collects. Valid values: Logs, Metrics.

Metrics

Parameter	Type	Required	Default	Description
Endpoint	String	No	localhost:5432	Endpoint of the PostgreSQL server. If Transport is set to unix, the endpoint is translated from host:port to /host.s.PGSQL.port.
Transport	Enum: tcp, unix	No	tcp	The transport protocol used to connect to PostgreSQL.
Username	String	Yes	(empty)	Username used to authenticate.
Password	String	Yes	(empty)	Password used to authenticate. Stored as a sensitive value.

Logs

Parameter	Type	Required	Default	Description
Log Paths	Strings	No	See below	Path to PostgreSQL log file(s). Defaults: /var/log/postgresql/postgresql*.log (Debian/Ubuntu), /var/lib/pgsql/data/log/postgresql*.log (SLES), /var/lib/pgsql/*/data/log/postgresql*.log (CentOS/RHEL). Advanced.
Start At	Enum: beginning, end	No	end	Start reading logs from beginning or end. Advanced.
Parse	Boolean	No	true	Parses the log fields into structured data. Advanced.

Advanced

Parameter	Type	Required	Default	Description
Databases	Strings	No	(empty)	The list of databases for which the receiver collects statistics. An empty list collects statistics for all databases. Metrics only.
Collection Interval	Integer	No	60	How often (in seconds) to scrape for metrics. Metrics only.
Enable TLS	Boolean	No	false	Whether to use TLS for the metrics connection. Metrics only.
TLS Certificate Authority File	String	No	(empty)	Certificate authority used to validate TLS certificates. Relevant when Enable TLS is true.
TLS Client Certificate File	String	No	(empty)	A TLS certificate used for client authentication, if mutual TLS is enabled. Relevant when Enable TLS is true.
TLS Client Private Key File	String	No	(empty)	A TLS private key used for client authentication, if mutual TLS is enabled. Relevant when Enable TLS is true.
Skip TLS Certificate Verification	Boolean	No	false	Skip TLS certificate verification. Relevant when Enable TLS is true.
Metrics	Metrics	No	(empty)	Toggle individual metrics on or off. Metrics only.

Examples

Collect metrics and logs from a local PostgreSQL server

This source scrapes metrics from PostgreSQL on localhost:5432 using a monitoring user and tails the default Debian/Ubuntu log path.

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: postgresql
spec:
  type: postgresql
  parameters:
    - name: telemetry_types
      value: ["Logs", "Metrics"]
    - name: endpoint
      value: localhost:5432
    - name: transport
      value: tcp
    - name: username
      value: otel_monitor
    - name: password
      value: "(redacted)"
    - name: postgresql_log_path
      value:
        - /var/log/postgresql/postgresql*.log

Scrape a single database over TLS

This source collects metrics for only the app database over a TLS connection.

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: postgresql-tls
spec:
  type: postgresql
  parameters:
    - name: telemetry_types
      value: ["Metrics"]
    - name: endpoint
      value: db.internal:5432
    - name: username
      value: otel_monitor
    - name: password
      value: "(redacted)"
    - name: databases
      value:
        - app
    - name: enable_tls
      value: true
    - name: ca_file
      value: /etc/otel/certs/ca.crt

Configuration Tips

• Grant the dedicated monitoring user the pg_monitor role instead of using a superuser. It provides exactly the read access the receiver needs to the pg_stat_* views.
• Leave Databases empty to collect statistics for all databases, or list specific database names to narrow the scope.
• Logs and metrics use independent connection paths: metrics connect to the PostgreSQL endpoint, while logs are read directly from the log file(s) on the collector host. Enabling one does not require the other.

Troubleshooting

Connection refused on metrics

Symptoms: the metrics receiver cannot reach the PostgreSQL server.

Solutions:

1. Confirm the Endpoint host and port are correct and that PostgreSQL is listening (check listen_addresses in postgresql.conf).
2. Verify the collector host can reach the port through any firewall or security group, and that pg_hba.conf allows the connecting host.

Authentication failed

Symptoms: the receiver connects but cannot authenticate or read statistics.

Solutions:

1. Verify the Username and Password are correct for the monitoring user.
2. Confirm the user has been granted the pg_monitor role (or the equivalent SELECT grants on the pg_stat_* views on PostgreSQL versions earlier than 10).

No logs are collected

Symptoms: the source is running but no log records arrive.

Solutions:

1. Confirm PostgreSQL is writing logs to disk and that the Log Paths match the actual file location.
2. Verify the collector process has read permission on the log file(s) and parent directories.

Standalone Source

apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: postgresql
spec:
  type: postgresql
  parameters:
    - name: telemetry_types
      value: ["Logs", "Metrics"]
    - name: endpoint
      value: localhost:5432
    - name: transport
      value: tcp
    - name: username
      value: otel_monitor
    - name: password
      value: "(redacted)"
    - name: databases
      value: []
    - name: collection_interval
      value: 60
    - name: enable_tls
      value: false
    - name: postgresql_log_path
      value:
        - /var/log/postgresql/postgresql*.log
        - /var/lib/pgsql/data/log/postgresql*.log
        - /var/lib/pgsql/*/data/log/postgresql*.log
    - name: start_at
      value: end
    - name: parse
      value: true

Related Resources

• PostgreSQL Predefined Roles (pg_monitor)
• OpenTelemetry postgresqlreceiver
