# Packet Capture

The Packet Capture (PCAP) source captures network packets directly from a host network interface and emits them as OpenTelemetry logs. It uses system-native capture tools (`tcpdump` on macOS and Linux, Npcap on Windows) and supports Berkeley Packet Filter (BPF) expressions to limit capture to the traffic you care about.

### Supported Telemetry

| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| macOS    |         | ✓    |        |
| Linux    |         | ✓    |        |
| Windows  |         | ✓    |        |

### Prerequisites

Packet Capture reads directly from a host interface, so the requirements are local to the collector machine.

* **Elevated privileges.** Capturing packets requires root (macOS/Linux) or Administrator (Windows). Run the collector with sufficient privileges or the capture will fail to open the interface.
* **A capture driver/tool must be present:**
  * **macOS / Linux:** `tcpdump` is pre-installed on macOS and most Linux distributions. Verify with:

    ```bash
    tcpdump --version
    ```
  * **Windows:** the Npcap driver is required. Install it from [npcap.com](https://npcap.com/), or install Wireshark, which bundles Npcap.
* **A valid interface name.** You must supply the exact interface name as seen by the host. See the platform-specific listing commands below.

#### Listing interfaces

**macOS / Linux** — list available interfaces with:

```bash
tcpdump -D
```

**Windows** — if Wireshark is installed, use the bundled `dumpcap` executable:

```powershell
C:\path-to-wireshark-installation\dumpcap.exe -D
```

Otherwise, list adapters with PowerShell:

```powershell
Get-NetAdapter | Select-Object DeviceName
```

`Get-NetAdapter` returns the device path but not in the Npcap format the receiver expects. Convert it by inserting `NPF_` after `\Device\`:

```
\Device\{1D5B8F34-3D34-47E7-960B-E18EBC729A13} -> \Device\NPF_{1D5B8F34-3D34-47E7-960B-E18EBC729A13}
```

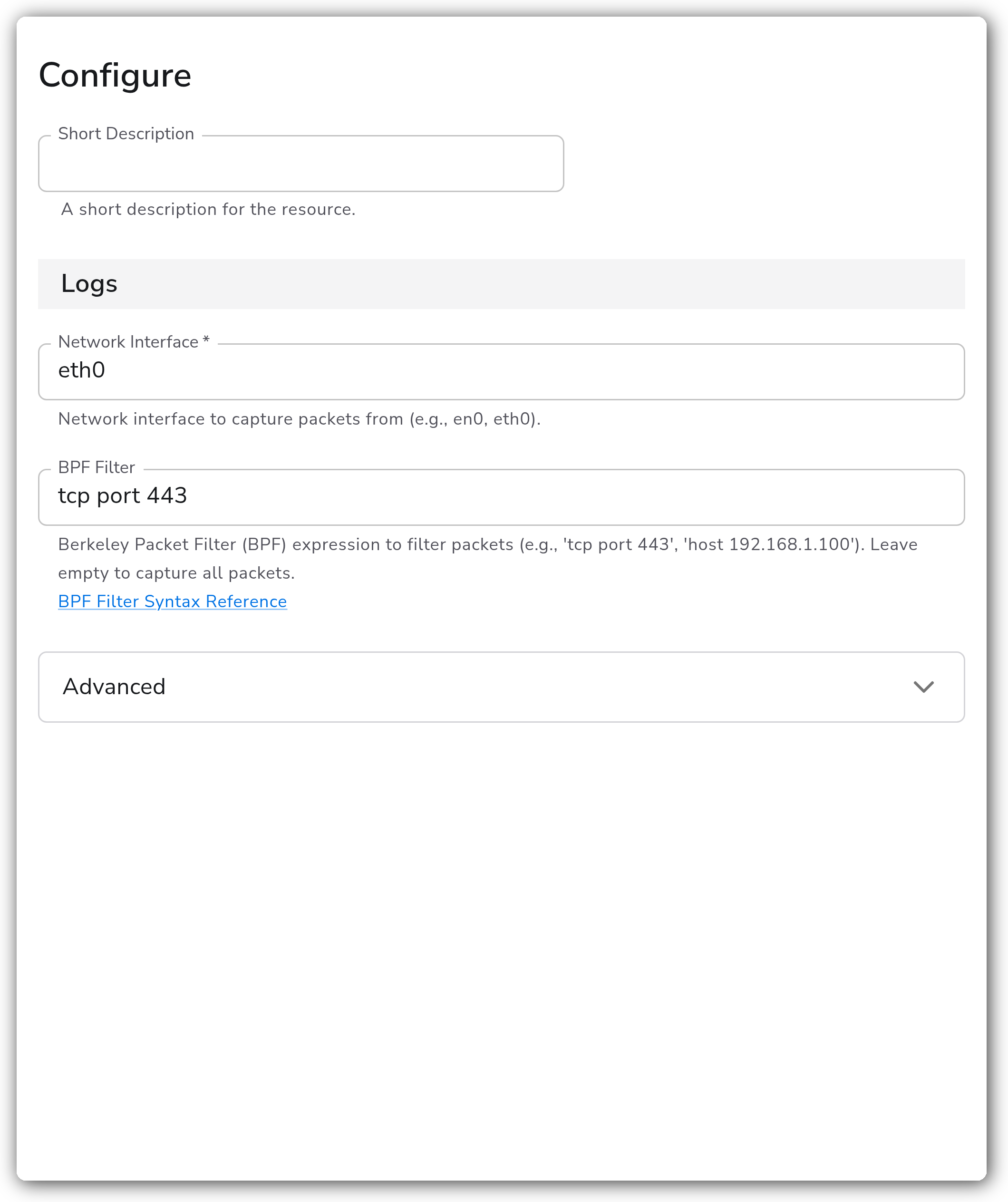

### Configuration

<figure><img src="/files/IyaSSzWGgriIB8KGQwUc" alt="Bindplane docs - Packet Capture - image 1"><figcaption></figcaption></figure>

| Parameter         | Type   | Required | Default   | Description                                                                                                                                |
| ----------------- | ------ | -------- | --------- | ------------------------------------------------------------------------------------------------------------------------------------------ |
| Network Interface | String | Yes      | *(empty)* | Network interface to capture packets from (e.g. `en0`, `eth0`).                                                                            |
| BPF Filter        | String | No       | *(empty)* | Berkeley Packet Filter (BPF) expression to filter packets (e.g. `tcp port 443`, `host 192.168.1.100`). Leave empty to capture all packets. |

#### Advanced

| Parameter        | Type    | Required | Default | Description                                                                                                       |
| ---------------- | ------- | -------- | ------- | ----------------------------------------------------------------------------------------------------------------- |
| Parse Attributes | Boolean | No       | `true`  | Parse packet headers into attributes.                                                                             |
| Promiscuous Mode | Boolean | No       | `true`  | Enable promiscuous mode to capture all network traffic on the interface, not just traffic addressed to this host. |
| Snap Length      | Integer | No       | `65535` | Maximum bytes to capture per packet (64-65535). Packets larger than this are truncated.                           |

#### BPF filter examples

BPF expressions restrict capture to specific traffic, which keeps log volume manageable:

```yaml
# Capture only HTTPS traffic
filter: "tcp port 443"

# Capture DNS queries and responses
filter: "udp port 53"

# Capture HTTP and HTTPS
filter: "tcp port 80 or tcp port 443"

# Capture traffic to/from a specific host
filter: "host 192.168.1.100"

# Combine conditions and exclude a source
filter: "(tcp port 80 or tcp port 443) and not src 192.168.1.1"
```

See the [BPF filter syntax reference](https://www.tcpdump.org/manpages/pcap-filter.7.html) for the full grammar.

### Examples

#### Capture HTTPS traffic on a Linux interface

This is an end-to-end walkthrough that captures only outbound and inbound HTTPS traffic on the `eth0` interface of a Linux host and parses packet headers into attributes.

1. List interfaces on the host to confirm the name:

   ```bash
   tcpdump -D
   ```

   Assume the relevant interface is reported as `eth0`.
2. Configure the source to capture only TCP traffic on port 443:

   ```yaml
   - name: network_interface
     value: eth0
   - name: filter
     value: tcp port 443
   - name: parse_attributes
     value: true
   ```
3. Run the collector with elevated privileges (`sudo`, or grant the binary `CAP_NET_RAW`). Each captured packet arrives as a log record, and with `parse_attributes` enabled the packet headers (source/destination addresses, ports, protocol) are promoted to log attributes for filtering and routing downstream.

### Configuration Tips

* Always set a BPF Filter in production. An unfiltered capture on a busy interface produces a very high log volume.
* Lower **Snap Length** when you only need packet headers and not full payloads. It reduces per-record size and capture overhead.
* **Promiscuous Mode** is enabled by default and captures traffic not addressed to the host. Disable it if you only want this host's own traffic, or if the interface/driver does not support it.

### Troubleshooting

#### No packets are captured

Symptoms: the source applies cleanly but no log records arrive.

Solutions:

1. Confirm the collector is running with root/Administrator privileges. Without them the interface cannot be opened for capture.
2. Verify the **Network Interface** name exactly matches the host (`tcpdump -D` on macOS/Linux, `Get-NetAdapter` on Windows). On Windows, confirm the name uses the `\Device\NPF_{GUID}` format.
3. Temporarily clear the **BPF Filter**. An over-restrictive filter can silently match no traffic.

#### Permission denied opening the interface

Symptoms: the collector logs an error opening or binding the capture interface.

Solutions:

1. macOS/Linux: run the collector as root, or grant the binary the `CAP_NET_RAW` capability.
2. Windows: confirm the Npcap driver is installed and the collector service runs as Administrator.

#### Invalid filter / capture fails to start

Symptoms: the capture errors immediately after applying a filter.

Solutions:

1. Validate the BPF expression against the [filter syntax reference](https://www.tcpdump.org/manpages/pcap-filter.7.html).
2. Test the same expression locally with `tcpdump -i <interface> '<filter>'` before applying it to the source.

### Standalone Source

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  name: packet-capture
spec:
  type: pcap
  parameters:
    - name: network_interface
      value: eth0
    - name: filter
      value: tcp port 443
    - name: parse_attributes
      value: true
    - name: promiscuous
      value: true
    - name: snaplen
      value: 65535
```

### Related Resources

* [BPF filter syntax reference (tcpdump)](https://www.tcpdump.org/manpages/pcap-filter.7.html)
* [Npcap (Windows capture driver)](https://npcap.com/)
* [pcapreceiver — Bindplane OpenTelemetry Collector](https://github.com/observIQ/bindplane-otel-collector/tree/main/receiver/pcapreceiver)


---
