# Azure Event Hub

## Prerequisites

The source must have access to an Azure Event Hub with the necessary permissions, the minimum permission being `Listen`. You can authenticate with either a connection string or an [Azure identity](#authenticate-with-an-azure-identity). You can configure resources' Diagnostic settings to send logs to the Azure Event Hub. Read more here: [Azure Event Hub](https://learn.microsoft.com/en-us/azure/azure-monitor/essentials/diagnostic-settings).

Each event hub should only accept one telemetry type.

To use [Distributed Consumption](https://docs.bindplane.com/~/changes/409/integrations/sources/azure-event-hub#distributed-consumption), you also need an Azure Blob Storage account and an existing container that all participating collectors can read and write to.

## Supported Platforms

Bindplane Collector: `v1.39.0`+ (basic configuration)

Bindplane Collector: `v1.97.0`+ (distributed consumption, polling controls)

Bindplane Collector: `v1.101.1`+ (Azure identity authentication)

| Platform            | Metrics | Logs | Traces |
| ------------------- | ------- | ---- | ------ |
| Linux               | ✓       | ✓    |        |
| Windows             | ✓       | ✓    |        |
| macOS               | ✓       | ✓    |        |
| Kubernetes Cluster  | ✓       | ✓    |        |
| OpenShift 4 Cluster | ✓       | ✓    |        |

## Configuration

<table><thead><tr><th width="240">Field</th><th>Description</th></tr></thead><tbody><tr><td>Telemetry Type</td><td>The type of telemetry to gather with this receiver. Only one telemetry type should be sent to a given event hub.</td></tr><tr><td>Use Azure Identity Authentication</td><td>Authenticate using an Azure identity (managed identity, workload identity, or service principal) instead of a connection string. Defaults to off. See <a href="#authenticate-with-an-azure-identity">Authenticate with an Azure Identity</a>.</td></tr><tr><td>Event Hub Name</td><td>Name of the event hub to read from. Required when Azure identity authentication is enabled.</td></tr><tr><td>Event Hub Namespace</td><td>Fully qualified Event Hubs namespace, e.g. <code>my-namespace.servicebus.windows.net</code>. Required when Azure identity authentication is enabled.</td></tr><tr><td>Authentication Type</td><td>The Azure identity method used to authenticate. Only used when Azure identity authentication is enabled.</td></tr><tr><td>Connection</td><td>A string describing the connection to an Azure event hub. Used when Azure identity authentication is disabled.</td></tr><tr><td>Consumer Group</td><td>The Consumer Group to read from. Defaults to <code>$$Default</code>. Dollar signs must be escaped with another dollar sign.</td></tr><tr><td>Partition</td><td>The partition to watch. If empty, it will watch all partitions. Ignored when Distributed Consumption is enabled.</td></tr><tr><td>Offset</td><td>The offset at which to start watching the event hub. If empty, starts with the latest offset. If <code>-1</code>, starts at the beginning. Ignored when Distributed Consumption is enabled.</td></tr><tr><td>Log Format</td><td>The log format to use when parsing logs from Event Hub. Must be one of <code>azure</code> or <code>raw</code>. Raw logs are byte encoded, see the "Raw Encoding" option.</td></tr><tr><td>Raw Encoding</td><td>The encoding used when decoding the raw logs into human readable text. Defaults to <code>utf-8</code>. The raw byte encoding can be preserved by selecting <code>byte</code>.</td></tr></tbody></table>

**Advanced Configuration**

<table><thead><tr><th width="280">Field</th><th>Description</th></tr></thead><tbody><tr><td>Max Poll Events</td><td>Maximum number of events to retrieve per poll. Increase to improve throughput. Defaults to <code>100</code>.</td></tr><tr><td>Poll Rate (seconds)</td><td>Maximum seconds to wait before returning fewer than Max Poll Events. Lower values reduce latency; higher values can improve batch efficiency. Defaults to <code>5</code>.</td></tr><tr><td>Enable Distributed Consumption</td><td>Coordinate partition ownership across multiple collector instances using an Azure Blob Storage checkpoint store. Mutually exclusive with Partition and Offset.</td></tr><tr><td>Checkpoint Store Connection String</td><td>Connection string for the Azure Blob Storage account used for checkpoint coordination. Required when Distributed Consumption is enabled and Azure identity authentication is disabled.</td></tr><tr><td>Checkpoint Store Storage Account URL</td><td>Blob service URL of the storage account used for checkpoint coordination, e.g. <code>https://myaccount.blob.core.windows.net</code>. Required when Distributed Consumption and Azure identity authentication are both enabled. The Azure identity must have access to the container.</td></tr><tr><td>Checkpoint Store Container Name</td><td>Blob container used for checkpoint data. The container must already exist before starting the collector. Required when Distributed Consumption is enabled.</td></tr></tbody></table>

### Example Configuration

**Basic Configuration**

For basic configuration, the `connection` parameter is required. Optionally, specify `consumer group`, `partition`, and `offset`.

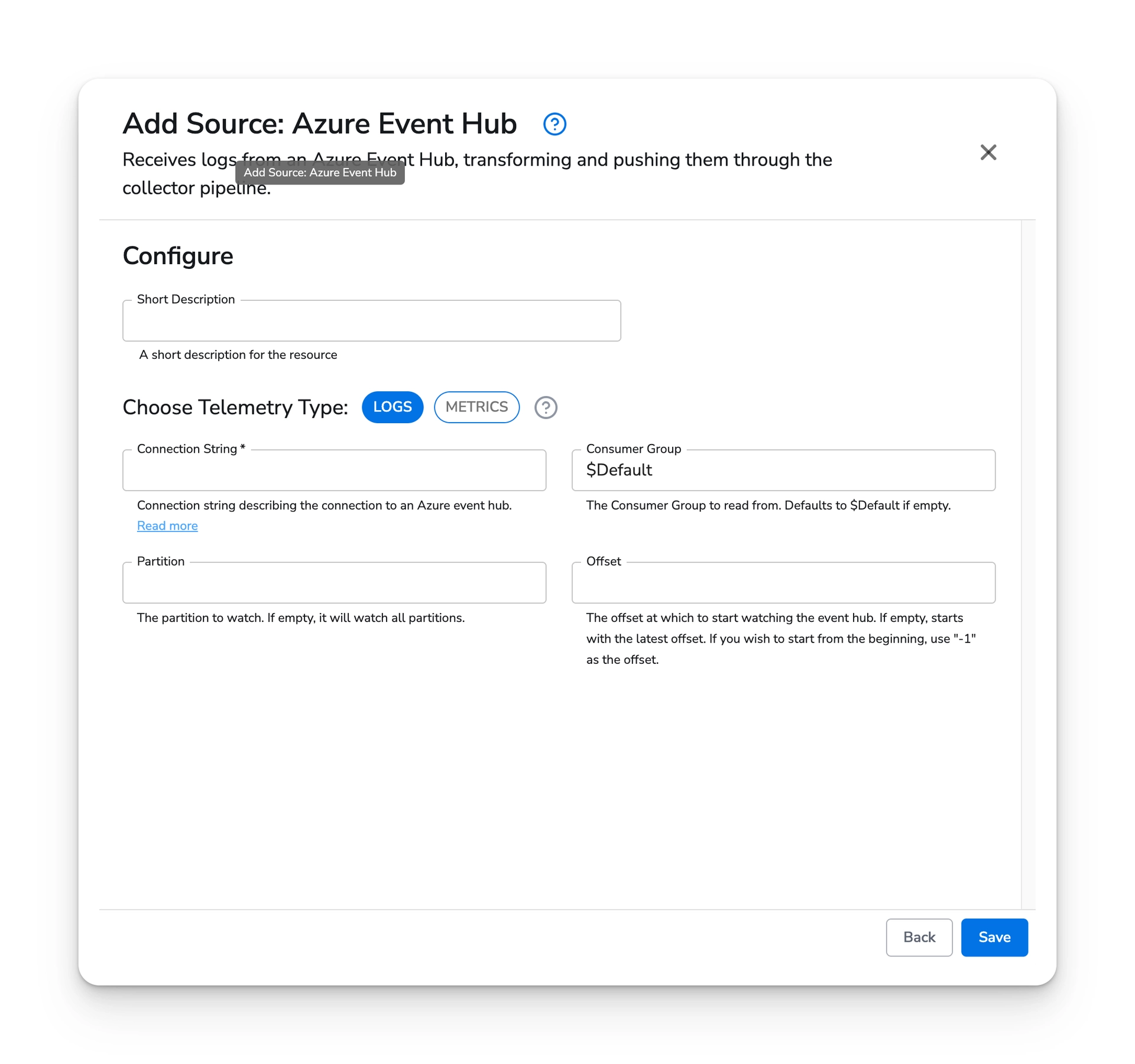

**Web Interface**

<figure><img src="/files/BN91n4uMboeYujsF4HNX" alt=""><figcaption></figcaption></figure>

**Standalone Source**

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: azure_event_hub
  name: azure_event_hub
spec:
  type: azure_event_hub
  parameters:
    - name: telemetry_types
      value: Logs
    - name: connection
      value: '<your_connection_string>'
    - name: group
      value: '$$Default' # optional, defaults to $$Default
    - name: partition
      value: '' # optional, watches all partitions when empty
    - name: offset
      value: '' # optional, starts at latest when empty
    - name: format
      value: raw # azure or raw
    - name: raw_encoding
      value: utf-8 # only applies when format is raw
```

### **Distributed Consumption**

When running multiple collector instances against the same event hub, enable Distributed Consumption to coordinate partition ownership through an Azure Blob Storage container. Each partition is leased to a single collector at a time, and ownership rebalances automatically as collectors are added or removed. Progress is checkpointed to the same container, so collectors resume from where they left off after a restart.

The blob container must already exist before starting the collector, and every participating collector must use the same Consumer Group and container. Distributed Consumption is mutually exclusive with the `Partition` and `Offset` fields.

**Standalone Source**

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: azure_event_hub
  name: azure_event_hub
spec:
  type: azure_event_hub
  parameters:
    - name: telemetry_types
      value: Logs
    - name: connection
      value: '<your_connection_string>'
    - name: group
      value: '$$Default'
    - name: enable_distributed_consumption
      value: true
    - name: blob_checkpoint_store_connection
      value: '<your_blob_storage_connection_string>'
    - name: blob_checkpoint_store_container_name
      value: 'eventhub-checkpoints'
```

### **Tuning Throughput**

Use `Max Poll Events`, `Poll Rate`, and `Prefetch Count` to balance latency, memory usage, and batch efficiency.

* `Max Poll Events` / `Poll Rate` - Higher values increase batch size and throughput but also increase event latency. Lower values reduce per-event latency at the cost of smaller batches.
* `Prefetch` - When `Enable Prefetching` is on (default), the receiver buffers events from the Event Hub before processing. Increasing `Prefetch Count` (default 300) can improve throughput under heavy load but increases memory consumption.

▎ Prefetching requires Bindplane Collector `v1.100.0` or newer.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: azure_event_hub
  name: azure_event_hub
spec:
  type: azure_event_hub
  parameters:
    - name: telemetry_types
      value: Logs
    - name: connection
      value: '<your_connection_string>'
    - name: max_poll_events
      value: 500
    - name: poll_rate
      value: 2
    - name: enable_prefetch
      value: true
    - name: prefetch_count
      value: 300
```

### Authenticate with an Azure Identity

Instead of a connection string, the Event Hub source can authenticate with an Azure identity. Enable **Use Azure Identity Authentication**, provide the **Event Hub Name** and **Event Hub Namespace**, then choose an authentication method. The identity must have at least the `Listen` permission on the event hub, and read/write access to the checkpoint container when Distributed Consumption is enabled.

| Authentication Method | Description                                                                                                                                                       |
| --------------------- | ----------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Managed Identity      | Use an Azure managed identity. Leave Client ID empty to use the system-assigned identity, or set it to use a user-assigned identity.                              |
| Workload Identity     | Use Azure AD workload identity federation, typically on Kubernetes. Requires the application Client ID, Tenant ID, and the path to the projected federated token. |
| Service Principal     | Authenticate as a service principal using either a client secret or a client certificate.                                                                         |

The authentication method is configured through the `auth_extension` parameter. The parameters below apply to the method you choose:

<table><thead><tr><th width="300">Parameter</th><th>Description</th></tr></thead><tbody><tr><td>auth_method</td><td>One of <code>Managed Identity</code>, <code>Workload Identity</code>, or <code>Service Principal</code>.</td></tr><tr><td>managed_identity_client_id</td><td>Managed Identity only. Client ID of the user-assigned managed identity. Leave empty to use the system-assigned identity.</td></tr><tr><td>workload_identity_client_id</td><td>Workload Identity only. Client ID of the Azure AD application.</td></tr><tr><td>workload_identity_tenant_id</td><td>Workload Identity only. Tenant ID of the Azure AD application.</td></tr><tr><td>workload_identity_token_file</td><td>Workload Identity only. Path to the file containing the federated token, typically projected into the pod by the Azure Workload Identity webhook.</td></tr><tr><td>service_principal_client_id</td><td>Service Principal only. Client ID of the service principal.</td></tr><tr><td>service_principal_tenant_id</td><td>Service Principal only. Tenant ID of the service principal.</td></tr><tr><td>service_principal_credential_type</td><td>Service Principal only. Whether to authenticate with a <code>Client Secret</code> or a <code>Client Certificate</code>.</td></tr><tr><td>service_principal_client_secret</td><td>Service Principal only. Client secret of the service principal. Used when the credential type is <code>Client Secret</code>.</td></tr><tr><td>service_principal_certificate_path</td><td>Service Principal only. Path to the client certificate. Used when the credential type is <code>Client Certificate</code>.</td></tr><tr><td>scopes</td><td>Optional. Custom token scopes to request, e.g. <code>https://monitor.azure.com/.default</code>. Leave empty to use the default scope for the target service.</td></tr></tbody></table>

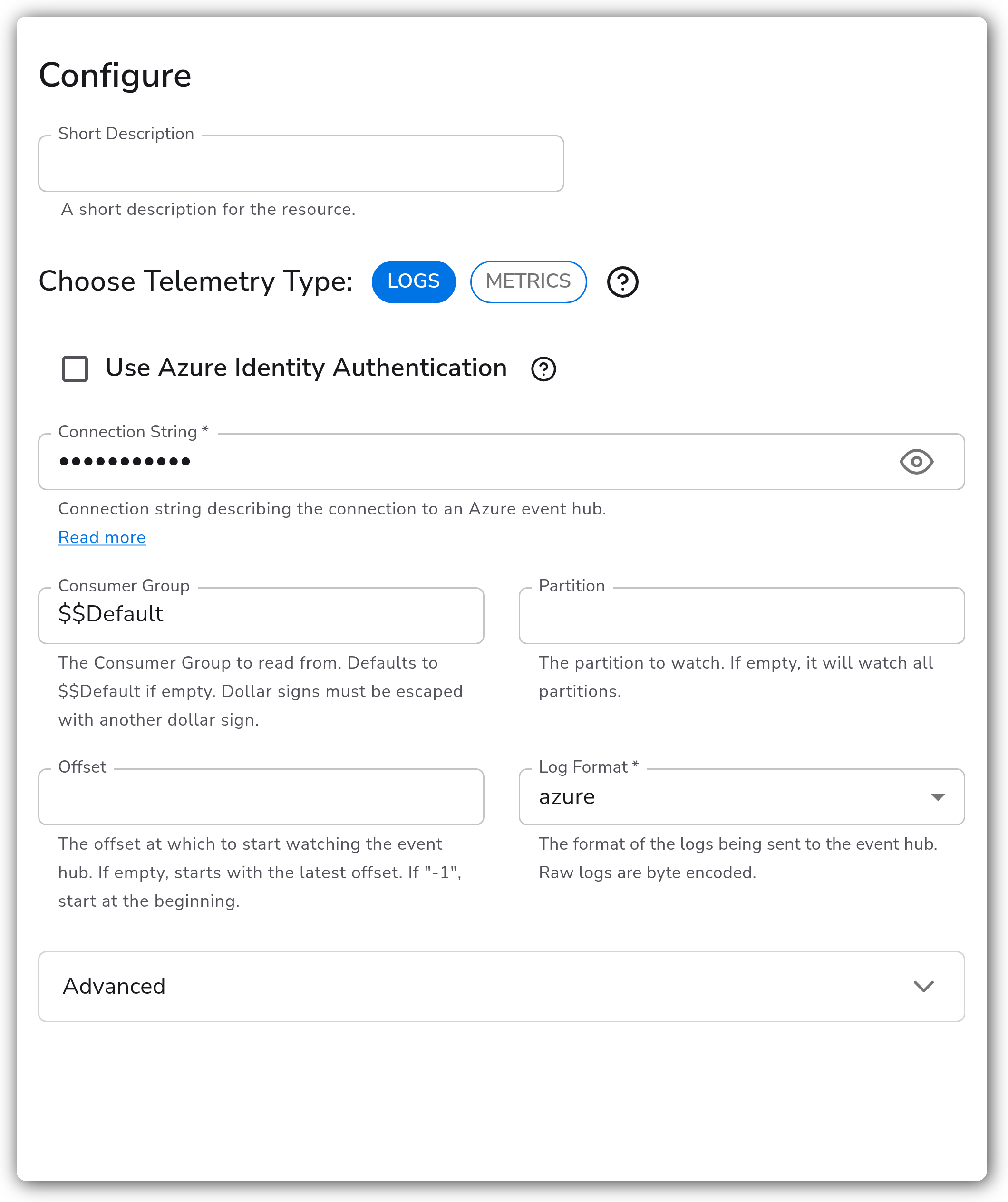

**Web Interface**

<figure><img src="/files/DZoavHGwnAMuxVriC8VB" alt=""><figcaption></figcaption></figure>

**Standalone Source**

This example authenticates with a user-assigned managed identity.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
  id: azure_event_hub
  name: azure_event_hub
spec:
  type: azure_event_hub
  parameters:
    - name: telemetry_types
      value: Logs
    - name: enable_external_auth
      value: true
    - name: event_hub_name
      value: my-hub
    - name: event_hub_namespace
      value: my-namespace.servicebus.windows.net
    - name: auth_extension
      value:
        type: azure_auth
        parameters:
          - name: auth_method
            value: managed_identity
          - name: managed_identity_client_id
            value: '11111111-2222-3333-4444-555555555555' # optional, omit for the system-assigned identity
    - name: group
      value: '$$Default'
```


---
