# MongoDB
The MongoDB source collects metrics and logs from MongoDB. Metrics are scraped from one or more `mongod` endpoints (host:port or a unix domain socket) using the OpenTelemetry MongoDB receiver, optionally authenticating with a monitoring user and TLS. Logs are read from MongoDB log files on the collector host and parsed into structured records.
### Supported Telemetry
| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| macOS | ✓ | ✓ | |
| Linux | ✓ | ✓ | |
| Windows | ✓ | ✓ | |
### Prerequisites
* **A reachable MongoDB endpoint.** The collector must reach each `mongod` host and port listed in **Hosts** (default `localhost:27017`). For replica sets, list the member hosts; for sharded deployments, list the `mongos` hosts.
* **A monitoring user (metrics).** If authentication is enabled, create a least-privilege user with the built-in `clusterMonitor` role and supply it in **Username** / **Password**. `clusterMonitor` grants the read-only monitoring access the receiver needs without write privileges. See [MongoDB Built-In Roles](https://www.mongodb.com/docs/manual/reference/built-in-roles/) for the role definition and [the mongodbreceiver README](https://github.com/open-telemetry/opentelemetry-collector-contrib/blob/main/receiver/mongodbreceiver/README.md) for an example least-privilege-user setup.
* **TLS material (optional).** If MongoDB requires TLS, enable TLS and provide the CA file, and for mutual TLS the client certificate and key files, on the collector host.
* **Log file read access (logs).** The collector must have read access to the MongoDB log files at the configured **Log Paths** (default `/var/log/mongodb/mongodb.log*` and `/var/log/mongodb/mongod.log*`).

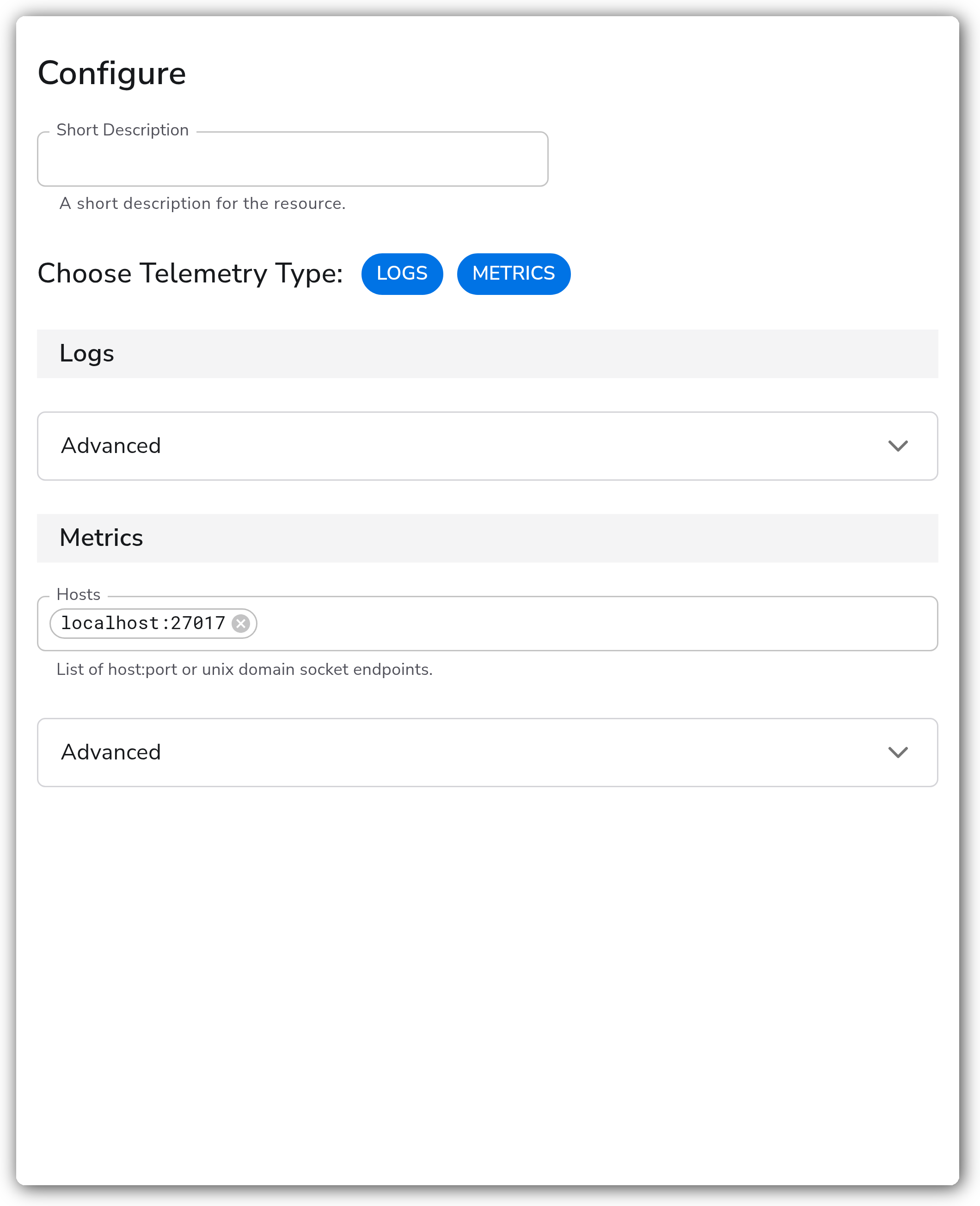

### Configuration
**General**
| Parameter | Type | Required | Default | Description |
| --------------------- | ------------------ | -------- | --------------------- | ------------------------------------------------------------ |
| Choose Telemetry Type | Telemetry Selector | No | `["Logs", "Metrics"]` | Which telemetry to collect. Valid values: `Logs`, `Metrics`. |
**Logs**
| Parameter | Type | Required | Default | Description |
| --------- | ---------------------- | -------- | --------------------------------------------------------------- | -------------------------------------------------------- |
| Log Paths | Strings | No | `/var/log/mongodb/mongodb.log*`, `/var/log/mongodb/mongod.log*` | Path to MongoDB log file(s). |
| Parse To | Enum: body, attributes | No | body | Parse structured log parts to either body or attributes. |
| Start At | Enum: beginning, end | No | end | Start reading logs from `beginning` or `end`. |
| Parse | Boolean | No | true | Parses the log fields into structured data. |
These parameters apply when **Choose Telemetry Type** includes `Logs`. All are advanced settings.
**Metrics**
| Parameter | Type | Required | Default | Description |
| ------------------- | ------- | -------- | ----------------- | ----------------------------------------------------------------------------------------------------- |
| Hosts | Strings | No | `localhost:27017` | List of host:port or unix domain socket endpoints. |
| Username | String | No | *(empty)* | If authentication is required, specify a username with `clusterMonitor` permission. Advanced setting. |
| Password | String | No | *(empty)* | The user's password. Sensitive value. Advanced setting. |
| Collection Interval | Integer | No | 60 | How often (seconds) to scrape for metrics. Advanced setting. |
| Filtering | Metrics | No | *(empty)* | Disable individual MongoDB metrics from collection. Advanced setting. |
These parameters apply when **Choose Telemetry Type** includes `Metrics`.
**TLS (Metrics)**
| Parameter | Type | Required | Default | Description |
| --------------------------------- | ------- | -------- | --------- | ------------------------------------------------------------------------------------------------------------- |
| Enable TLS | Boolean | No | false | Whether or not to use TLS. Advanced setting. |
| Skip TLS Certificate Verification | Boolean | No | false | Enable to skip TLS certificate verification. Relevant when Enable TLS is true. |
| TLS Certificate Authority File | String | No | *(empty)* | Certificate authority used to validate TLS certificates. Relevant when Enable TLS is true. |
| TLS Client Certificate File | String | No | *(empty)* | A TLS certificate used for client authentication, if mutual TLS is enabled. Relevant when Enable TLS is true. |
| TLS Client Private Key File | String | No | *(empty)* | A TLS private key used for client authentication, if mutual TLS is enabled. Relevant when Enable TLS is true. |
### Examples
#### Scrape metrics from an authenticated replica set over TLS
Collects metrics every 30 seconds from two `mongod` members, authenticating with a `clusterMonitor` user and validating the server certificate against a CA file.
```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
name: mongodb
spec:
type: mongodb
parameters:
- name: telemetry_types
value: ["Metrics"]
- name: hosts
value:
- "mongo-1.internal:27017"
- "mongo-2.internal:27017"
- name: username
value: bindplane-monitor
- name: password
value: "REPLACE_WITH_PASSWORD"
- name: collection_interval
value: 30
- name: enable_tls
value: true
- name: ca_file
value: /etc/ssl/mongodb/ca.crt
```
### Configuration Tips
* For a replica set, list the member `mongod` hosts; for a sharded cluster, list the `mongos` hosts instead of individual shards.
* Use a dedicated user with only the `clusterMonitor` role for metrics. It is read-only and avoids granting write access to the collector.
* Use **Filtering** to disable metrics you do not need, reducing cardinality and downstream cost.
### Troubleshooting
#### Metrics endpoint connection refused
Symptoms: no MongoDB metrics arrive; collector logs show connection refused or timeout to the configured host.
Solutions:
1. Confirm each entry in **Hosts** is a reachable `mongod` (or `mongos`) host:port from the collector.
2. Verify firewall and network policy allow the collector to reach the MongoDB port (default 27017).
#### Authentication failed
Symptoms: collector logs report authentication or unauthorized errors during scrape.
Solutions:
1. Confirm **Username** and **Password** are correct and the user exists in MongoDB.
2. Verify the user has the built-in `clusterMonitor` role. See [MongoDB Built-In Roles](https://www.mongodb.com/docs/manual/reference/built-in-roles/).
#### TLS handshake failure
Symptoms: scrape fails with a certificate or TLS handshake error.
Solutions:
1. Confirm **Enable TLS** matches the server's requirement and that the **TLS Certificate Authority File** can validate the server certificate.
2. For testing only, enable **Skip TLS Certificate Verification**; do not use this in production.
#### No logs collected
Symptoms: no log records appear from the source.
Solutions:
1. Confirm the MongoDB log files exist at the configured **Log Paths** and that the collector user can read them.
2. If you expect existing log content, set **Start At** to `beginning`.
### Standalone Source
```yaml
apiVersion: bindplane.observiq.com/v1
kind: Source
metadata:
name: mongodb
spec:
type: mongodb
parameters:
- name: telemetry_types
value: ["Logs", "Metrics"]
- name: hosts
value:
- "localhost:27017"
- name: username
value: bindplane-monitor
- name: password
value: "REPLACE_WITH_PASSWORD"
- name: collection_interval
value: 60
- name: enable_tls
value: false
- name: log_paths
value:
- "/var/log/mongodb/mongodb.log*"
- "/var/log/mongodb/mongod.log*"
- name: start_at
value: end
- name: parse_to
value: body
- name: parse
value: true
```
### Related Resources
* [MongoDB Built-In Roles (clusterMonitor)](https://www.mongodb.com/docs/manual/reference/built-in-roles/)
* [OpenTelemetry mongodbreceiver](https://github.com/open-telemetry/opentelemetry-collector-contrib/blob/main/receiver/mongodbreceiver/README.md)
---
