# Transform

Transforms telemetry by running [OpenTelemetry Transformation Language (OTTL)](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/pkg/ottl#opentelemetry-transformation-language) statements against each record. Statements run in order from top to bottom and can set, keep, delete, or rewrite fields on a record's attributes, body, and resource. Optional conditions gate whether the statements run at all on a given record.

### Supported Telemetry Types

| Logs | Metrics | Traces |
| ---- | ------- | ------ |
| ✓    | ✓       | ✓      |

Choose Telemetry Type picks one signal per processor instance. Add another instance to handle a second signal.

### Configuration

#### Basic Configuration

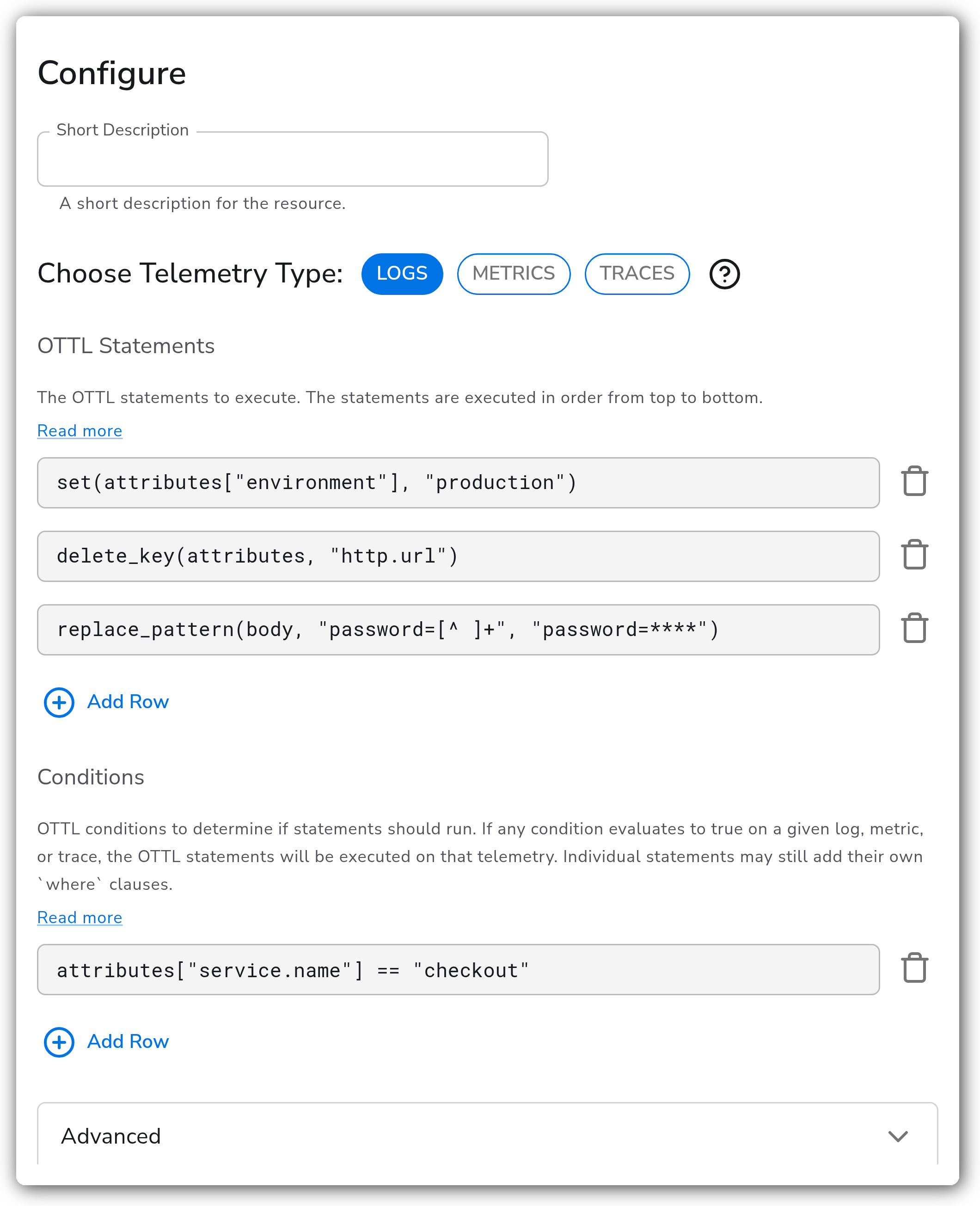

<figure><img src="/files/QwsV4sUOT0MK7chFd7aL" alt="Bindplane docs - Transform - image 1"><figcaption></figcaption></figure>

**Statements**

| Parameter             | Type               | Required | Default   | Description                                                                                                                                                                                                            |
| --------------------- | ------------------ | -------- | --------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Choose Telemetry Type | Telemetry Selector | Yes      | Logs      | The signal this instance runs on: Logs, Metrics, or Traces (one at a time).                                                                                                                                            |
| OTTL Statements       | Code Blocks        | Yes      | *(empty)* | The OTTL statements to execute, one per block. They run in order from top to bottom.                                                                                                                                   |
| Conditions            | Code Blocks        | No       | *(empty)* | OTTL conditions that gate the statements. If any condition is true for a record, the statements run on that record. Leave empty to run on every record. Individual statements may still add their own `where` clauses. |

**Advanced**

| Parameter         | Type                              | Required | Default   | Description                                                                                                                                                                    |
| ----------------- | --------------------------------- | -------- | --------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| Error Mode        | Enum: ignore, silent, propagate   | No       | ignore    | How to handle statement errors. `ignore` logs the error and continues, `silent` continues without logging, `propagate` halts processing and returns the error up the pipeline. |
| Context (Logs)    | Enum: log, resource               | No       | log       | The OTTL context the statements execute in for logs. Applies when Choose Telemetry Type is Logs.                                                                               |
| Context (Metrics) | Enum: datapoint, metric, resource | No       | datapoint | The OTTL context the statements execute in for metrics. Applies when Choose Telemetry Type is Metrics.                                                                         |
| Context (Traces)  | Enum: span, spanevent, resource   | No       | span      | The OTTL context the statements execute in for traces. Applies when Choose Telemetry Type is Traces.                                                                           |

The UI shows a single **Context** field whose options depend on the selected telemetry type. The default context (`log`, `datapoint`, or `span`) is the most specific level for that signal. Choose `resource` to operate on resource-level attributes shared across all records from a source.

### Examples

#### Set, rename, and clean up log attributes

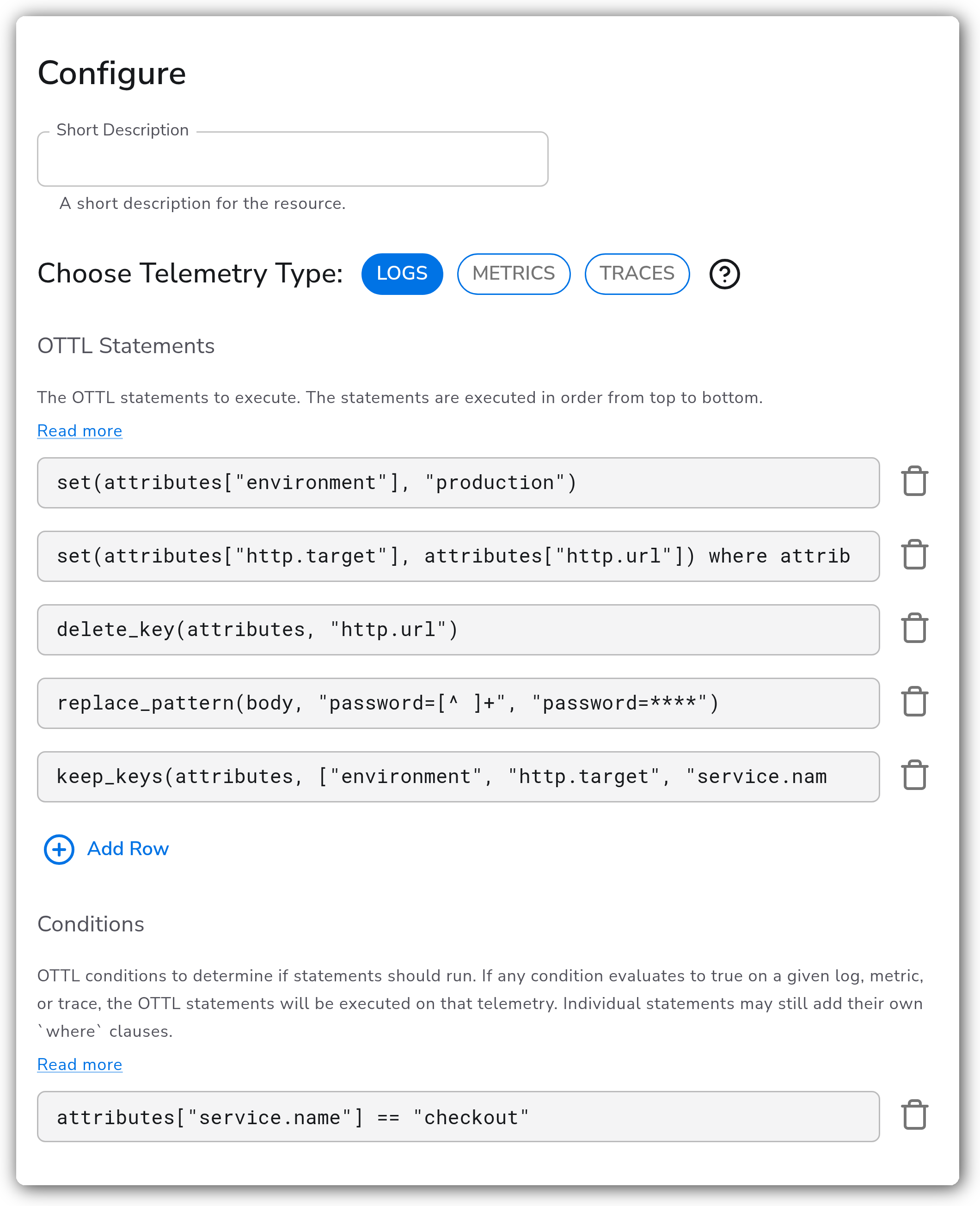

Run several OTTL statements in order on logs, gated by a condition so they only touch records from one service. This example keeps the default `log` context.

OTTL Statements:

```
set(attributes["environment"], "production")
set(attributes["http.target"], attributes["http.url"]) where attributes["http.url"] != nil
delete_key(attributes, "http.url")
replace_pattern(body, "password=[^ ]+", "password=****")
keep_keys(attributes, ["environment", "http.target", "service.name"])
```

Conditions:

```
attributes["service.name"] == "checkout"
```

The statements add an `environment` attribute, copy `http.url` into `http.target` only when it exists, drop the original `http.url`, redact a password pattern in the body, then keep only the named attributes. Because a condition is set, the statements run only on records whose `service.name` is `checkout`.

<figure><img src="/files/nRv4MDb44IklAGdUEhgy" alt="Bindplane docs - Transform - image 2"><figcaption></figcaption></figure>

#### Normalize resource attributes using the resource context

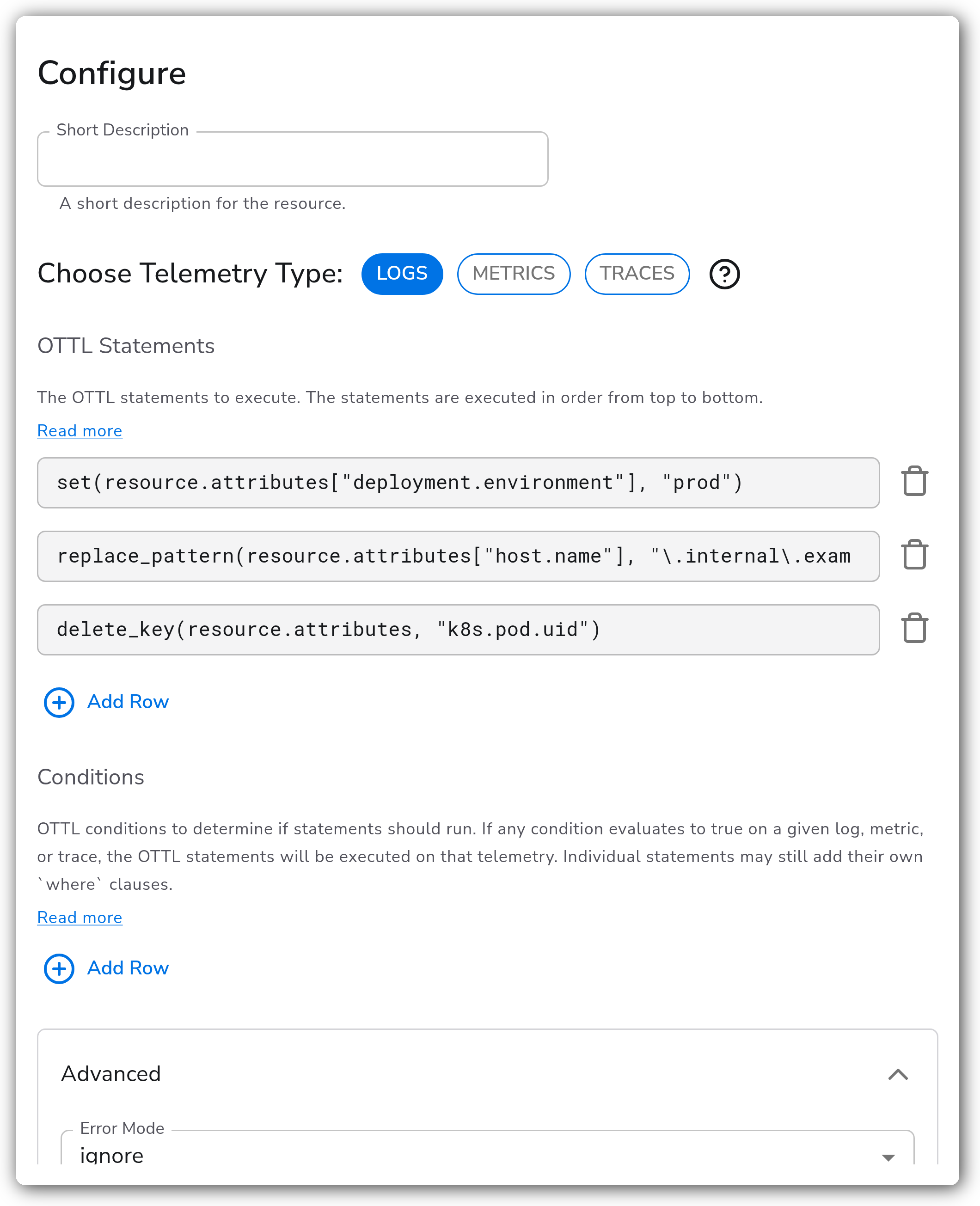

Set the Context advanced parameter to `resource` to operate on resource-level fields rather than per-record fields. This is the right level for attributes that describe the source rather than an individual log.

OTTL Statements:

```
set(resource.attributes["deployment.environment"], "prod")
replace_pattern(resource.attributes["host.name"], "\\.internal\\.example\\.com$", "")
delete_key(resource.attributes, "k8s.pod.uid")
```

With Context set to `resource`, these statements run once per resource: they stamp a deployment environment, strip an internal DNS suffix from the host name, and drop a noisy pod UID attribute.

<figure><img src="/files/mADLsOcMvYIwpjE4sJYL" alt="Bindplane docs - Transform - image 3"><figcaption></figcaption></figure>

### Configuration Tips

* Statements run top to bottom. Order matters when a later statement reads a field an earlier one sets or deletes.
* Use `where` on an individual statement for fine-grained control, and the Conditions field to gate the whole set. Both can be combined.
* The default context (`log`, `datapoint`, `span`) addresses per-record fields. Switch Context to `resource` only when you mean to change resource-level attributes shared across records.

### Troubleshooting

#### Statements don't seem to run

Symptoms: telemetry passes through unchanged after the processor.

Solutions:

1. Check the Conditions field. If a condition is set and never evaluates true, the statements never run. Clear it to run on every record.
2. Confirm Choose Telemetry Type matches the signal you are sending. A Logs instance does nothing to metrics or traces.

#### A statement errors and processing stops

Symptoms: records are dropped or the pipeline reports errors after adding the processor.

Solutions:

1. With Error Mode set to `propagate`, any statement error halts processing. Set it to `ignore` while you debug so the error is logged but processing continues.
2. Guard field access that may be missing, for example `set(attributes["x"], attributes["y"]) where attributes["y"] != nil`, so a nil field does not error.

#### Resource statements affect more records than expected

Symptoms: a change applied at the `resource` context shows up on records you didn't intend to modify.

Solutions:

1. Resource attributes are shared by every record from the same source. If you need per-record changes, use the default context (`log`, `datapoint`, or `span`) instead of `resource`.

### Standalone Processor

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: transform
spec:
  type: transform
  parameters:
    - name: telemetry_type
      value: Logs
    - name: statements
      value:
        - set(attributes["environment"], "production")
        - delete_key(attributes, "http.url")
        - replace_pattern(body, "password=[^ ]+", "password=****")
    - name: conditions
      value:
        - attributes["service.name"] == "checkout"
    - name: error_mode
      value: ignore
    - name: logs_context
      value: log
```

### Related Resources

* [OpenTelemetry Transformation Language (OTTL)](https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/pkg/ottl#opentelemetry-transformation-language)
* [OTTL functions reference](https://github.com/open-telemetry/opentelemetry-collector-contrib/blob/main/pkg/ottl/ottlfuncs/README.md)

### Bindplane Resources

These field and OTTL processors pair well with Transform for parsing and reshaping telemetry:

* [Add Fields](/integrations/processors/add-fields.md)
* [Delete Fields](/integrations/processors/delete-fields.md)
* [Rename Fields](/integrations/processors/rename-fields.md)
* [Filter by Condition](/integrations/processors/filter-by-condition.md)
* [Parse JSON](/integrations/processors/parse-json.md)


---
