Parse JSON

Parses a serialized JSON string from a field on your telemetry and writes the resulting structured data to a field you choose. Use it when a log, metric, or trace carries embedded JSON (for example a string attribute holding {"action":"login","status":"success"}) and you want addressable fields instead of one opaque string.

Supported Telemetry Types

Logs	Metrics	Traces
✓	✓	✓

Choose Telemetry Type picks one signal per processor instance. Add another instance to handle a second signal.

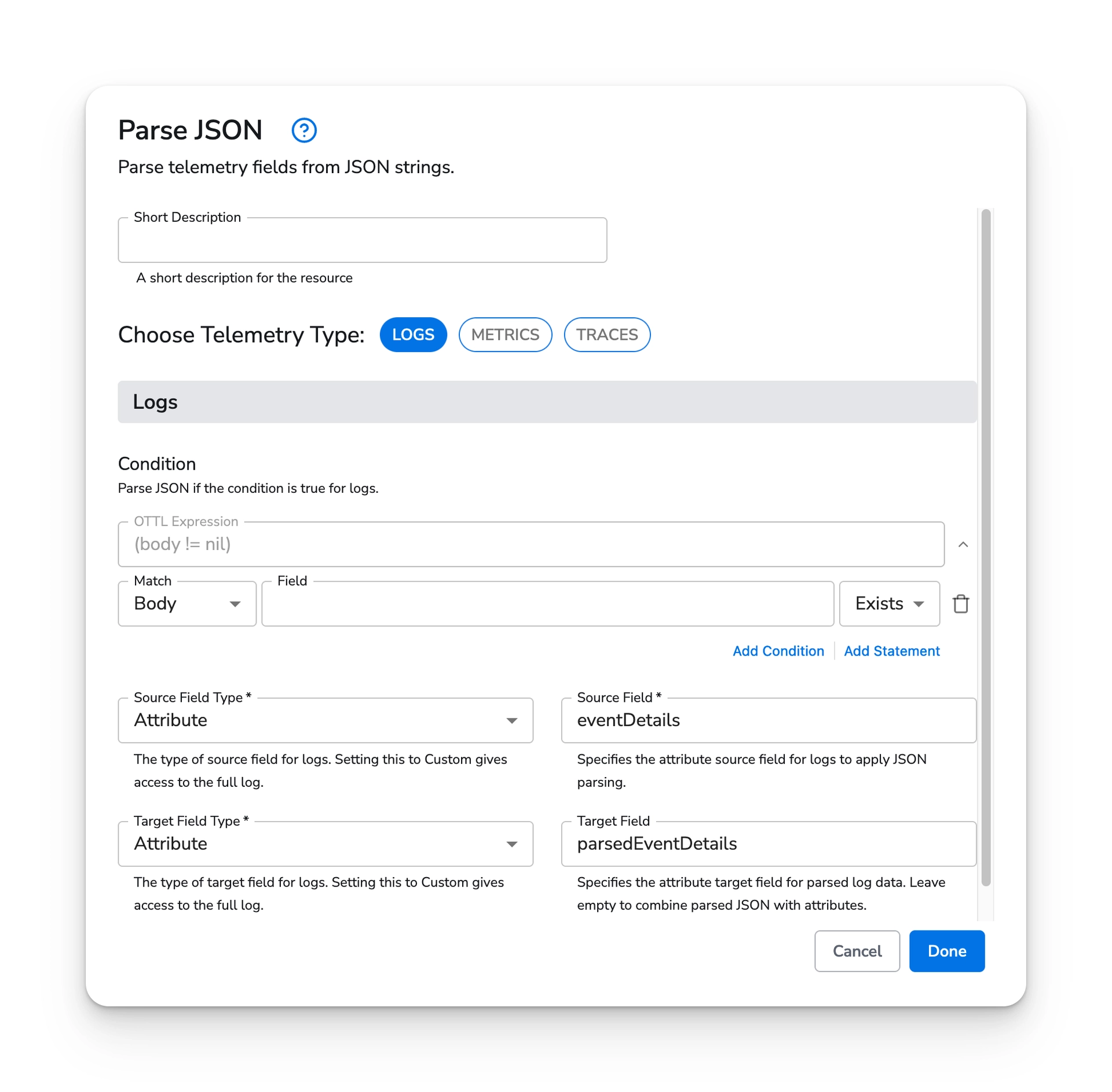

Configuration

Basic Configuration

Selection

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Telemetry Selector	Yes	Logs	The signal this instance runs on: Logs, Metrics, or Traces (one at a time).
Condition	OTTL Condition	No	(empty)	Parse only the records that match. Empty parses every record. A guard like attributes["eventDetails"] != nil skips records without the JSON field.

Source and target fields

Parameter	Type	Required	Default	Description
Source Field Type	Enum: Resource, Attribute, Body, Custom	Yes	Attribute	Where the JSON string is read from. Body is logs-only. Custom takes any OTTL path and gives access to the full record.
Source Field	OTTL Field	Yes *	—	The field holding the JSON string. Use bracket notation for nested fields (e.g. parent["child"]). For a Body source, leave empty to parse the entire body.
Target Field Type	Enum: Resource, Attribute, Body, Custom	Yes	Attribute	Where the parsed data is written. Body is logs-only.
Target Field	OTTL Field	No *	—	Destination for the parsed data. Leave empty to merge the parsed JSON into the target field type's root (resource, attributes, or body).

* Source Field is required for Resource, Attribute, and Custom source types. For a Body source it is optional, and leaving it empty parses the whole body. Target Field is optional for Resource, Attribute, and Body targets (empty merges into the root); for a Custom target it is required.

Body is available for Logs only. For Metrics and Traces the field type options are Resource, Attribute, and Custom.

Examples

Parse a JSON string out of a log attribute

A log carries additional event detail as a serialized JSON string in the eventDetails attribute:

{
  "level": "info",
  "eventDetails": "{\"action\": \"login\", \"status\": \"success\"}"
}

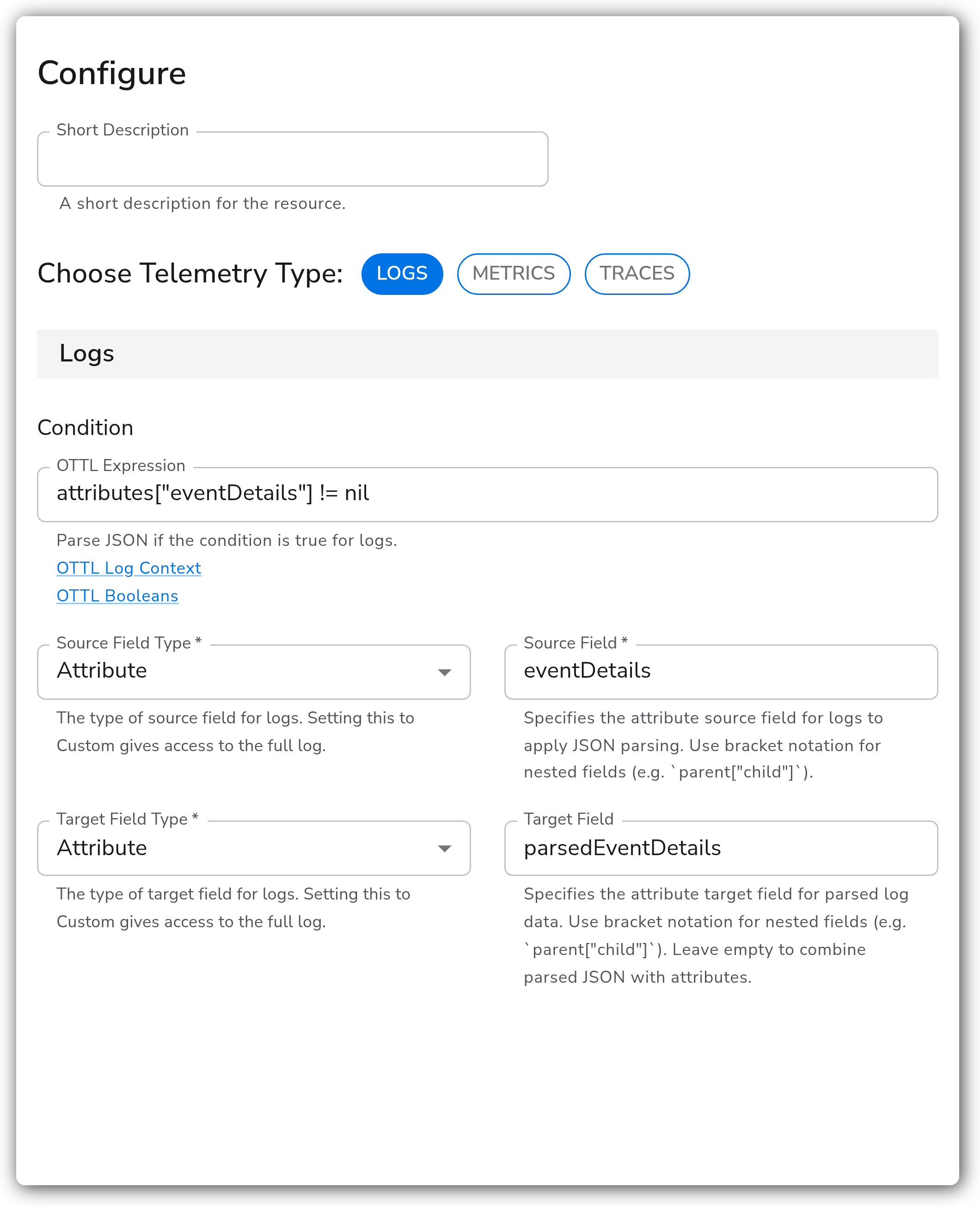

Configure the processor to read that attribute and write the structured result to a new parsedEventDetails attribute:

• Choose Telemetry Type: Logs
• Condition: attributes["eventDetails"] != nil
• Source Field Type: Attribute
• Source Field: eventDetails
• Target Field Type: Attribute
• Target Field: parsedEventDetails

After processing, the parsed object is addressable as structured fields:

{
  "level": "info",
  "eventDetails": "{\"action\": \"login\", \"status\": \"success\"}",
  "parsedEventDetails": {
    "action": "login",
    "status": "success"
  }
}

You can now filter and route on parsedEventDetails["action"] and parsedEventDetails["status"].

Configuration Tips

• Leave the Target Field empty to merge the parsed keys directly into the target root (the attributes map, the resource attributes, or the body) instead of nesting them under a new field.
• When the target already holds a map, parsed keys are merged in (upsert); when it does not, the target is replaced with the parsed object. Point the target at an empty or new field if you want to keep the original value intact.
• The source value must be a valid JSON string. The processor runs in ignore error mode, so a record whose source is not parseable JSON passes through unchanged rather than failing the batch.

Troubleshooting

The parsed field is empty or unchanged

Symptoms: the target field is not populated with structured data after the processor runs.

Solutions:

1. Confirm the source field actually contains a JSON string (not already a map, and not malformed JSON).
2. Verify the Source Field path is correct, using bracket notation for nested fields.
3. Check that the Condition evaluates true for the records you expect to parse.

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: parse-json
spec:
  type: parse_json
  parameters:
    - name: telemetry_types
      value:
        - Logs
    - name: log_condition
      value: attributes["eventDetails"] != nil
    - name: log_source_field_type
      value: Attribute
    - name: log_attribute_source_field
      value: eventDetails
    - name: log_target_field_type
      value: Attribute
    - name: log_attribute_target_field
      value: parsedEventDetails

Related Resources

• ParseJSON — OTTL function reference
