Rename Fields

Renames resource, attribute, or log body fields on the records flowing through a pipeline. Each row maps an existing field name to a new name. Body fields are renamed on logs only; resource and attribute fields are renamed on metrics, logs, and traces.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux	✓	✓	✓
Windows	✓	✓	✓
macOS	✓	✓	✓
AIX	✓	✓	✓
Kubernetes Node	✓	✓	✓
Kubernetes Cluster	✓	✓	✓
Kubernetes Gateway	✓	✓	✓
OpenShift Node	✓	✓	✓
OpenShift Cluster	✓	✓	✓
OpenShift Gateway	✓	✓	✓
Google SecOps Pipelines	✓	✓	✓

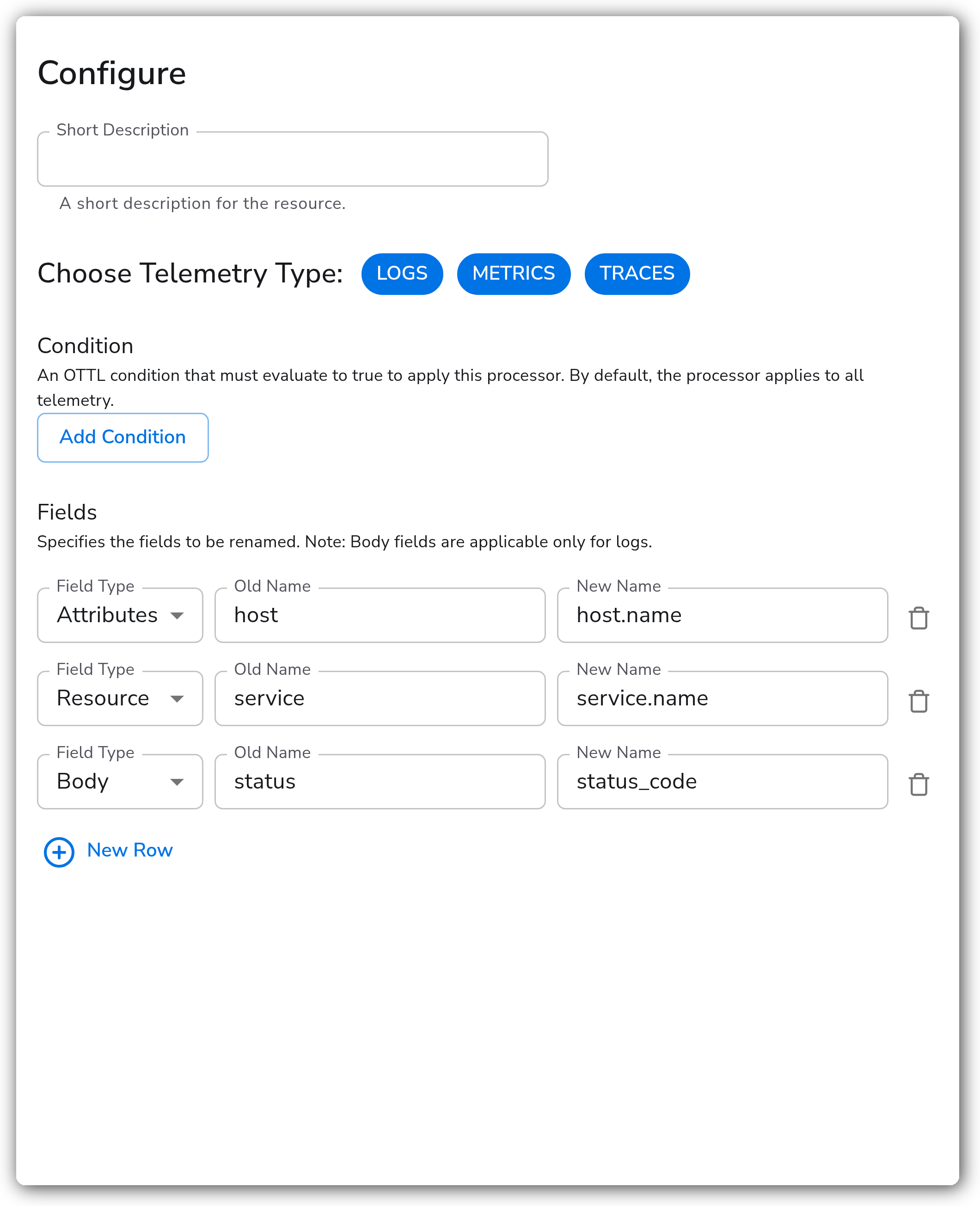

Configuration

When to apply

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Telemetry Selector	No	Logs, Metrics, Traces	The signal types this instance acts on. Rename runs on each selected signal.
Condition	OTTL Condition	No	(empty)	An OTTL condition that must evaluate to true for a record to be renamed. When empty, the processor applies to all telemetry.

Fields

Parameter	Type	Required	Default	Description
Fields	Field list	Yes	(empty)	The fields to rename. Each row has a field type (Resource, Attribute, or Body), the existing field name, and the new field name. Add one row per field. Body is logs-only: a Body row is ignored on metrics and traces.

Each Fields row carries three values:

Row value	Description
Field Type	Where the field lives: Resource, Attribute, or Body. Body applies to logs only.
Old Name	The existing field name to rename. Matched exactly (anchored), not as a substring.
New Name	The replacement field name.

Examples

Rename an attribute field

Rename the host attribute to host.name on all signals. Attribute renames apply to metrics, logs, and traces, so leave all three telemetry types selected.

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: rename-fields
spec:
  type: rename_fields_v2
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces
    - name: fields
      value:
        - fieldType: attributes
          key: host
          value: host.name

Rename a resource field

Rename the service resource field to service.name. Resource renames also apply across all signals.

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: rename-fields
spec:
  type: rename_fields_v2
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces
    - name: fields
      value:
        - fieldType: resource
          key: service
          value: service.name

Rename several fields at once, logs only

Rename a log body field, an attribute field, and a resource field in a single instance, gated by a condition so only error logs are touched. Because a Body row is included, this instance runs on logs only.

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: rename-fields
spec:
  type: rename_fields_v2
  parameters:
    - name: telemetry_types
      value:
        - Logs
    - name: condition
      value: severity_number >= SEVERITY_NUMBER_ERROR
    - name: fields
      value:
        - fieldType: body
          key: status
          value: status_code
        - fieldType: attributes
          key: host
          value: host.name
        - fieldType: resource
          key: service
          value: service.name

Configuration Tips

• Body fields are renamed on logs only. A Body row in an instance that also targets metrics or traces is silently ignored for those signals; keep Body renames in a logs-only instance to avoid confusion.
• Old Name is matched exactly (anchored to the full field name), not as a partial match. To rename several similarly-named fields, add a row for each.
• The rename operates on the field key, not on nested paths. Renaming a top-level field does not move or restructure its children.

Troubleshooting

A field is not renamed

Symptoms: the record still shows the old field name after the processor runs.

Solutions:

1. Confirm the Field Type matches where the field actually lives (Resource vs. Attribute vs. Body). A field in attributes will not be renamed by a Resource row.
2. Verify Old Name matches the existing field name exactly. The match is anchored, so trailing or surrounding characters cause it to miss.
3. Check the Condition. If it does not evaluate to true for the record, the rename is skipped.

A body field rename does nothing on metrics or traces

Symptoms: a Body row has no effect on metric or trace telemetry.

Solution: Body fields exist only on logs. Use Resource or Attribute field types for metrics and traces, or move the Body rename into a logs-only instance.

Two fields collide after renaming

Symptoms: a renamed field overwrites another field with the same target name.

Solution: New Name produces a field with that key. If a field by that name already exists, the result depends on downstream handling. Choose target names that do not already exist on the record.

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: rename-fields
spec:
  type: rename_fields_v2
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces
    - name: condition
      value: ""
    - name: fields
      value:
        - fieldType: attributes
          key: host
          value: host.name
        - fieldType: resource
          key: service
          value: service.name
        - fieldType: body
          key: status
          value: status_code
