# Parse XML

Parses an XML document string from a field you choose and writes it back as a structured map of tags, attributes, and content. Use it when telemetry carries a serialized XML document (an audit log, a Windows event, an application payload) that you want to turn into addressable fields for querying and filtering.

### Supported Telemetry Types

| Logs | Metrics | Traces |
| ---- | ------- | ------ |
| ✓    | ✓       | ✓      |

Choose Telemetry Type picks one signal per processor instance. Add another instance to handle a second signal.

### Configuration

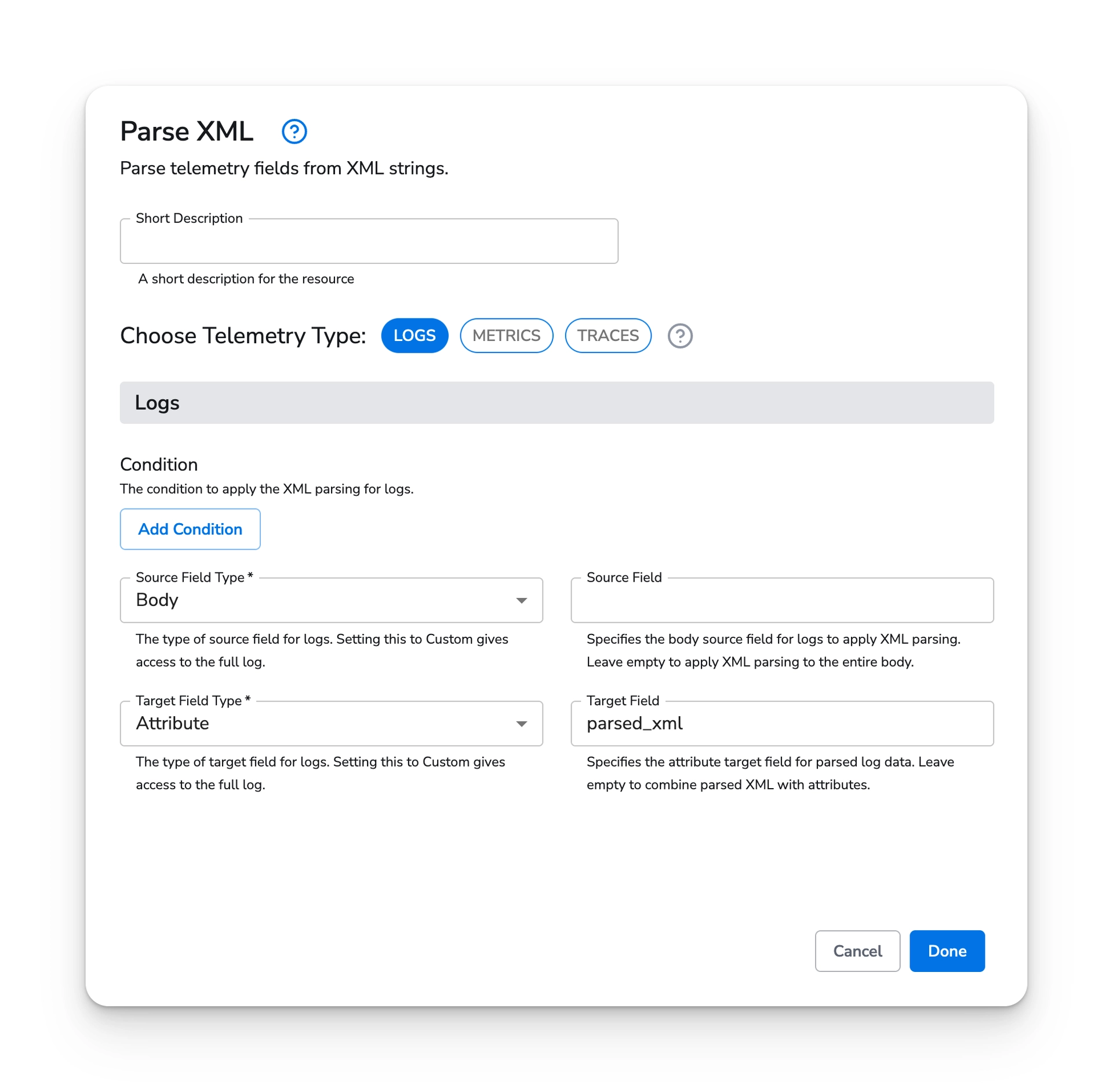

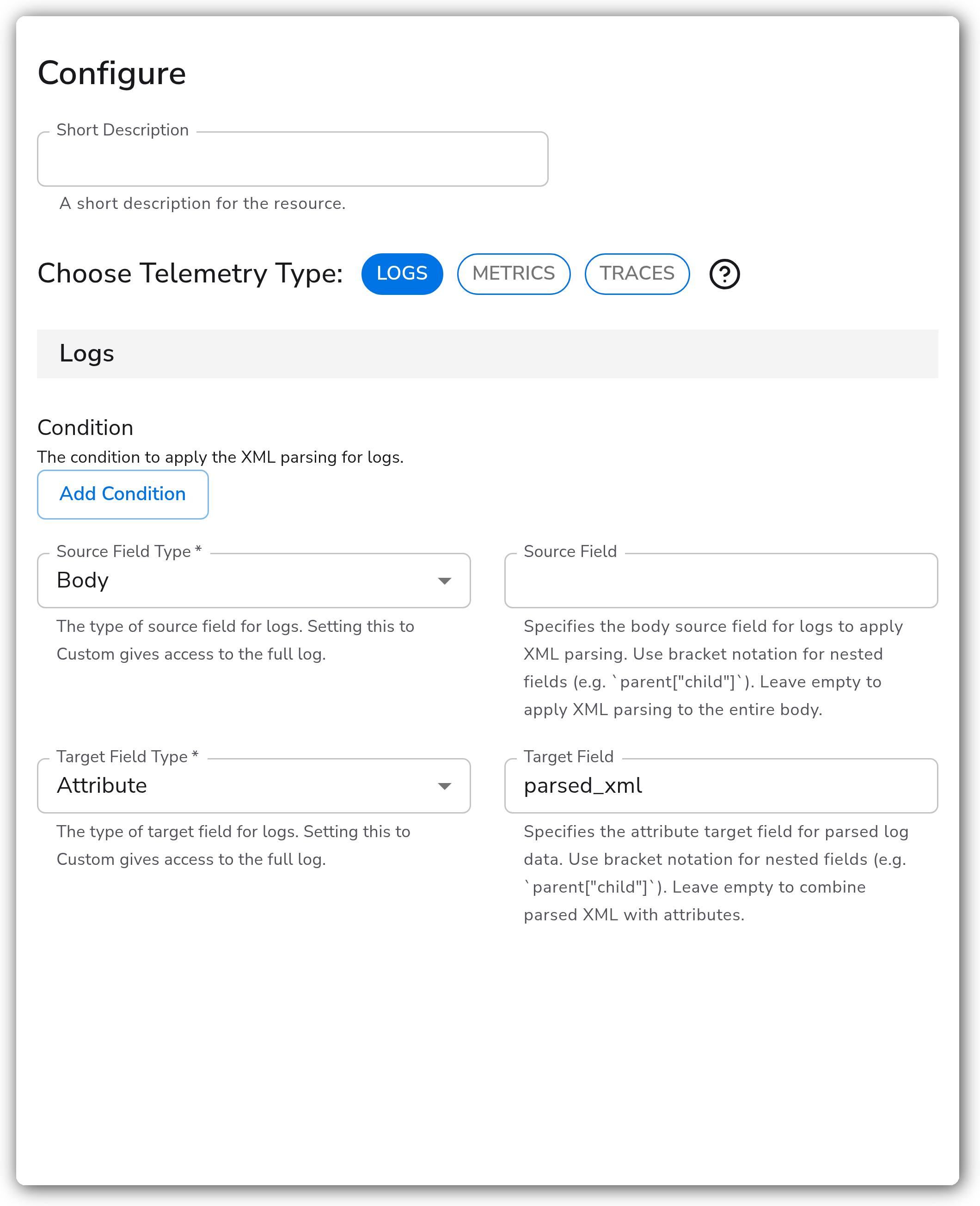

#### Basic Configuration

<figure><img src="/files/JscwUL02KhaQSCiue6tC" alt="Bindplane docs - Parse XML - image 1"><figcaption></figcaption></figure>

**When to apply**

| Parameter             | Type               | Required | Default   | Description                                                                 |
| --------------------- | ------------------ | -------- | --------- | --------------------------------------------------------------------------- |
| Choose Telemetry Type | Telemetry Selector | Yes      | Logs      | The signal this instance runs on: Logs, Metrics, or Traces (one at a time). |
| Condition             | OTTL Condition     | No       | *(empty)* | Parse only the records that match. Empty runs on every record.              |

**Source and target fields**

| Parameter         | Type                                    | Required | Default   | Description                                                                                                                                       |
| ----------------- | --------------------------------------- | -------- | --------- | ------------------------------------------------------------------------------------------------------------------------------------------------- |
| Source Field Type | Enum: Resource, Attribute, Body, Custom | Yes      | Attribute | Where the XML string is read from. **Body is logs-only.** Custom gives access to the full record (any OTTL path).                                 |
| Source Field      | OTTL Field                              | Yes \*   | —         | The field holding the XML. Use bracket notation for nested fields (e.g. `parent["child"]`). For a Body source, leave empty to use the whole body. |
| Target Field Type | Enum: Resource, Attribute, Body, Custom | Yes      | Attribute | Where the parsed map is written. **Body is logs-only.**                                                                                           |
| Target Field      | OTTL Field                              | Yes \*   | —         | Destination for the parsed map. Leave empty to merge the parsed XML into the chosen context (resource, attributes, or body).                      |

\* The **Body** field type is the exception: it's optional, and leaving it empty targets the entire body.

**Body is available for Logs only.** For Metrics and Traces, the Source and Target Field Type options are Resource, Attribute, and Custom.

### How parsed XML is structured

The processor converts each XML element into a map with these fields:

1. The element's character data is trimmed and placed in a `content` field.
2. The element's tag name is trimmed and placed in a `tag` field.
3. The element's attributes are placed as a mapping of attribute name to attribute value in an `attributes` field.
4. Processing instructions, directives, and comments are ignored and not represented in the parsed output.
5. Child XML elements are parsed the same way and placed in an array in a `children` field.

For example, this XML:

```xml
<?xml version="1.0" encoding="UTF-8" ?>
<Log>
  <User>
    <ID>00001</ID>
    <Name type="first">Joe</Name>
    <Email>joe.smith@example.com</Email>
  </User>
  <Text>User fired alert A</Text>
</Log>
```

parses to:

```json
{
  "tag": "Log",
  "children": [
    {
      "tag": "User",
      "children": [
        { "tag": "ID", "content": "00001" },
        { "tag": "Name", "content": "Joe", "attributes": { "type": "first" } },
        { "tag": "Email", "content": "joe.smith@example.com" }
      ]
    },
    { "tag": "Text", "content": "User fired alert A" }
  ]
}
```

### Examples

#### Parse an XML audit log from the body into an attribute

Suppose a log carries a serialized XML audit record in its body and you want it as structured fields under the `parsed_xml` attribute.

Sample input log record:

```json
{
  "body": "<Log><User><ID>00001</ID><Name><First>Joe</First></Name></User><Text>User did a thing</Text></Log>"
}
```

Configure the processor as:

* Choose Telemetry Type: `Logs`
* Condition: leave empty (parse every record)
* Source Field Type: `Body`
* Source Field: leave empty (use the whole body)
* Target Field Type: `Attribute`
* Target Field: `parsed_xml`

After parsing, the record looks like:

```json
{
  "body": "<Log><User><ID>00001</ID><Name><First>Joe</First></Name></User><Text>User did a thing</Text></Log>",
  "attributes": {
    "parsed_xml": {
      "tag": "Log",
      "children": [
        {
          "tag": "User",
          "children": [
            { "tag": "ID", "content": "00001" },
            { "tag": "Name", "children": [ { "tag": "First", "content": "Joe" } ] }
          ]
        },
        { "tag": "Text", "content": "User did a thing" }
      ]
    }
  }
}
```

### Configuration Tips

* It's common for XML to span multiple lines. When reading XML logs from a file, configure the multiline section of the File source so the collector reads the whole XML document as a single entry before this processor runs.
* Leaving the Target Field empty merges the parsed map into the selected context (resource, attributes, or body) rather than nesting it under a named field.
* Set a Condition to skip records that don't carry XML, for example to avoid re-parsing records the processor has already turned into a map.

### Troubleshooting

#### The target field is empty or unchanged

Symptoms: nothing structured is written to the target after the processor runs.

Solutions:

1. Confirm the Source Field actually holds a valid XML string and the Condition evaluates true.
2. For a Body source, verify the field path, or leave Source Field empty to parse the entire body.

#### Multi-line XML is truncated

Symptoms: only the first line of an XML document is parsed, or parsing fails.

Solutions:

1. Configure the multiline section of the File source so each XML document is read as one entry.
2. Verify the source field contains the complete document, not a fragment.

### Standalone Processor

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: parse-xml
spec:
  type: parse_xml
  parameters:
    - name: telemetry_types
      value: Logs
    - name: log_condition
      value: ""
    - name: log_source_field_type
      value: Body
    - name: log_body_source_field
      value: ""
    - name: log_target_field_type
      value: Attribute
    - name: log_attribute_target_field
      value: parsed_xml
```

### Related Resources

* [ParseXML — OTTL function reference](https://github.com/open-telemetry/opentelemetry-collector-contrib/blob/main/pkg/ottl/ottlfuncs/README.md#parsexml)

### Bindplane Resources

These XML processors are designed to work together. Chain them to extract, parse, normalize, and reshape XML end to end:

* [Get XML](/integrations/processors/get-xml.md)
* [Parse Simplified XML](/integrations/processors/parse-simplified-xml.md)
* [Remove XML](/integrations/processors/remove-xml.md)
* [Convert XML Attributes To Elements](/integrations/processors/convert-xml-attributes-to-elements.md)
* [Convert XML Text To Elements](/integrations/processors/convert-xml-text-to-elements.md)


---
