Group by Attributes

Groups records by attribute keys, moving the named attributes onto the resource so telemetry that shares those values is collected under one resource. When no keys are given, records that already share the same attributes are compacted into a single resource. Works on logs, metrics, and traces.

Supported Telemetry Types

Metrics	Logs	Traces
✓	✓	✓

Choose Telemetry Type selects which signals this instance acts on. It defaults to all three; per-signal attribute keys are configured independently below.

Configuration

General

Parameter	Type	Required	Default	Description

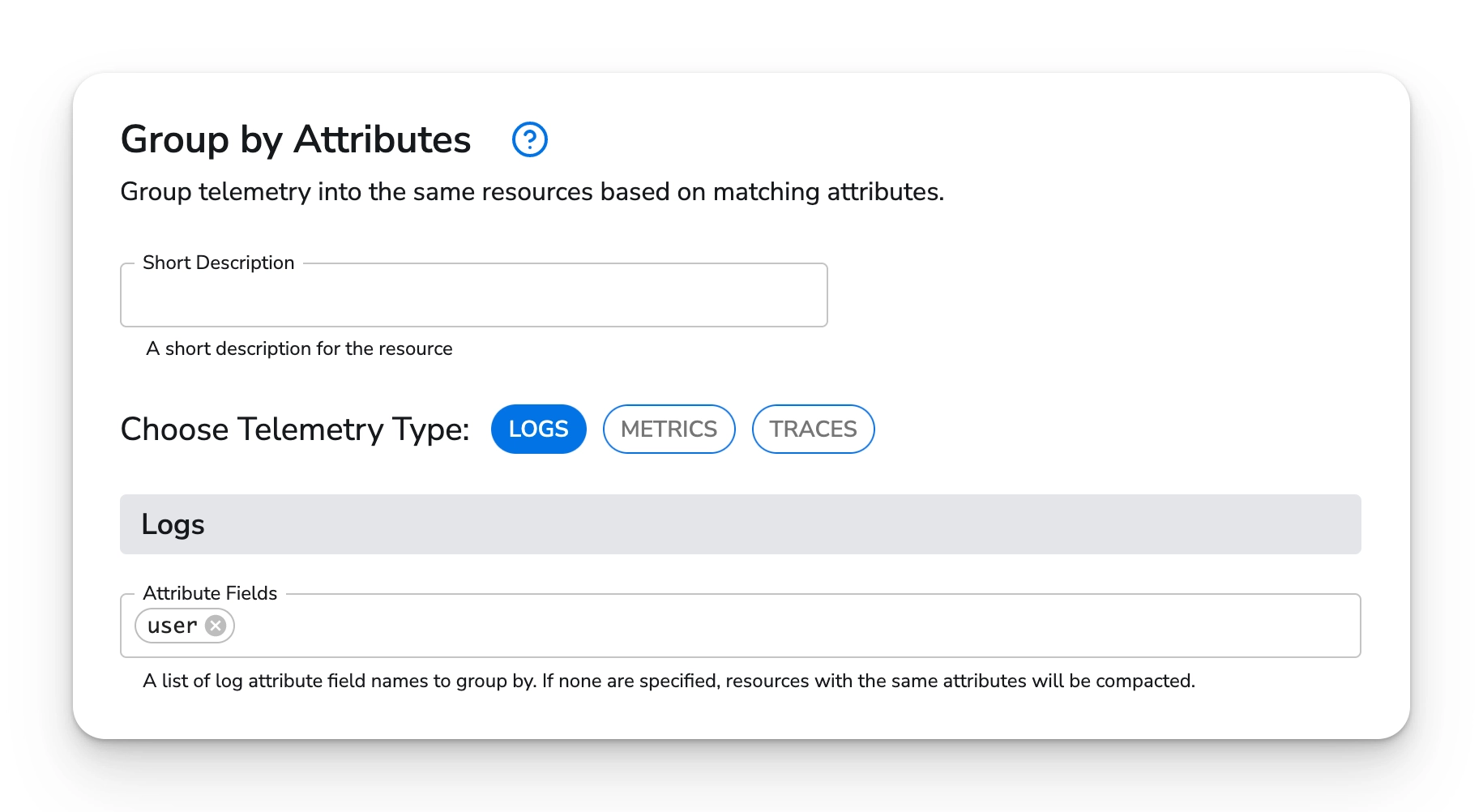

Choose Telemetry Type	Telemetry Selector	No	Logs, Metrics, Traces	The signals this instance runs on. Each selected signal exposes its own Attribute Fields list.

Logs

Parameter	Type	Required	Default	Description
Attribute Fields	Strings	No	(empty)	A list of log attribute field names to group by and move to the resource. If none are specified, resources with the same attributes are compacted. Shown when Logs is selected.

Metrics

Parameter	Type	Required	Default	Description
Attribute Fields	Strings	No	(empty)	A list of metric datapoint attribute field names to group by and move to the resource. If none are specified, resources with the same attributes are compacted. Shown when Metrics is selected.

Traces

Parameter	Type	Required	Default	Description
Attribute Fields	Strings	No	(empty)	A list of span attribute field names to group by and move to the resource. If none are specified, resources with the same attributes are compacted. Shown when Traces is selected.

Examples

Promote log attributes to the resource

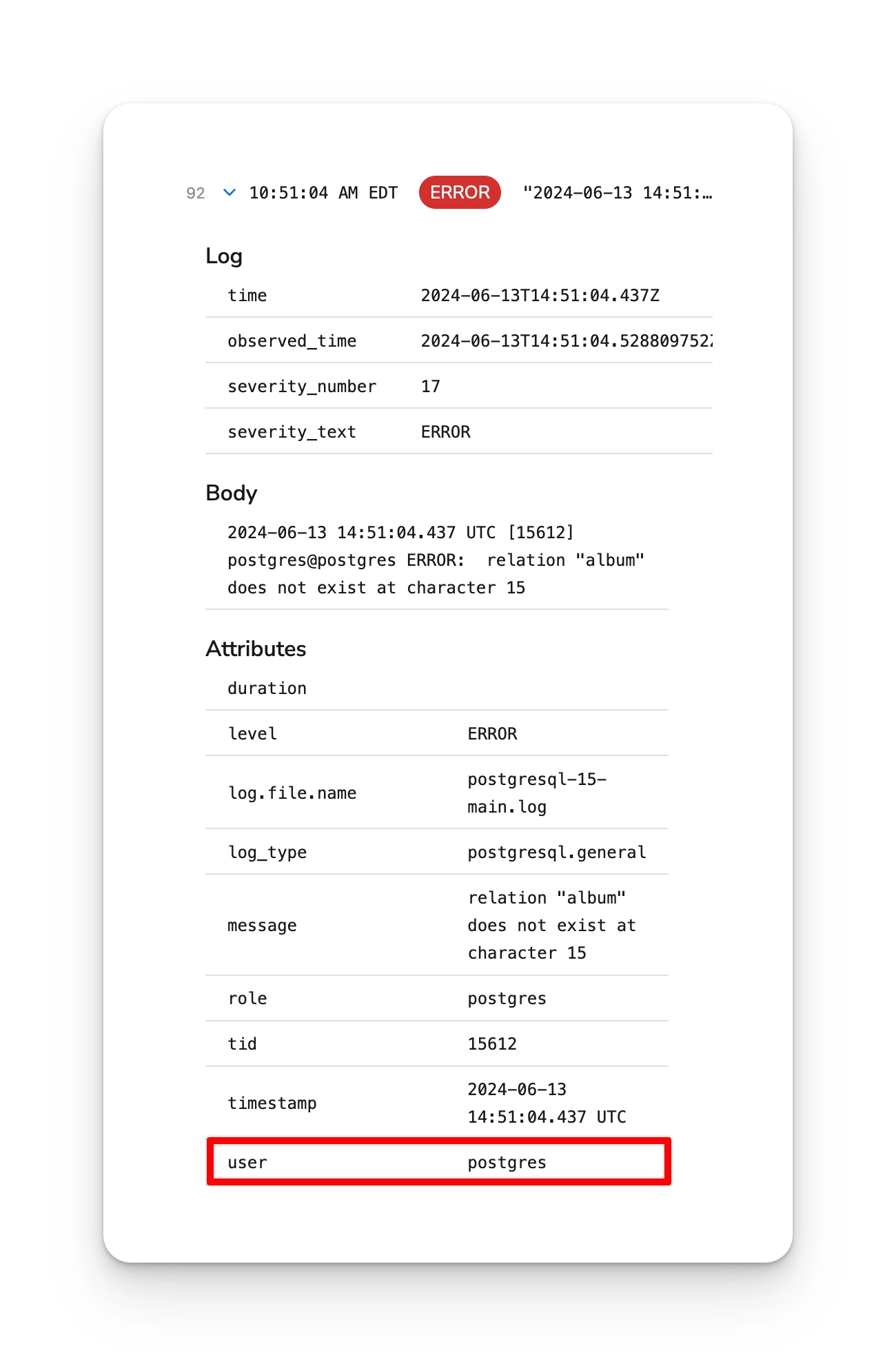

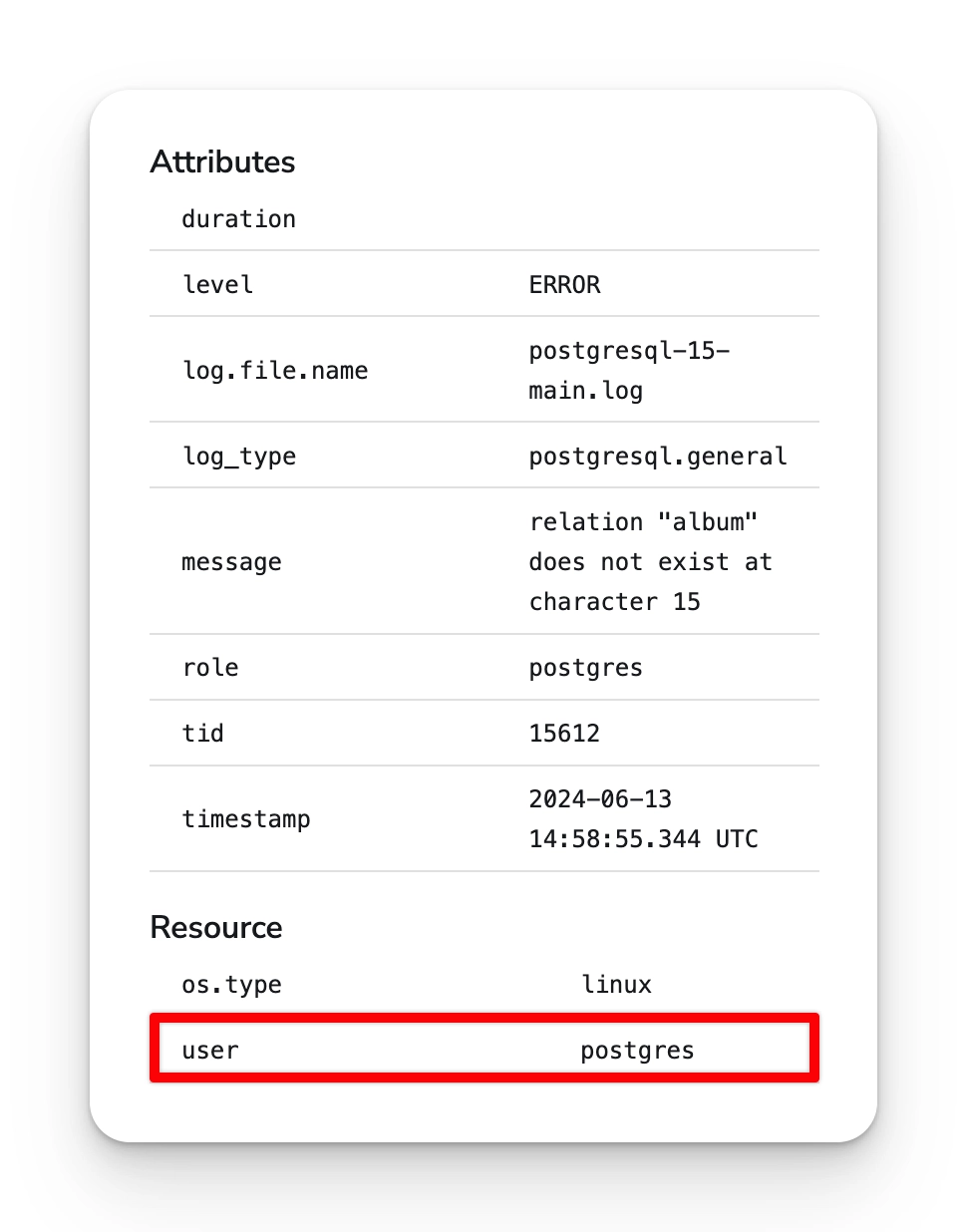

Move the user, env, and region attributes off each log record onto the resource. Logs that share the same values for those keys are grouped under one resource.

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: group-by-attributes
spec:
  type: group_by_attributes
  parameters:
    - name: telemetry_types
      value:
        - Logs
    - name: log_attributes
      value:
        - user
        - env
        - region

Compact telemetry after batching

With no attribute keys specified, the processor compacts records that already share identical resource and scope attributes into a single resource. Placing it after the Batch processor reduces duplicated resources and the number of export requests sent downstream.

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: group-by-attributes
spec:
  type: group_by_attributes
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces

Configuration Tips

• Leaving Attribute Fields empty enables compaction only. Use this after the Batch processor to collapse duplicated resources before export.
• Promoted keys are removed from the record and written to the resource. Choose low-cardinality keys; promoting a high-cardinality attribute (such as a request ID) creates one resource per distinct value and increases memory and export overhead.
• Configure each signal's Attribute Fields independently. The same key list does not carry across Logs, Metrics, and Traces.

Troubleshooting

Records are not grouped as expected

Symptoms: telemetry still arrives under separate resources after the processor runs.

Solutions:

1. Confirm the named keys exist as attributes on the records (log attributes, metric datapoint attributes, or span attributes for the matching signal).
2. Verify the signal is selected in Choose Telemetry Type so its Attribute Fields list is applied.

Compaction has no effect

Symptoms: no reduction in resource count or export requests when Attribute Fields is empty.

Solutions:

1. Compaction only merges records whose resource and scope attributes already match. If they differ, they remain separate resources.
2. Place the processor after the Batch processor so multiple matching records are present in the same payload to compact.

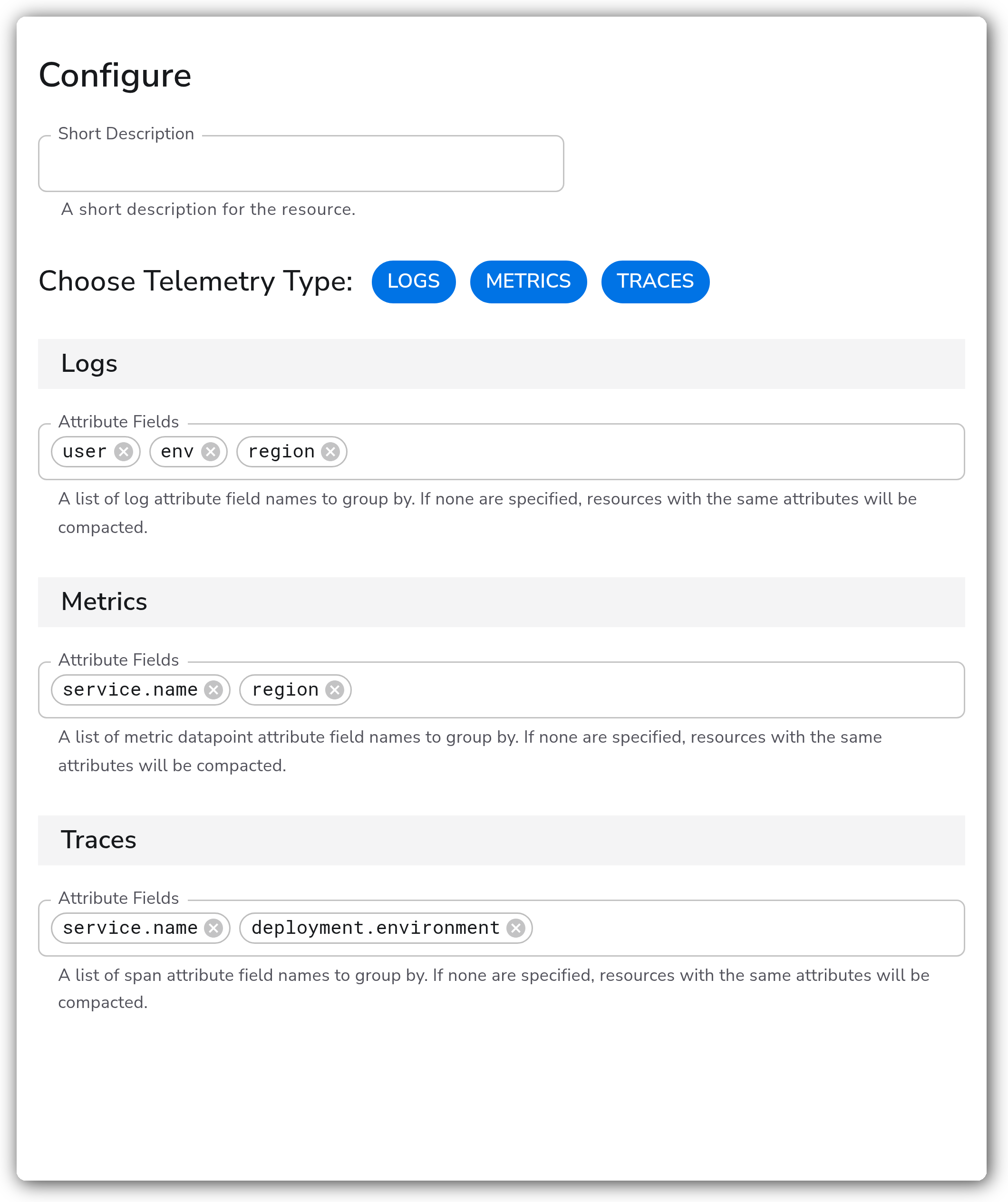

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: group-by-attributes
spec:
  type: group_by_attributes
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces
    - name: log_attributes
      value:
        - user
        - env
        - region
    - name: metric_attributes
      value:
        - service.name
        - region
    - name: trace_attributes
      value:
        - service.name
        - deployment.environment

Related Resources

• groupbyattrs processor — OpenTelemetry Collector Contrib
