Concat

The Concat processor joins fields and literal strings into a single target field. Entries are combined in the order you list them, and field entries are skipped at runtime when the referenced field is absent.

Supported Telemetry Types

Logs	Metrics	Traces
✓	✓	✓

A Concat instance applies to one telemetry type, chosen in Choose Telemetry Type. Add a second instance to concatenate on another signal.

Configuration

Basic Configuration

The core of the processor is the Sources list and the Target Field that receives the joined result.

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Telemetry Selector	Yes	Logs	The single signal (Logs, Metrics, or Traces) this instance applies to.
Condition	OTTL Condition	No	(empty)	An OTTL condition that must be true for the processor to run. Empty applies it to every record of the selected signal.
Sources	Source rows	Yes	—	The ordered list of entries to concatenate. At least one entry is required. Each entry is either a Field or a Literal (see below). Drag to reorder.
Target Field Type	Enum	Yes	Attributes	Where the result is written: Attributes or Body. Logs only; Metrics and Traces always write to attributes.
Target Field	OTTL Field	Yes (Attributes) / optional (Body)	(empty)	The field that receives the concatenated result. With Body and an empty value, the whole body is replaced.
Delimiter	String	No	(single space)	The string inserted between concatenated values. Set it empty to join with no separator.

Source Entries

Each row in the Sources list is one of two kinds:

Entry type	Fields	Behavior
Field	Context (body / attributes / resource) + Key	The field's value is included; the entry is skipped at runtime when that field is absent.
Literal	Value	A raw string, inserted exactly as written. Always present.

Source Contexts by Signal

Signal	Available field contexts
Logs	body, attributes, resource
Metrics	attributes, resource
Traces	attributes, resource

body is offered for Logs only. Metrics and Traces have no body, and they always write the result to attributes (no Target Field Type choice).

Examples

Mixing fields and a literal separator

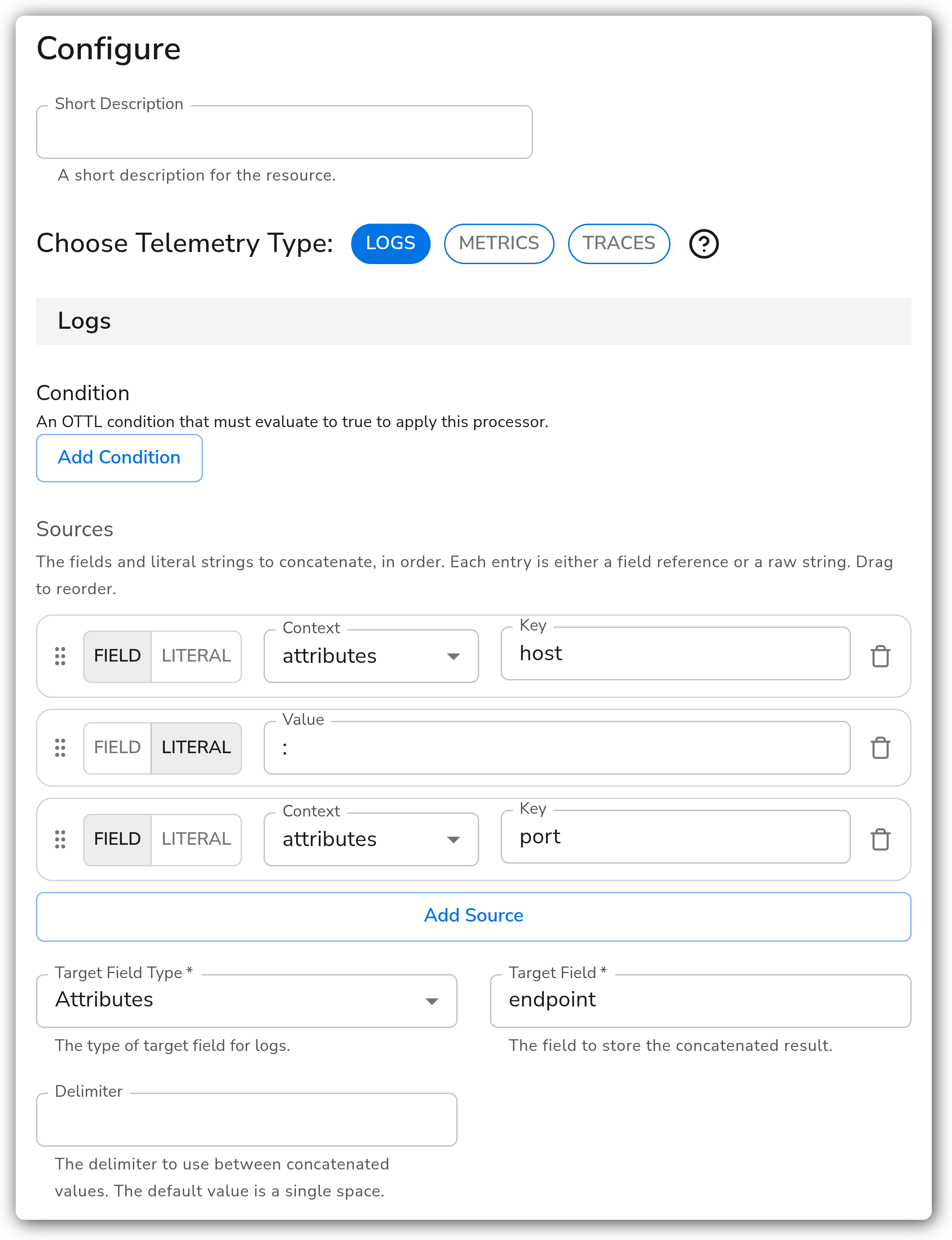

Build attributes["endpoint"] from attributes["host"], a literal :, and attributes["port"], with the delimiter set empty so the literal is the only separator. The result is host:port, written only when the referenced fields are present.

Configuration Tips

Fields vs. literals

• Field entries are nil-guarded: if the field is missing on a record, that entry drops out and the rest still concatenate. Literals are always emitted.
• Use the Delimiter for a separator that repeats between every entry; use a Literal entry for a one-off separator in a specific spot, and set the Delimiter empty to avoid doubling it up.

Troubleshooting

The target field isn't being written

Symptoms: Records pass through and the target field is empty or unchanged.

Solutions:

1. Confirm at least one Field entry actually resolves on the record. If every field entry is absent, only literals are written.
2. Check the Field entry contexts and keys against the real record shape (attributes vs resource, exact key).
3. If a Condition is set, confirm it evaluates true for the records you expect to transform.

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: concat-host-and-port
spec:
  type: concat_v2
  parameters:
    - name: telemetry_types
      value: Logs
    - name: log_concat_sources
      value:
        - type: field
          context: attributes
          key: host
        - type: literal
          value: ":"
        - type: field
          context: attributes
          key: port
    - name: log_target_field_type
      value: Attributes
    - name: log_target_field
      value: endpoint
    - name: log_delimiter
      value: ""

What Changed in This Version

This replaces the original Concat processor, which is now deprecated. Existing configurations keep using the deprecated processor until you migrate.

• Mixed field and literal sources. Each source entry is now either a field reference or a raw literal string, in one ordered list, instead of a single shared source type.
• Per-entry context. Each field entry chooses its own context (body / attributes / resource), rather than all sources sharing one.
• Reorderable. Entries can be dragged to set concatenation order.

Related Resources

• OTTL Concat function

Bindplane Resources

• Coalesce processor
