# Sumo Logic

The Sumo Logic destination sends logs and metrics to a pre-existing [Sumo Logic HTTP logs and metrics source](https://help.sumologic.com/docs/send-data/hosted-collectors/http-source/logs-metrics/). Bindplane delivers telemetry to the source's HTTP endpoint over HTTPS.

### Supported Telemetry Types

| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| Linux    | ✓       | ✓    |        |
| Windows  | ✓       | ✓    |        |
| macOS    | ✓       | ✓    |        |

### Prerequisites

* A pre-existing Sumo Logic HTTP logs and metrics source. See [Configure an HTTP Logs and Metrics Source](https://help.sumologic.com/docs/send-data/hosted-collectors/http-source/logs-metrics/).
* The HTTP source URL (endpoint) for that source.
* The collector able to reach the Sumo Logic endpoint over HTTPS.

### Configuration

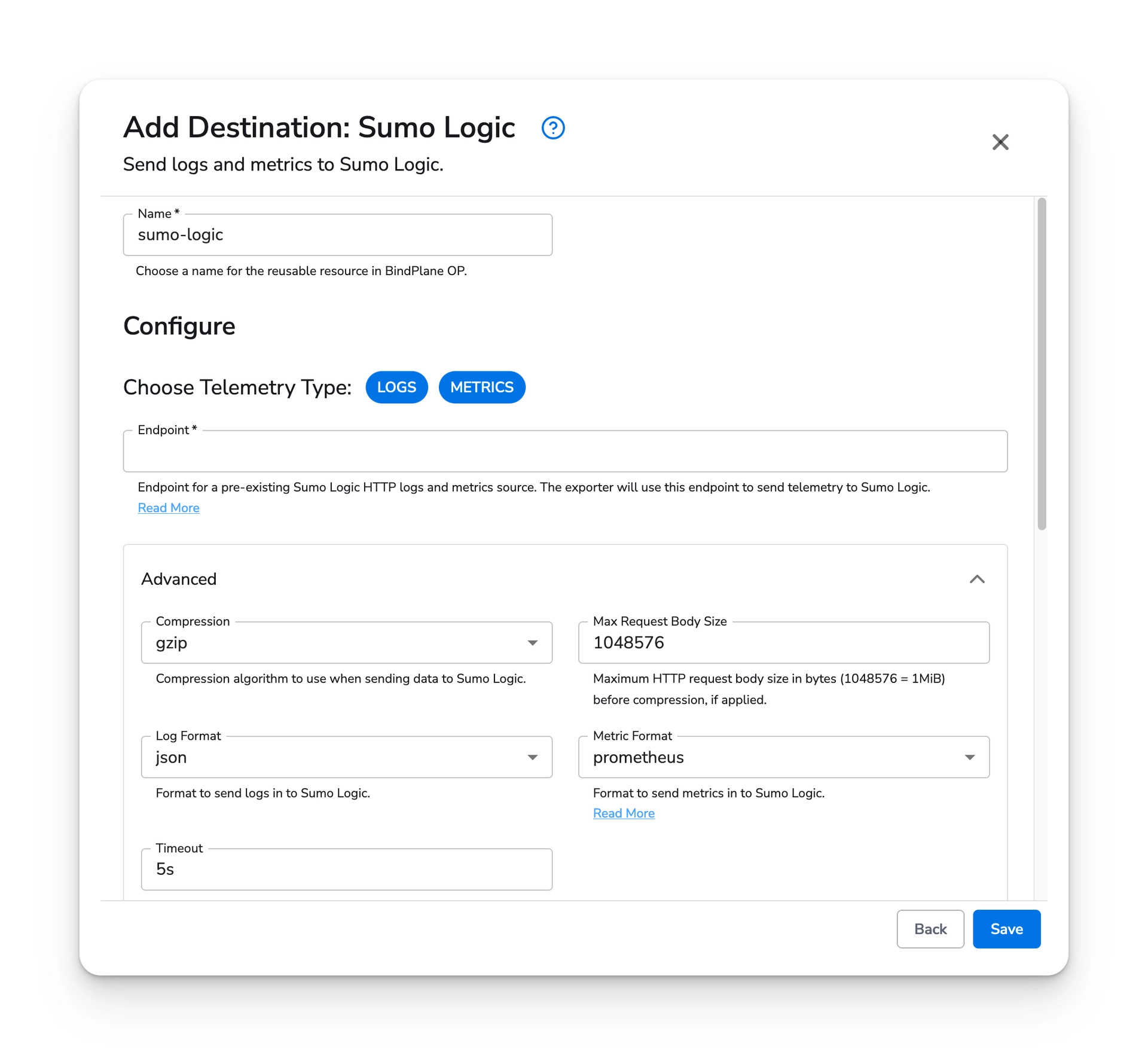

<figure><img src="/files/JNmpBN2QoWWqYIaNH3xq" alt="Bindplane docs - Sumo Logic - image 1"><figcaption></figcaption></figure>

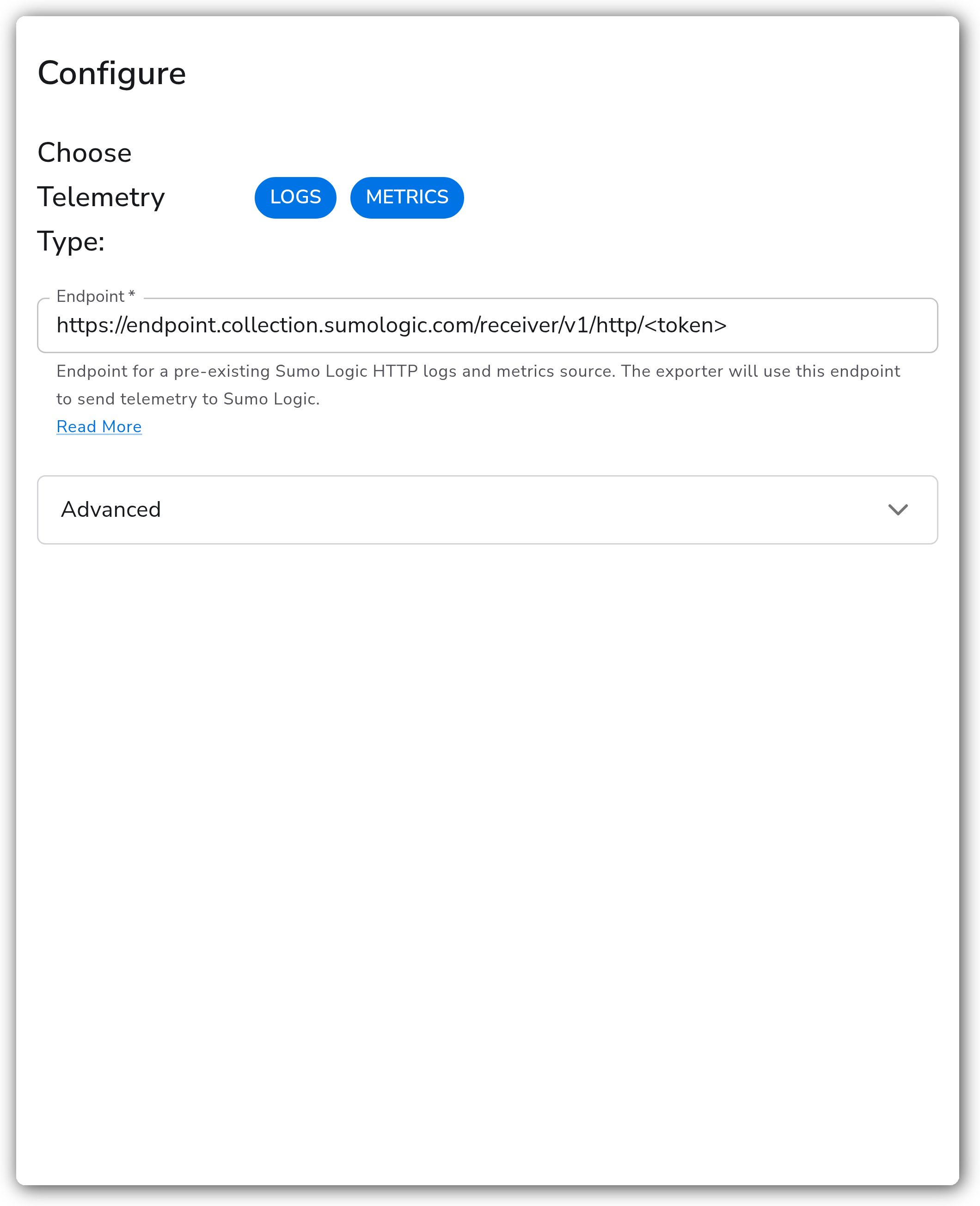

#### General

| Parameter             | Type               | Default              | Description                                                                                                                                     |
| --------------------- | ------------------ | -------------------- | ----------------------------------------------------------------------------------------------------------------------------------------------- |
| Choose Telemetry Type | Telemetry Selector | `["Logs","Metrics"]` | Select which types of telemetry to export. Valid values are `Logs` and `Metrics`.                                                               |
| Endpoint              | String             |                      | Required. Endpoint for a pre-existing Sumo Logic HTTP logs and metrics source. The exporter uses this endpoint to send telemetry to Sumo Logic. |

#### Advanced

| Parameter             | Type     | Default      | Description                                                                                                 |
| --------------------- | -------- | ------------ | ----------------------------------------------------------------------------------------------------------- |
| Compression           | Enum     | `gzip`       | Compression algorithm to use when sending data to Sumo Logic. One of `gzip`, `deflate`, `zstd`, `none`.     |
| Max Request Body Size | String   | `1048576`    | Maximum HTTP request body size in bytes (1048576 = 1MiB) before compression, if applied.                    |
| Log Format            | Enum     | `json`       | Format to send logs in to Sumo Logic. One of `json` or `text`. Applies when `Logs` is selected.             |
| Metric Format         | Enum     | `prometheus` | Format to send metrics in to Sumo Logic. One of `prometheus` or `otlp`. Applies when `Metrics` is selected. |
| Timeout               | Duration | `5s`         | Timeout limit for each attempt to send data to Sumo Logic. Maximum allowed is `55s`.                        |
| Drop Raw Copy         | Boolean  | `true`       | When enabled, the raw copy of the log stored in `log.record.original` is dropped.                           |

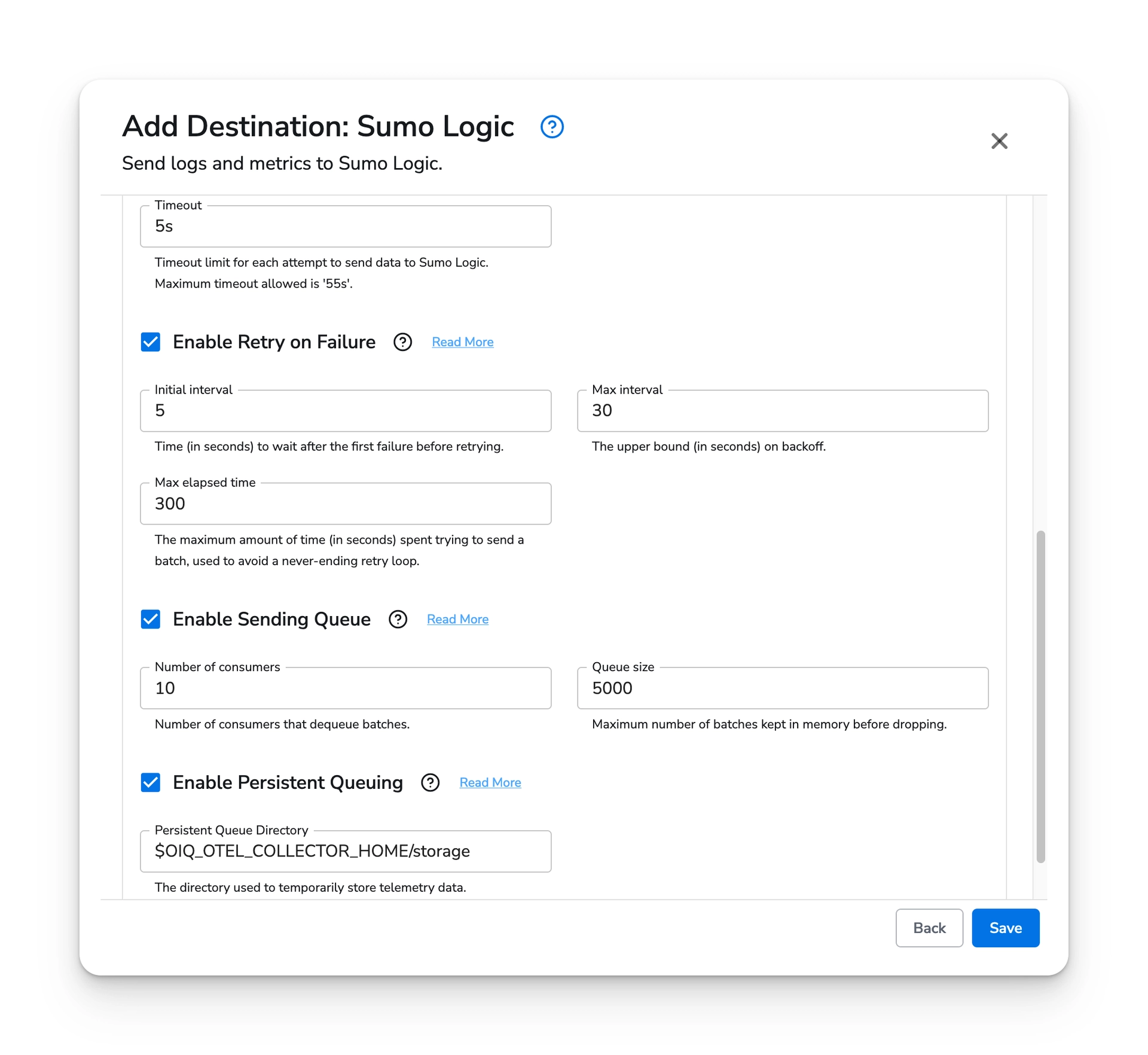

#### Retry on Failure

| Parameter               | Type    | Default | Description                                                                                                                                   |
| ----------------------- | ------- | ------- | --------------------------------------------------------------------------------------------------------------------------------------------- |
| Enable Retry on Failure | Boolean | `true`  | Attempt to resend telemetry data that has failed to be transmitted to the destination.                                                        |
| Initial interval        | Integer | `5`     | Time (in seconds) to wait after the first failure before retrying. Applies when retry is enabled.                                             |
| Max interval            | Integer | `30`    | The upper bound (in seconds) on backoff. Applies when retry is enabled.                                                                       |
| Max elapsed time        | Integer | `300`   | The maximum amount of time (in seconds) spent trying to send a batch, used to avoid a never-ending retry loop. Applies when retry is enabled. |

#### Sending Queue

| Parameter                 | Type      | Default                         | Description                                                                                                                                                           |
| ------------------------- | --------- | ------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Enable Sending Queue      | Boolean   | `true`                          | Buffer telemetry data temporarily before sending to help ensure data is not lost during a temporary network outage.                                                   |
| Number of Consumers       | Integer   | `10`                            | Number of consumers that dequeue batches. Applies when the sending queue is enabled.                                                                                  |
| Queue Size                | Integer   | `5000`                          | Maximum number of batches kept in memory before dropping. Applies when the sending queue is enabled.                                                                  |
| Enable Persistent Queuing | Boolean   | `true`                          | Buffer telemetry data to disk before sending to help ensure data is not lost during network outages or collector restarts. Applies when the sending queue is enabled. |
| Persistent Queue Storage  | Extension | `file_storage_persistent_queue` | Required. The storage to use for the persistent queue. Applies when the sending queue and persistent queue are enabled.                                               |

### Example Configuration

#### Standalone Destination

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: sumo_logic_v2
  name: sumo_logic_v2
spec:
  type: sumo_logic_v2
  parameters:
    - name: telemetry_types
      value: ['Logs', 'Metrics']
    - name: endpoint
      value: 'https://endpoint.collection.sumologic.com/receiver/v1/http/<token>'
    - name: compression
      value: 'gzip'
    - name: log_format
      value: 'json'
    - name: metric_format
      value: 'otlp'
    - name: timeout
      value: '5s'
    - name: retry_on_failure_enabled
      value: 'true'
    - name: sending_queue_enabled
      value: 'true'
    - name: persistent_queue_enabled
      value: 'true'
```

### Configuration Tips

#### Choosing a metric format

* `prometheus` is the default and works with Sumo Logic's standard metrics ingestion.
* Use `otlp` when you want to preserve OpenTelemetry metric semantics end to end. See [Sumo Logic metric formats](https://help.sumologic.com/docs/metrics/introduction/metric-formats/).

#### Reducing payload size

* Leave `compression` at `gzip` (or use `zstd`/`deflate`) to reduce egress. Set it to `none` only when troubleshooting.
* Lower `max_request_body_size` if the Sumo Logic source rejects large requests; raise it to batch more aggressively.

#### Durability

* Keep the sending queue enabled to buffer telemetry during brief outages. Enable the persistent queue to retain buffered data across collector restarts.

### Troubleshooting

**Symptom:** Telemetry is not arriving in Sumo Logic. **Solution:** Confirm the `endpoint` matches the HTTP source URL exactly, including the token path segment, and that the collector can reach `*.sumologic.com` over HTTPS. Verify the source is an HTTP logs and metrics source, not a different source type.

**Symptom:** Logs arrive but are not parsed as expected. **Solution:** Set `log_format` to match how you want records ingested. Use `json` to preserve structured fields; use `text` for raw line ingestion.

**Symptom:** Requests fail or time out under load. **Solution:** Sumo Logic caps each request at `55s`; keep `timeout` at or below that. If large batches are rejected, lower `max_request_body_size`. Keep retry on failure enabled so transient errors are retried.

### Related Resources

* [Configure an HTTP Logs and Metrics Source](https://help.sumologic.com/docs/send-data/hosted-collectors/http-source/logs-metrics/)
* [Sumo Logic metric formats](https://help.sumologic.com/docs/metrics/introduction/metric-formats/)
* [Sumo Logic HTTP source documentation](https://help.sumologic.com/docs/send-data/hosted-collectors/http-source/)


---
