Prometheus Remote Write

The Prometheus Remote Write destination exports metrics from a Bindplane pipeline to any Prometheus remote_write compatible backend, such as Prometheus, Cortex, Mimir, or Thanos. It uses the OpenTelemetry prometheusremotewriteexporter, which sends metrics over HTTP or HTTPS using snappy compression. Only metrics are supported.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux	✓
Windows	✓
macOS	✓
Kubernetes Node	✓
Kubernetes Cluster	✓
Kubernetes Gateway	✓
OpenShift Node	✓
OpenShift Cluster	✓
OpenShift Gateway	✓

Prerequisites

You need a reachable remote_write compatible endpoint and any authentication or TLS material it requires.

• A remote_write compatible receiver (Prometheus, Cortex, Mimir, Thanos, or a vendor backend) reachable from the collector, with its hostname or IP, port, and API path (for example api/v1/metrics).
• Any authentication the endpoint expects. For token or basic-auth backends, supply the credential as an HTTP header (see Additional HTTP Headers below).
• For TLS endpoints, the certificate authority needed to validate the server certificate, and a client certificate and key if the endpoint requires mutual TLS.

See the Prometheus Remote-Write specification for protocol details.

Configuration

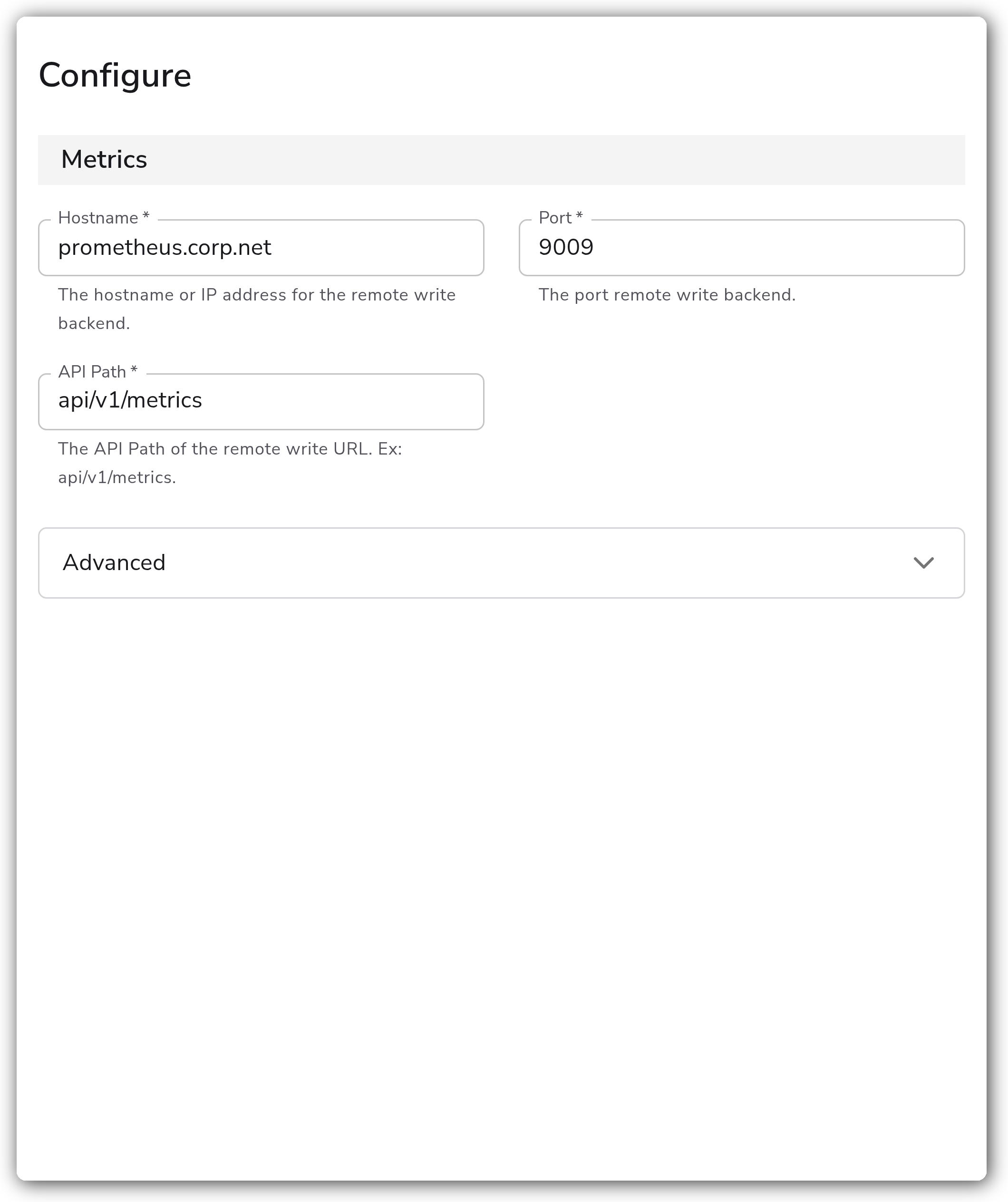

Endpoint

Parameter	Type	Required	Default	Description
Hostname	String	Yes	(empty)	The hostname or IP address for the remote write backend.
Port	Integer	Yes	9009	The port for the remote write backend. Valid range 1 to 65535.
API Path	String	Yes	(empty)	The API path of the remote write URL. Example: api/v1/metrics.

Advanced

Parameter	Type	Required	Default	Description
Write Message Protocol	Enum: prometheus.WriteRequest, io.prometheus.write.v2.Request	Yes	prometheus.WriteRequest	Which Prometheus Remote Write protocol to use.
Add Unit and Type Suffixes	Boolean	No	false	When set, adds unit and type suffixes to metric names.
Namespace	String	No	(empty)	Prefix to attach to each metric name.
Convert Resource Attributes to Metric Attributes	Boolean	No	false	When enabled, converts all resource attributes to metric attributes.
Additional HTTP Headers	Map	No	(empty)	Additional headers to attach to each HTTP request. The following headers cannot be changed: Content-Encoding, Content-Type, X-Prometheus-Remote-Write-Version, User-Agent.
External Labels	Map	No	(empty)	Label names and values to be attached as metric attributes.

TLS

Parameter	Type	Required	Default	Description
Enable TLS	Boolean	No	false	Whether or not to use TLS. When enabled, the endpoint uses https.
Strict TLS Certificate Verification	Boolean	No	false	Enable to require TLS certificate verification. Relevant when Enable TLS is true.
TLS Certificate Authority File	String	No	(empty)	Certificate authority used to validate TLS certificates. Relevant when Strict TLS Certificate Verification is true.
Mutual TLS Authentication	Boolean	No	false	Enable to require TLS mutual authentication. Relevant when Strict TLS Certificate Verification is true.
TLS Client Certificate File	String	Yes	(empty)	A TLS certificate used for client authentication, if mutual TLS is enabled. Relevant when Mutual TLS Authentication is true.
TLS Client Private Key File	String	Yes	(empty)	A TLS private key used for client authentication, if mutual TLS is enabled. Relevant when Mutual TLS Authentication is true.

Write Ahead Log

Parameter	Type	Required	Default	Description
Write Ahead Log	Boolean	No	true	Whether or not to enable a Write Ahead Log for the exporter. The WAL buffers metrics to disk before sending.
Storage Directory	String	Yes	prometheus_rw	Name of the directory the WAL is stored in. Must be unique to this destination. Relevant when Write Ahead Log is true.
Buffer Size	Integer	No	300	Number of objects to store in the Write Ahead Log before truncating. Relevant when Write Ahead Log is true.
Truncate Frequency	Integer	No	60	How often, in seconds, the Write Ahead Log should be truncated. Relevant when Write Ahead Log is true.

Retry on Failure

Parameter	Type	Required	Default	Description
Enable Retry on Failure	Boolean	No	true	Attempt to resend telemetry data that has failed to be transmitted to the destination.
Initial interval	Integer	No	5	Time (in seconds) to wait after the first failure before retrying. Relevant when Enable Retry on Failure is true.
Max interval	Integer	No	30	The upper bound (in seconds) on backoff. Relevant when Enable Retry on Failure is true.
Max elapsed time	Integer	No	300	The maximum amount of time (in seconds) spent trying to send a batch, used to avoid a never-ending retry loop. Relevant when Enable Retry on Failure is true.

Examples

Send metrics to a Prometheus remote_write endpoint over HTTP

This destination sends metrics to a backend listening on prometheus.corp.net:9009 at the path api/v1/metrics, with a tenant identifier attached as an HTTP header.

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: prometheus-remote-write
spec:
  type: prometheus_remote_write
  parameters:
    - name: hostname
      value: prometheus.corp.net
    - name: port
      value: 9009
    - name: path
      value: api/v1/metrics
    - name: headers
      value:
        X-Scope-OrgID: tenant-a

Configuration Tips

• The endpoint scheme is derived from Enable TLS: http when disabled, https when enabled. Set Enable TLS to match the backend's listener rather than encoding a scheme into the hostname.
• The Write Ahead Log buffers metrics to disk and survives collector restarts. Give each Prometheus Remote Write destination a unique Storage Directory so their WALs do not collide.
• Use External Labels to attach static label values (for example cluster or region) to every series, and Namespace to prefix metric names for multi-source backends.

Troubleshooting

Metrics are rejected with an authentication or permission error

Symptoms: the backend returns 401 or 403 and no series appear.

Solutions:

1. Confirm the credential the backend expects and supply it through Additional HTTP Headers (for example an Authorization or X-Scope-OrgID header).
2. Verify the hostname, port, and API path resolve to the receiver's remote write endpoint.

Connection fails or the TLS handshake is rejected

Symptoms: the collector logs connection-refused or certificate-verification errors.

Solutions:

1. If the backend uses HTTPS, enable TLS so the endpoint uses the https scheme.
2. For privately signed certificates, set Strict TLS Certificate Verification and provide the TLS Certificate Authority File. If the backend requires client certificates, enable Mutual TLS Authentication and provide the client certificate and key.

Metrics are dropped under load or after restarts

Symptoms: gaps in the backend during failures or collector restarts.

Solutions:

1. Keep Write Ahead Log enabled so pending metrics are buffered to disk and resent.
2. Keep Enable Retry on Failure enabled and tune the retry intervals for the backend's behavior.

Standalone Destination

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: prometheus-remote-write
spec:
  type: prometheus_remote_write
  parameters:
    - name: hostname
      value: prometheus.corp.net
    - name: port
      value: 9009
    - name: path
      value: api/v1/metrics
    - name: prw_protocol
      value: prometheus.WriteRequest
    - name: wal_storage_path
      value: prometheus_rw

Related Resources

• Prometheus Remote Write Exporter (prometheusremotewriteexporter)
• Prometheus Remote-Write specification
