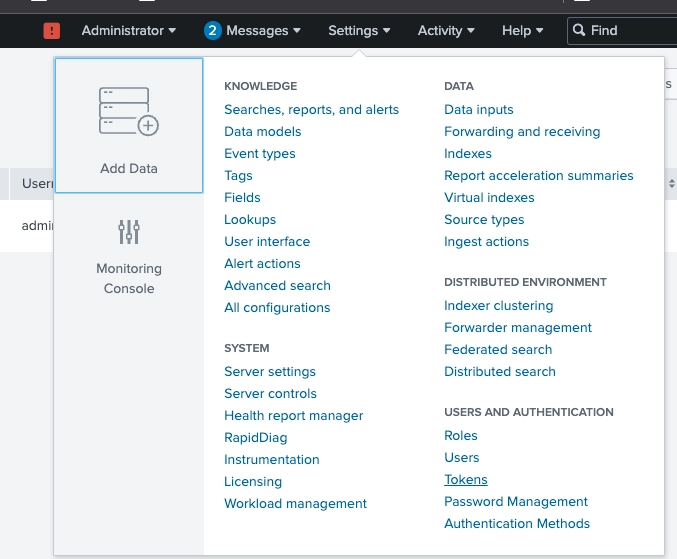

> For the complete documentation index, see [llms.txt](https://docs.bindplane.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.bindplane.com/integrations/destinations/splunk-hec.md). # Splunk (HEC) The Splunk (HEC) destination sends logs and metrics to a [Splunk HTTP Event Collector (HEC)](https://help.splunk.com/en/data-management/collect-http-event-data/use-hec-in-splunk-cloud-platform/set-up-and-use-http-event-collector-in-splunk-web) endpoint. HEC is an HTTP/HTTPS listener on the Splunk indexer or Cloud Platform stack that accepts event and metric data authenticated with a token. ### Supported Telemetry Types | Platform | Metrics | Logs | Traces | | -------- | ------- | ---- | ------ | | Linux | ✓ | ✓ | | | Windows | ✓ | ✓ | | | macOS | ✓ | ✓ | | ### Prerequisites * A Splunk HTTP Event Collector enabled on your Splunk indexer or Splunk Cloud Platform stack. * A valid HEC authentication token. See [Set up and use HTTP Event Collector](https://help.splunk.com/en/data-management/collect-http-event-data/use-hec-in-splunk-cloud-platform/set-up-and-use-http-event-collector-in-splunk-web). * Network access from the collector to the HEC endpoint (default TCP port `8088`). * Optionally, the name of a Splunk index for logs and/or metrics. Metric data must be sent to a metrics-type index. ### Configuration

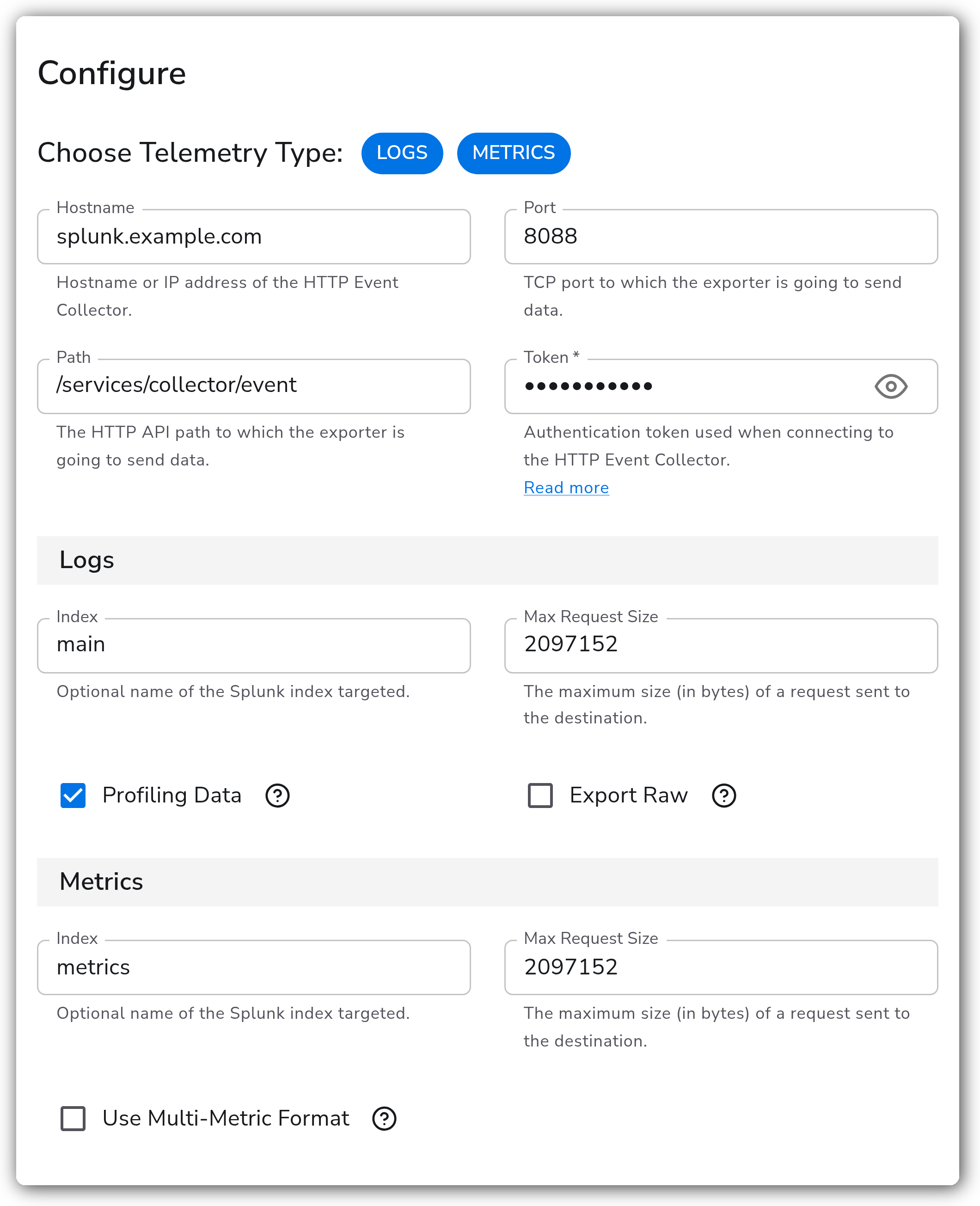

Bindplane docs - Splunk (HEC) - image 1
#### General | Parameter | Type | Default | Description | | --------------------- | ------------------ | --------------------------- | -------------------------------------------------------------------------------------------------------------------- | | Choose Telemetry Type | Telemetry Selector | `["Logs", "Metrics"]` | Which telemetry types to export. Valid values are `Logs` and `Metrics`. | | Hostname | String | `localhost` | Hostname or IP address of the HTTP Event Collector. | | Port | Integer | `8088` | TCP port to which the exporter sends data. Valid range is `1`–`65535`. | | Path | String | `/services/collector/event` | The HTTP API path to which the exporter sends data. | | Token | String | | Authentication token used when connecting to the HTTP Event Collector. **Required.** Sensitive (stored as a secret). | #### Logs These parameters apply when `telemetry_types` includes `Logs`. | Parameter | Type | Default | Description | | ---------------- | ------- | --------- | --------------------------------------------------------------------- | | Index | String | | Optional name of the Splunk index targeted for logs. | | Max Request Size | Integer | `2097152` | The maximum size (in bytes) of a log request sent to the destination. | | Profiling Data | Boolean | `true` | Send profiling data to Splunk. | | Export Raw | Boolean | `false` | Send only the log's body. | #### Metrics These parameters apply when `telemetry_types` includes `Metrics`. | Parameter | Type | Default | Description | | ----------------------- | ------- | --------- | -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Index | String | | Optional name of the Splunk index targeted for metrics. | | Max Request Size | Integer | `2097152` | The maximum size (in bytes) of a metric request sent to the destination. | | Use Multi-Metric Format | Boolean | `false` | Combines metrics with the same metadata to reduce ingest. See [The multiple-metric JSON format](https://docs.splunk.com/Documentation/Splunk/9.0.0/Metrics/GetMetricsInOther#The_multiple-metric_JSON_format). | #### Advanced | Parameter | Type | Default | Description | | ------------------ | ------- | --------- | ------------------------------------------------------------------------------------------------------------- | | Max Event Size | Integer | `5242880` | The maximum size (in bytes) of an individual event. Events larger than this are dropped. | | Enable Compression | Boolean | `true` | Compress telemetry data using gzip before sending. | | Source | String | | The [source](https://docs.splunk.com/Splexicon:Source) value to use for all telemetry sent to Splunk. | | Source Type | String | | The [sourcetype](https://docs.splunk.com/Splexicon:Sourcetype) value to use for all telemetry sent to Splunk. | | Drop Raw Copy | Boolean | `true` | When enabled, the raw copy of the log stored in `log.record.original` is dropped. | #### TLS These parameters apply when `enable_tls` is `true`. | Parameter | Type | Default | Description | | --------------------------------- | ------- | ------- | -------------------------------------------------------- | | Enable TLS | Boolean | `false` | Whether or not to use TLS. | | Skip TLS Certificate Verification | Boolean | `false` | Enable to skip TLS certificate verification. | | TLS Certificate Authority File | String | | Certificate authority used to validate TLS certificates. | #### Retry on Failure | Parameter | Type | Default | Description | | ----------------------- | ------- | ------- | ---------------------------------------------------------------------------- | | Enable Retry on Failure | Boolean | `true` | Attempt to resend telemetry data that has failed to transmit. | | Initial interval | Integer | `5` | Time (in seconds) to wait after the first failure before retrying. | | Max interval | Integer | `30` | The upper bound (in seconds) on backoff. | | Max elapsed time | Integer | `300` | The maximum time (in seconds) spent trying to send a batch before giving up. | #### Sending Queue | Parameter | Type | Default | Description | | ------------------------- | --------- | ------------------------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------- | | Enable Sending Queue | Boolean | `true` | Buffer telemetry data temporarily before sending to avoid loss during temporary network outages. | | Number of Consumers | Integer | `10` | Number of consumers that dequeue batches. | | Queue Size | Integer | `5000` | Maximum number of batches kept in memory before dropping. | | Enable Persistent Queuing | Boolean | `true` | Buffer telemetry data to disk to avoid loss during network outages or collector restarts. | | Persistent Queue Storage | Extension | `file_storage_persistent_queue` | The storage to use for the persistent queue. See [Persistent Queue](https://docs.bindplane.com/configuration/bindplane-otel-collector/persistent-queue). | ### Example Configuration #### Standalone Destination ```yaml apiVersion: bindplane.observiq.com/v1 kind: Destination metadata: id: splunkhec_v2 name: splunkhec_v2 spec: type: splunkhec_v2 parameters: - name: telemetry_types value: ['Logs', 'Metrics'] - name: hostname value: 'splunk.example.com' - name: port value: '8088' - name: path value: '/services/collector/event' - name: token value: '00000000-0000-0000-0000-000000000000' - name: index_logs value: 'main' - name: index_metrics value: 'metrics' - name: enable_tls value: 'true' - name: ca_file value: '/opt/observiq-otel-collector/splunk-ca.crt' ``` ### Configuration Tips #### Indexes and sourcetype * Set `index_logs` and `index_metrics` to route data to specific Splunk indexes. Leave them empty to use the index the HEC token is configured to default to. Metrics must target a metrics-type index. * Use `source` and `sourcetype` to label all telemetry from this destination so it can be searched and routed in Splunk. #### TLS * Splunk HEC commonly runs over HTTPS. Set `enable_tls` to `true` and provide a `ca_file` so the collector can validate the HEC certificate. * Use `insecure_skip_verify` only for testing against an endpoint with a self-signed or untrusted certificate. Avoid it in production. #### Throughput * Leave `enable_compression` on (the default) to reduce bandwidth to the HEC endpoint. * For high metric volume, enable `use_multi_metric_format` to combine metrics that share metadata into fewer events and reduce ingest. ### Troubleshooting **Symptom:** HEC rejects requests with a 403 or "Invalid token" error. **Solution:** Confirm the `token` matches an enabled HEC token in Splunk and that HEC is enabled on the stack. The token is stored as a secret in Bindplane, so re-enter it if you are unsure it was saved correctly. **Symptom:** TLS handshake or certificate verification failures. **Solution:** When `enable_tls` is `true`, provide a `ca_file` that signs the HEC endpoint's certificate. For testing only, you can set `insecure_skip_verify` to `true`. Verify `hostname` and `port` match the HEC listener (default `8088`). **Symptom:** Metrics are accepted but do not appear, or return an index error. **Solution:** Ensure `index_metrics` points to a metrics-type Splunk index. Sending metrics to an events index causes Splunk to reject or misfile the data. ### Related Resources * [Set up and use HTTP Event Collector](https://help.splunk.com/en/data-management/collect-http-event-data/use-hec-in-splunk-cloud-platform/set-up-and-use-http-event-collector-in-splunk-web) * [The multiple-metric JSON format](https://docs.splunk.com/Documentation/Splunk/9.0.0/Metrics/GetMetricsInOther#The_multiple-metric_JSON_format) * [Splexicon: source](https://docs.splunk.com/Splexicon:Source) * [Splexicon: sourcetype](https://docs.splunk.com/Splexicon:Sourcetype) * [Persistent Queue configuration](https://docs.bindplane.com/configuration/bindplane-otel-collector/persistent-queue) --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://docs.bindplane.com/integrations/destinations/splunk-hec.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
