Coralogix

The Coralogix destination sends logs, metrics, and traces to Coralogix, a full-stack observability platform. Telemetry is tagged with an application name and subsystem name and routed to the ingress endpoint for your account region.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux	✓	✓	✓
Windows	✓	✓	✓
macOS	✓	✓	✓

Prerequisites

• A Coralogix account and its API private key. This key is sensitive and authorizes ingestion.
• The Coralogix region your account is provisioned in (for example, EUROPE1, USA1, APAC1). Bindplane derives the correct ingress domain from the region.
• For a private or self-hosted Coralogix deployment, the custom ingress domain to send to.
• Network egress from the collector to the Coralogix ingress endpoint on TCP 443.

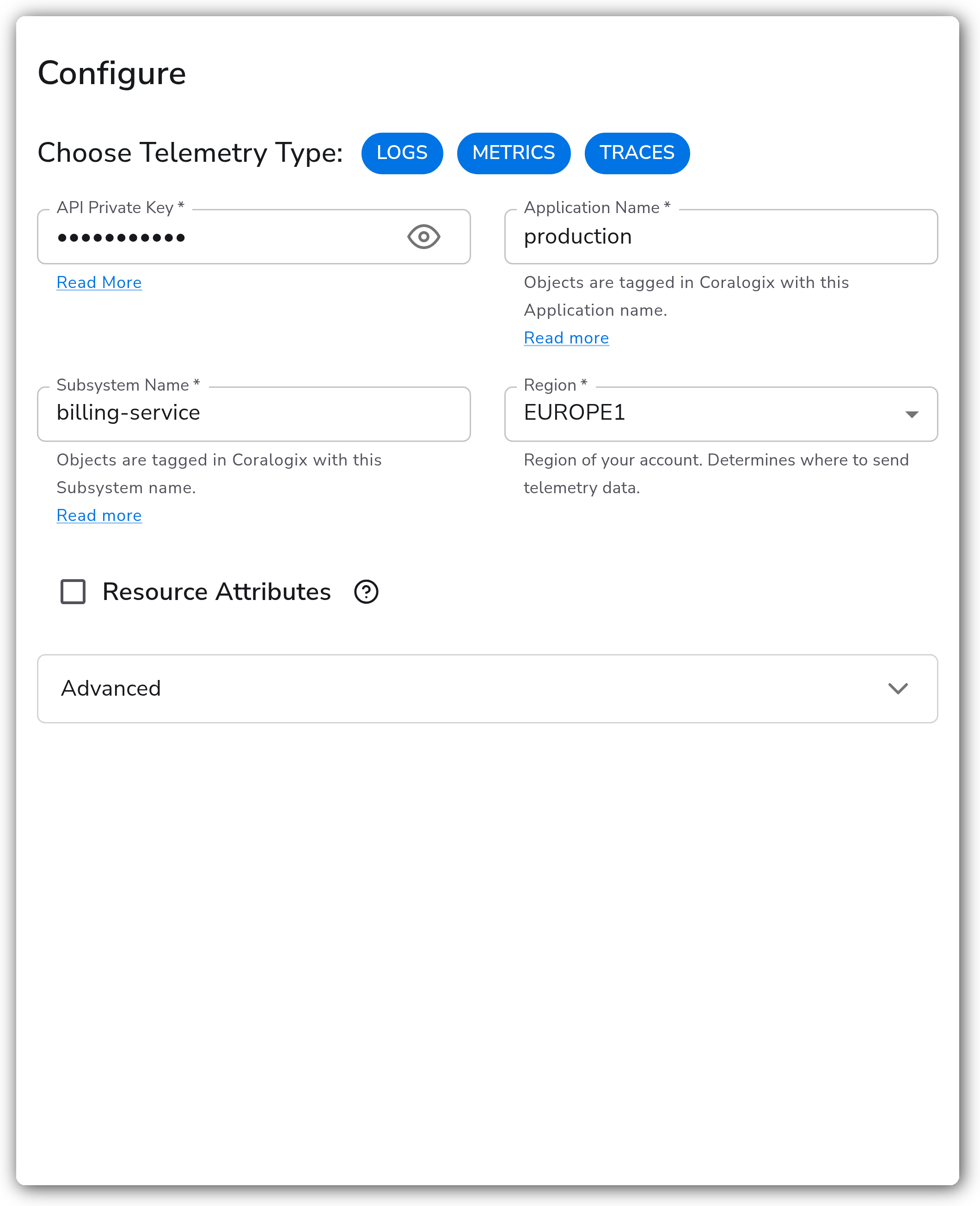

Configuration

General

Parameter	Type	Default	Description
Choose Telemetry Type	Telemetry Selector	["Logs", "Metrics", "Traces"]	Which telemetry types to send to Coralogix. Valid values: Logs, Metrics, Traces.
API Private Key	String		API Private Key used to authenticate with Coralogix. Required. Sensitive value. See finding your private key.
Application Name	String		Objects sent to Coralogix are tagged with this Application name. Required. See application and subsystem names.
Subsystem Name	String		Objects sent to Coralogix are tagged with this Subsystem name. Required. See application and subsystem names.
Region	Enum	EUROPE1	Region of your account. Determines where telemetry is sent. Required.1
Custom Domain	String		Custom ingress domain to send telemetry to. Required when region is Custom Domain.

1. Valid values: USA1, USA2, APAC1, APAC2, APAC3, EUROPE1, EUROPE2, the (AWS PrivateLink) variant of each, and Custom Domain.

Resource Attributes

Parameter	Type	Default	Description
Resource Attributes	Boolean	false	When enabled, resource attributes set the Coralogix AppName and SubSystem. When disabled, the application_name and subsystem_name parameters are used.
Application Name Resource Attributes	Strings	[]	Ordered list of resource attributes used for the Coralogix AppName. Applies when resource_attributes is enabled.
SubSystem Resource Attributes	Strings	[]	Ordered list of resource attributes used for the Coralogix SubSystem. Applies when resource_attributes is enabled.

Advanced

Parameter	Type	Default	Description
Timeout (seconds)	Integer	5	Timeout (in seconds) for every attempt to send data to the backend.
Compression	Enum	gzip	Compression algorithm to use when sending data. Valid values: none, gzip.
Drop Raw Copy	Boolean	true	When enabled, the raw copy of the log stored in log.record.original is dropped.

Retry on Failure

Parameter	Type	Default	Description
Enable Retry on Failure	Boolean	true	Attempt to resend telemetry data that failed to transmit to the destination.
Initial interval	Integer	5	Time (in seconds) to wait after the first failure before retrying. Applies when retry is enabled.
Max interval	Integer	30	The upper bound (in seconds) on backoff. Applies when retry is enabled.
Max elapsed time	Integer	300	Maximum time (in seconds) spent trying to send a batch before giving up. Applies when retry is enabled.

Sending Queue

Parameter	Type	Default	Description
Enable Sending Queue	Boolean	true	Buffer telemetry data temporarily before sending to avoid loss during a temporary network outage.
Number of Consumers	Integer	10	Number of consumers that dequeue batches. Applies when the sending queue is enabled.
Queue Size	Integer	5000	Maximum number of batches kept in memory before dropping. Applies when the sending queue is enabled.
Enable Persistent Queuing	Boolean	true	Buffer telemetry data to disk before sending to avoid loss during network outages or collector restarts. Applies when the sending queue is enabled.
Persistent Queue Storage	Extension	file storage	Storage to use for the persistent queue. Applies when the sending and persistent queues are enabled.

Example Configuration

Standalone Destination

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: coralogix
  name: coralogix
spec:
  type: coralogix
  parameters:
    - name: telemetry_types
      value: ['Logs', 'Metrics', 'Traces']
    - name: private_key
      value: 'cxtp_REDACTED'
    - name: application_name
      value: 'production'
    - name: subsystem_name
      value: 'billing-service'
    - name: region
      value: 'EUROPE1'

Configuration Tips

Application and subsystem names

• application_name and subsystem_name drive how telemetry is grouped and filtered in Coralogix. Use a stable application name per environment (for example, production) and a subsystem name per service.
• To set these dynamically from telemetry, enable resource_attributes and list the attributes in application_name_attributes and subsystem_name_attributes. The first matching attribute wins. When resource_attributes is disabled, the static application_name and subsystem_name parameters are used instead.

Region and custom domains

• Bindplane derives the ingress domain from the selected region, so you do not set an endpoint directly. Pick the region that matches where your Coralogix account is provisioned.
• For a private or self-hosted deployment, set region to Custom Domain and provide the ingress domain in domain. The (AWS PrivateLink) region variants route to the corresponding PrivateLink endpoints.

Reliability

• Leave retry_on_failure_enabled and sending_queue_enabled on for production. Enable persistent_queue_enabled so buffered telemetry survives collector restarts.

Troubleshooting

Symptom: Telemetry is rejected or authentication fails. Solution: Confirm private_key is the Coralogix API private key for the selected region. A key is scoped to a single Coralogix account and region; using a key from one region against another region's endpoint fails. See Send Your Private Key.

Symptom: Data arrives but is grouped under the wrong application or subsystem. Solution: Check whether resource_attributes is enabled. When it is, the AppName and SubSystem come from application_name_attributes / subsystem_name_attributes on the records, not from the static application_name / subsystem_name fields. Disable resource_attributes to force the static values.

Symptom: No data reaches a Custom Domain deployment. Solution: Verify the domain value is the correct Coralogix ingress domain and that the collector can reach it on TCP 443. For standard regions, confirm the selected region matches your account.
