Oodle AI

Send logs, metrics, and traces to Oodle using the OpenTelemetry Protocol (OTLP) HTTP exporter.

Oodle provides a unified observability platform for managing all types of telemetry data. Each telemetry type uses dedicated receivers optimized for its specific data model. Metrics are automatically converted to Prometheus format for visualization and querying.

Supported Telemetry Types

Telemetry Type	Supported
Traces	✓
Metrics	✓
Logs	✓

Prerequisites

Before configuring the Oodle (OTLP) destination, ensure you have:

• A running Oodle instance

• Your Oodle instance name

• An Oodle API key for authentication

• Network connectivity from your Bindplane agent to the Oodle instance

• At least one telemetry type selected (logs, metrics, or traces)

For help with Oodle setup, see the Oodle documentation.

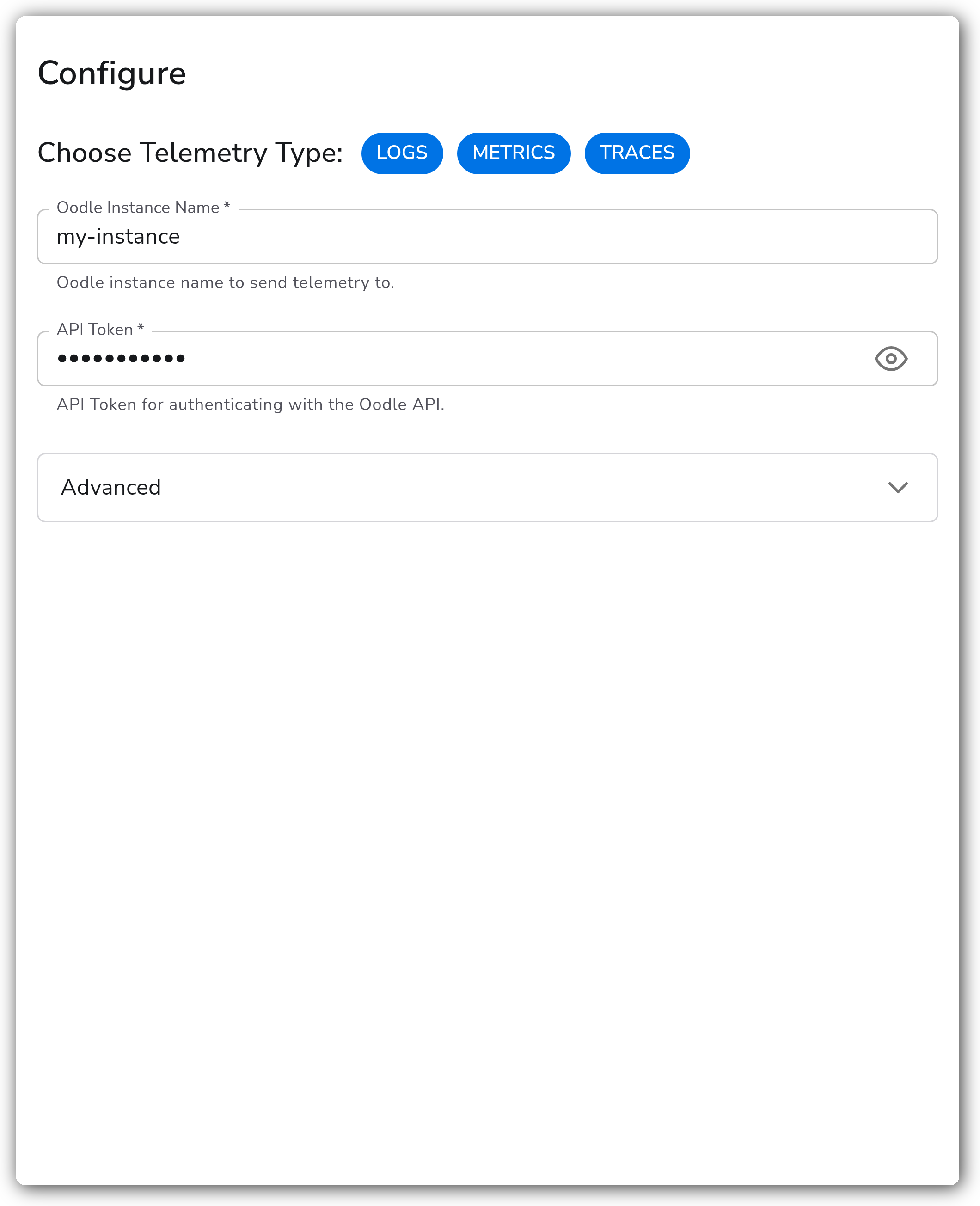

Configuration

Basic Configuration

The minimum configuration requires the Oodle instance name and API key. You can select which telemetry types to export.

Parameters:

Parameter	Type	Default	Description	Required
Choose Telemetry Type	Selector	Logs, Metrics, Traces	Select which types of telemetry to export	Yes
Oodle Instance Name	String	-	Oodle instance name to send telemetry to	Yes
API Token	String	-	API Token for authenticating with the Oodle API	Yes

---

Advanced Configuration

General Settings

Settings for controlling log processing and timeout behavior.

Parameter	Type	Default	Description	Required
Drop Raw Copy	Boolean	true	Drop the raw copy of the log record stored in log.record.original	No
Timeout	Integer	30	Timeout in seconds for sending batches to Oodle	Yes

Retry and Queuing

This destination supports the following retry and queuing settings:

Parameter	Type	Default	Description
Enable Retry on Failure	Boolean	true	Enable retry on failure
Initial Interval	Integer	5	Initial retry interval in seconds
Max Interval	Integer	30	Maximum retry interval in seconds
Max Elapsed Time	Integer	300	Maximum total retry time in seconds
Enable Sending Queue	Boolean	true	Enable sending queue for buffering
Number of Consumers	Integer	10	Number of queue consumers
Queue Size	Integer	5000	Maximum queue size in batches
Enable Persistent Queuing	Boolean	true	Enable persistent disk-based queuing
Persistent Queue Directory	String	${OIQ_OTEL_COLLECTOR_HOME}/storage	Directory for persistent queue storage
Synchronize Persistent Queue to Disk	Boolean	false	Synchronize persistent queue to disk for data integrity

For more information, see Retry and Queuing Configuration.

Examples

Basic Configuration (All Telemetry Types)

This example configures the destination to send logs, metrics, and traces to Oodle.

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: oodle
  name: Oodle
spec:
  type: oodle
  parameters:
    - name: telemetry_types
      value: ['Logs', 'Metrics', 'Traces']
    - name: oodle_instance_name
      value: 'my-instance'
    - name: api_token
      value: 'your-api-token-here'

Logs and Metrics Only

This example configures the destination to send only logs and metrics.

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: oodle-logs-metrics
  name: Oodle (Logs & Metrics)
spec:
  type: oodle
  parameters:
    - name: telemetry_types
      value: ['Logs', 'Metrics']
    - name: oodle_instance_name
      value: 'my-instance'
    - name: api_token
      value: 'your-api-token-here'
    - name: drop_raw_copy
      value: true
    - name: retry_on_failure_enabled
      value: true
    - name: sending_queue_enabled
      value: true

Production Configuration with Persistent Queuing

This example demonstrates a high-reliability configuration for production environments.

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: oodle-production
  name: Oodle (Production)
spec:
  type: oodle
  parameters:
    - name: telemetry_types
      value: ['Logs', 'Metrics', 'Traces']
    - name: oodle_instance_name
      value: 'my-instance'
    - name: api_token
      value: 'your-api-token-here'
    - name: drop_raw_copy
      value: true
    - name: timeout
      value: 30
    - name: retry_on_failure_enabled
      value: true
    - name: retry_on_failure_initial_interval
      value: 5
    - name: retry_on_failure_max_interval
      value: 30
    - name: retry_on_failure_max_elapsed_time
      value: 300
    - name: sending_queue_enabled
      value: true
    - name: sending_queue_num_consumers
      value: 10
    - name: sending_queue_queue_size
      value: 5000
    - name: persistent_queue_enabled
      value: true
    - name: persistent_queue_fsync
      value: true

Traces Only

This example configures the destination for distributed tracing only.

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: oodle-traces
  name: Oodle (Traces Only)
spec:
  type: oodle
  parameters:
    - name: telemetry_types
      value: ['Traces']
    - name: oodle_instance_name
      value: 'my-instance'
    - name: api_token
      value: 'your-api-token-here'
    - name: retry_on_failure_enabled
      value: true
    - name: sending_queue_enabled
      value: true
    - name: persistent_queue_enabled
      value: true

Configuration Tips

Telemetry Type Selection

• All telemetry types (default): Export logs, metrics, and traces for comprehensive observability

• Custom selection: Choose only the telemetry types you need to optimize resource usage

• Flexible configuration: Can be changed at any time without redeploying

Instance Name and API Token

• Instance name must match your Oodle instance identifier

• API token provides secure authentication

• Keep API token secure; use environment variables or secret management systems

• Store credentials in a secure location and never commit them to version control

Raw Copy Handling

• Enable Drop Raw Copy to reduce storage for log telemetry

• Disable only if you need the original raw log record for debugging

• Default behavior (enabled) is recommended for production environments

Metrics in Oodle

• Metrics are automatically converted from OTLP to Prometheus format

• Metric names are normalized to meet Prometheus requirements

• Use the Explore Metrics tab in Oodle with PromQL queries for visualization

• Resource attributes are mapped to Prometheus labels for better filtering

Security Best Practices

• Store API tokens securely using environment variables or secret management systems

• Regularly rotate API tokens per your security policy

• Use Oodle's principle of least privilege for token permissions

• Monitor token usage for suspicious activity

• Never share API tokens outside your organization

Performance Tuning

• Increase Queue Size for high-volume telemetry collection

• Adjust Number of Consumers based on available CPU and network bandwidth

• Enable Persistent Queuing for mission-critical data

• Enable Synchronize Persistent Queue to Disk in critical environments for data durability

Multi-Telemetry Considerations

• Each telemetry type is routed to its appropriate Oodle receiver automatically

• Compression is applied automatically to all telemetry types

• Retry and queue settings apply uniformly across all selected types

• Custom resource attributes can be added via resource processors in your configuration

---

Troubleshooting

Connection Refused or Timeout

Symptoms: Telemetry is not being sent; connection timeout errors in logs.

Solutions:

1. Verify Oodle instance is running and accessible

2. Verify the instance name is correct

3. Test network connectivity to Oodle: telnet <instance-name>.collector.oodle.ai 443

4. Verify firewall rules allow outbound HTTPS traffic

5. Check that the API token is valid

Authentication Failures

Symptoms: "401 Unauthorized" or authentication errors in logs.

Solutions:

1. Verify the API token is correct and valid

2. Check that the token hasn't expired

3. Ensure the token has appropriate permissions for your Oodle instance

4. Verify both the instance name and API token are correctly configured

5. Check Oodle logs for authentication errors

Telemetry Not Appearing

Symptoms: Telemetry is sent but doesn't appear in Oodle UI or queries.

Solutions:

1. Verify the telemetry type is included in the configuration

2. Check that sources are generating telemetry

3. Verify proper routing and processing of telemetry data

4. Check Oodle's ingestion logs for errors or rejections

5. Ensure the instance name matches the one used in Oodle

High Queue Depth

Symptoms: Sending queue is consistently full; telemetry may be dropped if persistent queuing is disabled.

Solutions:

1. Verify Oodle instance can handle the telemetry volume

2. Check for network latency or bandwidth issues

3. Increase Queue Size to buffer more telemetry

4. Increase Number of Consumers to process batches faster

5. Enable Persistent Queuing to prevent data loss during outages

6. Consider distributing telemetry across multiple Oodle instances

Performance Issues

Symptoms: High CPU or memory usage; slow telemetry ingestion.

Solutions:

1. Monitor Bindplane agent CPU and memory usage

2. Consider reducing telemetry volume at the source (sampling, filtering)

3. Disable Synchronize Persistent Queue to Disk if enabled (unless data integrity is critical)

4. Verify network connectivity and latency to Oodle

5. Consider batching at the source to reduce telemetry frequency

Data Loss

Symptoms: Telemetry is dropped after restarts or network outages.

Solutions:

1. Enable Persistent Queuing

2. Verify persistent queue directory exists and has write permissions

3. Monitor queue size to ensure it's not overflowing

4. Enable Retry on Failure to handle transient failures

5. Check available disk space for persistent queue storage

6. For critical environments, enable Synchronize Persistent Queue to Disk

7. Review logs for exporter errors or capacity issues
