# ClickStack

The ClickStack destination exports logs, metrics, and traces from a Bindplane pipeline to [ClickStack](https://clickhouse.com/clickstack), the ClickHouse observability stack (HyperDX UI, OpenTelemetry collector, and ClickHouse). Telemetry is sent to the ClickStack OTLP endpoint over HTTP or gRPC, authenticated with an ingestion API key.

### Supported Telemetry

| Metrics | Logs | Traces |
| ------- | ---- | ------ |
| ✓       | ✓    | ✓      |

### Prerequisites

You need a reachable ClickStack OTLP endpoint and an ingestion API key.

* **A running ClickStack (HyperDX) deployment.** Either managed ClickStack on ClickHouse Cloud or a self-hosted/open-source deployment. The all-in-one open-source image exposes the OTLP collector on ports `4318` (HTTP) and `4317` (gRPC). See the [ClickStack getting started guide](https://clickhouse.com/docs/use-cases/observability/clickstack/getting-started).
* **Network connectivity** from the Bindplane collector to the ClickStack OTLP endpoint on the chosen port.
* **An ingestion API key.** ClickStack secures the OTLP endpoint with an auto-generated ingestion key that must be sent as an `authorization` header on every request. Find it in the HyperDX app under **Team Settings → API Keys**. See [Sending OTel data](https://clickhouse.com/docs/use-cases/observability/clickstack/ingesting-data/opentelemetry#sending-otel-data).

### Configuration

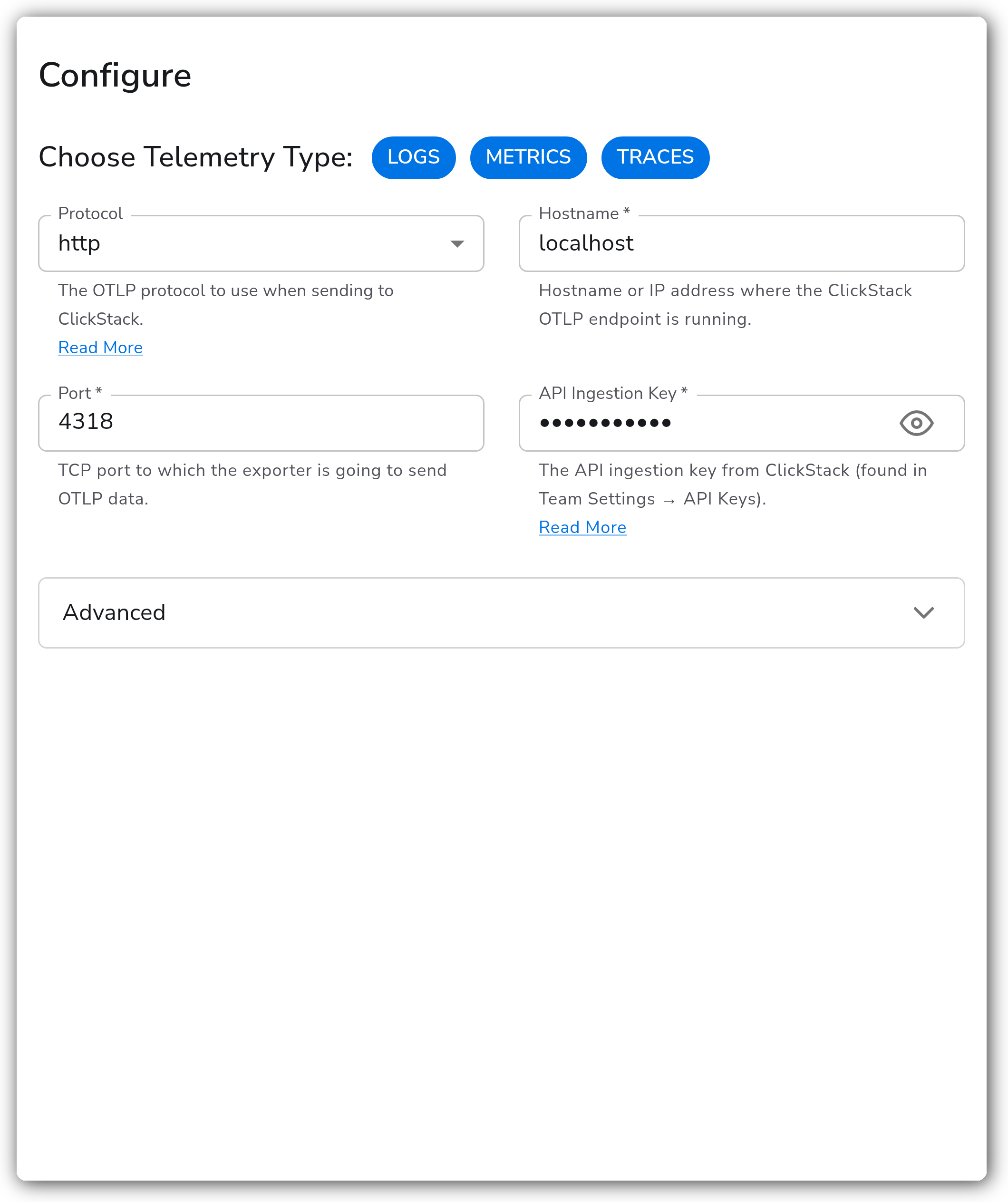

<figure><img src="/files/DPArQCU6AwyRMJIbTcrV" alt="Bindplane docs - ClickStack - image 1"><figcaption></figcaption></figure>

**Connection**

| Parameter             | Type               | Required | Default                      | Description                                                                                                           |
| --------------------- | ------------------ | -------- | ---------------------------- | --------------------------------------------------------------------------------------------------------------------- |
| Choose Telemetry Type | Telemetry Selector | No       | Logs, Metrics, Traces        | Which signals this destination exports.                                                                               |
| Protocol              | Enum: http, grpc   | No       | `http`                       | The OTLP protocol used when sending to ClickStack.                                                                    |
| Hostname              | String             | Yes      | `localhost`                  | Hostname or IP address where the ClickStack OTLP endpoint is running.                                                 |
| Port                  | Integer            | Yes      | `4318` (http), `4317` (grpc) | TCP port the exporter sends OTLP data to. Shown as `4318` when Protocol is `http` and `4317` when Protocol is `grpc`. |
| API Ingestion Key     | String (sensitive) | Yes      | *(empty)*                    | The ingestion key from ClickStack, sent as the `authorization` header. Found in Team Settings → API Keys.             |

**Advanced**

| Parameter          | Type                                          | Required | Default | Description                                                                                                                            |
| ------------------ | --------------------------------------------- | -------- | ------- | -------------------------------------------------------------------------------------------------------------------------------------- |
| Compression (HTTP) | Enum: none, gzip, deflate, snappy, zlib, zstd | No       | `gzip`  | Compression algorithm used when sending data over HTTP. Shown when Protocol is `http`.                                                 |
| Compression (gRPC) | Enum: none, gzip, snappy, zstd                | No       | `gzip`  | Compression algorithm used when sending data over gRPC. The server must support the selected algorithm. Shown when Protocol is `grpc`. |
| Timeout            | Integer                                       | Yes      | `10`    | Timeout, in seconds, for sending batches to the destination.                                                                           |
| Drop Raw Copy      | Boolean                                       | No       | `true`  | When enabled, the raw log copy stored in `log.record.original` is dropped before export. Logs only.                                    |

**TLS**

| Parameter                         | Type    | Required | Default   | Description                                                                                                                        |
| --------------------------------- | ------- | -------- | --------- | ---------------------------------------------------------------------------------------------------------------------------------- |
| Enable TLS                        | Boolean | No       | `false`   | Whether to use TLS.                                                                                                                |
| Skip TLS Certificate Verification | Boolean | No       | `false`   | Skip verification of the server's certificate. Shown when Enable TLS is on.                                                        |
| TLS Certificate Authority File    | String  | No       | *(empty)* | Optional CA file used to validate the server's certificate. Shown when Enable TLS is on.                                           |
| Server Name Override              | String  | No       | *(empty)* | Optional virtual hostname indicating the server name requested by the client. Generally not required. Shown when Enable TLS is on. |
| Mutual TLS                        | Boolean | No       | `false`   | Whether to use client TLS authentication (mTLS). Shown when Enable TLS is on.                                                      |
| TLS Client Certificate File       | String  | Yes      | *(empty)* | Path to the client certificate for mutual TLS. Shown when Enable TLS and Mutual TLS are on.                                        |
| TLS Client Private Key            | String  | Yes      | *(empty)* | Path to the client private key for mutual TLS. Shown when Enable TLS and Mutual TLS are on.                                        |

**Batching**

| Parameter           | Type     | Required | Default | Description                                                                                                                                  |
| ------------------- | -------- | -------- | ------- | -------------------------------------------------------------------------------------------------------------------------------------------- |
| Enable Batching     | Boolean  | No       | `true`  | Batch telemetry data before sending to the destination.                                                                                      |
| Send Batch Size     | Integer  | Yes      | `8192`  | Number of spans, metric data points, or log records after which a batch is sent regardless of the timeout. Shown when Enable Batching is on. |
| Send Batch Max Size | Integer  | Yes      | `0`     | Upper limit of the batch size. `0` means no upper limit. Must be greater than or equal to Send Batch Size. Shown when Enable Batching is on. |
| Timeout             | Duration | Yes      | `200ms` | Time after which a batch is sent regardless of size, for example `2s`. Shown when Enable Batching is on.                                     |

**Retry on Failure**

| Parameter               | Type    | Required | Default | Description                                                                                                        |
| ----------------------- | ------- | -------- | ------- | ------------------------------------------------------------------------------------------------------------------ |
| Enable Retry on Failure | Boolean | No       | `true`  | Attempt to resend telemetry data that failed to transmit.                                                          |
| Initial Interval        | Integer | No       | `5`     | Time, in seconds, to wait after the first failure before retrying. Shown when Enable Retry on Failure is on.       |
| Max Interval            | Integer | No       | `30`    | Upper bound, in seconds, on backoff. Shown when Enable Retry on Failure is on.                                     |
| Max Elapsed Time        | Integer | No       | `300`   | Maximum time, in seconds, spent trying to send a batch before giving up. Shown when Enable Retry on Failure is on. |

**Sending Queue**

| Parameter                 | Type      | Required | Default                                              | Description                                                                                                                           |
| ------------------------- | --------- | -------- | ---------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------- |
| Enable Sending Queue      | Boolean   | No       | `true`                                               | Buffer telemetry data in memory before sending to help avoid loss during temporary network outages.                                   |
| Number of Consumers       | Integer   | No       | `10`                                                 | Number of consumers that dequeue batches. Shown when Enable Sending Queue is on.                                                      |
| Queue Size                | Integer   | No       | `5000`                                               | Maximum number of batches kept in memory before dropping. Shown when Enable Sending Queue is on.                                      |
| Enable Persistent Queuing | Boolean   | No       | `true`                                               | Buffer telemetry data to disk to help avoid loss during network outages or collector restarts. Shown when Enable Sending Queue is on. |
| Persistent Queue Storage  | Extension | Yes      | File storage at `${OIQ_OTEL_COLLECTOR_HOME}/storage` | Storage extension used for the persistent queue. Shown when Enable Sending Queue and Enable Persistent Queuing are on.                |

### Examples

#### End-to-end deployment: collect host logs and ship to ClickStack

This example stands up a complete pipeline. A self-hosted ClickStack runs locally, a Bindplane source reads host logs, and the ClickStack destination ships logs, metrics, and traces over OTLP HTTP.

**1. Run ClickStack (open-source all-in-one).** This exposes the HyperDX UI on `8080` and the OTLP collector on `4318` (HTTP) and `4317` (gRPC).

```bash
docker run -p 8080:8080 -p 4317:4317 -p 4318:4318 -p 9000:9000 \
  docker.hyperdx.io/hyperdx/hyperdx-all-in-one
```

**2. Get the ingestion API key.** Open the HyperDX UI at `http://localhost:8080`, complete first-run setup, then go to **Team Settings → API Keys** and copy the ingestion key.

**3. Create the ClickStack destination.** The destination below sends all three signals over HTTP to the local endpoint with gzip compression.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: clickstack-local
spec:
  type: clickstack
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces
    - name: protocol
      value: http
    - name: hostname
      value: localhost
    - name: http_port
      value: 4318
    - name: api_key
      value: <YOUR_INGESTION_API_KEY>
    - name: http_compression
      value: gzip
```

**4. Add a source and apply the configuration.** Attach a source (for example, a File or Host source) and the ClickStack destination to a configuration, then roll the configuration out to an agent. Telemetry appears in the HyperDX search and dashboards once data flows.

#### gRPC with zstd compression for high-volume traffic

For collector-to-collector traffic on an internal network, gRPC with zstd compression reduces bandwidth and connection overhead.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: clickstack-grpc
spec:
  type: clickstack
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces
    - name: protocol
      value: grpc
    - name: hostname
      value: clickstack.internal.example.com
    - name: grpc_port
      value: 4317
    - name: api_key
      value: <YOUR_INGESTION_API_KEY>
    - name: grpc_compression
      value: zstd
```

### Configuration Tips

* **Match the port to the protocol.** HTTP defaults to `4318` and gRPC to `4317`. The all-in-one ClickStack image exposes both; confirm your deployment publishes the port you target.
* **Keep compression on for high volume.** Both protocols default to `gzip`. For gRPC, the ClickStack server must support the selected algorithm before switching to `zstd` or `snappy`.
* **Use the persistent queue for durability.** The sending queue and on-disk persistent queue are enabled by default, so batches survive temporary outages and collector restarts instead of being dropped.

### Troubleshooting

#### 401 Unauthorized or invalid credentials

**Symptom:** The collector logs authentication or `401` errors when exporting to ClickStack.

**Solution:** Verify the **API Ingestion Key** matches the value in HyperDX under **Team Settings → API Keys**, and confirm the key has not been rotated or revoked. The key is sent as the `authorization` header on every request.

#### Data exports without errors but does not appear in HyperDX

**Symptom:** No errors in the collector, but telemetry is missing from ClickStack.

**Solution:** Confirm the **Hostname** and **Port** point at the ClickStack OTLP endpoint for the chosen **Protocol**, and that the signals you expect are enabled under **Choose Telemetry Type**. Check that the ClickStack collector port is reachable from the agent host.

#### Connection refused or TLS handshake failures

**Symptom:** Connection refused, timeout, or certificate errors after enabling TLS.

**Solution:** If ClickStack is served over plain OTLP, leave **Enable TLS** off. When TLS is on, supply a **TLS Certificate Authority File** for a private CA, or enable **Skip TLS Certificate Verification** for testing only. For self-signed certificates with a mismatched hostname, set **Server Name Override**.

### Standalone Destination

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: clickstack
spec:
  type: clickstack
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Metrics
        - Traces
    - name: protocol
      value: http
    - name: hostname
      value: localhost
    - name: http_port
      value: 4318
    - name: api_key
      value: <YOUR_INGESTION_API_KEY>
```

### Related Resources

* [OTLP/HTTP Exporter (`otlphttpexporter`)](https://github.com/open-telemetry/opentelemetry-collector/tree/main/exporter/otlphttpexporter)
* [OTLP Exporter (`otlpexporter`)](https://github.com/open-telemetry/opentelemetry-collector/tree/main/exporter/otlpexporter)
* [ClickStack getting started guide](https://clickhouse.com/docs/use-cases/observability/clickstack/getting-started)
* [ClickStack OpenTelemetry ingestion](https://clickhouse.com/docs/use-cases/observability/clickstack/ingesting-data/opentelemetry#sending-otel-data)


---
