VictoriaTraces

The VictoriaTraces destination exports traces from a Bindplane pipeline to a VictoriaTraces server using the OTLP/HTTP protocol. Spans are sent to the VictoriaTraces OpenTelemetry ingestion endpoint with protobuf encoding and gzip compression.

Supported Telemetry Types

Metrics	Logs	Traces
		✓

Prerequisites

• A reachable VictoriaTraces server, addressable by hostname or IP and port. The OTLP/HTTP ingestion port defaults to 10428.
• Any authentication your VictoriaTraces deployment requires (for example a reverse proxy in front of the server). VictoriaTraces accepts credentials and tenant routing as HTTP headers, which you supply through the Additional Headers parameter.

VictoriaTraces ingests traces at the /insert/opentelemetry/v1/traces path on the HTTP port. See VictoriaTraces: Data ingestion: OpenTelemetry setup.

Configuration

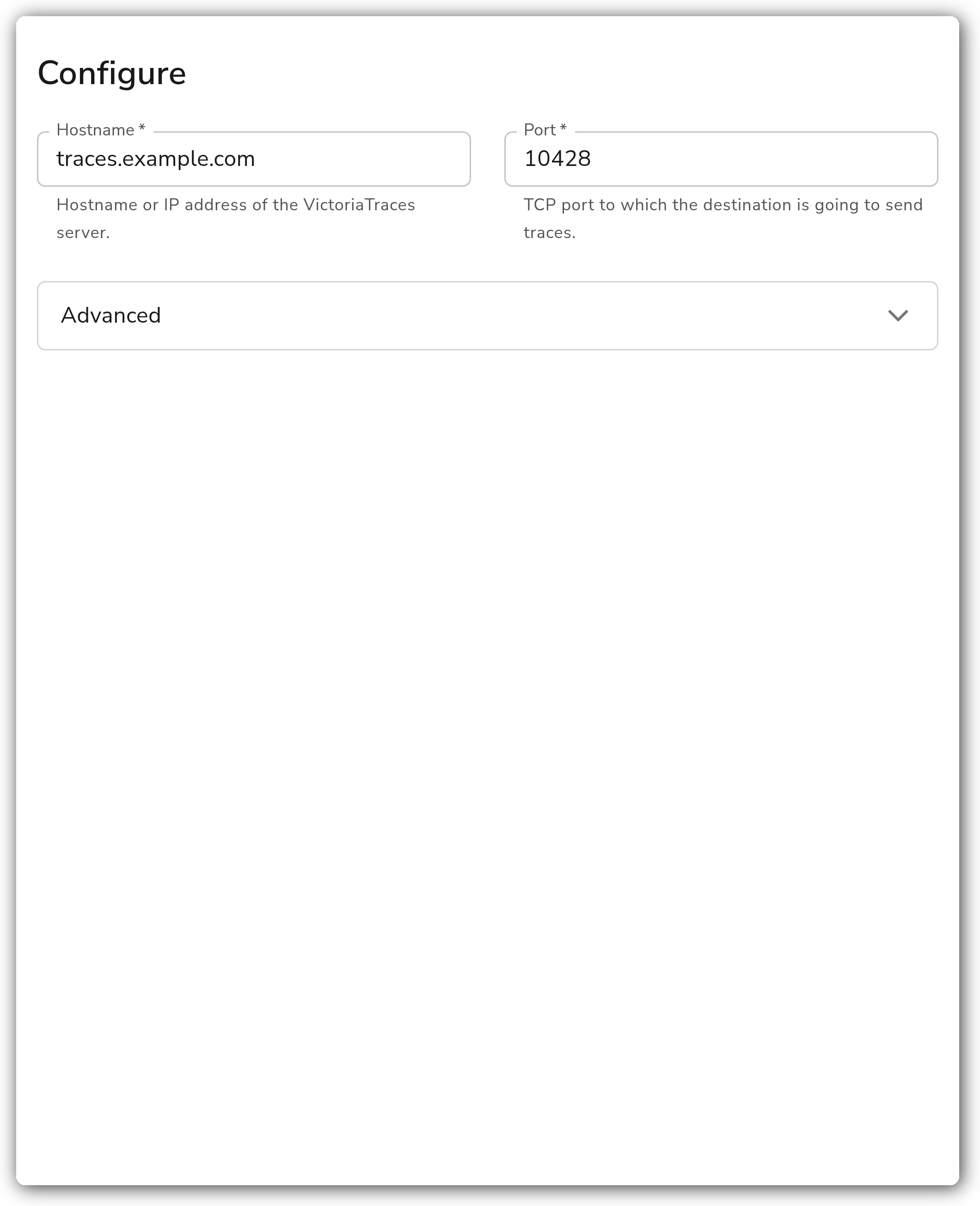

Connection

Parameter	Type	Required	Default	Description
Hostname	String	Yes	(empty)	Hostname or IP address of the VictoriaTraces server.
Port	Integer	Yes	10428	TCP port the destination sends traces to. Valid range 1–65535.

Advanced

Parameter	Type	Required	Default	Description
Additional Headers	Map	No	(empty)	Extra headers attached to each request. Use for authentication or tenant routing that VictoriaTraces reads from HTTP headers.

TLS

Parameter	Type	Required	Default	Description
Enable TLS	Boolean	No	false	Use TLS for the connection. When enabled, the endpoint scheme becomes https.
Skip TLS Certificate Verification	Boolean	No	false	Skip verification of the server's certificate. Shown when Enable TLS is on.
TLS Certificate Authority File	String	No	(empty)	Path to a certificate authority file used to validate the server's certificate. Shown when Enable TLS is on.
Mutual TLS	Boolean	No	false	Use client TLS authentication (mTLS). Shown when Enable TLS is on.
TLS Client Certificate File	String	Yes *	(empty)	Path to the client certificate for mutual TLS. Shown when Enable TLS and Mutual TLS are both on.
TLS Client Private Key	String	Yes *	(empty)	Path to the client private key for mutual TLS. Shown when Enable TLS and Mutual TLS are both on.

* Required only when both Enable TLS and Mutual TLS are on.

Retry on Failure

Parameter	Type	Required	Default	Description
Enable Retry on Failure	Boolean	No	true	Resend telemetry that failed to transmit to the destination.
Initial interval	Integer	No	5	Seconds to wait after the first failure before retrying. Shown when Enable Retry on Failure is on.
Max interval	Integer	No	30	Upper bound in seconds on the retry backoff. Shown when Enable Retry on Failure is on.
Max elapsed time	Integer	No	300	Maximum seconds spent retrying a batch before giving up, to avoid a never-ending retry loop. Shown when Enable Retry on Failure is on.

Sending Queue

Parameter	Type	Required	Default	Description
Enable Sending Queue	Boolean	No	true	Buffer telemetry before sending so data is not lost during a temporary network outage.
Number of Consumers	Integer	No	10	Number of consumers that dequeue batches. Shown when Enable Sending Queue is on.
Queue Size	Integer	No	5000	Maximum number of batches kept in memory before dropping. Shown when Enable Sending Queue is on.
Enable Persistent Queuing	Boolean	No	true	Buffer telemetry to disk so data survives network outages and collector restarts. Shown when Enable Sending Queue is on.
Persistent Queue Storage	Extension	Yes	File storage	Storage extension used for the persistent queue. Defaults to a file storage extension under the collector home directory. Shown when Enable Sending Queue and Enable Persistent Queuing are both on.

Examples

Send traces to a VictoriaTraces server over TLS with a custom auth header

This destination connects to a VictoriaTraces server at traces.example.com on the default port, enables TLS, and attaches an Authorization header that VictoriaTraces (or a proxy in front of it) uses for authentication.

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: victoria-traces
spec:
  type: victoria_traces
  parameters:
    - name: hostname
      value: traces.example.com
    - name: port
      value: 10428
    - name: enable_tls
      value: true
    - name: headers
      value:
        Authorization: Bearer REPLACE_WITH_TOKEN

Configuration Tips

• The endpoint scheme follows the Enable TLS setting. With TLS off the destination posts to http://<hostname>:<port>/insert/opentelemetry; with TLS on it uses https. The OTLP/HTTP exporter appends /v1/traces automatically.
• Leave the sending queue and persistent queue enabled (both default on) so spans survive a VictoriaTraces restart or a brief network outage. The persistent queue writes to disk under the collector home directory by default.
• VictoriaTraces reads tenant routing and authentication from HTTP headers. Add them under Additional Headers rather than encoding them in the hostname.

Troubleshooting

Connection refused or no traces arriving

Symptoms: spans never reach VictoriaTraces and the collector logs connection errors.

Solutions:

1. Confirm the hostname and port are reachable from the collector. The OTLP/HTTP ingestion port defaults to 10428.
2. Verify the VictoriaTraces server is accepting OTLP/HTTP at /insert/opentelemetry.

TLS handshake failures

Symptoms: the collector logs certificate or handshake errors after Enable TLS is turned on.

Solutions:

1. For a private or self-signed CA, set TLS Certificate Authority File to the CA path, or enable Skip TLS Certificate Verification for testing only.
2. For mutual TLS, confirm both TLS Client Certificate File and TLS Client Private Key are set and readable by the collector.

Dropped spans under load

Symptoms: the collector reports the sending queue is full and drops batches.

Solutions:

1. Increase Queue Size, or raise Number of Consumers to drain the queue faster.
2. Keep Enable Persistent Queuing on so backed-up spans buffer to disk instead of being dropped.

Standalone Destination

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: victoria-traces
spec:
  type: victoria_traces
  parameters:
    - name: hostname
      value: traces.example.com
    - name: port
      value: 10428

Related Resources

• OTLP/HTTP exporter (otlphttpexporter)
• VictoriaTraces: Data ingestion: OpenTelemetry setup
