> For the complete documentation index, see [llms.txt](https://docs.bindplane.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.bindplane.com/integrations/destinations/webhook.md). # Webhook The Webhook destination posts telemetry to an HTTP or HTTPS webhook endpoint. It sends log records to the configured URL using a chosen HTTP method and content type, with optional custom headers, TLS, and mTLS. This destination exports **logs only**. ### Supported Telemetry | Metrics | Logs | Traces | | ------- | ---- | ------ | | ✗ | ✓ | ✗ | ### Prerequisites You need a reachable webhook endpoint and any credentials it requires. * A webhook server reachable from the collector, addressed by hostname or IP and port. * The API path the server expects requests on, if any. * Any authentication the endpoint requires, supplied as HTTP headers (for example an `Authorization: Bearer ` header) under **Additional Headers**. * For HTTPS, a CA certificate if the server presents a certificate not trusted by the system store, and a client certificate and key if the server requires mutual TLS. ### Configuration

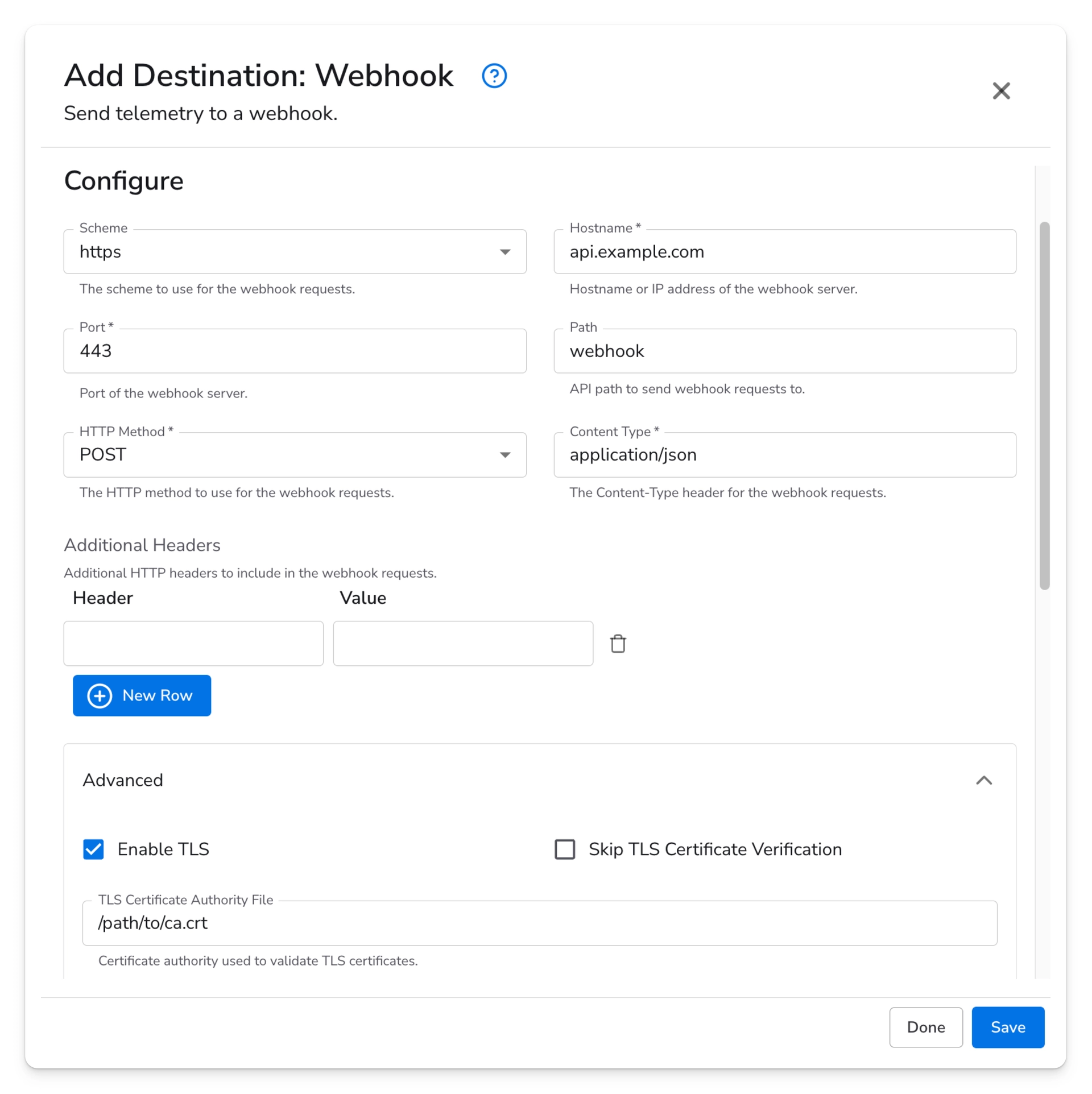

Bindplane docs - Webhook - image 1

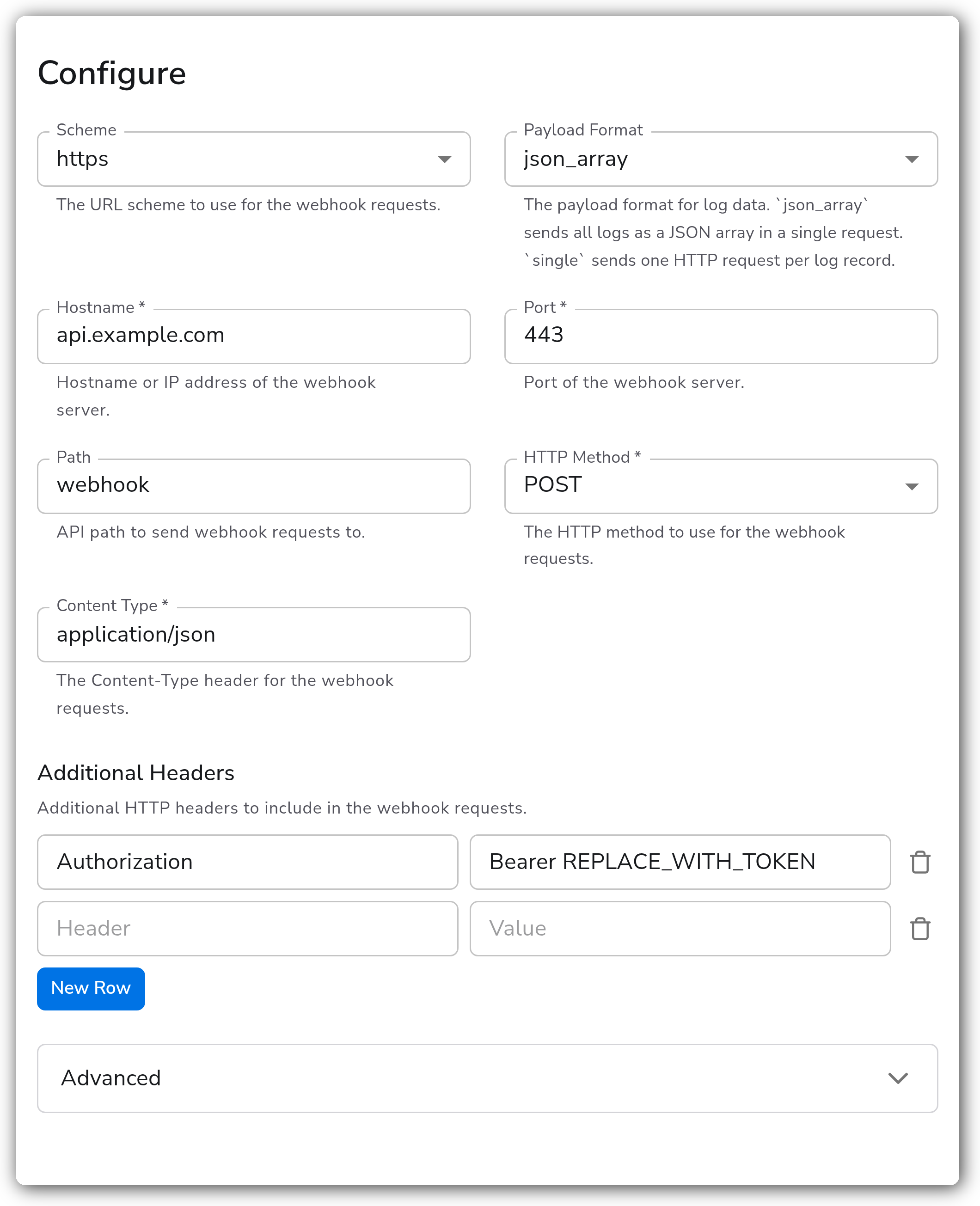

**Endpoint** | Parameter | Type | Required | Default | Description | | ------------------ | ------------------------- | -------- | ---------------- | --------------------------------------------------------------------------------------------------------------------------------------------- | | Scheme | Enum: http, https | No | https | The URL scheme used for the webhook requests. | | Hostname | String | Yes | *(empty)* | Hostname or IP address of the webhook server. | | Port | Integer | Yes | 8080 | Port of the webhook server. Range 1 to 65535. | | Path | String | No | *(empty)* | API path to send webhook requests to. | | HTTP Method | Enum: POST, PATCH, PUT | Yes | POST | The HTTP method used for the webhook requests. | | Content Type | String | Yes | application/json | The `Content-Type` header for the webhook requests. | | Payload Format | Enum: json\_array, single | No | json\_array | Payload format for log data. `json_array` sends all logs as a JSON array in a single request. `single` sends one HTTP request per log record. | | Additional Headers | Map | No | *(empty)* | Additional HTTP headers to include in the webhook requests. Use this to supply authentication headers such as `Authorization`. | **Advanced** | Parameter | Type | Required | Default | Description | | --------------- | ------- | -------- | ------- | ----------------------------------------- | | Request Timeout | Integer | No | 5 | Timeout for webhook requests, in seconds. | **TLS (Advanced)** Applies when **Scheme** is `https`. | Parameter | Type | Required | Default | Description | | --------------------------------- | ------- | -------------------------------- | --------- | -------------------------------------------------------------------------- | | Skip TLS Certificate Verification | Boolean | No | false | Skip TLS certificate verification. | | TLS Certificate Authority File | String | No | *(empty)* | Certificate authority used to validate TLS certificates. | | Mutual TLS | Boolean | No | false | Require client TLS authentication (mTLS). | | TLS Client Certificate File | String | Yes (when Mutual TLS is enabled) | *(empty)* | TLS certificate used for client authentication when mutual TLS is enabled. | | TLS Client Private Key File | String | Yes (when Mutual TLS is enabled) | *(empty)* | TLS private key used for client authentication when mutual TLS is enabled. | **Retry on Failure (Advanced)** | Parameter | Type | Required | Default | Description | | ----------------------- | ------- | -------- | ------- | ------------------------------------------------------------------------------------------------- | | Enable Retry on Failure | Boolean | No | true | Attempt to resend telemetry that has failed to transmit. | | Initial interval | Integer | No | 5 | Time, in seconds, to wait after the first failure before retrying. Applies when retry is enabled. | | Max interval | Integer | No | 30 | Upper bound, in seconds, on backoff. Applies when retry is enabled. | | Max elapsed time | Integer | No | 300 | Maximum time, in seconds, spent trying to send a batch. Applies when retry is enabled. | **Sending Queue (Advanced)** | Parameter | Type | Required | Default | Description | | ------------------------- | --------- | -------- | -------------------------------- | -------------------------------------------------------------------------------------------------------------------------------------------------------- | | Enable Sending Queue | Boolean | No | true | Buffer telemetry temporarily before sending to help avoid data loss during a temporary network outage. | | Number of Consumers | Integer | No | 10 | Number of consumers that dequeue batches. Applies when the sending queue is enabled. | | Queue Size | Integer | No | 5000 | Maximum size the queue can accept. Applies when the sending queue is enabled. | | Enable Persistent Queuing | Boolean | No | true | Buffer telemetry to disk before sending to help avoid data loss during network outages or collector restarts. Applies when the sending queue is enabled. | | Persistent Queue Storage | Extension | Yes | file\_storage\_persistent\_queue | The storage used for the persistent queue. Applies when the sending queue and persistent queuing are enabled. | ### Examples This destination sends logs over HTTPS to `https://api.example.com:443/webhook` using a bearer token for authentication. Each log record is sent as a single request. ```yaml apiVersion: bindplane.observiq.com/v1 kind: Destination metadata: name: webhook spec: type: webhook parameters: - name: scheme value: https - name: hostname value: api.example.com - name: port value: 443 - name: path value: webhook - name: verb value: POST - name: content_type value: application/json - name: format value: single - name: headers value: Authorization: Bearer REPLACE_WITH_TOKEN ``` ### Configuration Tips * Put authentication on the **Additional Headers** map. The webhook destination has no dedicated auth field, so credentials such as an API key or bearer token belong in a header like `Authorization`. * Use `json_array` (the default) to batch logs into one request per export. Switch to `single` only when the endpoint expects one record per request, since `single` increases request volume. * Leave the sending queue and persistent queuing enabled so a temporary network outage or a collector restart does not drop buffered logs. ### Troubleshooting #### Requests are rejected with 401 or 403 Symptoms: the endpoint returns an unauthorized or forbidden response and logs are not accepted. Solutions: 1. Confirm the authentication header is present and correct under **Additional Headers** (for example `Authorization`). 2. Verify the token or credential has not expired and is authorized for the target path. #### Connection or TLS failures Symptoms: requests time out, connection is refused, or the TLS handshake fails. Solutions: 1. Verify **Hostname**, **Port**, and **Path** match the endpoint, and that the collector can reach the server. 2. For HTTPS, supply a **TLS Certificate Authority File** if the server certificate is not in the system trust store. Enable **Mutual TLS** and provide the client certificate and key only if the server requires mTLS. 3. Increase **Request Timeout** if the endpoint is slow to respond. #### Logs are delayed or dropped Symptoms: records arrive late or are missing after the endpoint returns errors. Solutions: 1. Keep **Enable Retry on Failure** on so transient non-2xx responses are retried with backoff. 2. Keep **Enable Sending Queue** and **Enable Persistent Queuing** on so buffered data survives outages and restarts. ### Standalone Destination ```yaml apiVersion: bindplane.observiq.com/v1 kind: Destination metadata: name: webhook spec: type: webhook parameters: - name: scheme value: https - name: hostname value: api.example.com - name: port value: 443 - name: path value: webhook - name: verb value: POST - name: content_type value: application/json - name: format value: json_array - name: headers value: Authorization: Bearer REPLACE_WITH_TOKEN ``` ### Related Resources * [Webhook Exporter (webhookexporter)](https://github.com/observIQ/bindplane-otel-contrib/tree/main/exporter/webhookexporter) --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://docs.bindplane.com/integrations/destinations/webhook.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
