# Axiom

The Axiom destination exports telemetry from a Bindplane pipeline to [Axiom](https://axiom.co/) over OTLP/HTTP. It sends logs and traces to the Axiom dataset named in the configuration. Metrics support is staged in the resource type for a future Axiom release and is not yet exported.

### Supported Telemetry

| Metrics | Logs | Traces |
| ------- | ---- | ------ |
|         | ✓    | ✓      |

### Prerequisites

* An [Axiom account](https://axiom.co/).
* A dataset to receive the telemetry. Create one under **Settings > Datasets** in the Axiom UI.
* An Axiom API token with permission to ingest into that dataset. Create a basic API token under **Settings > API tokens** and grant it access to the target dataset. Copy the token when it is shown; it is not displayed again. See [Authenticate API requests with tokens](https://axiom.co/docs/reference/tokens).

Telemetry is sent to the Axiom OTLP endpoint `https://api.axiom.co`. See [Send OpenTelemetry data to Axiom](https://axiom.co/docs/send-data/opentelemetry).

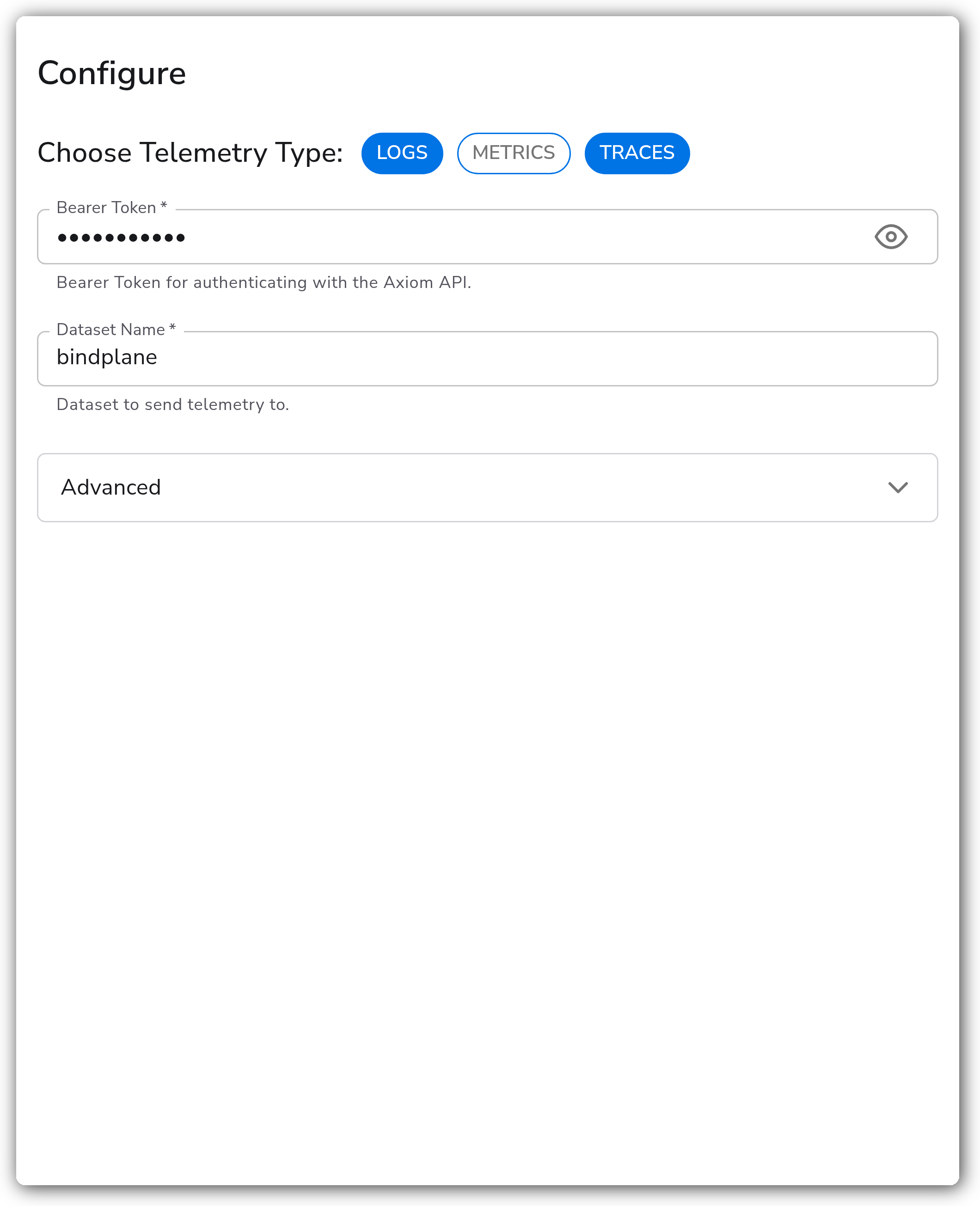

### Configuration

<figure><img src="/files/G0X5knMyLQU4Ckq3ZQVc" alt="Bindplane docs - Axiom - image 1"><figcaption></figcaption></figure>

**Connection**

| Parameter             | Type               | Required | Default      | Description                                                                                                          |
| --------------------- | ------------------ | -------- | ------------ | -------------------------------------------------------------------------------------------------------------------- |
| Choose Telemetry Type | Telemetry Selector | No       | Logs, Traces | Which signals to export. Valid values are Logs, Metrics, and Traces. Metrics is reserved for a future Axiom release. |
| Bearer Token          | String             | Yes      | *(empty)*    | Axiom API token used to authenticate ingest requests. Sent as the `Authorization: Bearer` header. Sensitive value.   |
| Dataset Name          | String             | Yes      | *(empty)*    | Axiom dataset that receives the telemetry. Sent as the `x-axiom-dataset` header.                                     |

**Advanced**

| Parameter     | Type    | Required | Default | Description                                                           |
| ------------- | ------- | -------- | ------- | --------------------------------------------------------------------- |
| Timeout       | Integer | Yes      | `30`    | Timeout in seconds for sending a batch to Axiom.                      |
| Drop Raw Copy | Boolean | No       | `true`  | When enabled, drops the raw log copy stored in `log.record.original`. |

**Retry on Failure**

| Parameter               | Type    | Required | Default | Description                                                                                                                            |
| ----------------------- | ------- | -------- | ------- | -------------------------------------------------------------------------------------------------------------------------------------- |
| Enable Retry on Failure | Boolean | No       | `true`  | Resend telemetry that failed to transmit.                                                                                              |
| Initial Interval        | Integer | No       | `5`     | Seconds to wait after the first failure before retrying. Applies when retry on failure is enabled.                                     |
| Max Interval            | Integer | No       | `30`    | Upper bound in seconds on the backoff interval. Applies when retry on failure is enabled.                                              |
| Max Elapsed Time        | Integer | No       | `300`   | Maximum seconds spent retrying a batch before giving up, to avoid a never-ending retry loop. Applies when retry on failure is enabled. |

**Sending Queue**

| Parameter                 | Type      | Required | Default                         | Description                                                                                                                                                                                                  |
| ------------------------- | --------- | -------- | ------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| Enable Sending Queue      | Boolean   | No       | `true`                          | Buffer telemetry before sending so data is not lost during a temporary network outage.                                                                                                                       |
| Number of Consumers       | Integer   | No       | `10`                            | Number of consumers that dequeue batches. Applies when the sending queue is enabled.                                                                                                                         |
| Queue Size                | Integer   | No       | `5000`                          | Maximum number of batches held in memory before dropping. Applies when the sending queue is enabled.                                                                                                         |
| Enable Persistent Queuing | Boolean   | No       | `true`                          | Buffer telemetry to disk so data survives network outages and collector restarts. Applies when the sending queue is enabled.                                                                                 |
| Persistent Queue Storage  | Extension | Yes      | `file_storage_persistent_queue` | Storage extension backing the persistent queue. Applies when both the sending queue and persistent queuing are enabled. See [persistent queue](/configuration/bindplane-otel-collector/persistent-queue.md). |

### Examples

Export logs and traces to the `bindplane` dataset in Axiom, retrying failed sends and buffering to disk.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: axiom
spec:
  type: axiom
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Traces
    - name: bearer_token
      value: xaat-your-axiom-token
    - name: dataset_name
      value: bindplane
    - name: retry_on_failure_enabled
      value: true
    - name: sending_queue_enabled
      value: true
    - name: persistent_queue_enabled
      value: true
```

### Configuration Tips

* Create a basic API token scoped to only the target dataset rather than a personal access token, following least privilege.
* Telemetry is compressed with gzip before being sent to Axiom; no additional compression configuration is needed.
* Leave persistent queuing enabled so buffered telemetry survives a collector restart. The default storage extension writes to `${OIQ_OTEL_COLLECTOR_HOME}/storage`.

### Troubleshooting

#### Authentication failures (401/403)

Symptoms: ingest requests are rejected and no data reaches the dataset.

Solutions:

1. Confirm the Bearer Token is a valid Axiom API token and has not expired.
2. Confirm the token grants ingest access to the dataset named in Dataset Name.

#### Data not appearing in the dataset

Symptoms: requests succeed but the expected dataset shows no data.

Solutions:

1. Verify Dataset Name exactly matches an existing Axiom dataset; Axiom does not auto-create datasets for ingest.
2. Confirm the Choose Telemetry Type selection includes the signals you are sending.

#### Dropped telemetry under load or outage

Symptoms: gaps in data during network issues or collector restarts.

Solutions:

1. Keep the sending queue enabled and raise Queue Size if memory allows.
2. Enable persistent queuing so buffered batches survive restarts.

### Standalone Destination

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: axiom
spec:
  type: axiom
  parameters:
    - name: telemetry_types
      value:
        - Logs
        - Traces
    - name: bearer_token
      value: xaat-your-axiom-token
    - name: dataset_name
      value: bindplane
    - name: timeout
      value: 30
    - name: persistent_queue_storage_extension
      value:
        type: file_storage_persistent_queue
        parameters:
          - name: persistent_queue_directory
            value: ${OIQ_OTEL_COLLECTOR_HOME}/storage
          - name: timeout
            value: 1
          - name: persistent_queue_fsync
            value: true
```

### Related Resources

* [OTLP/HTTP Exporter — OpenTelemetry Collector](https://github.com/open-telemetry/opentelemetry-collector/blob/main/exporter/otlphttpexporter/README.md)
* [Send OpenTelemetry data to Axiom](https://axiom.co/docs/send-data/opentelemetry)
* [Authenticate API requests with tokens — Axiom](https://axiom.co/docs/reference/tokens)


---
