# Google SecOps (Chronicle) Forwarder
The Google SecOps (Chronicle) Forwarder destination sends logs to a [Google Security Operations (SecOps) Forwarder](https://cloud.google.com/chronicle/docs/install) running in your environment. Bindplane delivers each log either over Syslog (TCP or UDP, with optional TLS) or by writing to a file the forwarder watches. The forwarder then relays the data to Google SecOps (formerly Chronicle).
### Supported Telemetry Types
| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| Linux | | ✓ | |
| Windows | | ✓ | |
| macOS | | ✓ | |
### Prerequisites
* A running [Google SecOps Forwarder](https://cloud.google.com/chronicle/docs/install) reachable from the collector.
* For **Syslog** export: the forwarder's Syslog endpoint (host and port) and transport protocol (TCP or UDP).
* For **File** export: a file path the forwarder is configured to read, writable by the collector.
* If TLS is enabled for Syslog: the certificate, private key, and certificate authority files required by the forwarder.
* The `google-destinations` feature is enabled in your Bindplane installation.
### Configuration
#### Logs
| Parameter | Type | Default | Description |
| ----------------- | ---------- | -------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Export Type | Enum | `syslog` | Required. Method of export, either `syslog` or `file`. |
| Send Single Field | Boolean | `true` | Send a single field from the log instead of the entire log record. |
| Field to Send | Enum | `Body` | Required when `send_single_field` is `true`. The telemetry field to send: `Attributes` or `Body`. |
| Attributes Field | OTTL Field | | The attributes field to send. Relevant when `raw_base` is `Attributes`. Use bracket notation for nested fields. An empty value sends all attribute fields. |
| Body Field | OTTL Field | | The body field to send. Relevant when `raw_base` is `Body`. Use bracket notation for nested fields. An empty value sends all body fields. |
#### Syslog
These parameters are relevant when `export_type` is `syslog`.
| Parameter | Type | Default | Description |
| ------------------ | ------ | ----------------- | ---------------------------------------------------------- |
| Syslog Endpoint | String | `127.0.0.1:10514` | Required. The Google SecOps Forwarder endpoint for Syslog. |
| Transport Protocol | Enum | `tcp` | The transport protocol to use, `tcp` or `udp`. |
#### File
This parameter is relevant when `export_type` is `file`.
| Parameter | Type | Default | Description |
| --------- | ------ | ------- | ------------------------------------------------ |
| File Path | String | | Required. The path to the file for storing logs. |
#### Advanced
`syslog_timeout` is relevant when `export_type` is `syslog`.
| Parameter | Type | Default | Description |
| -------------- | -------- | ------- | --------------------------------------------------------------------------------- |
| Syslog Timeout | Duration | `5s` | The timeout for the Syslog dial connection. |
| Drop Raw Copy | Boolean | `true` | When enabled, the raw copy of the log stored in `log.record.original` is dropped. |
#### TLS
These parameters are relevant when `export_type` is `syslog`. `insecure_skip_verify`, `cert_file`, `key_file`, and `ca_file` are relevant when `enable_tls` is `true`.
| Parameter | Type | Default | Description |
| --------------------------------- | ------- | ------- | ----------------------------------------------------------- |
| Enable TLS | Boolean | `false` | Whether or not to use TLS for the Syslog connection. |
| Skip TLS Certificate Verification | Boolean | `false` | Enable to skip TLS certificate verification. |
| TLS Certificate File | String | | Path to the x509 PEM certificate (required for Mutual TLS). |
| TLS Private Key File | String | | Path to the x509 PEM private key (required for Mutual TLS). |
| TLS Certificate Authority File | String | | Path to the x509 PEM certificate authority file. |
#### Retry and Queuing
This destination supports [retry on failure](/configuration/bindplane-otel-collector/retry-on-failure.md), the [sending queue](/configuration/bindplane-otel-collector/sending-queue.md), and the [persistent queue](/configuration/bindplane-otel-collector/persistent-queue.md).
| Parameter | Type | Default | Description |
| ------------------------- | --------- | ------- | --------------------------------------------------------------------------------------------------- |
| Enable Retry on Failure | Boolean | `true` | Attempt to resend logs that have failed to be transmitted to the destination. |
| Initial Interval | Integer | `5` | Time (in seconds) to wait after the first failure before retrying. |
| Max Interval | Integer | `30` | The upper bound (in seconds) on backoff. |
| Max Elapsed Time | Integer | `300` | The maximum amount of time (in seconds) spent trying to send a batch, to avoid an endless loop. |
| Enable Sending Queue | Boolean | `true` | Buffer logs temporarily before sending to help ensure data is not lost during a brief outage. |
| Number of Consumers | Integer | `10` | Number of consumers that dequeue batches. |
| Queue Size | Integer | `5000` | Maximum number of batches kept in memory before dropping. |
| Enable Persistent Queuing | Boolean | `true` | Buffer telemetry data to disk so it is not lost on network outages or collector restarts. |
| Persistent Queue Storage | Extension | | Required. The storage to use for the persistent queue. Relevant when persistent queuing is enabled. |
### Example Configuration
#### Standalone Destination

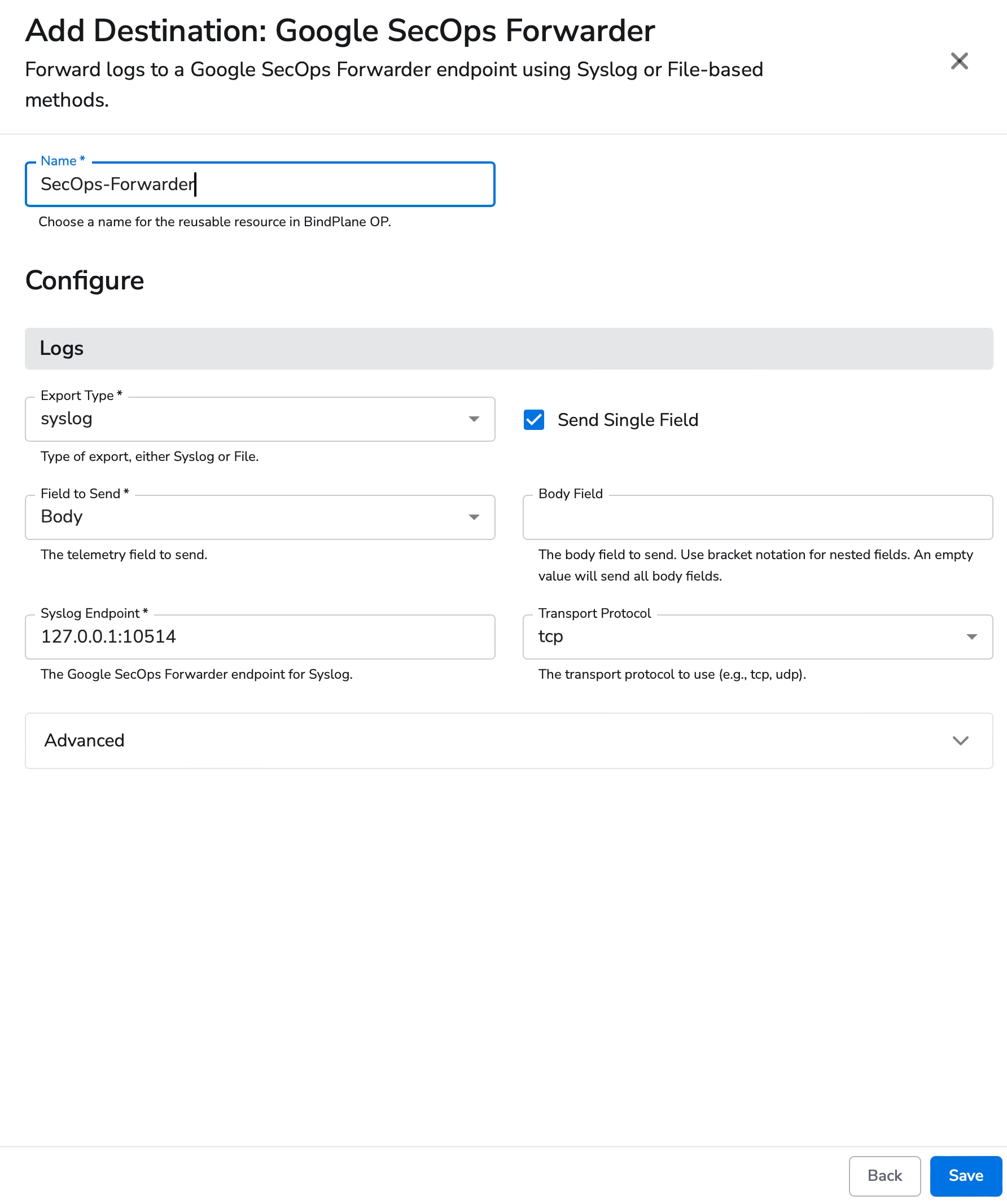

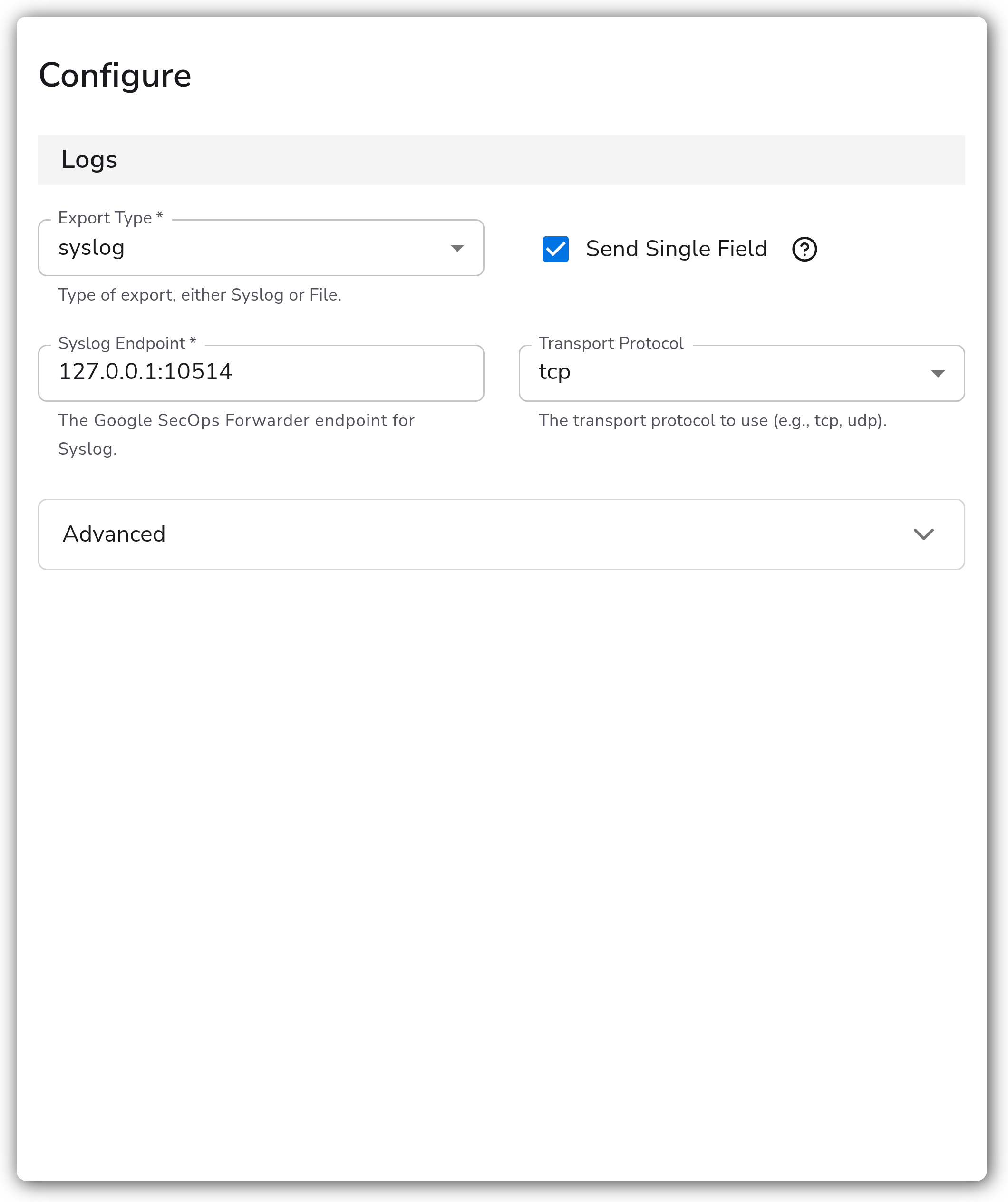

Syslog export:
```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
id: chronicleforwarder
name: chronicleforwarder
spec:
type: chronicleforwarder
parameters:
- name: export_type
value: 'syslog'
- name: send_single_field
value: 'true'
- name: raw_base
value: 'Body'
- name: syslog_endpoint
value: '127.0.0.1:10514'
- name: syslog_transport
value: 'tcp'
- name: enable_tls
value: 'false'
```

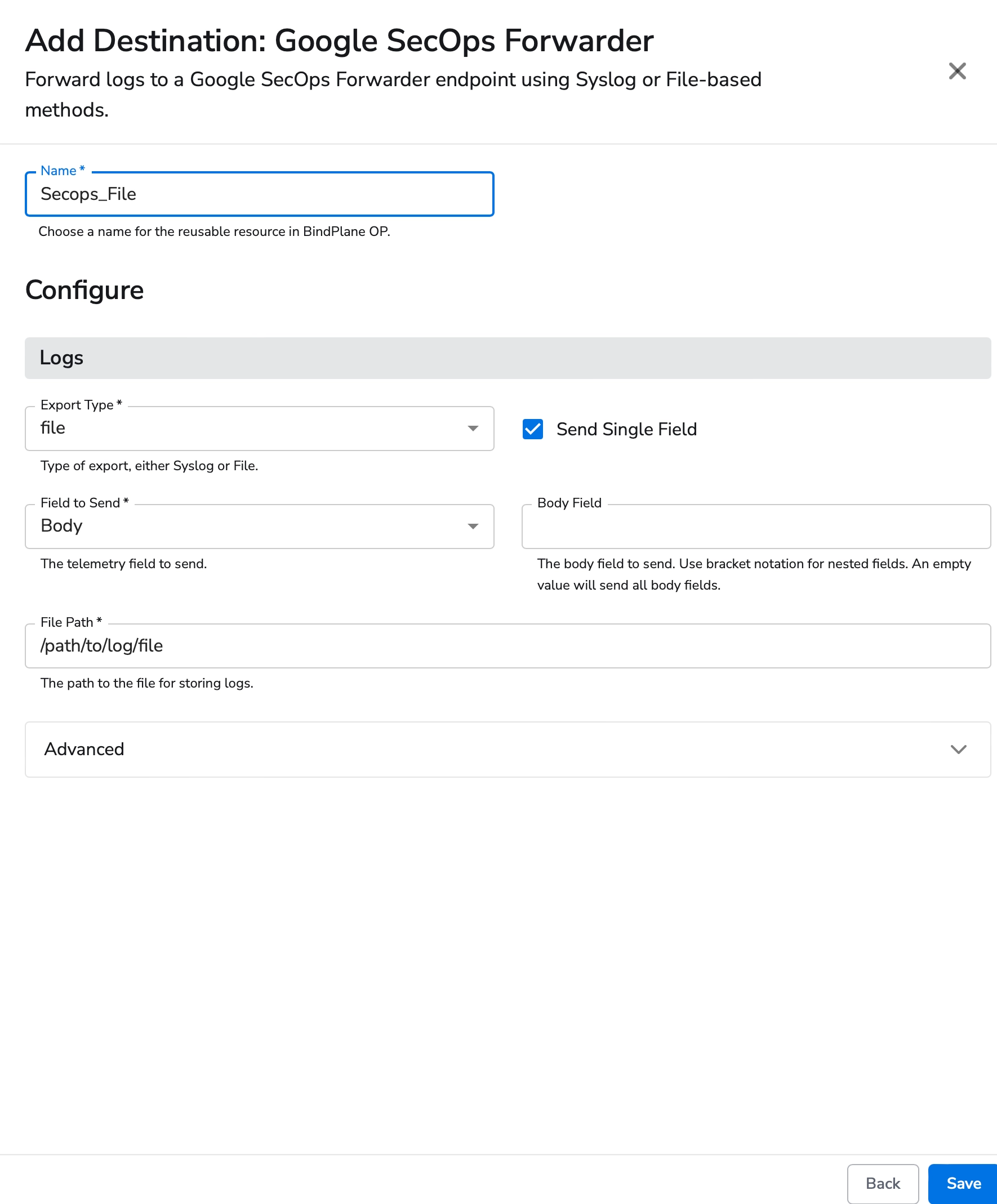

File export:
```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
id: chronicleforwarder
name: chronicleforwarder
spec:
type: chronicleforwarder
parameters:
- name: export_type
value: 'file'
- name: send_single_field
value: 'true'
- name: raw_base
value: 'Body'
- name: file_path
value: '/var/log/secops/forwarder.log'
```
### Configuration Tips
#### Choosing a transport
* Use **Syslog** export when the forwarder ingests over a Syslog listener. Set `syslog_endpoint` to the forwarder's host and port (default `127.0.0.1:10514`) and pick `tcp` or `udp` to match the forwarder's listener. TCP is recommended for reliable delivery.
* Use **File** export when the forwarder reads logs from a file. Set `file_path` to a location the collector can write and the forwarder is configured to read. This suits environments where the forwarder and collector share a host or volume.
#### Selecting the field to send
* Leave `send_single_field` enabled and set `raw_base` to `Body` (with an empty `raw_body`) to forward the full log body, which is the common choice when the forwarder expects the original raw log line.
* Set `raw_base` to `Attributes` and populate `raw_attributes` (bracket notation for nested fields) when the raw log was parsed into an attribute upstream and you want only that field forwarded.
* Disable `send_single_field` to send the entire serialized log record instead of a single field.
#### TLS for Syslog
* Enable `enable_tls` only for Syslog export. For Mutual TLS, provide `cert_file` and `key_file`; supply `ca_file` to validate the forwarder's certificate.
* Avoid `insecure_skip_verify` in production. It disables certificate verification and is intended only for testing against self-signed certificates.
### Troubleshooting
**Symptom:** No logs reach Google SecOps and the collector logs Syslog connection errors. **Solution:** Confirm `syslog_endpoint` matches the forwarder's listener host and port, and that `syslog_transport` matches the protocol the forwarder accepts. Verify the collector can reach the endpoint and that no firewall blocks the port. Increase `syslog_timeout` if the dial is timing out on a slow network.
**Symptom:** Logs arrive but the content is not what the forwarder expects (truncated or wrong field). **Solution:** Review `send_single_field`, `raw_base`, and the matching `raw_body` or `raw_attributes` field. To forward the original raw log line, keep `raw_base` set to `Body` with an empty body field. Note that `drop_raw_copy` removes `log.record.original`; disable it if you need that field preserved.
**Symptom:** TLS handshake failures when Syslog TLS is enabled. **Solution:** Verify the certificate chain. Provide the correct `ca_file` for the forwarder's certificate, and for Mutual TLS supply matching `cert_file` and `key_file`. As a test only, `insecure_skip_verify` can confirm whether the failure is certificate validation, but do not leave it enabled in production.
### Related Resources
* [Google SecOps documentation](https://cloud.google.com/chronicle/docs)
* [Install and configure a Google SecOps Forwarder](https://cloud.google.com/chronicle/docs/install)
* [Retry on Failure settings](/configuration/bindplane-otel-collector/retry-on-failure.md)
* [Sending Queue settings](/configuration/bindplane-otel-collector/sending-queue.md)
* [Persistent Queue settings](/configuration/bindplane-otel-collector/persistent-queue.md)
---
