Datadog

The Datadog destination sends logs, metrics, and traces to Datadog using the OpenTelemetry Collector Datadog exporter. Telemetry is delivered to the Datadog intake for the configured Datadog site, authenticated with a Datadog API key.

Supported Telemetry Types

Platform	Metrics	Logs	Traces
Linux	✓	✓	✓
Windows	✓	✓	✓
macOS	✓	✓	✓

Prerequisites

• A Datadog account and the Datadog site your organization is on (for example, US1, EU1).
• A Datadog API key with permission to submit telemetry.
• Outbound network access from the collector to the Datadog intake for your site.

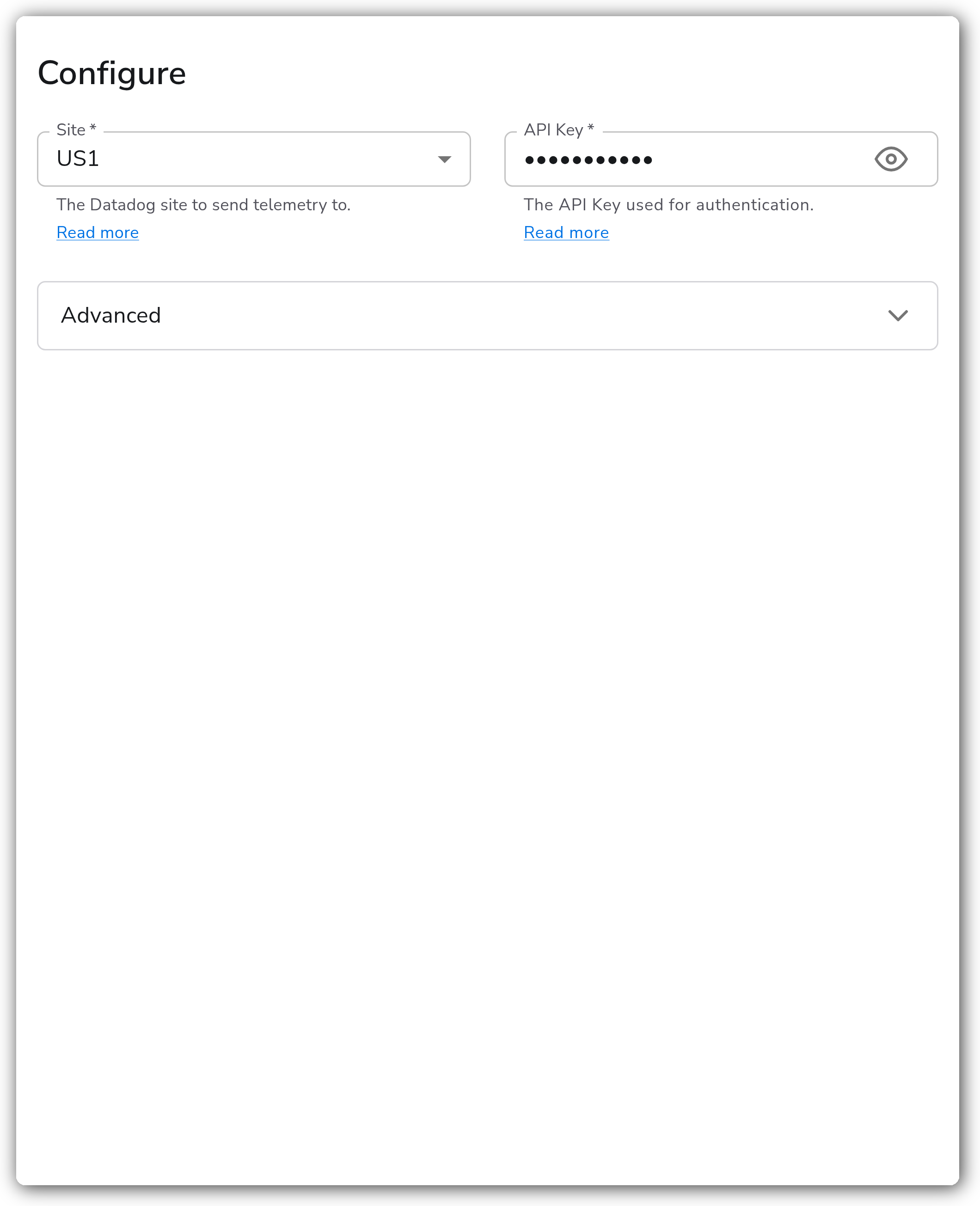

Configuration

General

Parameter	Type	Default	Description
Site	Enum	US1	Required. The Datadog site to send telemetry to. One of US1, US3, US5, EU1, US1-FED, AP1.
API Key	String		Required. Sensitive. The Datadog API key used for authentication.

Advanced

Parameter	Type	Default	Description
Drop Raw Copy	Boolean	true	Logs only. When enabled, drops the raw copy of the log stored in log.record.original.

Retry on Failure

Parameter	Type	Default	Description
Enable Retry on Failure	Boolean	true	Attempt to resend telemetry data that has failed to be transmitted to the destination.
Initial interval	Integer	5	Time (in seconds) to wait after the first failure before retrying. Applies when retry on failure is enabled.
Max interval	Integer	30	The upper bound (in seconds) on backoff. Applies when retry on failure is enabled.
Max elapsed time	Integer	300	Maximum time (in seconds) spent trying to send a batch, to avoid a never-ending retry loop. Applies when retry on failure is enabled.

Sending Queue

Parameter	Type	Default	Description
Enable Sending Queue	Boolean	true	Buffer telemetry data temporarily before sending to help ensure data is not lost during a temporary network outage.
Number of Consumers	Integer	10	Number of consumers that dequeue batches. Applies when the sending queue is enabled.
Queue Size	Integer	5000	Maximum number of batches kept in memory before dropping. Applies when the sending queue is enabled.
Enable Persistent Queuing	Boolean	true	Buffer telemetry data to disk before sending to help ensure data is not lost during network outages or collector restarts. Applies when the sending queue is enabled.
Persistent Queue Storage	Extension		Required. The storage to use for the persistent queue. Applies when the sending queue and persistent queue are enabled. Defaults to file storage under the collector home directory.

Example Configuration

Standalone Destination

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: datadog
  name: datadog
spec:
  type: datadog
  parameters:
    - name: site
      value: 'US1'
    - name: api_key
      value: '<your-datadog-api-key>'
    - name: retry_on_failure_enabled
      value: 'true'
    - name: sending_queue_enabled
      value: 'true'
    - name: persistent_queue_enabled
      value: 'true'

Configuration Tips

Selecting the correct site

• Set site to match the Datadog site your organization is on. Sending to the wrong site causes authentication failures because the API key is scoped to a single site.
• US Government (FedRAMP) organizations should use US1-FED.

Protecting the API key

• The api_key parameter is sensitive. Treat it as a secret and avoid checking it into source control. Use Bindplane secret handling or environment substitution where possible.

Reliable delivery

• Leave the sending queue and persistent queue enabled for production deployments so telemetry survives temporary network outages and collector restarts.
• Persistent queuing requires a storage extension. The default writes to a file storage directory under the collector home; review the persistent queue documentation if you need a different storage backend.

Troubleshooting

Symptom: Telemetry is rejected with authentication or 403 errors. Solution: Confirm the api_key is valid and that site matches the Datadog site the key belongs to. API keys are scoped to a single site, so a US1 key sent to EU1 will be rejected.

Symptom: No data appears in Datadog and the collector logs export timeouts. Solution: Verify outbound network access from the collector to the Datadog intake for the configured site. Confirm any proxy or firewall allows HTTPS egress to Datadog.

Symptom: Logs contain an unwanted raw copy of the original record. Solution: Enable drop_raw_copy to remove the log.record.original attribute before logs are sent to Datadog.
