VictoriaLogs

The VictoriaLogs destination sends logs from a Bindplane pipeline to a VictoriaLogs server using the OTLP/HTTP protocol. It posts gzip-compressed, protobuf-encoded OTLP logs to the VictoriaLogs OpenTelemetry ingestion endpoint. Logs are the only signal this destination exports.

Supported Telemetry Types

Metrics	Logs	Traces
	✓

Prerequisites

• A reachable VictoriaLogs server, addressed by hostname or IP and a TCP port (the OTLP ingestion port defaults to 9428). Bindplane sends to the /insert/opentelemetry path on that endpoint.
• Any authentication or TLS the server requires. VictoriaLogs does not require credentials by default. If the endpoint sits behind a reverse proxy, a managed gateway, or VictoriaLogs Cloud, supply the bearer token, basic-auth header, or tenant header it expects through Additional Headers, and configure TLS if the endpoint is HTTPS.

See the VictoriaLogs OpenTelemetry data ingestion docs for endpoint and header details.

Configuration

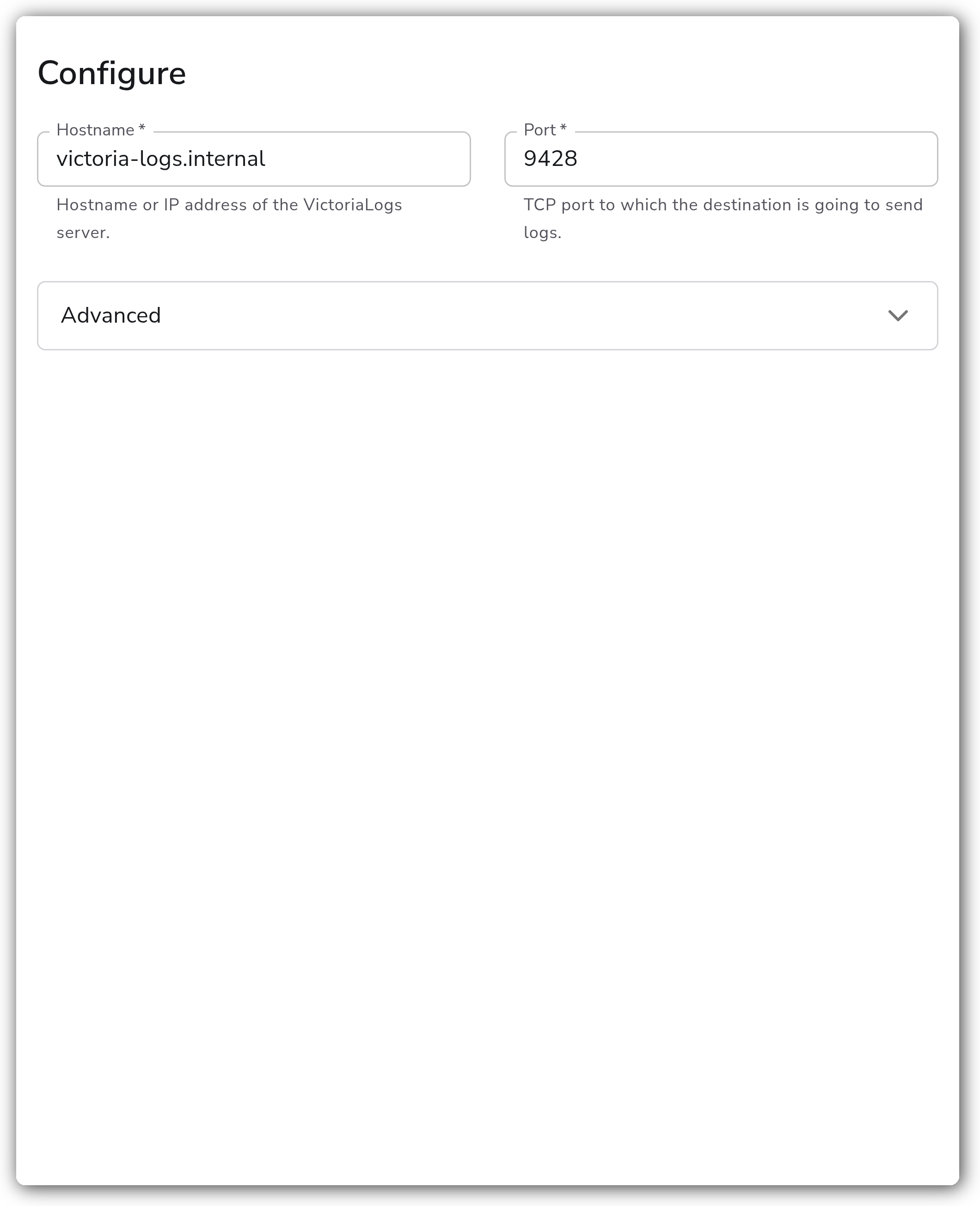

Connection

Parameter	Type	Required	Default	Description
Hostname	String	Yes	(empty)	Hostname or IP address of the VictoriaLogs server.
Port	Int	Yes	9428	TCP port the destination sends logs to. Valid range 1–65535.

Advanced

Parameter	Type	Required	Default	Description
Additional Headers	Map	No	(empty)	Extra headers attached to each request. Use for an auth token, basic-auth header, or a tenant header when the endpoint requires one.

TLS

Parameter	Type	Required	Default	Description
Enable TLS	Boolean	No	false	Use TLS for the connection. When enabled, the endpoint is sent over https; otherwise over http.
Skip TLS Certificate Verification	Boolean	No	false	Skip verification of the server's certificate. Shown when Enable TLS is on.
TLS Certificate Authority File	String	No	(empty)	Path to a certificate authority file used to validate the server's certificate. Shown when Enable TLS is on.
Mutual TLS	Boolean	No	false	Use client TLS authentication (mTLS). Shown when Enable TLS is on.
TLS Client Certificate File	String	Yes	(empty)	Path to the client certificate for mutual TLS. Shown when Enable TLS and Mutual TLS are on.
TLS Client Private Key	String	Yes	(empty)	Path to the client private key for mutual TLS. Shown when Enable TLS and Mutual TLS are on.

Retry on Failure

Parameter	Type	Required	Default	Description
Enable Retry on Failure	Boolean	No	true	Resend telemetry that failed to transmit to the destination.
Initial interval	Int	No	5	Seconds to wait after the first failure before retrying. Shown when Retry on Failure is on.
Max interval	Int	No	30	Upper bound in seconds on the retry backoff. Shown when Retry on Failure is on.
Max elapsed time	Int	No	300	Maximum seconds spent retrying a batch before giving up, to avoid a never-ending retry loop. Shown when Retry on Failure is on.

Sending Queue

Parameter	Type	Required	Default	Description
Enable Sending Queue	Boolean	No	true	Buffer telemetry before sending so data is not lost during a temporary network outage.
Number of Consumers	Int	No	10	Number of consumers that dequeue batches. Shown when Sending Queue is on.
Queue Size	Int	No	5000	Maximum number of batches held in memory before new ones are dropped. Shown when Sending Queue is on.
Enable Persistent Queuing	Boolean	No	true	Buffer telemetry to disk so data survives network outages or collector restarts. Shown when Sending Queue is on.
Persistent Queue Storage	Extension	Yes	File storage at ${OIQ_OTEL_COLLECTOR_HOME}/storage	Storage extension backing the persistent queue. Shown when Sending Queue and Persistent Queuing are on.

Examples

Send logs to a VictoriaLogs server over plain HTTP

Point the destination at a VictoriaLogs server reachable on the default ingestion port. No TLS or auth is configured, which suits an in-cluster or trusted-network endpoint.

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: victoria-logs
spec:
  type: victoria_logs
  parameters:
    - name: hostname
      value: victoria-logs.internal
    - name: port
      value: 9428

Send logs over TLS with a tenant header

Enable TLS and attach an auth header for a VictoriaLogs endpoint fronted by a gateway that expects a bearer token.

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: victoria-logs
spec:
  type: victoria_logs
  parameters:
    - name: hostname
      value: logs.example.com
    - name: port
      value: 443
    - name: enable_tls
      value: true
    - name: headers
      value:
        Authorization: Bearer REPLACE_WITH_TOKEN

Configuration Tips

• VictoriaLogs ingests over OTLP/HTTP at the /insert/opentelemetry path. Bindplane builds that path automatically, so set only the hostname and port. The scheme follows the Enable TLS setting (https when on, http when off).
• The destination sends protobuf-encoded logs with gzip compression by default, which lowers egress bandwidth to the server.
• Leave the sending queue and persistent queue enabled for production. Persistent queuing buffers logs to disk so a collector restart or a VictoriaLogs outage does not drop data.

Troubleshooting

Connection refused or no logs arriving

Symptoms: the collector logs connection-refused or timeout errors, and no logs appear in VictoriaLogs.

Solutions:

1. Confirm the hostname and port reach the VictoriaLogs OTLP listener (default 9428), and that no firewall blocks the path.
2. Confirm Enable TLS matches the endpoint's scheme. A TLS-enabled destination sends https; a server listening on plain HTTP rejects it, and vice versa.

TLS certificate errors

Symptoms: handshake failures or certificate-verification errors when Enable TLS is on.

Solutions:

1. Provide the server's CA in the TLS Certificate Authority File, or for a self-signed test endpoint enable Skip TLS Certificate Verification.
2. For mutual TLS, confirm both the TLS Client Certificate File and TLS Client Private Key are set and readable by the collector.

Logs are dropped under load

Symptoms: the collector reports dropped batches or a full queue while VictoriaLogs is slow or briefly unreachable.

Solutions:

1. Increase Queue Size, or raise Number of Consumers to drain batches faster.
2. Keep Persistent Queuing enabled so buffered logs survive restarts instead of being lost from memory.

Standalone Destination

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  name: victoria-logs
spec:
  type: victoria_logs
  parameters:
    - name: hostname
      value: victoria-logs.internal
    - name: port
      value: 9428

Related Resources

• OTLP/HTTP Exporter (otlphttpexporter)
• VictoriaLogs OpenTelemetry data ingestion
