Access Bindplane UI

Everything you need to know about navigating Bindplane's features

Create a Bindplane Cloud account at app.bindplane.com .

NOTE

For self-hosted Bindplane, the UI can be accessed with your browser on port 3001. The URL will be http://<IP_ADDRESS>:3001, with IP Address being that of the Bindplane Server. To log in, use the credentials you specified when running the init command.

Overview of the UI

You'll find the following pages once you've accessed the Bindplane UI.

Overview

The Overview page summarizes the flow and consumption of your configurations and destinations. It's used to quickly understand your overall throughput for metrics, logs, and traces.

The ability to sort to the "Top Three" will let you see the Configurations and Destinations with the most consumption at a glance.

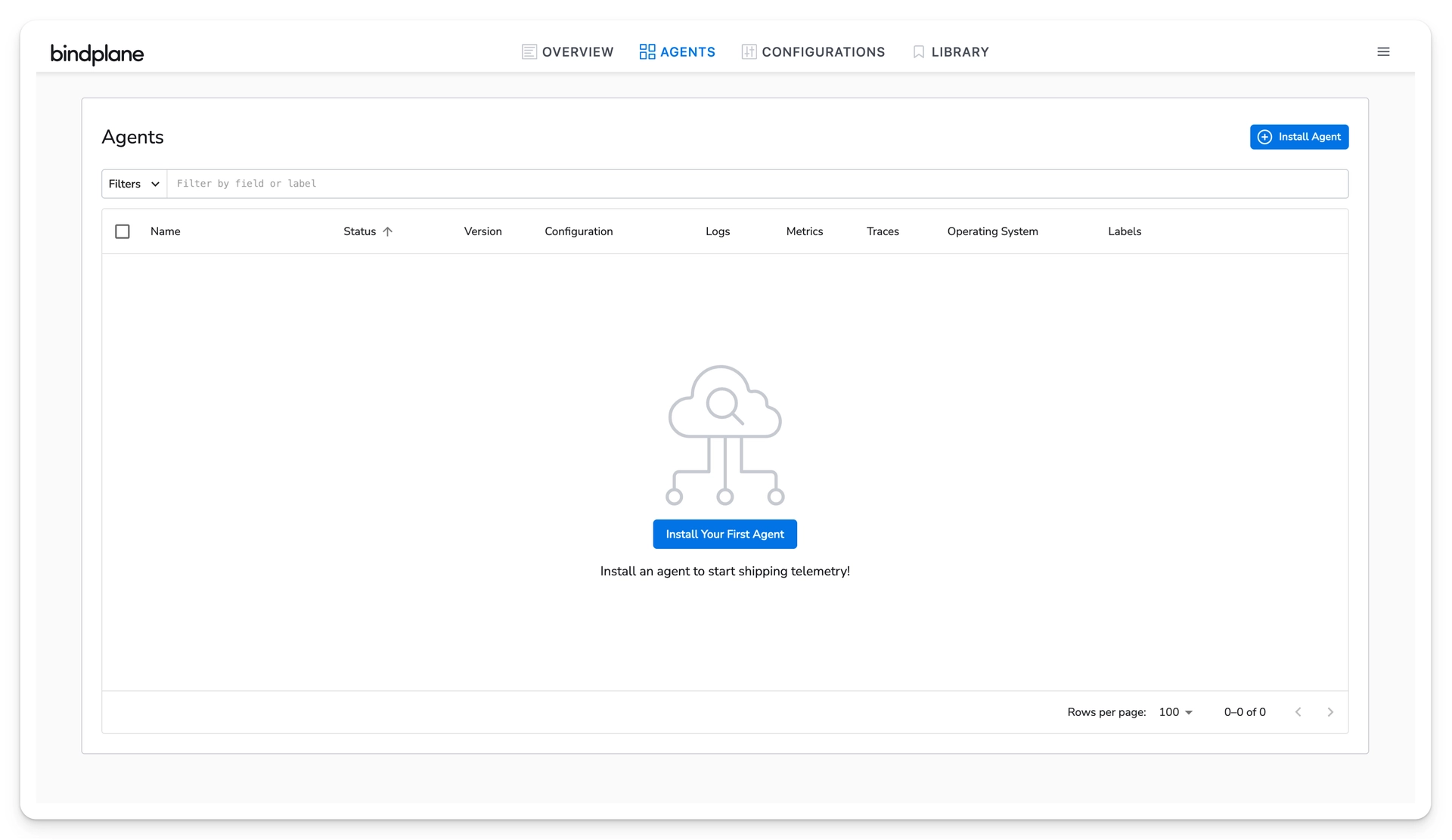

Agents

This is the first stop to view your fleet of collectors quickly. From this page, you can navigate to view collector configuration, status, or errors directly by clicking on the collector name. Alternatively, you can see which configuration resources are deployed to these collectors in the "Configuration" column. Quickly narrow your view with the search bar and suggested filters.

Configurations

Here is the entry point to view all your current configurations. From here, you can select a configuration to edit or create a new configuration with the button on the top right.

Library

The library page is where you'll find all your reusable resources. Here, any sources, processors, connectors, and destinations that have been saved to the library can be viewed, edited, and deleted.

Now that you've accessed the UI, let's help you install your first collector.
