Remove XML

Removes the XML node(s) matching an XPath from an XML string. Use it to drop noisy or sensitive elements before parsing or forwarding. The output is the trimmed XML string.

Supported Telemetry Types

Logs	Metrics	Traces
✓	✓	✓

Choose Telemetry Type picks one signal per processor instance. Add another instance to handle a second signal.

Configuration

Basic Configuration

Selection

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Telemetry Selector	Yes	Logs	The signal this instance runs on: Logs, Metrics, or Traces (one at a time).
XPath	String	Yes	—	The XPath selecting the element(s) to remove. Applies to all selected telemetry types.
Condition	OTTL Condition	No	(empty)	Remove only from records that match. Empty runs on every record.

Source and target fields

Parameter	Type	Required	Default	Description
Source Field Type	Enum: Resource, Attribute, Body, Custom	Yes	Attribute	Where the XML string is read from. Body is logs-only. Custom takes any OTTL path.
Source Field	OTTL Field	Yes *	—	The field holding the XML. Bracket notation for nested fields. For a Body source, leave empty to use the whole body.
Target Field Type	Enum: Resource, Attribute, Body, Custom	Yes	Attribute	Where the trimmed XML is written. Body is logs-only.
Target Field	OTTL Field	Yes *	—	Destination for the trimmed XML. Point it at the source to edit in place. For a Body target, leave empty to use the whole body.

* The Body field type is the exception: it's optional, and leaving it empty targets the entire body.

Body is available for Logs only. For Metrics and Traces, the field type options are Resource, Attribute, and Custom.

Examples

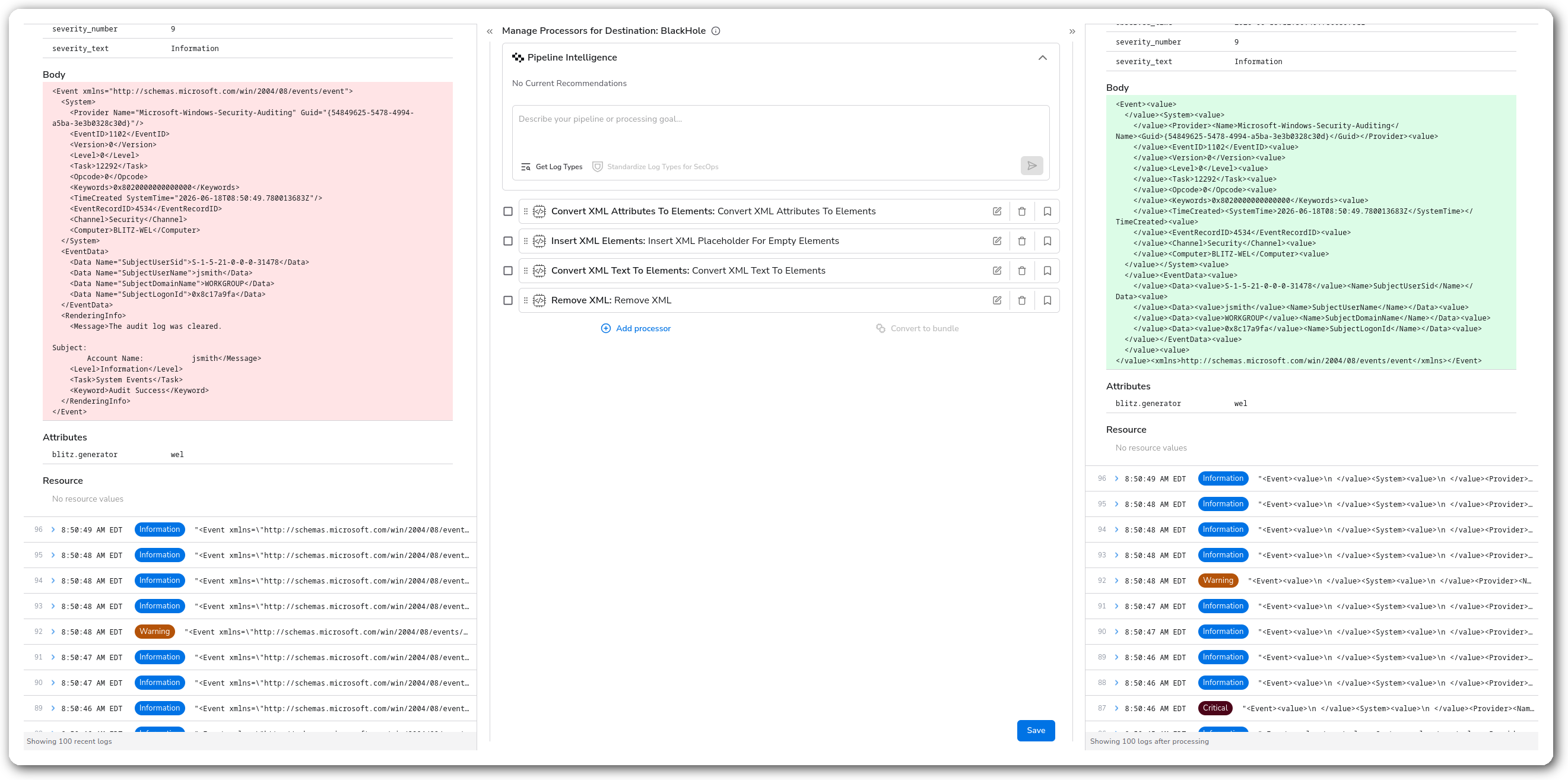

Strip a noisy subtree before parsing

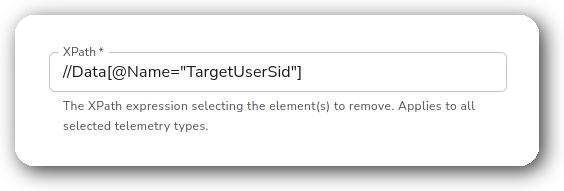

Redact a sensitive element

XPath predicates with quoted strings are entered as-is; embedded quotes are escaped safely when the config is generated.

Configuration Tips

• Removing elements before Parse Simplified XML shrinks the resulting map and keeps it focused.

Troubleshooting

Too much (or nothing) gets removed

Symptoms: the result keeps the element you wanted gone, or loses more than intended.

Solutions:

1. Validate the XPath against a sample document. A broad expression can match more nodes than expected; a too-narrow one matches none (a silent no-op).
2. Confirm the source holds valid XML and the Condition evaluates true.

Standalone Processor

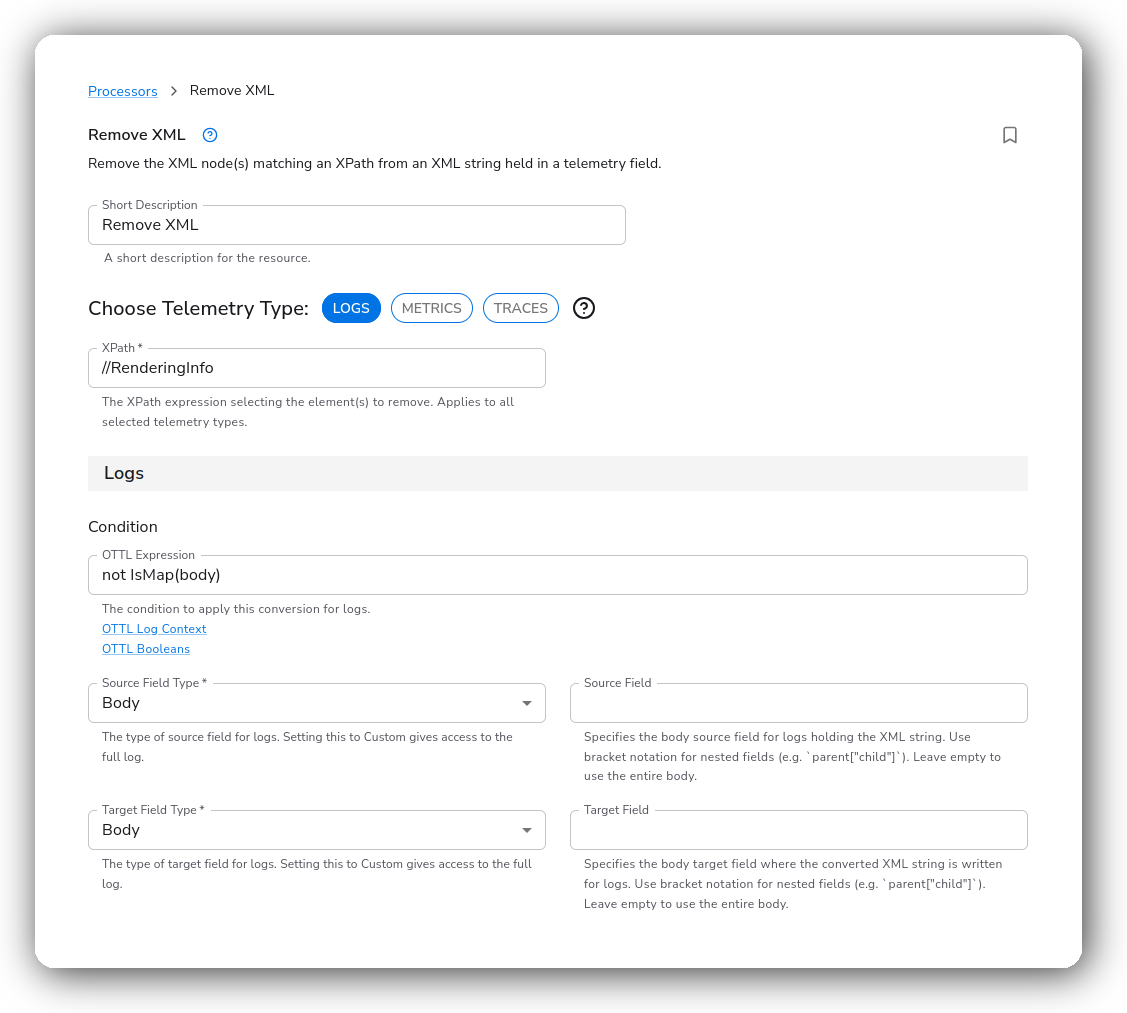

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: remove-xml
spec:
  type: remove_xml
  parameters:
    - name: telemetry_types
      value: Logs
    - name: log_condition
      value: not IsMap(body)
    - name: xpath
      value: //RenderingInfo
    - name: log_source_field_type
      value: Body
    - name: log_body_source_field
      value: ""
    - name: log_target_field_type
      value: Body
    - name: log_body_target_field
      value: ""

Related Resources

• RemoveXML — OTTL function reference

Bindplane Resources

These XML and slice processors are designed to work together. Chain them to normalize, parse, and reshape XML end to end:

• Convert XML Attributes To Elements
• Convert XML Text To Elements
• Insert XML Elements
• Parse Simplified XML
• Slice to Map
• Get XML
