Mask Sensitive Data (Deprecated)

NOTE

As of Bindplane v1.94.0 this processor has been deprecated and replaced by the Redact Sensitive Data processor. While it will continue to function, it will no longer receive any enhancements and you should migrate to Redact Sensitive Data.

Description

The Mask Sensitive Data processor can be used to detect and mask sensitive data.

Supported Types

Metrics	Logs	Traces
✓	✓	✓

Configuration Table

Parameter	Type	Default	Description
telemetry_types	strings	[Metrics, Logs, Traces]	Which types of telemetry to apply masking rules to.
default_rules	enums	See default rules	Commonly used masking rules.
custom_rules	map	See custom rules	Create custom rules with the key being the rule name and the value being a regular expression to match against.
exclude_resource_keys	strings		A list of resource keys to exclude from masking.
exclude_attribute_keys	strings		A list of attribute keys to exclude from masking.
exclude_body_keys	strings		A list of log body keys to exclude from masking.

*required field

Default Rules Values

• Credit Card: \b(?:(?:(?:\d{4}[- ]?){3}\d{4}|\d{15,16}))\b
• Date of Birth: \b(0?[1-9]|1[0-2])\/(0?[1-9]|[12]\d|3[01])\/(?:\d{2})?\d{2}\b
• Email: \b[a-zA-Z0-9._\/\+\-—|]+@[A-Za-z0-9.\-—|]+\.?[a-zA-Z|]{0,6}\b
• International Bank Account Number (IBAN): \b[A-Z]{2}\d{2}[A-Z\d]{1,30}\b
• IPv4 Address: \b(?:[0-9]{1,3}\.){3}[0-9]{1,3}\b
• IPv6 Address: \b(?:[0-9a-fA-F]{1,4}:){7}[0-9a-fA-F]{1,4}\b
• MAC Address: \b([0-9A-Fa-f]{2}[:-]){5}[0-9A-Fa-f]{2}\b
• Phone Number: \b((\+|\b)[1l][\-\. ])?\(?\b[\dOlZSB]{3,5}([\-\. ]|\) ?)[\dOlZSB]{3}[\-\. ][\dOlZSB]{4}\b
• Social Security Number (SSN): \b\d{3}[- ]\d{2}[- ]\d{4}\b
• US City, State: \b[A-Z][A-Za-z\s\.]+,\s{0,1}[A-Z]{2}\b
• US Street Address: \b\d+\s[A-z]+\s[A-z]+(\s[A-z]+)?\s*\d*\b
• US Zipcode: \b\d{5}(?:[-\s]\d{4})?\b
• UUID/GUID: \b[a-fA-F0-9]{8}-[a-fA-F0-9]{4}-4[a-fA-F0-9]{3}-[8|9|aA|bB][a-fA-F0-9]{3}-[a-fA-F0-9]{12}\b

Example Configuration

Basic Configuration

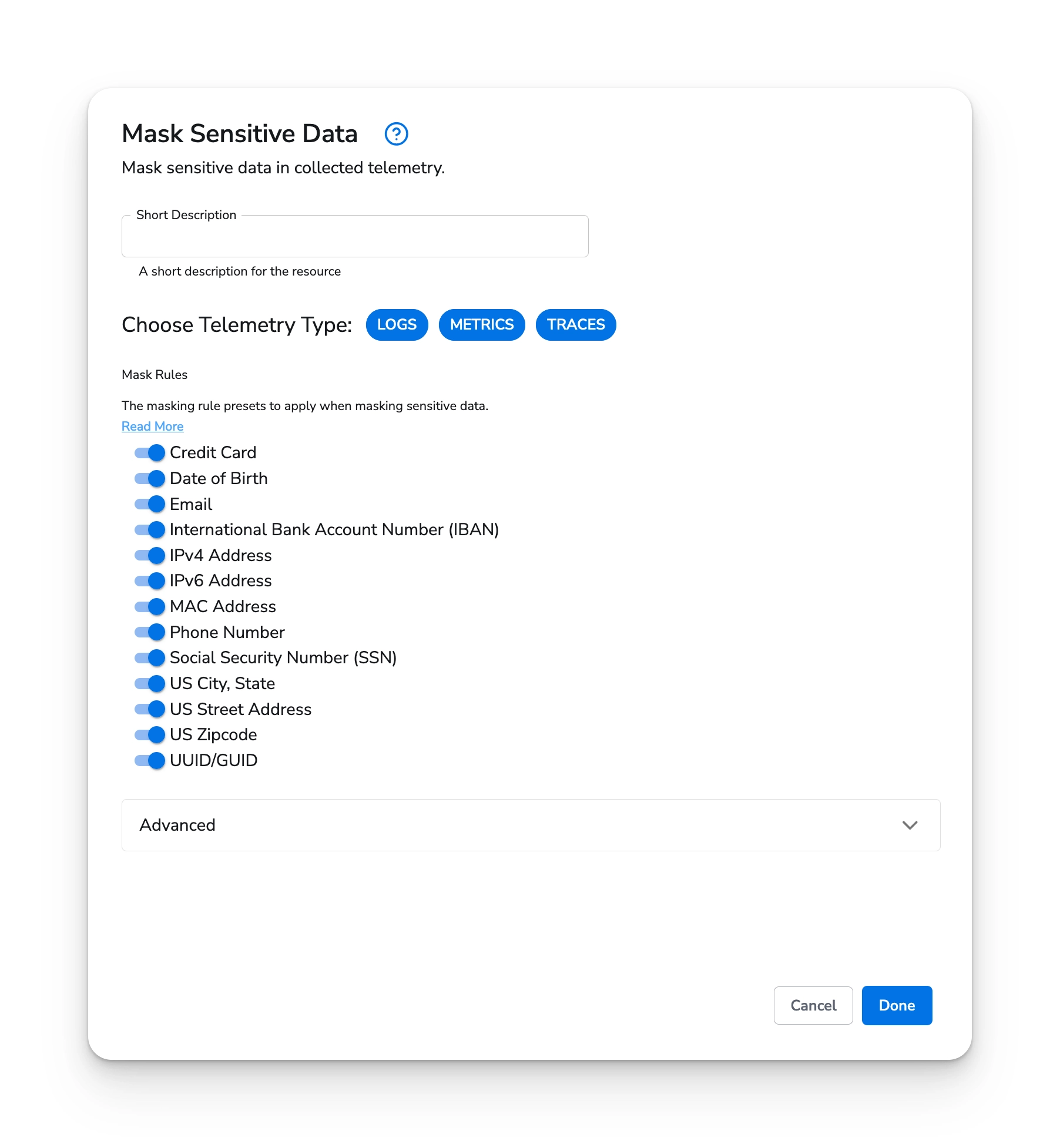

Below is an example of configuration using the defaults.

Web Interface

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  id: mask_sensitive_data
  name: mask_sensitive_data
spec:
  type: mask_sensitive_data
  parameters:
    - name: telemetry_types
      value: ['Metrics', 'Logs', 'Traces']

Custom Rules Values

Here you can add custom rules for masking. The Key is the name of the rule and the Value is the regular expression to match against.

Example

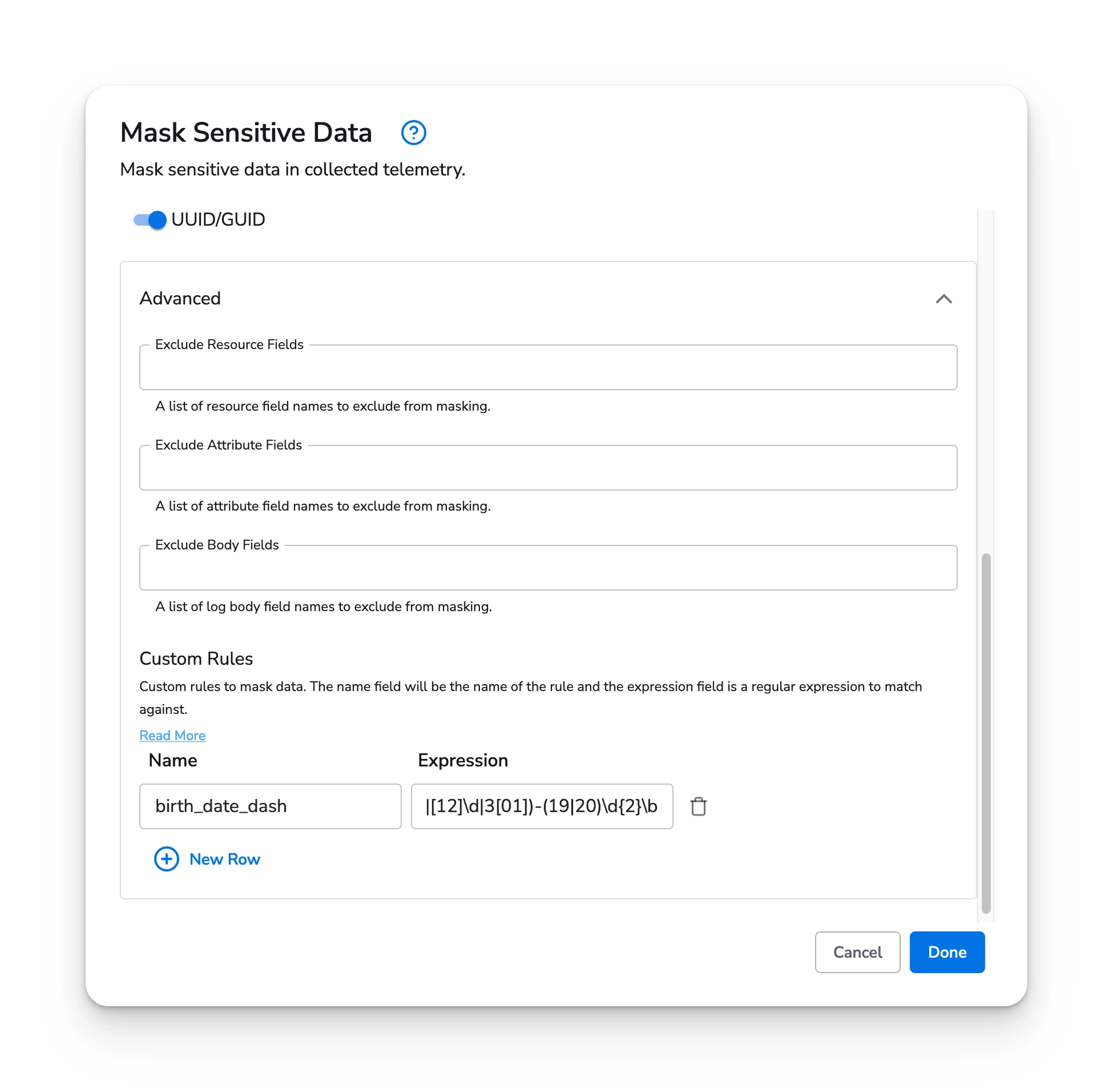

The default rule for Date of Birth masking would not match against a date that is separated by dashes, e.g 01-01-1990, but we can include a stricter regular expression in the Custom Rules parameter. Here we created a rule called birth_date_dash with value \b(0[1-9]|1[0-2])-(0[1-9]|[12]\d|3[01])-(19|20)\d{2}\b. This will match against dates separated by dashes.

Web Interface

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  id: mask_sensitive_data
  name: mask_sensitive_data
spec:
  type: mask_sensitive_data
  parameters:
    - name: telemetry_types
      value: ["Metrics", "Logs", "Traces"]
    - name: custom_rules
      value:
      	birth_date_dash: \b(0[1-9]|1[0-2])-(0[1-9]|[12]\d|3[01])-(19|20)\d{2}\b

Exclusions

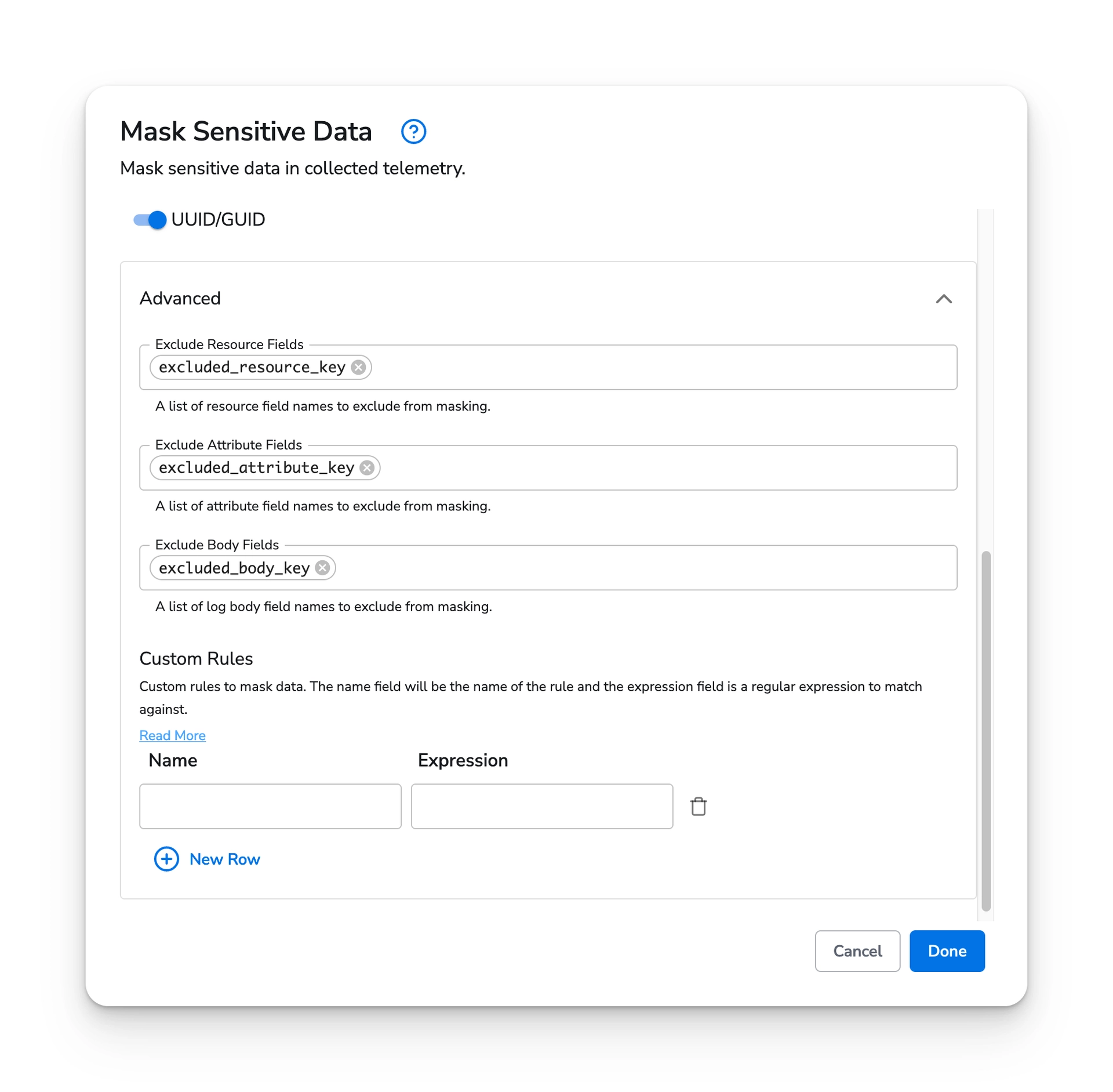

You can exclude fields from being masked based on their key by specifying excluded keys in the body, resources, or attributes respectively.

Web Interface

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  id: mask_sensitive_data
  name: mask_sensitive_data
spec:
  type: mask_sensitive_data
  parameters:
    - name: telemetry_types
      value: ['Metrics', 'Logs', 'Traces']
    - name: exclude_resource_keys
      value: ['excluded_resource_key']
    - name: exclude_attribute_keys
      value: ['excluded_attribute_key']
    - name: exclude_body_keys
      value: ['excluded_body_key']
