Parse Simplified XML

Parses an XML string into a structured map you can address by field, the way Parse JSON does for JSON. Attributes are not parsed, only elements and their text.

Supported Telemetry Types

Logs	Metrics	Traces
✓	✓	✓

Choose Telemetry Type picks one signal per processor instance. Add another instance to handle a second signal.

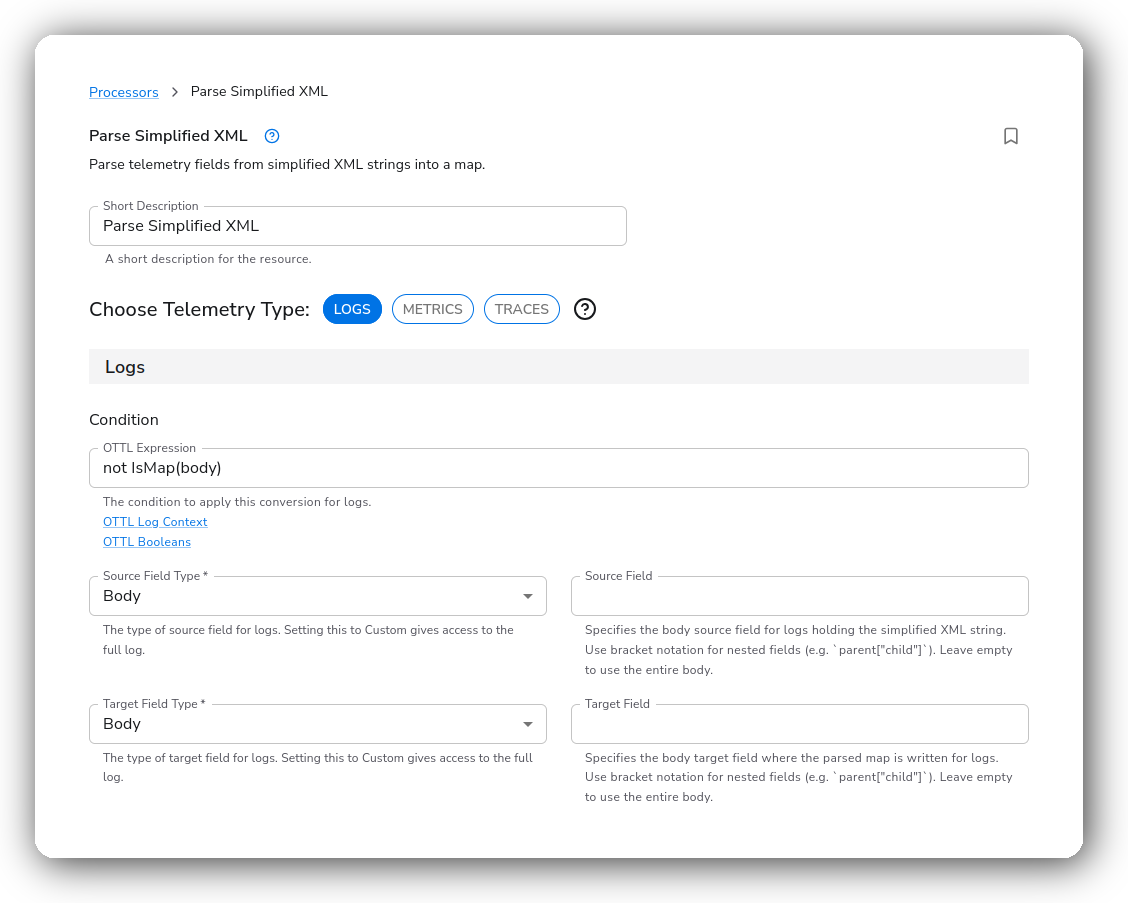

Configuration

Basic Configuration

When to apply

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Telemetry Selector	Yes	Logs	The signal this instance runs on: Logs, Metrics, or Traces (one at a time).
Condition	OTTL Condition	No	(empty)	Parse only the records that match. A not IsMap(body) guard avoids re-parsing a record whose body is already a map.

Source and target fields

Parameter	Type	Required	Default	Description
Source Field Type	Enum: Resource, Attribute, Body, Custom	Yes	Attribute	Where the XML string is read from. Body is logs-only. Custom takes any OTTL path.
Source Field	OTTL Field	Yes *	—	The field holding the XML. Bracket notation for nested fields. For a Body source, leave empty to use the whole body.
Target Field Type	Enum: Resource, Attribute, Body, Custom	Yes	Attribute	Where the parsed map is written. Body is logs-only.
Target Field	OTTL Field	Yes *	—	Destination for the parsed map. If the target already holds a map, the parsed keys are merged into it; otherwise the target is set to the parsed map. For a Body target, leave empty to use the whole body.

* The Body field type is the exception: it's optional, and leaving it empty targets the entire body.

Body is available for Logs only. For Metrics and Traces, the field type options are Resource, Attribute, and Custom.

Examples

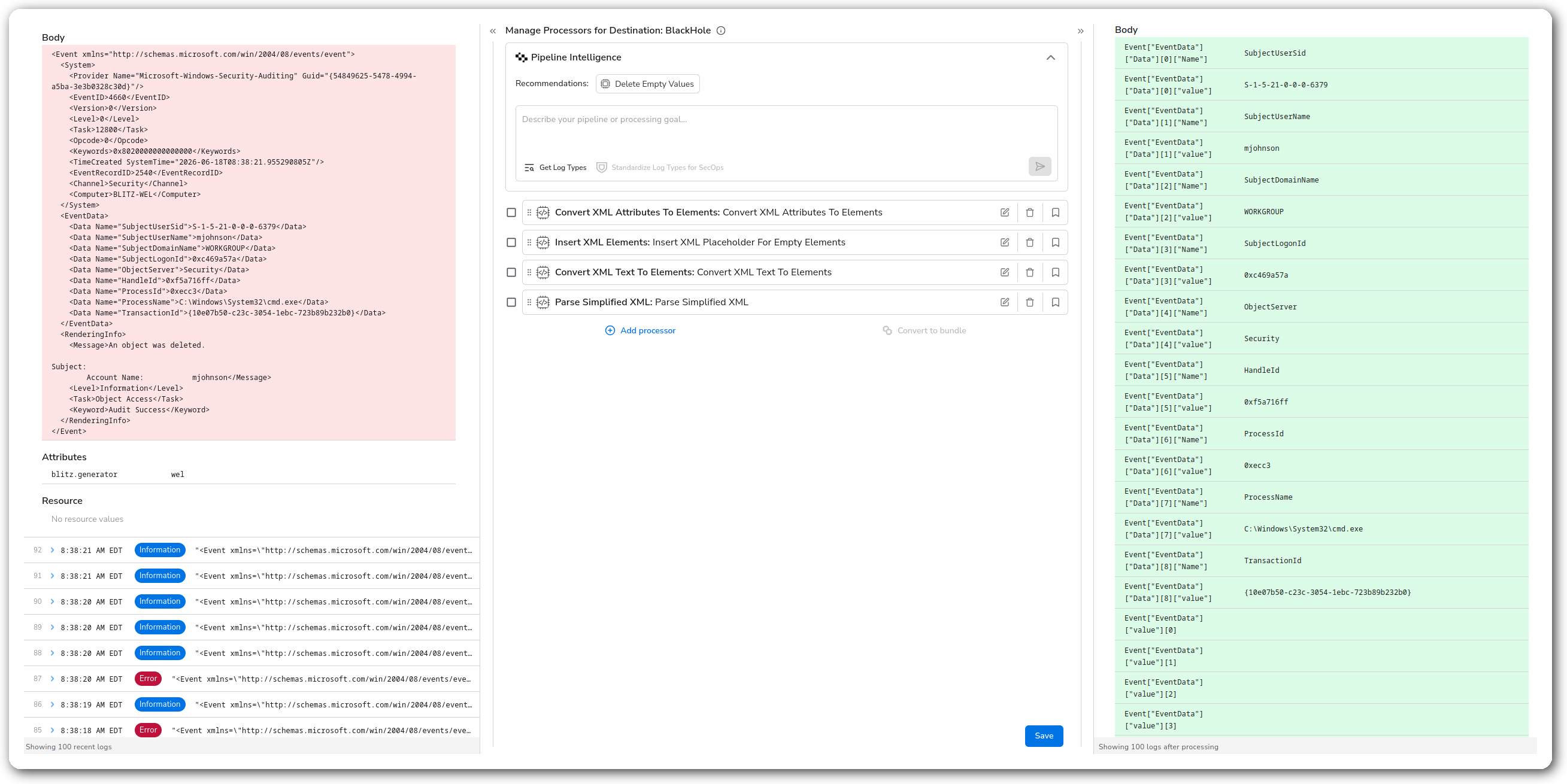

Parse normalized Windows Event XML into a nested map

Configuration Tips

• Attributes are dropped. If the XML carries meaningful attribute values, run Convert XML Attributes To Elements first.
• Empty elements can be lost. Back-fill them with Insert XML Elements (for example into //Data[not(text())]) before parsing if those values matter.

Troubleshooting

Nothing gets parsed

Symptoms: the target field is unchanged or empty after the processor runs.

Solutions:

1. Confirm the source field holds a valid XML string and the Condition evaluates true.
2. If you used a not IsMap(...) guard, make sure the target isn't already a map from an earlier step.

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: parse-simplified-xml
spec:
  type: parse_simple_xml
  parameters:
    - name: telemetry_types
      value: Logs
    - name: log_condition
      value: not IsMap(body)
    - name: log_source_field_type
      value: Body
    - name: log_body_source_field
      value: ""
    - name: log_target_field_type
      value: Body
    - name: log_body_target_field
      value: ""

Related Resources

• ParseSimplifiedXML — OTTL function reference

Bindplane Resources

These XML and slice processors are designed to work together. Chain them to normalize, parse, and reshape XML end to end:

• Convert XML Attributes To Elements
• Convert XML Text To Elements
• Insert XML Elements
• Slice to Map
• Get XML
• Remove XML
