# Get XML

Extracts the XML node(s) matching an XPath from an XML string and writes them to a field you choose. The result is an XML string, so chain Parse Simplified XML after it if you want structured fields.

### Supported Telemetry Types

| Logs | Metrics | Traces |
| ---- | ------- | ------ |
| ✓    | ✓       | ✓      |

Choose Telemetry Type picks one signal per processor instance. Add another instance to handle a second signal.

### Configuration

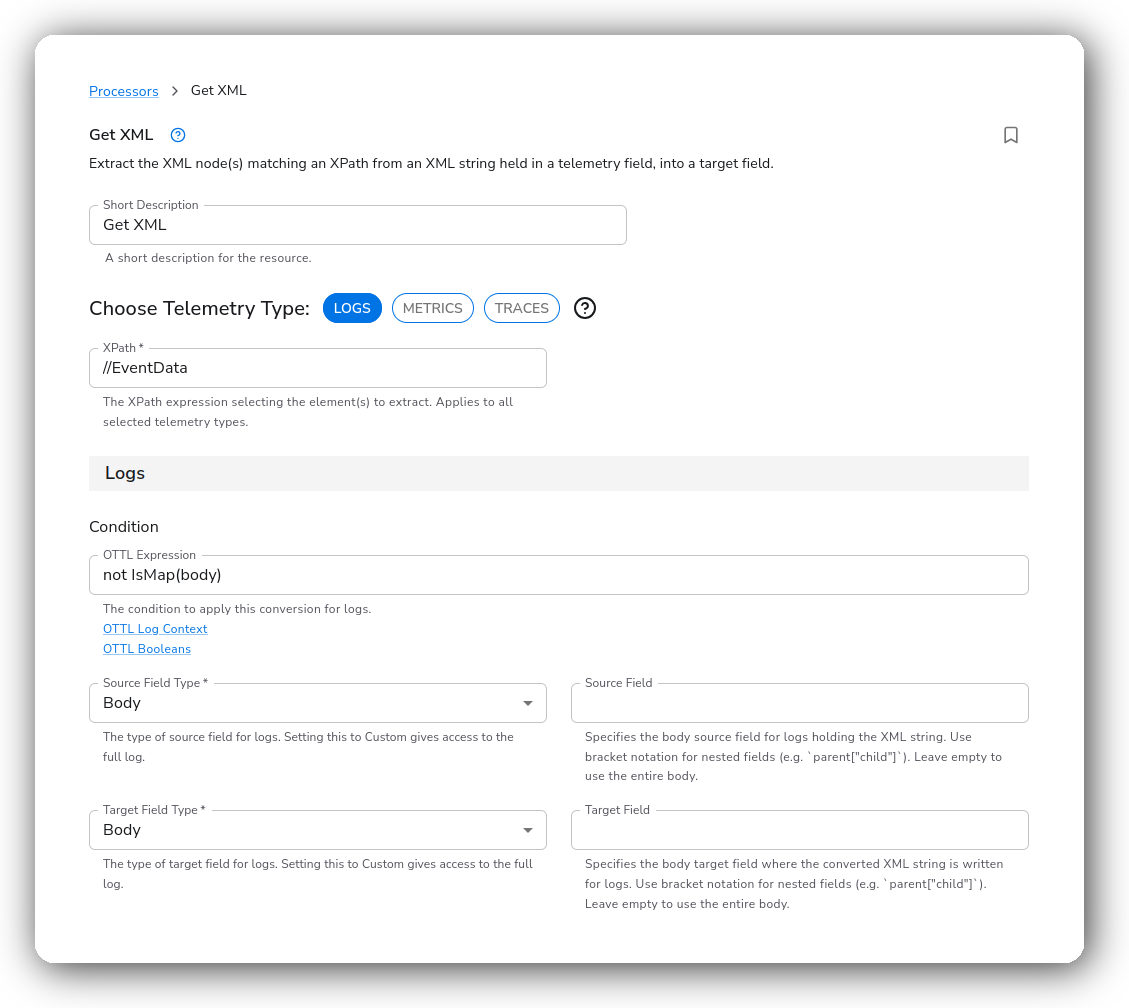

#### Basic Configuration

<figure><img src="/files/DkzfQmhuK8oZLdRhbmoq" alt="Bindplane docs - Get XML - image 1"><figcaption></figcaption></figure>

**Selection**

| Parameter             | Type               | Required | Default   | Description                                                                             |
| --------------------- | ------------------ | -------- | --------- | --------------------------------------------------------------------------------------- |
| Choose Telemetry Type | Telemetry Selector | Yes      | Logs      | The signal this instance runs on: Logs, Metrics, or Traces (one at a time).             |
| XPath                 | String             | Yes      | —         | The XPath selecting the element(s) to extract. Applies to all selected telemetry types. |
| Condition             | OTTL Condition     | No       | *(empty)* | Extract only from records that match. Empty runs on every record.                       |

**Source and target fields**

| Parameter         | Type                                    | Required | Default   | Description                                                                                                          |
| ----------------- | --------------------------------------- | -------- | --------- | -------------------------------------------------------------------------------------------------------------------- |
| Source Field Type | Enum: Resource, Attribute, Body, Custom | Yes      | Attribute | Where the XML string is read from. **Body is logs-only.** Custom takes any OTTL path.                                |
| Source Field      | OTTL Field                              | Yes \*   | —         | The field holding the XML. Bracket notation for nested fields. For a Body source, leave empty to use the whole body. |
| Target Field Type | Enum: Resource, Attribute, Body, Custom | Yes      | Attribute | Where the extracted XML is written. **Body is logs-only.**                                                           |
| Target Field      | OTTL Field                              | Yes \*   | —         | Destination for the extracted XML. For a Body target, leave empty to use the whole body.                             |

\* The **Body** field type is the exception: it's optional, and leaving it empty targets the entire body.

**Body is available for Logs only.** For Metrics and Traces, the field type options are Resource, Attribute, and Custom.

### Examples

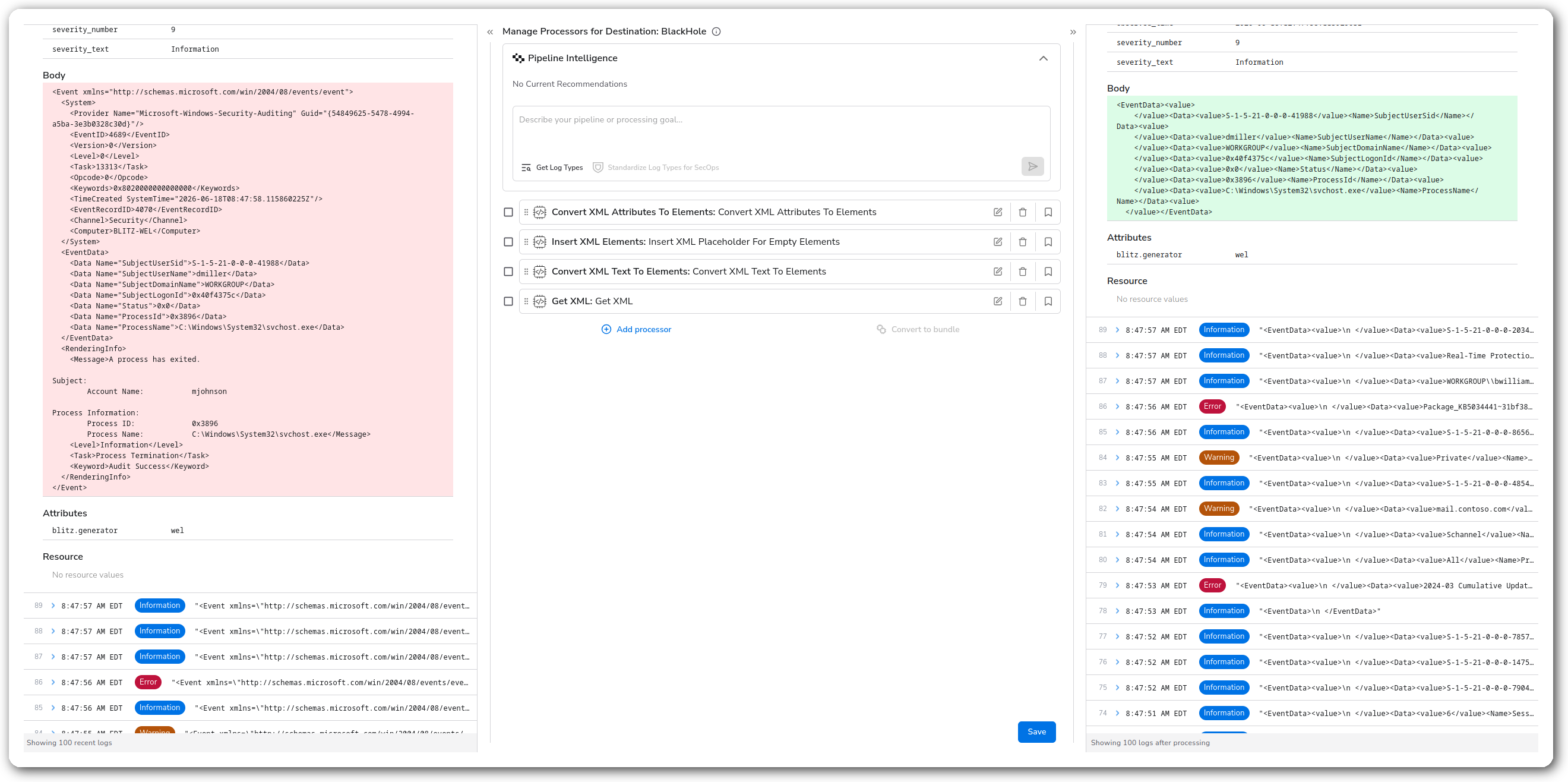

#### Pull a subtree out for focused processing

<figure><img src="/files/refP38TB7ZwZ12duNtut" alt="Bindplane docs - Get XML - image 2"><figcaption></figcaption></figure>

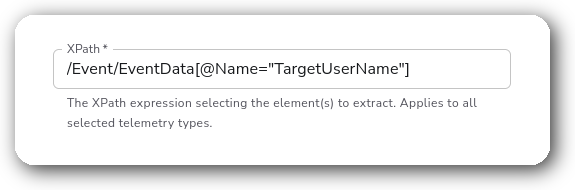

#### XPath with a quoted predicate

<figure><img src="/files/027lw7yTkRunUULVcbOD" alt="Bindplane docs - Get XML - image 3"><figcaption></figcaption></figure>

Predicates often contain quoted strings. Enter the XPath exactly as written; embedded quotes are escaped safely when the config is generated, so they won't break the statement.

### Configuration Tips

* The result is an XML string. Chain **Parse Simplified XML** afterward to get addressable fields.

### Troubleshooting

#### The target field is empty

Symptoms: nothing is written to the target.

Solutions:

1. Verify the XPath matches at least one node in the source document.
2. Confirm the source field holds valid XML and the Condition evaluates true.

### Standalone Processor

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: get-xml
spec:
  type: get_xml
  parameters:
    - name: telemetry_types
      value: Logs
    - name: log_condition
      value: not IsMap(body)
    - name: xpath
      value: //EventData
    - name: log_source_field_type
      value: Body
    - name: log_body_source_field
      value: ""
    - name: log_target_field_type
      value: Body
    - name: log_body_target_field
      value: ""
```

### Related Resources

* [GetXML — OTTL function reference](https://github.com/open-telemetry/opentelemetry-collector-contrib/blob/main/pkg/ottl/ottlfuncs/README.md#getxml)

### Bindplane Resources

These XML and slice processors are designed to work together. Chain them to normalize, parse, and reshape XML end to end:

* [Convert XML Attributes To Elements](/integrations/processors/convert-xml-attributes-to-elements.md)
* [Convert XML Text To Elements](/integrations/processors/convert-xml-text-to-elements.md)
* [Insert XML Elements](/integrations/processors/insert-xml-elements.md)
* [Parse Simplified XML](/integrations/processors/parse-simplified-xml.md)
* [Slice to Map](/integrations/processors/slice-to-map.md)
* [Remove XML](/integrations/processors/remove-xml.md)


---
