Convert XML Text To Elements

Wraps the text inside XML elements in their own child elements, so mixed-content XML parses into clean, predictable fields. The output is still an XML string.

Supported Telemetry Types

Logs	Metrics	Traces
✓	✓	✓

Choose Telemetry Type picks one signal per processor instance. Add another instance to handle a second signal.

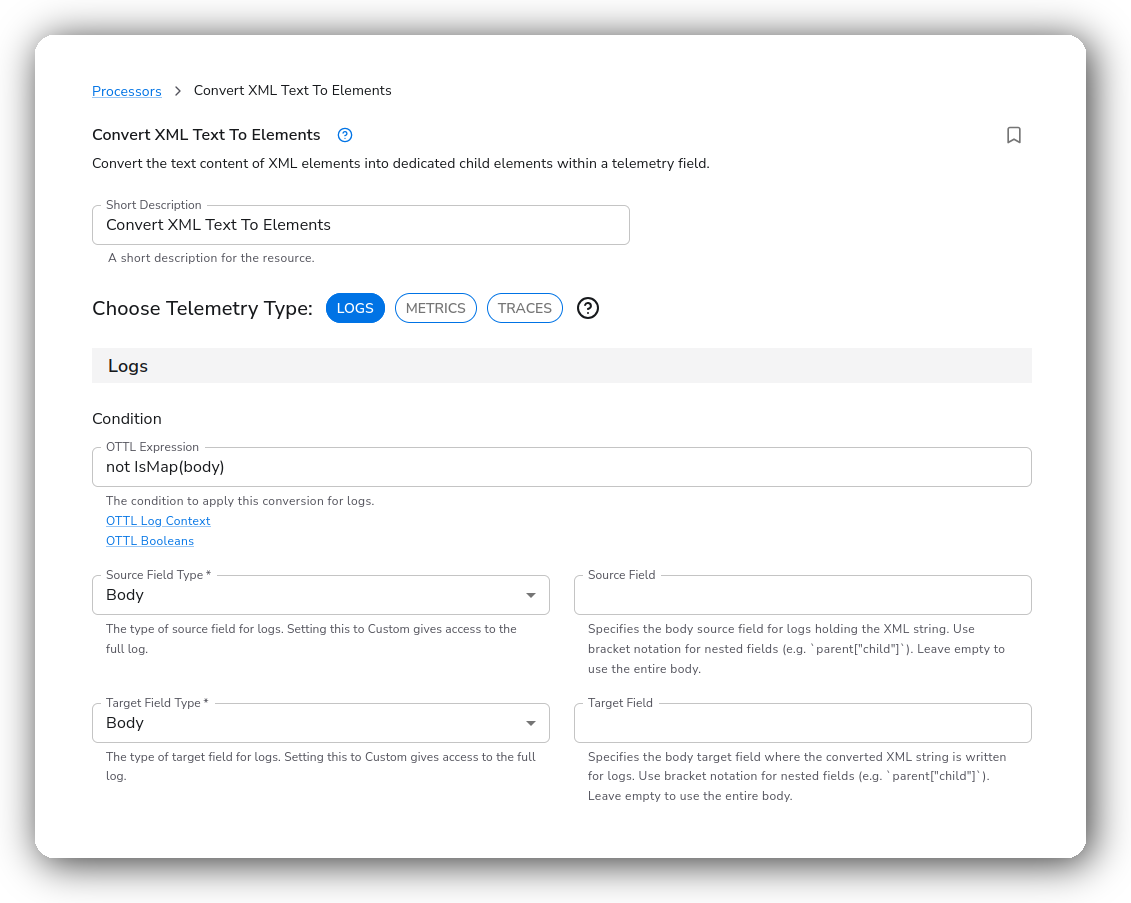

Configuration

Basic Configuration

When to apply

Parameter	Type	Required	Default	Description
Choose Telemetry Type	Telemetry Selector	Yes	Logs	The signal this instance runs on: Logs, Metrics, or Traces (one at a time).
Condition	OTTL Condition	No	(empty)	Convert only the records that match. Empty runs on every record.

Source and target fields

Parameter	Type	Required	Default	Description
Source Field Type	Enum: Resource, Attribute, Body, Custom	Yes	Attribute	Where the XML string is read from. Body is logs-only. Custom takes any OTTL path (full-record access).
Source Field	OTTL Field	Yes *	—	The field holding the XML. Use bracket notation for nested fields (parent["child"]). For a Body source, leave empty to use the whole body.
Target Field Type	Enum: Resource, Attribute, Body, Custom	Yes	Attribute	Where the converted XML is written. Body is logs-only.
Target Field	OTTL Field	Yes *	—	Destination for the converted XML. Point it at the source field to convert in place. For a Body target, leave empty to use the whole body.

* The Body field type is the exception: it's optional, and leaving it empty targets the entire body.

Body is available for Logs only. For Metrics and Traces, the field type options are Resource, Attribute, and Custom.

Examples

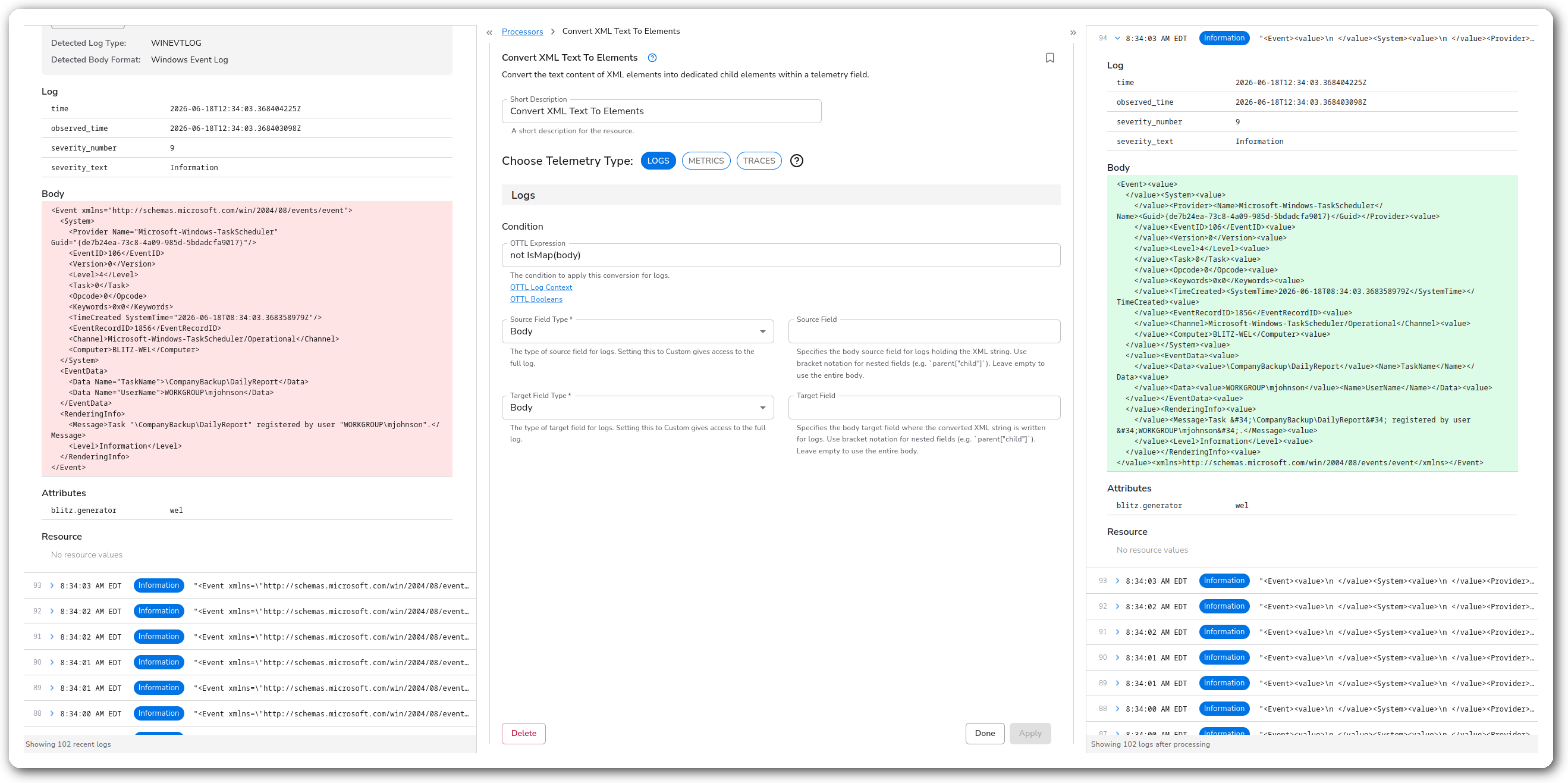

Mixed content normalized into child elements

The transformation in action: the text content of an XML element moves into a dedicated child element, so a later parse yields clean key/value pairs instead of mixed content.

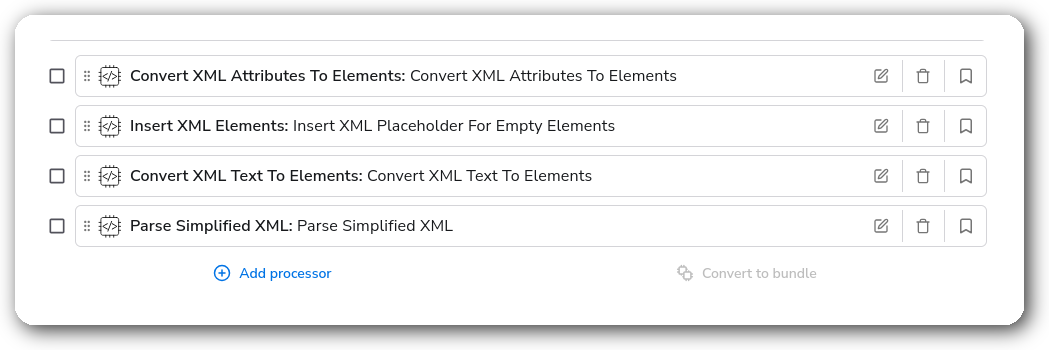

Chained ahead of Parse Simplified XML

This is a string-to-string step, so it sits directly before Parse Simplified XML, normalizing the XML so the parse produces predictable fields.

Configuration Tips

• This is a string-to-string step. To turn the result into addressable fields, chain Parse Simplified XML after it.

Troubleshooting

The output looks unchanged

Symptoms: the target field still holds the original XML.

Solutions:

1. Confirm the source field holds an XML string, not an already-parsed map.
2. Check the Condition. If it evaluates false for a record, the processor passes that record through untouched.

Standalone Processor

apiVersion: bindplane.observiq.com/v1
kind: Processor
metadata:
  name: convert-xml-text
spec:
  type: xml_text_to_elements
  parameters:
    - name: telemetry_types
      value: Logs
    - name: log_condition
      value: not IsMap(body)
    - name: log_source_field_type
      value: Body
    - name: log_body_source_field
      value: ""
    - name: log_target_field_type
      value: Body
    - name: log_body_target_field
      value: ""

Related Resources

• ConvertTextToElementsXML — OTTL function reference

Bindplane Resources

These XML and slice processors are designed to work together. Chain them to normalize, parse, and reshape XML end to end:

• Convert XML Attributes To Elements
• Insert XML Elements
• Parse Simplified XML
• Slice to Map
• Get XML
• Remove XML
