# Health Check

Adds an HTTP health endpoint to the Bindplane collector that external systems can probe to check whether the agent is running. It is a collector-level capability, not part of the telemetry pipeline, so it neither receives nor processes telemetry. The endpoint is commonly wired to Kubernetes liveness and readiness probes, load-balancer health checks, or any external monitor that needs a simple up/down signal. The collector serves the configured path (default `/`) on the configured address and port (default `0.0.0.0:13133`), returning a healthy or unhealthy response.

### Configuration

#### Basic Configuration

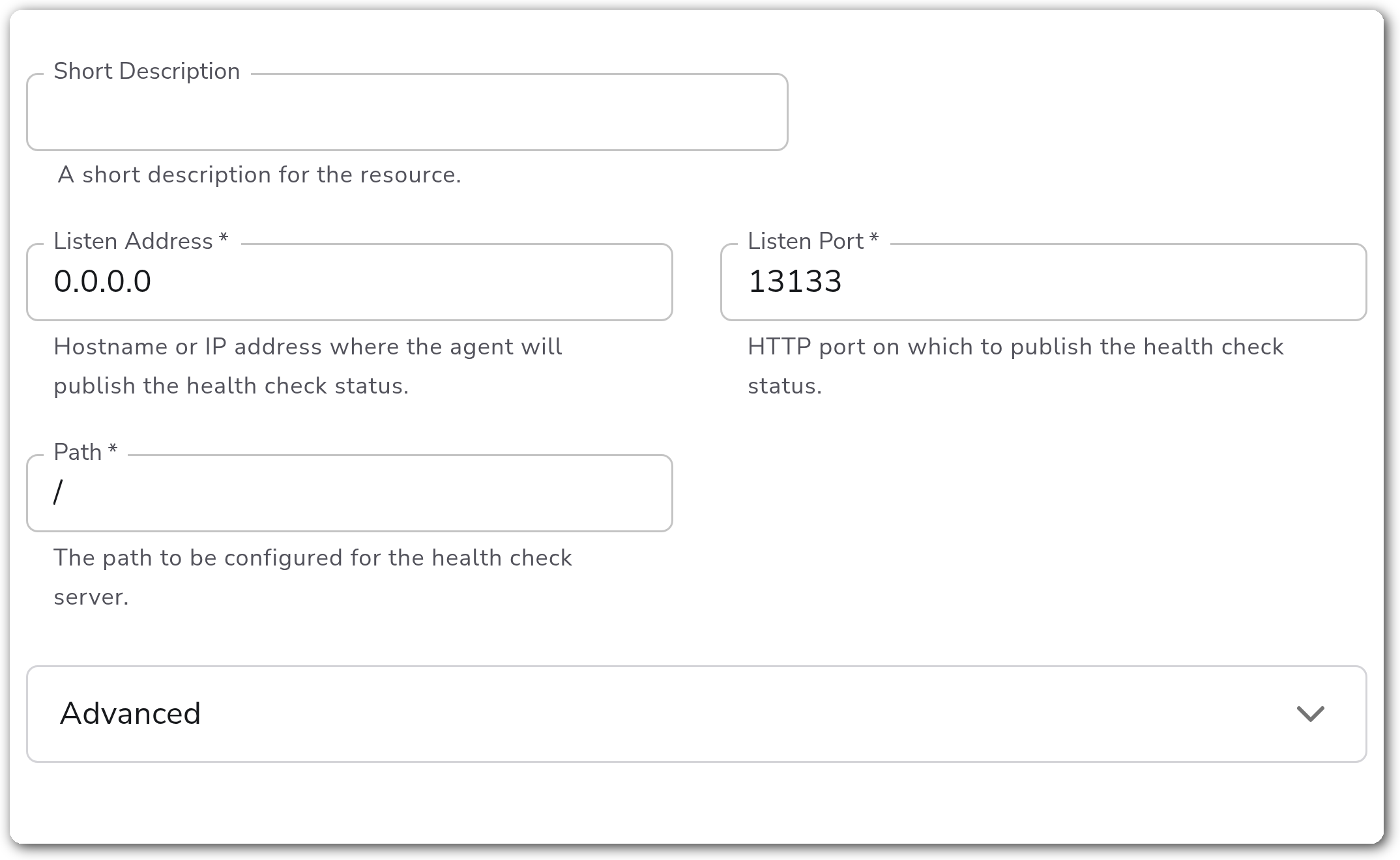

<figure><img src="/files/9Gz8fZZuhowZzv8g1KlJ" alt="Bindplane docs - Health Check - image 1"><figcaption></figcaption></figure>

**Endpoint**

| Parameter      | Type    | Required | Default   | Description                                                                                                    |
| -------------- | ------- | -------- | --------- | -------------------------------------------------------------------------------------------------------------- |
| Listen Address | String  | Yes      | `0.0.0.0` | Hostname or IP address where the agent publishes the health check status. `0.0.0.0` listens on all interfaces. |
| Listen Port    | Integer | Yes      | `13133`   | HTTP port on which to publish the health check status.                                                         |
| Path           | String  | Yes      | `/`       | The path the health check server serves. Probes request this path on the listen address and port.              |

**Advanced — Response Bodies**

| Parameter               | Type   | Required | Default   | Description                                                                             |
| ----------------------- | ------ | -------- | --------- | --------------------------------------------------------------------------------------- |
| Healthy Response Body   | String | No       | *(empty)* | A static body that overrides the default response returned when the agent is healthy.   |
| Unhealthy Response Body | String | No       | *(empty)* | A static body that overrides the default response returned when the agent is unhealthy. |

**Advanced — TLS**

| Parameter                             | Type    | Required | Default   | Description                                                                                                         |
| ------------------------------------- | ------- | -------- | --------- | ------------------------------------------------------------------------------------------------------------------- |
| Enable TLS                            | Boolean | No       | `false`   | Whether to serve the health endpoint over TLS.                                                                      |
| Certificate File                      | String  | No       | *(empty)* | A TLS certificate used for authentication. Applies when Enable TLS is on.                                           |
| Private Key File                      | String  | No       | *(empty)* | A TLS private key used for authentication. Applies when Enable TLS is on.                                           |
| Mutual TLS                            | Boolean | No       | `false`   | Whether to require mutual TLS authentication. Applies when Enable TLS is on.                                        |
| Mutual TLS Certificate Authority File | String  | No       | *(empty)* | Certificate authority used to validate client TLS certificates. Applies when Enable TLS and Mutual TLS are both on. |

### Examples

#### TLS-protected health endpoint on a custom path

This example exercises the advanced parameters by serving the health endpoint over TLS on a dedicated path. It sets **Enable TLS** with a **Certificate File** and **Private Key File**, and serves the check at `/healthz` so a load balancer probing `https://<host>:13133/healthz` gets an authenticated response.

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Extension
metadata:
  name: health-check
spec:
  type: health_check
  parameters:
    - name: listen_address
      value: 0.0.0.0
    - name: listen_port
      value: 13133
    - name: path
      value: /healthz
    - name: enable_tls
      value: true
    - name: cert_file
      value: /etc/otel/certs/server.crt
    - name: key_file
      value: /etc/otel/certs/server.key
```

### Configuration Tips

* In Kubernetes, point liveness and readiness probes at the configured Path and Listen Port, and keep Listen Address at `0.0.0.0` so the probe reaches the container.
* Use Healthy Response Body and Unhealthy Response Body when a load balancer or monitor expects a specific marker string rather than the default response.
* Enable Mutual TLS only when the probing client can present a client certificate; otherwise probes will fail TLS handshake.

### Troubleshooting

#### Probes report the collector as down

Symptoms: a liveness/readiness probe or load-balancer health check fails even though the collector is running.

Solutions:

1. Confirm the probe targets the configured Path, Listen Port, and scheme (`http` vs `https` when TLS is enabled).
2. Verify Listen Address is reachable from the prober. `0.0.0.0` listens on all interfaces; a specific address may not be routable from outside the host or pod.

#### TLS handshake errors

Symptoms: probes fail with TLS or certificate errors after enabling TLS.

Solutions:

1. Check that Certificate File and Private Key File paths exist and are readable by the collector.
2. When Mutual TLS is on, ensure the client presents a certificate signed by the configured Mutual TLS Certificate Authority File.

### Standalone Extension

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Extension
metadata:
  name: health-check
spec:
  type: health_check
  parameters:
    - name: listen_address
      value: 0.0.0.0
    - name: listen_port
      value: 13133
    - name: path
      value: /
```

### Related Resources

* [Health Check Extension — OpenTelemetry Collector Contrib reference](https://github.com/open-telemetry/opentelemetry-collector-contrib/blob/main/extension/healthcheckextension/README.md)


---
