# Rapid7 InsightIDR

The InsightIDR destination forwards logs from Bindplane to [Rapid7 InsightIDR](https://docs.rapid7.com/insightidr/), Rapid7's cloud SIEM and XDR platform. Logs are delivered over syslog to an [InsightIDR Collector](https://docs.rapid7.com/insightidr/the-insight-collector/) that you run in your environment, which then forwards events to the InsightIDR platform.

### Supported Telemetry Types

| Platform | Metrics | Logs | Traces |
| -------- | ------- | ---- | ------ |
| Linux    |         | ✓    |        |
| Windows  |         | ✓    |        |
| macOS    |         | ✓    |        |

### Prerequisites

* A running [InsightIDR Collector](https://docs.rapid7.com/insightidr/the-insight-collector/) reachable from the Bindplane collector.
* A syslog event source configured on the InsightIDR Collector, with its listening host/port and transport protocol (TCP or UDP).
* If using TCP with TLS, the InsightIDR event source must be configured to accept TLS, and any required certificate files must be available on the Bindplane collector host.

### Configuration

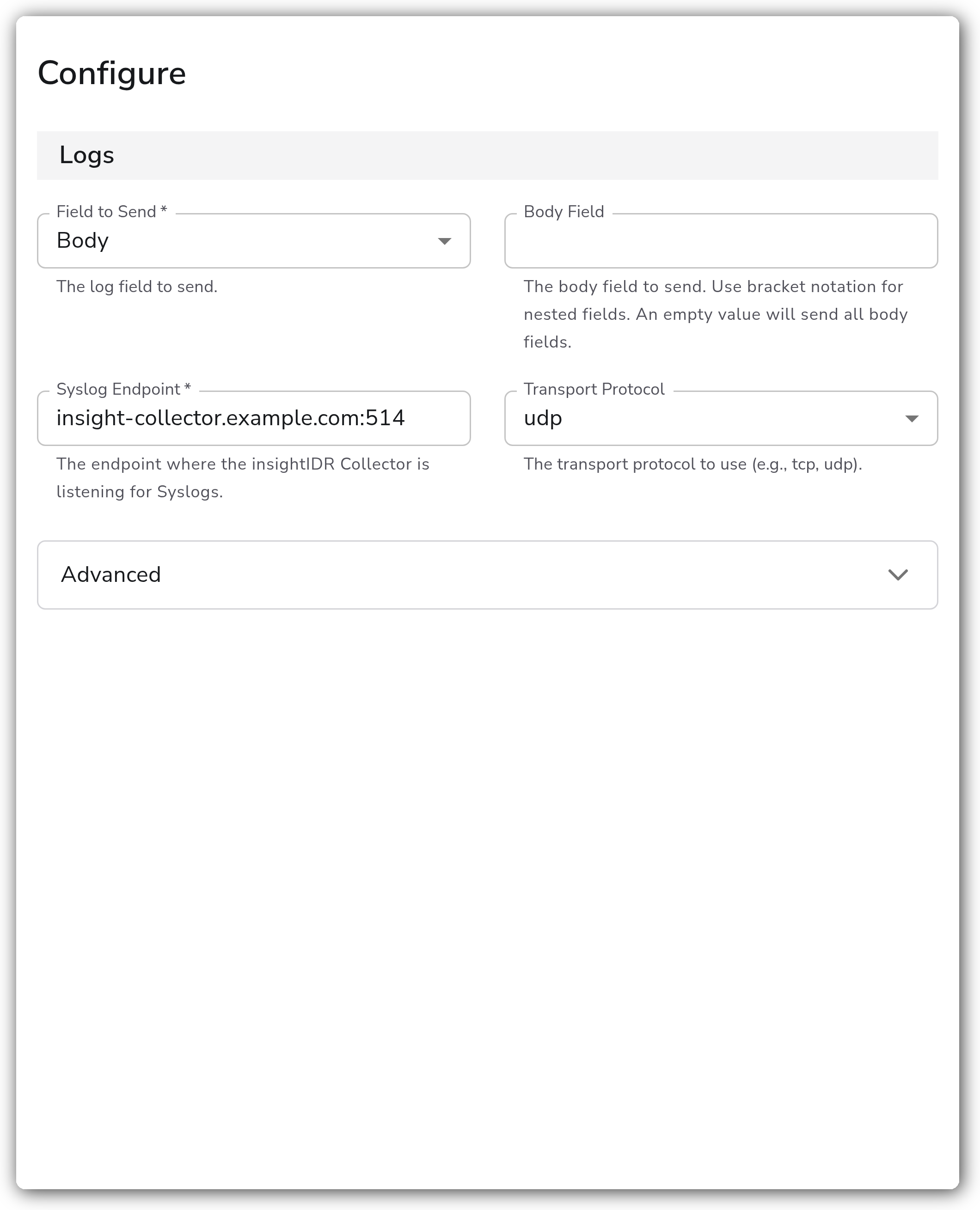

<figure><img src="/files/7j5YSbAuJcNk3iAmyU6G" alt="Bindplane docs - Rapid7 InsightIDR - image 1"><figcaption></figcaption></figure>

#### Logs

| Parameter        | Type       | Default | Description                                                                                                                                               |
| ---------------- | ---------- | ------- | --------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Field to Send    | Enum       | `Body`  | Required. The log field to send. One of `Attributes` or `Body`.                                                                                           |
| Attributes Field | OTTL Field |         | The attributes field to send. Use bracket notation for nested fields. An empty value sends all attribute fields. Applies when `raw_base` is `Attributes`. |
| Body Field       | OTTL Field |         | The body field to send. Use bracket notation for nested fields. An empty value sends all body fields. Applies when `raw_base` is `Body`.                  |

#### insightIDR Configuration

| Parameter          | Type   | Default | Description                                                                    |
| ------------------ | ------ | ------- | ------------------------------------------------------------------------------ |
| Syslog Endpoint    | String |         | Required. The endpoint where the InsightIDR Collector is listening for syslog. |
| Transport Protocol | Enum   | `udp`   | The transport protocol to use. One of `tcp` or `udp`.                          |

#### Advanced

| Parameter     | Type    | Default | Description                                                                                      |
| ------------- | ------- | ------- | ------------------------------------------------------------------------------------------------ |
| Drop Raw Copy | Boolean | `true`  | When enabled, the raw copy of the log stored in `log.record.original` is dropped before sending. |

#### TLS

TLS applies only when `insight_transport` is `tcp`.

| Parameter                         | Type    | Default | Description                                                                              |
| --------------------------------- | ------- | ------- | ---------------------------------------------------------------------------------------- |
| Enable TLS                        | Boolean | `false` | Whether or not to use TLS. Applies when `insight_transport` is `tcp`.                    |
| Skip TLS Certificate Verification | Boolean | `false` | Skip TLS certificate verification. Applies when TLS is enabled.                          |
| TLS Certificate File              | String  |         | Path to the x509 PEM certificate (required for Mutual TLS). Applies when TLS is enabled. |
| TLS Private Key File              | String  |         | Path to the x509 PEM private key (required for Mutual TLS). Applies when TLS is enabled. |
| TLS Certificate Authority File    | String  |         | Path to the x509 PEM certificate authority file. Applies when TLS is enabled.            |

#### Retry on Failure

| Parameter               | Type    | Default | Description                                                                                                                              |
| ----------------------- | ------- | ------- | ---------------------------------------------------------------------------------------------------------------------------------------- |
| Enable Retry on Failure | Boolean | `true`  | Attempt to resend logs that have failed to be transmitted to the destination.                                                            |
| Initial Interval        | Integer | `5`     | Time (in seconds) to wait after the first failure before retrying. Applies when retry is enabled.                                        |
| Max Interval            | Integer | `30`    | The upper bound (in seconds) on backoff. Applies when retry is enabled.                                                                  |
| Max Elapsed Time        | Integer | `300`   | The maximum amount of time (in seconds) spent trying to send a batch, to avoid a never-ending retry loop. Applies when retry is enabled. |

#### Sending Queue

| Parameter                 | Type      | Default                         | Description                                                                                                                                                      |
| ------------------------- | --------- | ------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Enable Sending Queue      | Boolean   | `true`                          | Buffer logs temporarily before sending to help ensure data is not lost during a temporary network outage.                                                        |
| Number of Consumers       | Integer   | `10`                            | Number of consumers that dequeue batches. Applies when the sending queue is enabled.                                                                             |
| Queue Size                | Integer   | `5000`                          | Maximum number of batches kept in memory before dropping. Applies when the sending queue is enabled.                                                             |
| Enable Persistent Queuing | Boolean   | `true`                          | Buffer telemetry to disk before sending to help ensure data is not lost during network outages or collector restarts. Applies when the sending queue is enabled. |
| Persistent Queue Storage  | Extension | `file_storage_persistent_queue` | Required. The storage to use for the persistent queue. Applies when the sending queue and persistent queuing are enabled.                                        |

### Example Configuration

#### Standalone Destination

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: insightidr
  name: insightidr
spec:
  type: insightidr
  parameters:
    - name: raw_base
      value: 'Body'
    - name: insight_endpoint
      value: 'insight-collector.example.com:514'
    - name: insight_transport
      value: 'udp'
    - name: drop_raw_copy
      value: 'true'
```

A TCP example with TLS enabled:

```yaml
apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: insightidr
  name: insightidr
spec:
  type: insightidr
  parameters:
    - name: raw_base
      value: 'Body'
    - name: insight_endpoint
      value: 'insight-collector.example.com:6514'
    - name: insight_transport
      value: 'tcp'
    - name: enable_tls
      value: 'true'
    - name: ca_file
      value: '/opt/observiq-otel-collector/insightidr-ca.crt'
```

### Configuration Tips

#### Choosing the field to send

* `raw_base` controls which part of the log record is sent to InsightIDR. Set it to `Body` to forward the log body (the default) or `Attributes` to forward record attributes.
* When you only need a specific subfield, set `raw_body` (or `raw_attributes`) using bracket notation. Leave it empty to send the entire body or attribute map.

#### Transport and TLS

* `insight_transport` defaults to `udp`. Match it to the protocol configured on the InsightIDR Collector's syslog event source.
* TLS is available only with `tcp`. Configure the InsightIDR event source to accept TLS first, then set `enable_tls` and supply the certificate files. Use `insecure_skip_verify` only for testing against a non-trusted certificate.

#### Reducing payload size

* Leave `drop_raw_copy` enabled (the default) to drop the `log.record.original` field before sending. Disable it only if you need the original raw copy forwarded to InsightIDR.

### Troubleshooting

**Symptom:** No events arrive in InsightIDR. **Solution:** Confirm `insight_endpoint` points at the InsightIDR Collector's syslog listener (host and port) and that `insight_transport` matches the event source's protocol. Verify the Bindplane collector can reach that host and port over the network.

**Symptom:** TLS connection fails or certificates are rejected. **Solution:** TLS only applies to `tcp` transport. Confirm `enable_tls` is set, the InsightIDR event source accepts TLS, and the supplied `ca_file` (and `cert_file` / `key_file` for mutual TLS) are correct and readable on the collector host. For testing only, `insecure_skip_verify` bypasses verification.

**Symptom:** Events are larger than expected or contain a duplicated raw copy. **Solution:** Enable `drop_raw_copy` to remove the `log.record.original` field before the log is forwarded.

### Related Resources

* [Rapid7 InsightIDR documentation](https://docs.rapid7.com/insightidr/)
* [InsightIDR Collector](https://docs.rapid7.com/insightidr/the-insight-collector/)
* [Bindplane persistent queue configuration](https://docs.bindplane.com/configuration/bindplane-otel-collector/persistent-queue)

```
```


---
